Tianfeng TF-SFD-1E Production-Scale Freeze Dryer

Overview

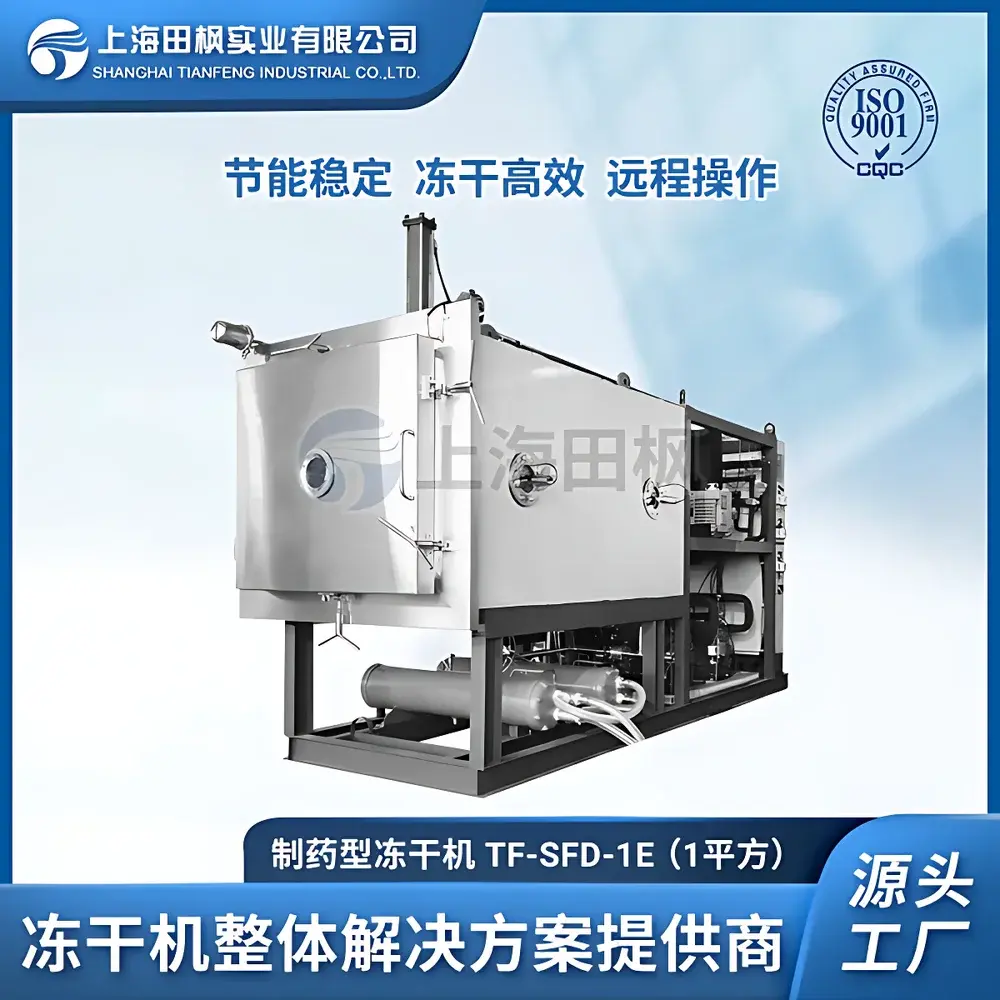

The Tianfeng TF-SFD-1E is a production-scale, shelf-type freeze dryer engineered for reliable, repeatable lyophilization of heat-sensitive pharmaceuticals, nutraceuticals, and food-grade formulations—including coffee extracts, meat-based sauces, and biopharmaceutical intermediates. It operates on the fundamental principle of sublimation: aqueous or solvent-based solutions are first frozen solid at controlled low temperatures; then, under high vacuum (≤1 Pa), ice transitions directly from solid to vapor without passing through the liquid phase. This preserves structural integrity, bioactivity, and reconstitution properties of active ingredients. The system integrates a −75 °C condenser capable of capturing up to 20 kg of water vapor within 24 hours, paired with five precisely temperature-controlled shelves (−55 °C to +80 °C) to ensure uniform heat transfer during primary and secondary drying stages. Its 1 m² total shelf area supports batch processing of ~3900 vials (Φ16 mm) or ~2000 vials (Φ22 mm), or up to 20 L of bulk solution—making it suitable for pilot-line validation, clinical trial material production, and small-volume commercial manufacturing.

Key Features

• Robust AISI 304 stainless steel chamber with fully polished, radius-rounded internal geometry to eliminate dead zones and support clean-in-place (CIP) compatibility.
• Five independently monitored shelves fabricated via uniform thermal stress-relief annealing—ensuring flatness tolerance <±0.1 mm across entire surface for consistent product contact and drying kinetics.
• Low-viscosity silicone oil as shelf heat-transfer medium, delivering stable thermal distribution even at cryogenic setpoints (−55 °C), critical for reproducible nucleation and drying front propagation.
• PLC-based control architecture with integrated HMI interface, enabling full automation of pre-freeze, primary drying, secondary drying, and end-point detection sequences.
• Comprehensive alarm logging, real-time parameter trending, and audit-trail-capable data storage compliant with FDA 21 CFR Part 11 requirements when configured with optional electronic signature modules.
• Pre-certified mechanical design aligned with ISO 9001:2015 quality management systems and cGMP Annex 1 principles for aseptic processing environments.

Sample Compatibility & Compliance

The TF-SFD-1E accommodates diverse sample formats: sterile vials (16–22 mm diameter), serum bottles, trays for bulk powders, and custom containers for viscous pastes such as meat-based sauces. Its chamber pressure stability (<0.025 Pa·m³/s leak rate) and precise shelf temperature control enable adherence to pharmacopeial standards including USP , EP 2.9.40, and JP 17. Validation packages—including Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ)—are available upon request. All wetted surfaces meet ASME BPE 2023 surface finish specifications (Ra ≤ 0.8 µm), and documentation supports regulatory submissions for FDA, EMA, and NMPA filings.

Software & Data Management

The embedded PLC controller records all critical process parameters—including shelf temperature, chamber pressure, condenser temperature, and time—at user-defined intervals (down to 1-second resolution). Data exports in CSV format for integration into LIMS or MES platforms. Optional software modules provide remote monitoring via Ethernet/Wi-Fi, automated report generation (PDF/Excel), and deviation alerting via email/SMS. Full electronic record retention—including operator login logs, parameter change history, and alarm events—meets ALCOA+ data integrity criteria. Audit trails are immutable and timestamped, satisfying GLP/GMP traceability mandates.

Applications

This system is routinely deployed in: (1) Pharmaceutical development labs for lyophilized injectables (e.g., monoclonal antibodies, peptides); (2) Food R&D facilities producing instant coffee powders with minimal aroma loss and high solubility retention; (3) Functional food manufacturers stabilizing probiotic cultures and enzyme blends; (4) Contract development and manufacturing organizations (CDMOs) performing tech transfers for Phase II/III clinical supply; and (5) Biotech startups scaling up from lab-scale freeze dryers to GMP-ready production units. Its −75 °C condenser and 15 kW refrigeration capacity make it especially effective for high-moisture-content matrices like meat emulsions and fruit purees.

FAQ

Is the TF-SFD-1E suitable for aseptic processing?
Yes—the chamber and door sealing system are designed to maintain Class A (ISO 5) air quality when installed in a Class B background environment, and optional HEPA filtration upgrades are available.
Can shelf temperature be ramped programmatically during drying?
Yes—up to 10 independent ramp/soak segments per shelf zone can be defined, supporting optimized drying profiles for complex formulations.
What validation support is provided?
Standard delivery includes Factory Acceptance Test (FAT) reports; IQ/OQ/PQ protocols and executed reports are offered as configurable service options.
Does the system support nitrogen backfilling?
Yes—integrated gas inlet ports and pressure regulation allow controlled inert gas introduction post-drying to enhance oxidation-sensitive product stability.
What is the typical lead time for delivery?
Standard configuration ships within 5–7 business days after order confirmation; custom configurations require 4–6 weeks depending on scope.
