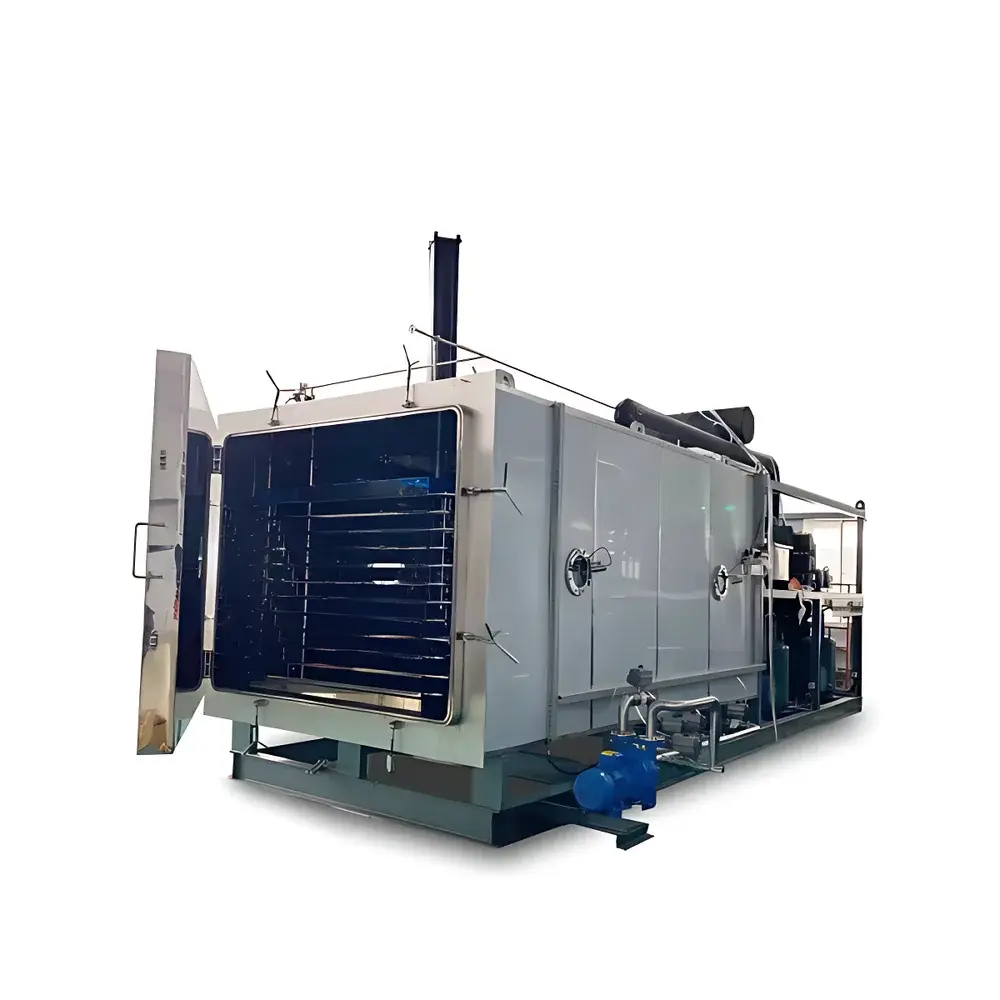

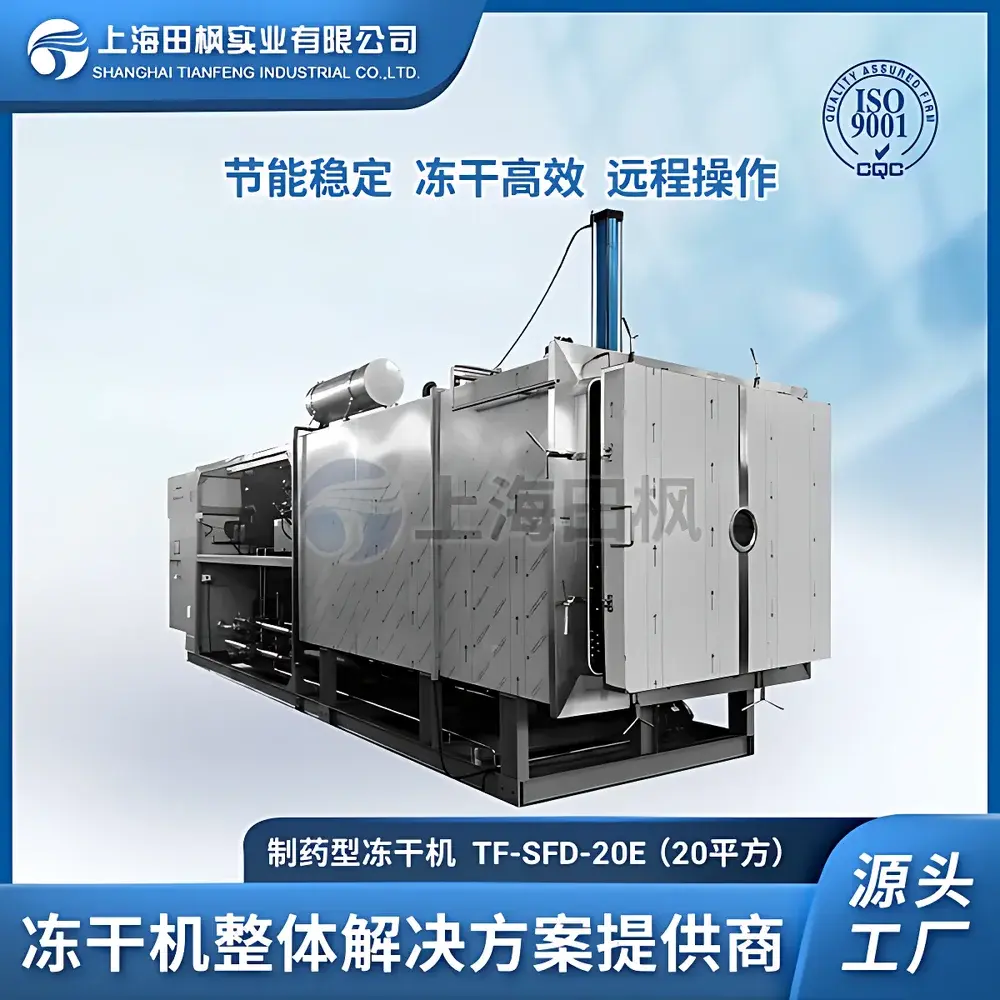

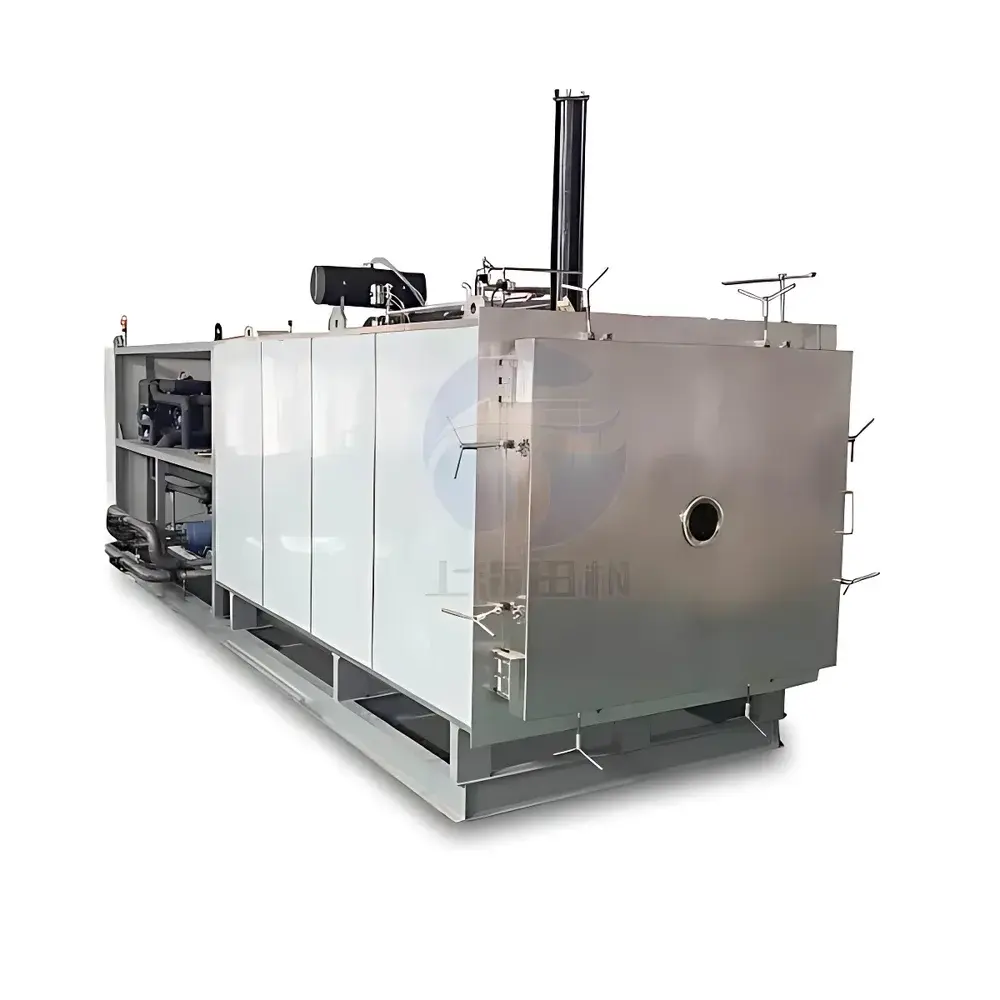

Tianfeng TF-SFD-20E Automatic Shelf-Type Freeze Dryer for Biopharmaceutical and Cosmetic Lyophilization

Overview

The Tianfeng TF-SFD-20E is a fully automated, shelf-type freeze dryer engineered for pilot-scale lyophilization of thermolabile biopharmaceuticals, sterile biologicals, and high-value cosmetic actives. It operates on the fundamental principles of sublimation under deep vacuum and controlled thermal cycling—removing water from frozen samples via direct phase transition from ice to vapor, thereby preserving structural integrity, bioactivity, and long-term stability. Designed to meet the stringent environmental and process control requirements of GMP-compliant facilities, this system integrates precision temperature regulation across heated shelves and cryogenic condensation in a single-pass refrigeration circuit. Its architecture supports both batch processing and process development workflows, serving as a critical bridge between laboratory feasibility studies and commercial manufacturing scale-up.

Key Features

• Hydraulic stoppering mechanism enabling in-chamber vial sealing under vacuum or inert gas (N₂/Ar), ensuring sterility maintenance and minimizing post-lyophilization moisture ingress.
• Dual-zone temperature control: independent shelf temperature range from −55 °C to +80 °C (±0.5 °C uniformity), and cold trap operating at ≤−70 °C for efficient vapor capture and minimal backstreaming.
• High-capacity condenser with 400 kg/24 h ice load capacity, optimized for extended primary drying cycles typical of protein-based formulations and collagen-rich cosmetic serums.
• Robust stainless-steel chamber (AISI 316L) and hydraulic press assembly compliant with ASME BPVC Section VIII Div. 1 design standards; full-welded construction with electropolished internal surfaces (Ra ≤ 0.4 µm).
• Integrated vacuum system featuring dual-stage oil-lubricated rotary vane pump and optional turbo-molecular backup, achieving and sustaining ≤2.7 Pa base pressure with real-time monitoring and automatic leak rate calculation.
• Modular PLC-based control system with redundant RTD sensors, configurable alarm thresholds, and hardware interlocks for door safety, overpressure, and condenser overload conditions.

Sample Compatibility & Compliance

The TF-SFD-20E accommodates standard ISO 8362–1 glass vials (2–50 mL), serum bottles, and custom trays up to 2 m² loading area. It supports lyophilization of monoclonal antibodies, plasmid DNA, live attenuated vaccines, probiotic suspensions, hyaluronic acid gels, and botanical extracts used in premium skincare formulations. The system is designed to comply with key regulatory frameworks including EU Annex 1 (sterile manufacturing), USP , ISO 20957 (freeze-drying equipment qualification), and China’s 2010 GMP Annex I for sterile products. Qualification documentation (IQ/OQ/PQ protocols) is provided, and the control system supports audit trails, electronic signatures, and data integrity per FDA 21 CFR Part 11 requirements when paired with validated software modules.

Software & Data Management

Equipped with Tianfeng’s proprietary LyoControl™ v4.2 SCADA interface, the system delivers real-time visualization of shelf temperature profiles, chamber pressure trends, condenser temperature, and product thermocouple readings (optional). All process data—including setpoints, deviations, alarms, and operator actions—are timestamped and stored in encrypted binary format with SHA-256 hashing. Export options include CSV, PDF batch records, and XML-compatible logs compatible with LIMS and MES integration. Optional validation packages include CSV-compliant electronic batch record (EBR) generation, deviation tracking, and trend analysis tools aligned with ICH Q5C and Q5E stability guidance.

Applications

• Biopharmaceutical process development: optimization of primary drying endpoints, annealing cycles, and collapse temperature mapping for mAb and ADC formulations.
• Cosmetic R&D: stabilization of peptides (e.g., acetyl hexapeptide-8), growth factors (EGF, FGF), and enzymatically active botanicals without denaturation or oxidation.
• Blood derivatives: lyophilization of coagulation factors, immunoglobulins, and platelet lysates under ISO 22870-defined quality management systems.
• Vaccine manufacturing: terminal sterilization-free preservation of viral vectors and mRNA-LNP complexes using controlled nucleation and low-temperature secondary drying.
• Academic and contract research organizations (CROs): reproducible lyophilization cycle transfer from lab-scale (e.g., Labconco FreeZone) to pilot scale, supporting DOE-driven formulation studies.

FAQ

What GMP documentation is supplied with the TF-SFD-20E?

Factory-supplied IQ/OQ protocols, calibration certificates for all critical sensors (RTDs, capacitance manometers), material traceability reports, and FAT/SAT checklists are included. PQ support is available upon request with qualified third-party verification partners.
Can the system be integrated into an existing cleanroom HVAC and compressed air network?

Yes—the unit features standardized utility interfaces: Class A cleanroom-rated HEPA-filtered compressed air inlet (ISO 8573-1:2010 Class 2:2:2), chilled water cooling loop (5–12 °C), and dedicated electrical supply (400 V, 3-phase, 50 Hz, 125 A). Integration engineering services are offered for seamless BMS linkage.
Is remote monitoring and cybersecurity compliance supported?

The embedded controller supports OPC UA over TLS 1.2 and includes role-based access control (RBAC), firmware signing, and periodic vulnerability scanning logs. Cybersecurity implementation follows NIST SP 800-82 guidelines for industrial control systems.
What maintenance intervals are recommended for long-term reliability?

Vacuum pump oil change every 2,000 operational hours; refrigerant charge verification annually; shelf surface inspection and recalibration every 6 months; full preventive maintenance (PM) service every 12 months by certified Tianfeng Field Service Engineers.
