Tianfeng TF-SFD-20E Industrial-Scale Pharmaceutical Freeze Dryer

Overview

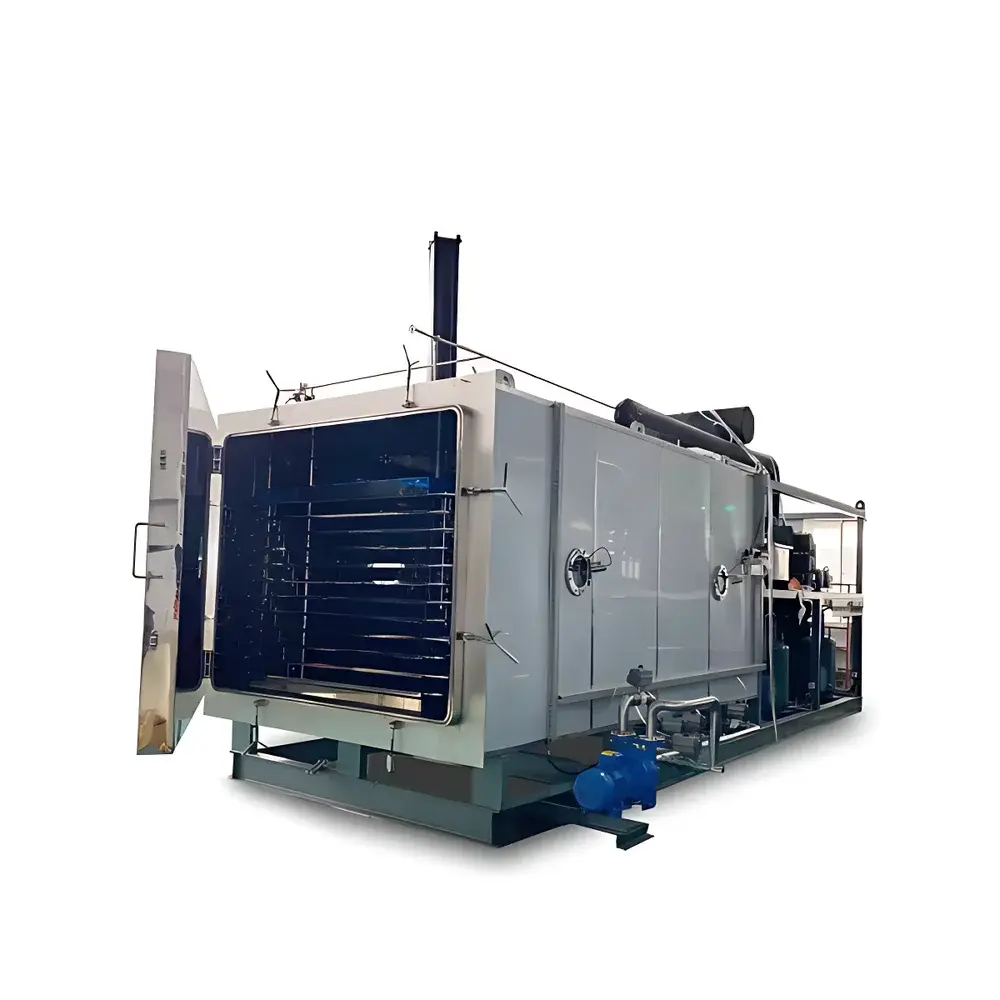

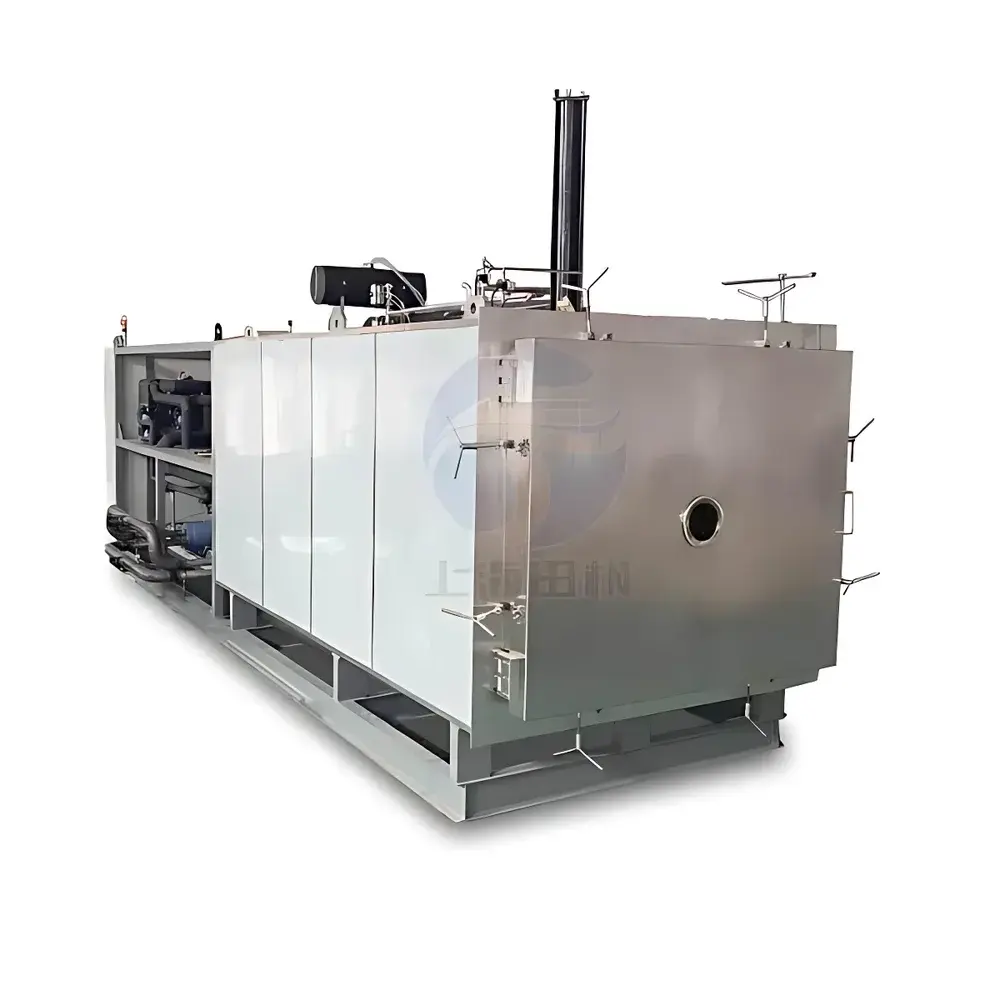

The Tianfeng TF-SFD-20E is an industrial-scale, shelf-type pharmaceutical freeze dryer engineered for reproducible, regulatory-compliant lyophilization of biologics, vaccines, antibiotics, and herbal extracts—including Cordyceps sinensis formulations—under cGMP conditions. It operates on the fundamental principle of sublimation: frozen water is removed directly from the solid phase to vapor under deep vacuum, preserving thermolabile compounds such as vitamins, enzymes, and polysaccharides without structural degradation. Designed for production environments requiring batch consistency and process scalability, the system integrates a high-capacity condenser (−75 °C), uniform heat transfer via low-viscosity silicone oil circulation across 12 precisely engineered shelves, and a robust stainless-steel chamber fabricated from AISI 304 with electropolished, zero-dead-leg internal geometry. Its 20.31 m² drying area supports up to 400 L of bulk solution or over 92,000 vials (Φ16 mm), making it suitable for pilot-to-commercial transition in contract manufacturing organizations (CMOs) and pharmaceutical R&D facilities.

Key Features

• Stainless-steel chamber (AISI 304) with fully rounded internal corners and polished welds—designed to eliminate microbial harborage points and support cleaning validation per FDA and EU GMP Annex 1 requirements.
• 12-shelf configuration (11 active + 1 reference), each manufactured via stress-relieved, uniform heating to ensure flatness tolerance ≤±0.15 mm/m—critical for consistent cake morphology and residual moisture distribution.
• Low-viscosity silicone oil thermal medium enables stable shelf temperature control from −55 °C to +70 °C, with uniformity ≤±1.0 °C across full shelf surface at extreme setpoints.
• PLC-based automation system with HMI interface stores unlimited lyophilization cycles; supports automated ramp/soak profiles, real-time parameter logging (shelf temp, chamber pressure, condenser temp), and alarm-triggered safety interlocks.
• High-efficiency condenser rated for 400 kg ice capture over 24 hours at −75 °C, equipped with dual-stage refrigeration and auto-defrost capability to maintain vacuum integrity during extended cycles.
• Ultimate vacuum performance of ≤2.7 Pa achieved via oil-lubricated dual-stage rotary vane pump and optimized chamber sealing—validated against ISO 20517 for leak rate (≤0.1 Pa·m³/s).

Sample Compatibility & Compliance

The TF-SFD-20E accommodates diverse sample formats: bulk solutions (up to 400 L), standard pharmaceutical vials (Φ16 mm and Φ22 mm), serum bottles, and custom trays. Its design conforms to key international standards governing sterile processing equipment, including ISO 13485 (medical devices), ISO 9001:2015 (quality management), and EU GMP Annex 1 (manufacture of sterile products). The chamber’s surface finish (Ra ≤0.4 µm), drainable slope, and absence of crevices facilitate effective CIP/SIP validation. Documentation packages—including Design Qualification (DQ), Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ)—are available upon request to support regulatory submissions (FDA 21 CFR Part 211, ICH Q5C, WHO TRS 986).

Software & Data Management

Control logic resides in a CE-certified PLC platform with redundant data storage on embedded SSD and optional network backup. All process parameters—including shelf temperature, chamber pressure, condenser temperature, and time—are timestamped and recorded at user-defined intervals (1–60 s). Data export is supported in CSV and PDF formats compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Audit trail functionality meets FDA 21 CFR Part 11 requirements for electronic records and signatures, enabling secure user role assignment (operator, supervisor, administrator), password-protected access, and immutable event logging. Optional integration with MES/SCADA systems via Modbus TCP or OPC UA is available for enterprise-level traceability.

Applications

• Lyophilization of heat-sensitive pharmaceuticals: monoclonal antibodies, recombinant proteins, live attenuated vaccines, and mRNA-LNP formulations.
• Stabilization of traditional Chinese medicine (TCM) extracts—including Cordyceps, Ganoderma, and Notoginseng—with retention of bioactive polysaccharides and nucleosides.
• Preservation of diagnostic reagents, enzyme conjugates, and cell culture media components requiring long-term ambient stability.
• Process development and scale-up studies in CMC (Chemistry, Manufacturing, and Controls) workflows aligned with ICH Q5A–Q5E guidelines.
• Contract manufacturing of clinical trial materials (Phase I–III) under cGMP-audited conditions.

FAQ

Is the TF-SFD-20E compliant with FDA 21 CFR Part 11?
Yes—the system includes full electronic signature capability, audit trail logging, and role-based access control, validated per Part 11 Annex A guidance.

Can the system be customized for non-standard vial sizes or tray configurations?
Yes—Tianfeng offers mechanical and control-level customization, including shelf drilling patterns, tray support rails, and modified door interfaces, subject to engineering review.

What validation documentation is provided with the system?
Standard delivery includes FAT (Factory Acceptance Test) report; IQ/OQ protocols and executed reports are available as optional deliverables.

Does the system support steam-in-place (SIP) sterilization?
The chamber and piping are designed for SIP at 121 °C/20 min; full SIP qualification requires site-specific installation and sensor mapping.

What is the expected mean time between failures (MTBF) for critical subsystems?
Based on field data from >120 installed units, the refrigeration system MTBF exceeds 12,000 hours; vacuum pump MTBF is ≥8,000 hours with scheduled maintenance.
