Tianfeng TF-SFD-40E Industrial-Scale Freeze Dryer for Pharmaceutical and Food Applications

Overview

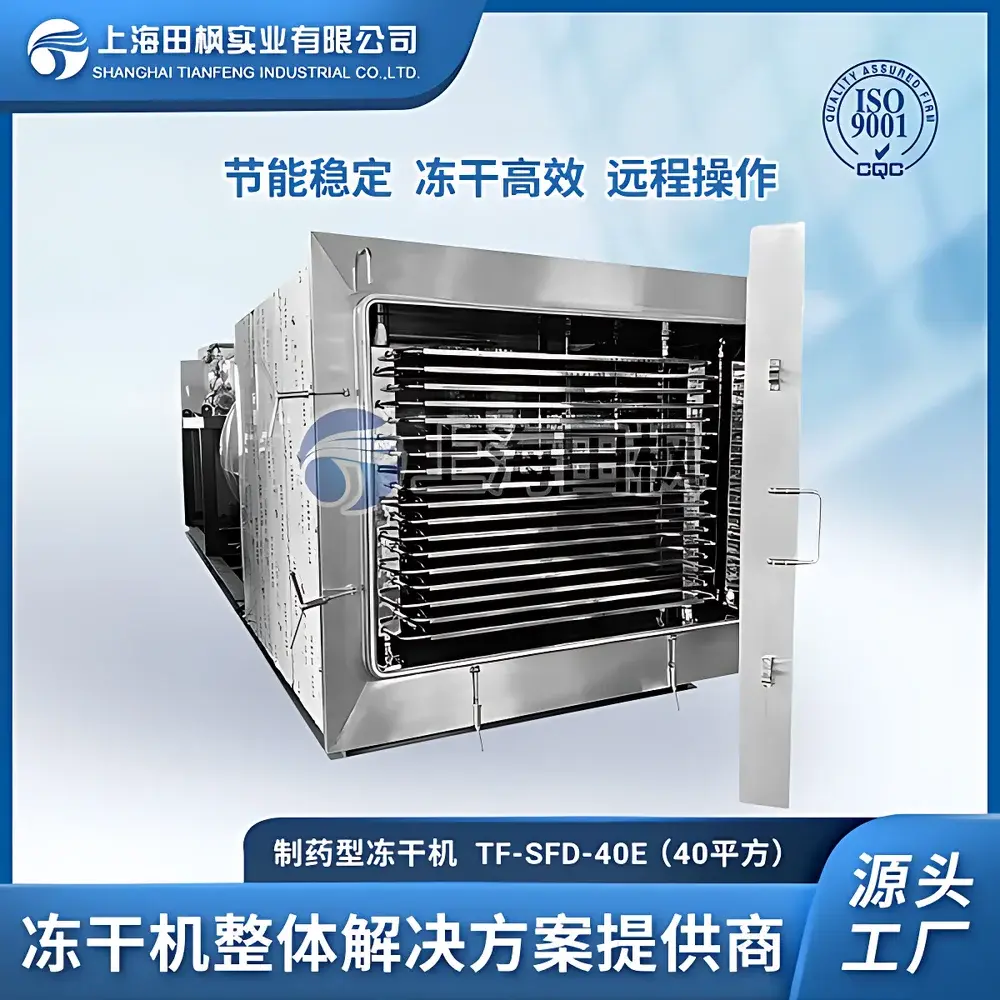

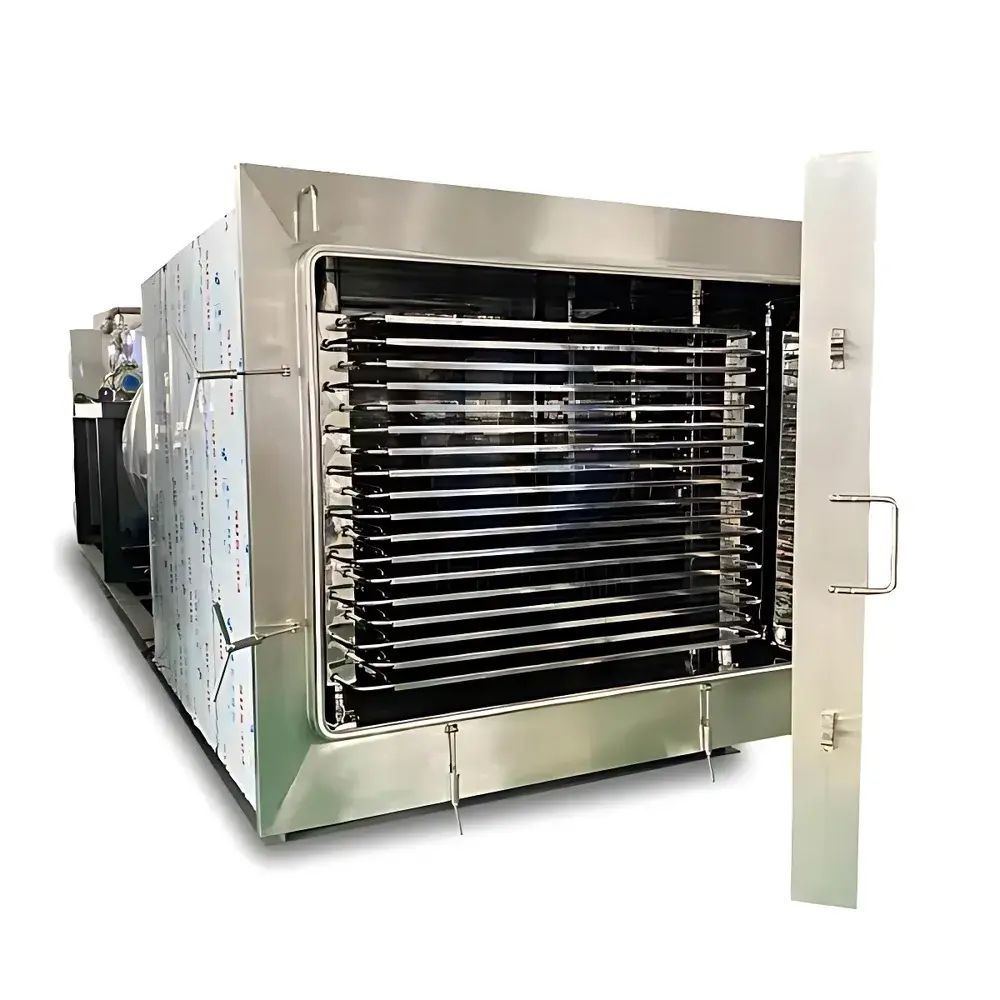

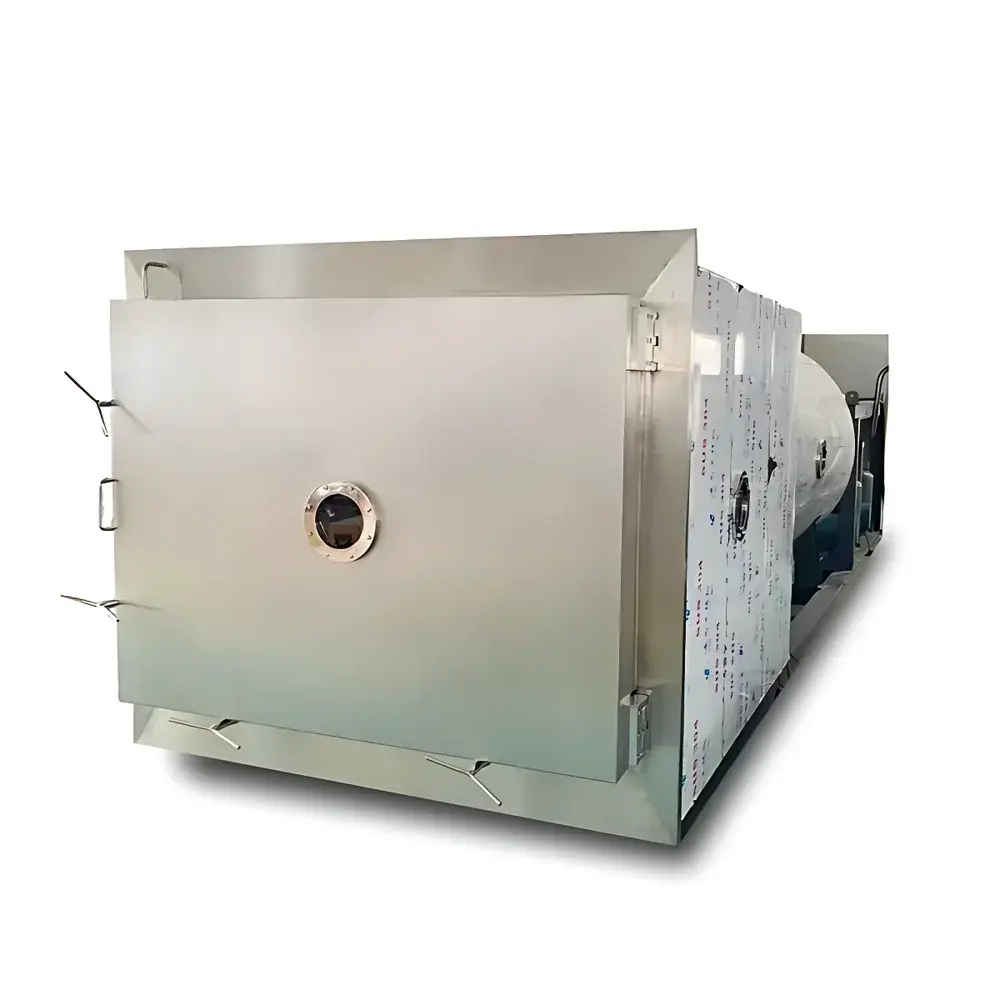

The Tianfeng TF-SFD-40E is a fully integrated, production-grade freeze dryer engineered for pharmaceutical, biotechnology, and high-value food applications—including the lyophilization of instant rice noodle soups, functional fruit/vegetable powders, and thermolabile biological formulations. Based on primary drying via sublimation under deep vacuum and secondary drying via desorption at elevated shelf temperatures, the system operates within a rigorously controlled thermal-vacuum environment. Its 40.5 m² total shelf area enables batch processing of up to 182,200 Φ16 mm vials or 800 L of bulk solution—making it suitable for pilot-to-commercial scale transition. The chamber’s AISI 304 stainless steel construction, electropolished internal surfaces, zero-dead-leg geometry, and fully welded, passivated joints meet fundamental requirements for cGMP-compliant manufacturing environments. All internal welds are ground flush and mirror-polished to minimize microbial retention and facilitate clean-in-place (CIP) validation.

Key Features

• Robust condenser system with −75 °C operating temperature and 750 kg/24 h ice capture capacity, ensuring stable vacuum maintenance during extended primary drying cycles.
• 16-shelf configuration (15 active + 1 bottom shelf), each precisely machined from uniformly heat-treated stainless steel to guarantee ≤±0.5 °C temperature uniformity across the entire surface at all setpoints (−55 °C to +70 °C).
• Circulating low-viscosity silicone oil as thermal transfer medium—optimized for consistent heat distribution even at cryogenic shelf temperatures.
• PLC-based control architecture with redundant safety interlocks, real-time data logging, alarm history, and recipe management; compliant with FDA 21 CFR Part 11 when paired with validated electronic signature modules.
• Full qualification support: IQ/OQ/PQ documentation packages available upon request; system designed to accommodate GAMP 5-aligned validation protocols.
• Modular electrical cabinet with CE-marked components, IP54-rated enclosures, and segregated power circuits for heating, refrigeration, and vacuum subsystems.

Sample Compatibility & Compliance

The TF-SFD-40E accommodates a broad spectrum of sample formats: sterile vials (Φ16–Φ22 mm), aluminum trays, stainless steel pans, and custom molds for solid-dose or ready-to-eat food matrices such as freeze-dried noodle soups. Its design adheres to ISO 22000 (food safety), ISO 13485 (medical devices), and ICH Q5C stability guidelines for biopharmaceuticals. Chamber pressure control maintains ≤2.7 Pa ultimate vacuum—sufficient for residual moisture reduction to ≤1.0% w/w in final products. The system’s leak rate (<0.1 Pa·m³/s) satisfies ASTM F2096 helium leak testing thresholds for sterile barrier integrity verification. All wetted parts comply with USP Class VI biocompatibility standards.

Software & Data Management

The embedded HMI provides intuitive access to process parameters, real-time trend graphs (shelf temp, chamber pressure, condenser temp, product temp via optional RTDs), and alarm event logs. Data export is supported via USB and Ethernet (MODBUS TCP); CSV-formatted records include timestamped values for every 10-second interval. Audit trail functionality captures user logins, parameter modifications, and cycle start/stop events—fully traceable for GLP/GMP audits. Optional SCADA integration enables centralized monitoring across multiple freeze dryers in a manufacturing suite. Raw data files are stored in non-proprietary formats to ensure long-term archival accessibility without vendor lock-in.

Applications

• Pharmaceutical: Lyophilization of monoclonal antibodies, vaccines, and enzyme-based therapeutics requiring strict residual moisture control and structural integrity preservation.
• Food Technology: Production of shelf-stable, rehydration-optimized instant meals—including freeze-dried rice noodle soups where texture, flavor volatiles, and starch gelatinization kinetics must be preserved.
• Agri-Biotech: Stabilization of probiotic cultures, botanical extracts, and functional vegetable powders (e.g., kale, spinach, beetroot) without thermal degradation.
• Diagnostic Reagents: Formulation of lyophilized ELISA kits and lateral flow assay components with calibrated reconstitution profiles.
• Contract Manufacturing: Designed for seamless integration into CMO/CDO facilities operating under dual regulatory frameworks (e.g., EU Annex 1 and US FDA 21 CFR Part 211).

FAQ

What regulatory standards does the TF-SFD-40E comply with?
The system conforms to ISO 9001:2015 quality management requirements and is engineered to meet cGMP Annex 1 (EU) and FDA 21 CFR Part 211 expectations for equipment qualification and operational control.
Can the system be qualified for sterile manufacturing?
Yes—full 3Q (IQ/OQ/PQ) documentation packages are available; chamber sterilization via VHP (vaporized hydrogen peroxide) is supported with optional integrated ports and material compatibility verification.
Is remote monitoring and control supported?
Standard Ethernet connectivity enables secure remote supervision via industrial VPN; full remote operation requires additional cybersecurity hardening per ISA/IEC 62443 Level 2.
What maintenance intervals are recommended for production use?
Daily visual inspection of oil levels and condenser frost accumulation; quarterly calibration of pressure transducers and PT100 sensors; annual full refrigeration loop performance test and vacuum pump oil replacement.
Does Tianfeng provide operator training and SOP development support?
Yes—on-site commissioning includes 3-day hands-on training covering cycle development, alarm response, cleaning procedures, and basic troubleshooting; customizable SOP templates aligned with client’s quality system are included.
