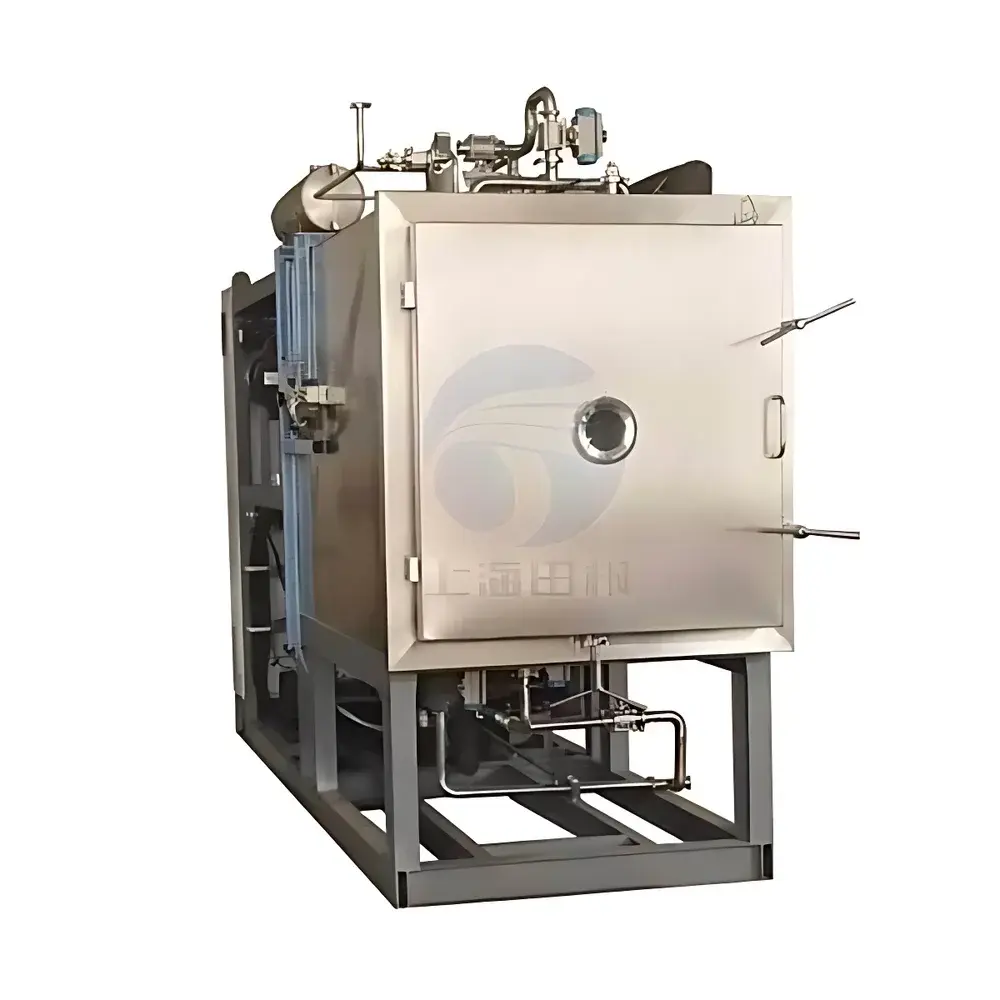

Tianfeng TF-SFD-5E Pharmaceutical-Grade Production Freeze Dryer

Overview

The Tianfeng TF-SFD-5E is a pharmaceutical-grade production freeze dryer engineered for robust, repeatable lyophilization of thermolabile biologics, herbal extracts, sterile powders, and functional food matrices—including flower-based teas and botanical concentrates. It operates on the fundamental principles of sublimation under deep vacuum: frozen product is subjected to controlled heat input while maintaining chamber pressure below the triple point of water (≤2.7 Pa), enabling ice to transition directly from solid to vapor without passing through the liquid phase. This process preserves native protein conformation, enzymatic activity, volatile phytochemicals (e.g., terpenes, flavonoids), and structural porosity—critical for rapid reconstitution and long-term stability of dried APIs, nutraceuticals, and traditional Chinese medicine (TCM) preparations. Designed for GMP-aligned manufacturing environments, the TF-SFD-5E integrates a −75 °C condenser capable of capturing 105 kg of ice over 24 hours, supporting batch processing across its 5.5 m² shelf area with precise thermal uniformity (<±1.5 °C across all shelves) ensured by low-viscosity silicone oil circulation and stress-relieved AISI 304 shelf fabrication.

Key Features

• Pharmaceutical-compliant chamber construction using electropolished AISI 304 stainless steel with fully radiused internal corners and seam-welded, ground-and-polished joints to eliminate microbial harborage points and facilitate CIP/SIP validation.
• 6-shelf configuration (5 active + 1 bottom shelf) with 100 mm spacing, each measuring 915 × 1215 mm, enabling flexible loading of vials (up to 24,800 × Φ16 mm or 12,700 × Φ22 mm) or bulk trays holding up to 105 L of solution.
• Shelf temperature control range from −55 °C to +70 °C with ramp/soak programming, supported by high-efficiency electric heating (10 kW total) and optimized silicone oil thermal transfer for minimal gradient deviation.
• High-capacity dual-stage refrigeration system achieving stable condenser operation at −75 °C, paired with a vacuum system delivering ≤2.7 Pa ultimate pressure and verified leak rate of ≤0.1 Pa·m³/s per ISO 27827.
• PLC-based automation platform compliant with IEC 61131-3 standards, featuring recipe-driven cycle execution, real-time parameter logging, password-protected user levels, and audit trail functionality meeting FDA 21 CFR Part 11 requirements for electronic records.
• Full compliance with cGMP design principles per EU Annex 1 and USP , including documentation support for Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols.

Sample Compatibility & Compliance

The TF-SFD-5E accommodates diverse sample formats: sterile glass vials, aluminum-sealed trays, and open pans for loose botanical material—making it suitable for R&D scale-up and commercial production of herbal infusions, probiotic powders, peptide formulations, and vaccine intermediates. Its chamber geometry and shelf flatness (≤0.15 mm deviation per shelf) ensure uniform drying front progression and minimize collapse risk in amorphous matrices. All wetted surfaces meet ASME BPE-2021 surface finish specifications (Ra ≤ 0.4 µm), and the system is validated for steam-in-place (SIP) cycles up to 121 °C. Regulatory alignment includes adherence to ISO 13485 (for medical device-related drying), ICH Q5C (stability of biotechnological products), and Chinese Pharmacopoeia General Chapter 0942 (freeze-drying of TCM preparations).

Software & Data Management

Equipped with a validated SCADA interface running on an industrial-grade HMI, the system records time-stamped data for shelf temperature, chamber pressure, condenser temperature, and vacuum pump status at configurable intervals (minimum 1-second resolution). Raw data files are stored in encrypted CSV format with SHA-256 checksums and automatically backed up to external NAS or network drives. Electronic signatures, role-based access control, and immutable audit trails satisfy 21 CFR Part 11 Subpart B requirements. Optional integration with LIMS or MES platforms is supported via OPC UA or Modbus TCP protocols. Historical batches are retrievable via unique batch ID, with full traceability from raw material lot to final dried output.

Applications

• Lyophilization of heat-sensitive active pharmaceutical ingredients (APIs), including monoclonal antibodies, mRNA-lipid nanoparticles, and enzyme inhibitors.
• Stabilization of traditional Chinese medicinal herbs (e.g., chrysanthemum, rose, goji berry) into instant soluble powders retaining volatile oils and anthocyanins.
• Production of clinical-grade probiotic and prebiotic blends requiring preservation of live bacterial viability and metabolic activity.
• Drying of diagnostic reagents, calibration standards, and lyophilized controls used in IVD manufacturing.
• Scale-down modeling for process development: identical thermal and vacuum dynamics as larger commercial units enable seamless tech transfer from lab to plant.

FAQ

Is the TF-SFD-5E compliant with international GMP standards?
Yes—it is designed and documented per EU Annex 1, WHO TRS 986, and PIC/S PI 007 guidelines, with full cGMP-compliant construction, material certifications, and qualification documentation packages available upon request.

Can the system be qualified for regulated pharmaceutical manufacturing?
Absolutely. Tianfeng provides IQ/OQ/PQ protocol templates, executed reports, and 3Q-ready engineering files—including sensor calibration certificates, FAT/SAT summaries, and risk assessments per ISO 14971.

What level of after-sales technical support is offered?
Comprehensive global support includes on-site installation supervision, operator and maintenance technician training, annual preventive maintenance contracts, and remote diagnostics via secure VPN. Hardware warranty covers 12 months; extended service plans include spare parts inventory management and 24/7 critical issue escalation.

Is customization available for specific regulatory or process requirements?
Yes—custom configurations include SIP/CIP interfaces, nitrogen backfill modules, integrated PAT sensors (e.g., tunable diode laser spectroscopy for moisture monitoring), and enhanced cybersecurity hardening for FDA-regulated facilities.
