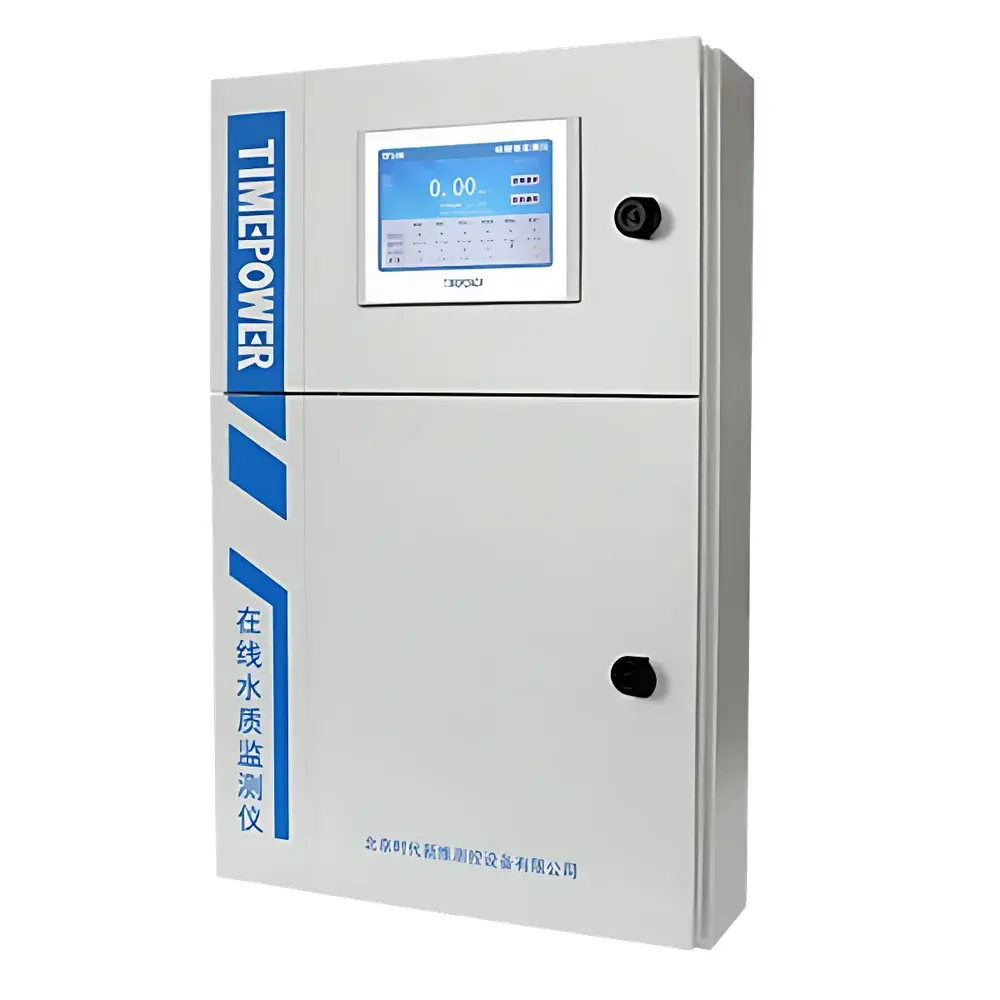

Timepower TP106 Online Silicate Analyzer

Overview

The Timepower TP106 Online Silicate Analyzer is a dedicated photometric instrument engineered for continuous, real-time quantification of soluble silicate (as SiO₂) in aqueous process streams. It operates on the validated silicon-molybdenum blue colorimetric method—standardized under GB/T 12149–2017 (“Determination of Silicon in Industrial Circulating Cooling Water and Boiler Feed Water”)—and aligns with internationally recognized principles of spectrophotometric analysis based on the Lambert–Beer Law. In acidic medium (pH 1.1–1.3), orthosilicic acid reacts stoichiometrically with ammonium molybdate to form a yellow heteropolyacid complex; subsequent reduction by 1-amino-2-naphthol-4-sulfonic acid (1-2-4 acid) yields an intensely colored blue chromophore (silicomolybdenum blue), whose absorbance at ~815 nm is linearly proportional to silicate concentration. Designed for unattended operation in demanding industrial environments, the TP106 delivers high reproducibility and long-term stability without requiring operator intervention between calibration cycles.

Key Features

• Modular multi-channel architecture: Configurable for 1–6 independent measurement channels, enabling cost-effective monitoring of multiple sample points from a single analyzer cabinet.
• High-precision fluid handling: Utilizes imported solenoid valves with rated service life exceeding 500,000 cycles; ensures repeatable reagent dosing, precise sample aspiration, and minimal carryover.
• Integrated 7.0-inch color TFT touchscreen HMI: Supports bilingual interface (English/Chinese), real-time trend visualization per channel, and intuitive navigation for calibration, maintenance, and diagnostics.
• Optical system with monochromatic cold-light source: LED-based illumination provides stable spectral output (>10,000 hours MTBF), eliminating thermal drift and lamp replacement downtime.
• Robust mechanical design: Panel-mount (cutout installation) configuration with IP54-rated enclosure; dimensions 460 × 280 × 720 mm (W × D × H); weight 22 kg; compatible with standard 19″ rack integration via optional bracket kit.
• Embedded data retention: Onboard non-volatile memory stores 30 days of timestamped measurement records (including raw absorbance, calculated concentration, alarm status, and reagent usage logs) with automatic overwrite policy.

Sample Compatibility & Compliance

The TP106 is optimized for low-turbidity, particle-free water samples meeting the following physical specifications: suspended solids < 5 µm, absence of colloidal silica or polymeric siloxanes, temperature range 5–50 °C, and flow rate 10–40 L/h. It complies with national metrological verification regulations for online water quality analyzers (JJG 823–2013) and supports traceability to NIM-certified silicate reference materials. While not certified to ISO/IEC 17025, its methodology is fully compatible with GLP-aligned laboratory workflows and integrates seamlessly into GMP-compliant utilities monitoring systems when paired with audit-trail-capable DCS or SCADA platforms.

Software & Data Management

The embedded firmware supports configurable analog outputs (isolated 0–20 mA / 4–20 mA / 0–10 mA per channel), relay-based discrete alarms (low/high limit, flow failure, reagent depletion), and Modbus RTU over RS-485 for PLC interfacing. All output signals are software-scaled and independently assignable. Calibration history—including date/time, standard concentration, measured response, and operator ID—is logged with tamper-resistant timestamps. The system does not incorporate FDA 21 CFR Part 11 electronic signature functionality but maintains full audit trail capability for internal QA review and third-party inspection readiness.

Applications

Primary deployment domains include high-purity water circuits in fossil-fueled and nuclear power plants (e.g., condensate polishing, boiler feedwater, steam cycle chemistry control); effluent monitoring in semiconductor fabrication ultrapure water (UPW) loops; process water surveillance in pharmaceutical clean steam generation; and regulatory compliance reporting for municipal drinking water treatment facilities subject to EPA Method 370.1 or ISO 10523-derived silicate limits. Secondary use cases extend to catalyst cooling water in petrochemical crackers and rinse water quality assurance in food-grade CIP systems.

FAQ

What is the minimum detectable silicate concentration?
The lower detection limit is 0.1 µg/L (at 0–200.0 µg/L range), determined per IUPAC definitions using signal-to-noise ratio ≥3.
Can the TP106 operate in hazardous area environments?
No—the analyzer is rated for general-purpose indoor use only (ambient Class II, Division 2 not supported); explosion-proof enclosures require third-party retrofitting.
How often must calibration standards be replaced?
Certified silicate standard solutions (10 µg/mL) should be refrigerated and used within 6 months of opening; unopened vials retain validity for 12 months from manufacture date.
Is remote firmware update supported?
Firmware upgrades require local USB connection and authenticated access via service mode; over-the-air updates are not implemented.
What maintenance intervals are recommended?
Daily visual inspection of tubing and reagent levels; monthly cleaning of optical cuvette and flow cell; quarterly validation against traceable reference material; annual full system verification including valve timing and photometer linearity.
