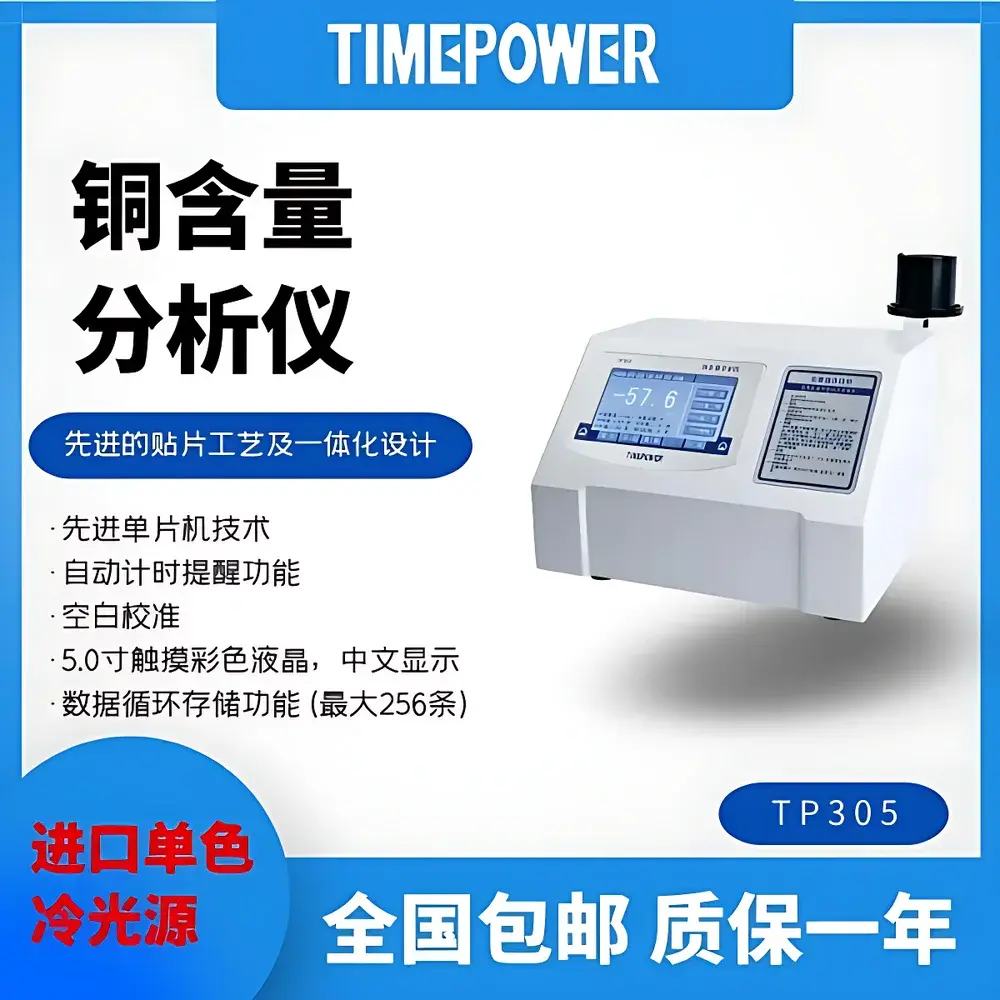

TimePower TP305 Copper Ion Analyzer

Overview

The TimePower TP305 Copper Ion Analyzer is a dedicated benchtop spectrophotometric instrument engineered for the quantitative determination of dissolved copper (Cu²⁺) ions in low-conductivity aqueous matrices. It operates on the principle of visible-light absorbance photometry, utilizing the highly selective color-forming reaction between Cu²⁺ and dual-cyclohexanone oxalyldihydrazone (DCOD) reagent under controlled pH conditions. This method generates a stable magenta-colored complex with peak absorbance near 580 nm—measured precisely using a temperature-stabilized, long-life monochromatic cold LED light source and matched silicon photodetector. The TP305 is specifically calibrated and validated for routine monitoring in high-purity water systems where copper concentrations range from 0 to 200 µg/L (ppb), with typical detection capability down to 2 µg/L under optimized laboratory conditions. Its design prioritizes operational robustness, signal stability, and analytical reproducibility in power plant chemistry laboratories, thermal energy facilities, and industrial water treatment QC environments.

Key Features

• 5.0-inch high-resolution color TFT touchscreen with intuitive Chinese-language interface—no external PC required for daily operation.
• Integrated microcontroller architecture based on advanced single-chip embedded system, delivering low-power consumption (<3 W standby), high noise immunity, and consistent thermal performance.
• Imported monochromatic cold LED light source ensures spectral stability, minimal heat generation, and extended operational lifetime (>50,000 hours), eliminating lamp replacement cycles common in tungsten-halogen systems.
• Automatic blank calibration function compensates for cuvette optical path variation, electronic zero drift, and background chromogenic interference—critical for maintaining accuracy across multi-shift operations.
• Onboard real-time timing control with audible/visual alert supports standardized reaction incubation periods (e.g., 5 min ± 10 s per GB/T 12149–2019), minimizing operator-dependent variability.
• Embedded non-volatile memory stores up to 256 sequential measurement records—including sample ID, date/time stamp, absorbance value, concentration result, and calibration status—with automatic FIFO overwrite upon capacity saturation.

Sample Compatibility & Compliance

The TP305 is validated for direct analysis of clarified, particle-free aqueous samples with total dissolved solids (TDS) < 50 mg/L and conductivity < 5 µS/cm. Compatible matrices include boiler feedwater, condensate, turbine steam condensate, generator stator cooling water, drum boiler water, and natural surface waters following appropriate filtration (0.45 µm membrane) and acidification (if required per method). It conforms to the analytical methodology specified in GB/T 12149–2019 “Determination of Copper in Water Used in Thermal Power Plants”, and its optical and electronic architecture supports alignment with ISO/IEC 17025:2017 general requirements for competence of testing and calibration laboratories. While not FDA 21 CFR Part 11–compliant out-of-the-box, audit-ready data export (via USB) enables traceable recordkeeping in GLP/GMP-aligned QA workflows when paired with documented SOPs.

Software & Data Management

The TP305 operates autonomously via firmware-resident application logic—no host computer or proprietary software installation is required. All calibration curves, method parameters, and user-defined units are stored in protected EEPROM. Measurement data can be exported in CSV format via standard USB-A port to external storage devices for integration into LIMS or Excel-based trending tools. Timestamped records include instrument serial number, firmware version, calibration date, and operator ID field (manually entered). No cloud connectivity or remote access functionality is implemented, preserving data sovereignty and network security in regulated utility environments.

Applications

• Continuous copper corrosion monitoring in ultra-high-purity water circuits of fossil-fueled and nuclear power plants.
• Verification of copper removal efficiency in mixed-bed ion exchange polishing units and electrodeionization (EDI) systems.
• Commissioning and periodic validation of condensate polisher performance per IAPWS guidelines.
• Field-deployable verification of copper leaching from brass/copper-alloy piping in closed-loop cooling systems.
• Environmental compliance screening of copper discharge limits in effluent streams per local regulatory thresholds (e.g., EPA 200.7, ISO 8288).

FAQ

What is the detection range and typical LOD for the TP305?
The instrument is factory-calibrated for 0–200 µg/L Cu²⁺; method detection limit (MDL) is approximately 2 µg/L under controlled lab conditions per GB/T 27404–2008 validation protocol.
Does the TP305 require annual recalibration by the manufacturer?
No—user-performed blank and standard calibrations using certified reference materials (e.g., NIST SRM 3198) are sufficient for routine use; full metrological verification is recommended every 12 months or after major component service.
Can the TP305 analyze seawater or high-salinity samples?
No—matrix interference from chloride, bromide, and other transition metals precludes direct use; samples must be pre-treated via chelation separation or dilution to meet TDS and ionic strength specifications.
Is reagent kit availability guaranteed for long-term operation?
Yes—TimePower supplies OEM-certified DCOD reagent kits (Cat. No. TP-RCU-01) with documented shelf life (24 months unopened, 6 months after reconstitution), lot-specific calibration certificates, and SDS documentation.
How is traceability maintained for audit purposes?
Each measurement record contains immutable metadata (date/time, instrument ID, calibration flag); USB-exported CSV files retain full formatting and may be archived alongside paper-based logbooks per internal QA procedures.
