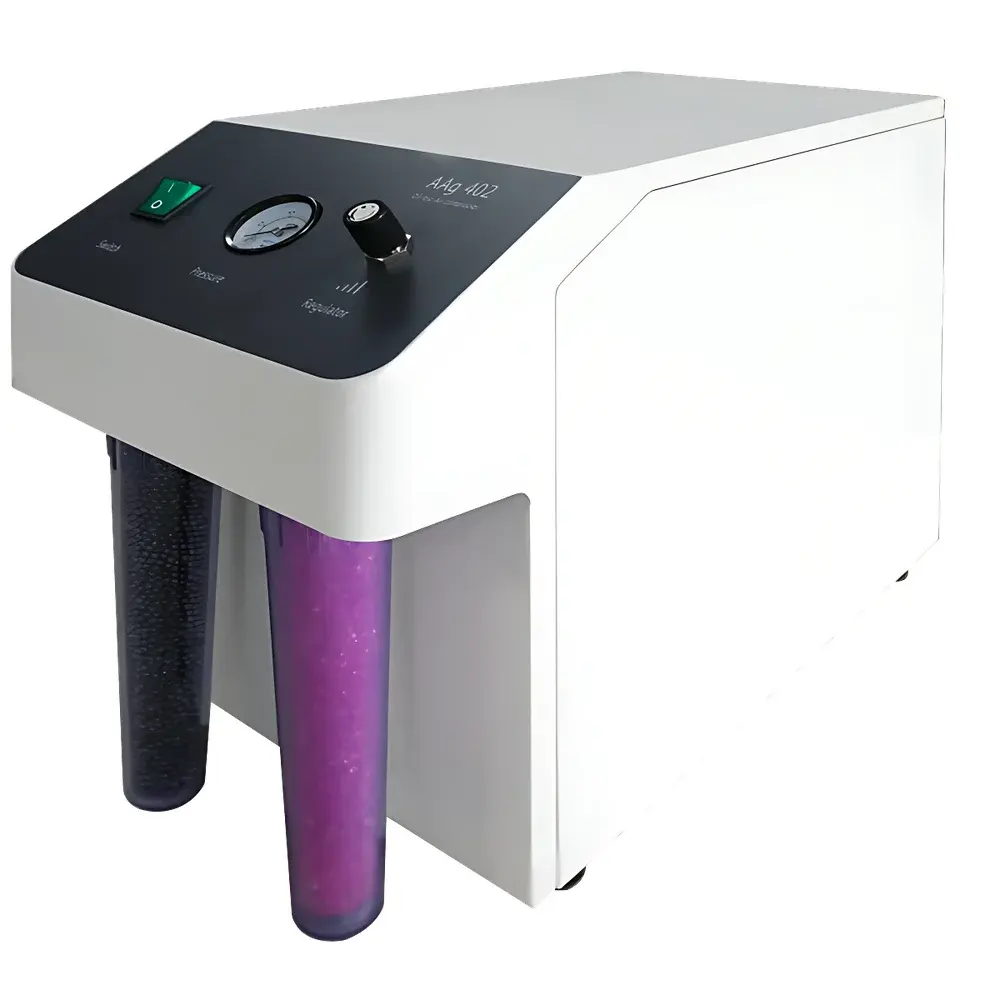

Tongzhou Weipu AAg Series Oil-Free Silent Air Generator

Overview

The Tongzhou Weipu AAg Series Oil-Free Silent Air Generator is an engineered laboratory-grade air supply system designed for continuous, reliable delivery of clean, dry, and oil-free compressed air. It employs a rocker-arm piston compression mechanism—distinct from conventional rotary vane or refrigerated scroll compressors—to eliminate all risk of hydrocarbon contamination at the source. This fundamental design choice ensures true Class 0 oil-free air per ISO 8573-1:2010, making it fully compatible with sensitive analytical instrumentation where trace oil vapor could compromise detector performance, column integrity, or baseline stability. The unit integrates three-stage purification: a coalescing pre-filter removes particulates and bulk moisture; a desiccant dryer achieves dew points ≤ −40 °C (at 1 bar), ensuring consistent low-humidity output; and a final sub-micron particulate filter (≤ 0.01 µm) guarantees particulate-free airflow. Output pressure is actively stabilized via a precision pressure regulator and feedback-controlled solenoid valve, maintaining dynamic pressure deviation within ±0.003 MPa (±0.3 psi) under variable load conditions—a critical specification for GC FID/FPD detectors and ELSD systems requiring strict pneumatic consistency.

Key Features

• True oil-free rocker-arm piston compressor: No lubrication required; zero risk of oil carryover into gas stream—validated for GC-MS auxiliary air, AAS nebulizer gas, and nitrogen generator feed air.
• Three-stage integrated air purification: Coalescing filter + desiccant dryer + ultrafine particulate filter—meets ASTM D6300 and ISO 8573-1 Class 2:2:1 for solid particles, water, and oil content.
• Intelligent pressure management: Digital pressure sensor + solid-state pressure switch replaces electromechanical timers; enables soft-start/stop cycling without current surge or thermal stress on motor windings.
• Low-noise operation: Acoustic enclosure and vibration-damped mounting reduce operational noise to ≤ 48 dB(A) at 1 m—suitable for shared lab environments and ISO 17025-accredited facilities.

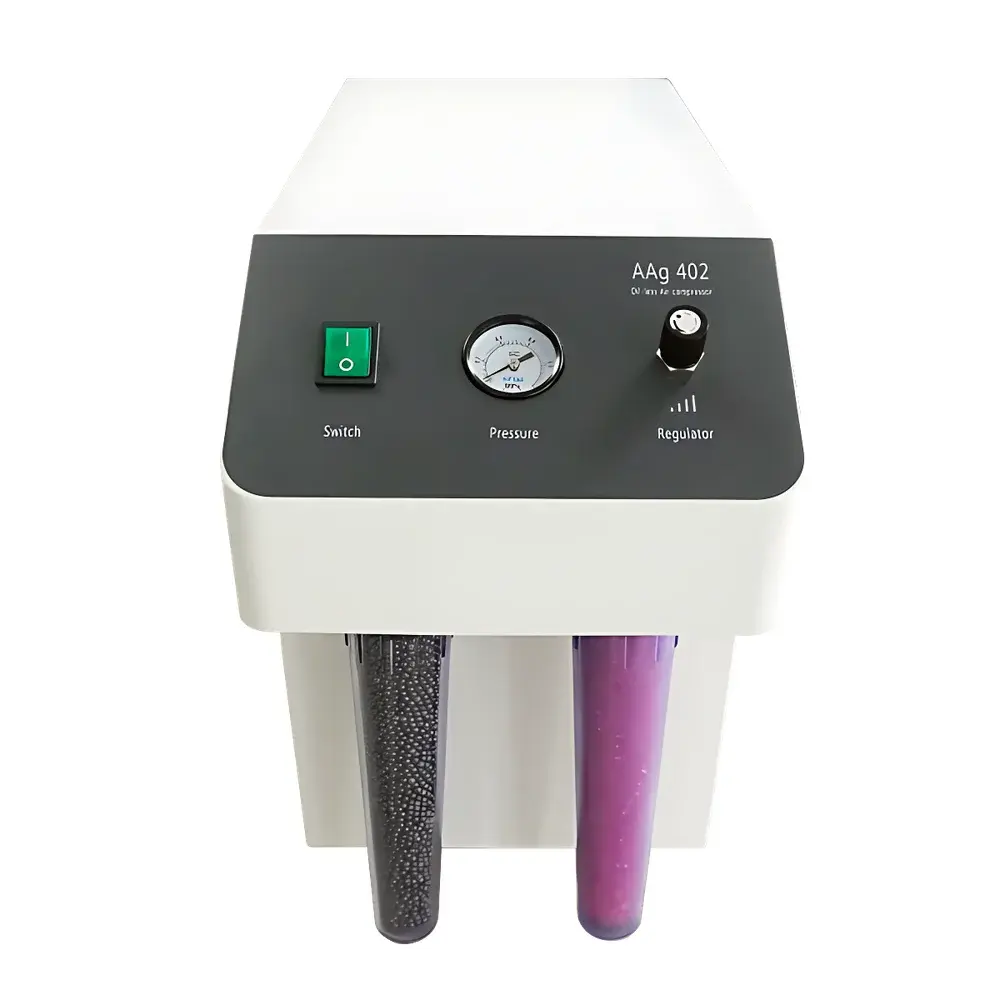

• Compact footprint & service-friendly design: Front-accessible dual-stage filter housing with visual moisture indicator; modular desiccant cartridge allows field replacement without system depressurization.
• Continuous or intermittent duty cycle support: Rated for 100% duty cycle; flow and dew point stability maintained across 0–100% load range per IEC 61000-3-2 compliance.

Sample Compatibility & Compliance

The AAg Series is validated for use with gas chromatography systems (including Agilent, Thermo Fisher, Shimadzu, and PerkinElmer platforms), atomic absorption spectrometers (e.g., AA-7000, iCE 3000), evaporative light scattering detectors (ELSD), nitrogen generators (PSA and membrane types), and nitrogen blow-down evaporators. Its output meets the air purity requirements specified in USP , EP 2.2.46, and ASTM D4057 for instrumental gas applications. All electrical components conform to IEC 61010-1 safety standards; firmware supports audit-trail-ready operation when integrated with LIMS or ELN platforms compliant with FDA 21 CFR Part 11 Annex 11 requirements.

Software & Data Management

While the base AAg model operates via embedded microcontroller logic (no external software dependency), optional RS-485 Modbus RTU interface enables integration into centralized lab infrastructure monitoring systems (e.g., LabVantage, STARLIMS). Real-time parameters—including outlet pressure, runtime hours, filter saturation status, and compressor temperature—are accessible via Modbus register mapping. Event logs record start/stop cycles, overpressure events, and desiccant exhaustion warnings—retained for ≥ 12 months with timestamped UTC synchronization. Firmware updates are performed via secure UART bootloader protocol, supporting version rollback and cryptographic signature verification.

Applications

• Primary air supply for flame ionization (FID), flame photometric (FPD), and thermal conductivity (TCD) detectors in GC systems.
• Nebulizer and auxiliary gas source for graphite furnace and flame AAS instruments.
• Feed air for pressure-swing adsorption (PSA) and membrane-based nitrogen generators used in LC-MS and GC-MS labs.
• Carrier and purge gas for evaporative light scattering detection (ELSD) and charged aerosol detection (CAD).
• General-purpose instrument air for automated sample handling, valve actuation, and pneumatic controls in regulated QC/QA laboratories.

FAQ

Is the AAg Series certified for Class 0 oil-free air per ISO 8573-1?
Yes—the rocker-arm piston architecture contains no internal lubricants, and third-party validation confirms oil content < 0.01 mg/m³, satisfying ISO 8573-1:2010 Class 0 for oil.
Can it replace high-pressure cylinders in GLP-compliant environments?
Yes—its pressure stability, documented maintenance intervals, and built-in event logging support full traceability required under OECD GLP Principles and FDA 21 CFR Part 58.
What is the recommended filter replacement interval?
Coalescing filter: every 6 months or 2,000 operating hours; desiccant cartridge: every 12 months or 4,000 hours—whichever occurs first, based on ambient humidity exposure.
Does it support remote monitoring via Ethernet or Wi-Fi?
No—only RS-485 Modbus RTU is standard; Ethernet/Wi-Fi gateways may be added externally via industrial protocol converters.
Is the unit suitable for use with GC-MS systems requiring ultra-low hydrocarbon background?
Yes—validated with TO-14A and EPA Method 8260B testing protocols; total hydrocarbon content measured < 0.5 ppbC (by FID) at rated flow.
