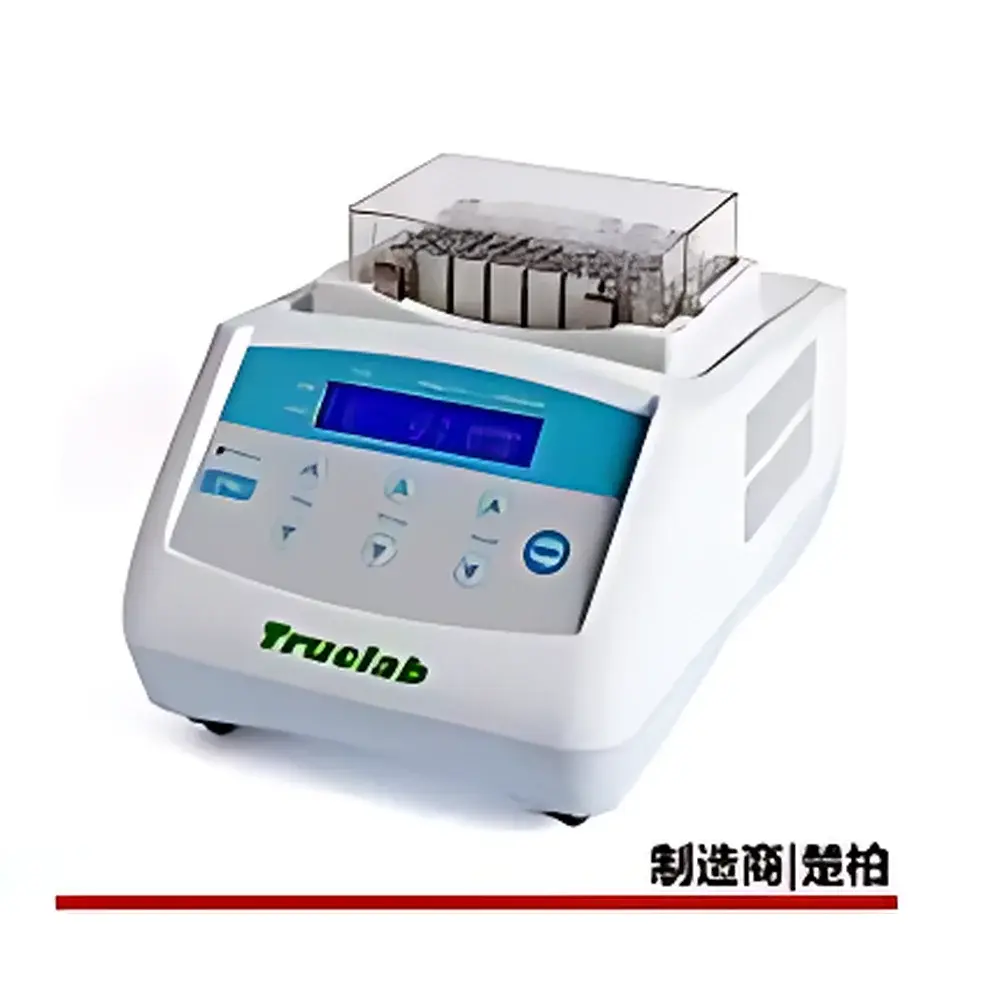

Truelab HB-100C Refrigerated Dry Block Heater

Overview

The Truelab HB-100C Refrigerated Dry Block Heater is a precision-engineered thermal management platform designed for laboratories requiring stable, programmable temperature control across both heating and active cooling domains. Unlike traditional water baths or ambient-only metal blocks, the HB-100C integrates solid-state thermoelectric (Peltier) cooling with resistive heating elements, enabling continuous operation from −10 °C to +100 °C in a single compact unit. Its dry-block architecture eliminates fluid contamination risks, condensation issues, and evaporation losses—critical for nucleic acid handling, enzyme kinetics, and low-volume sample integrity. The system employs a microprocessor-controlled PID algorithm with real-time feedback from multiple high-stability platinum RTD sensors embedded directly into the aluminum heating block, ensuring rapid thermal equilibration and exceptional repeatability across repeated runs.

Key Features

• Programmable multi-step temperature profiles: Up to five sequential setpoints with independent dwell times, supporting unattended overnight protocols such as gradient PCR prep or cold-start enzymatic reactions.
• Active semiconductor-based refrigeration: Achieves sub-ambient temperatures without compressors, refrigerants, or external chillers—reducing maintenance complexity and footprint.
• Self-correcting thermal calibration: Built-in auto-offset compensation adjusts for long-term sensor drift and block aging, maintaining traceable accuracy per ISO/IEC 17025 metrological requirements.
• Dual-display LCD interface: Simultaneously shows target temperature, real-time block temperature, remaining time, and status indicators—including visual and audible fault alerts for over-temperature, sensor failure, or power interruption.
• Modular interchangeability: Standardized quick-release block system supports 13 validated configurations—from 96-well PCR plates to 50 mL conical tubes—each engineered with optimized thermal mass and contact geometry for uniform heat transfer.
• Safety-certified architecture: Integrated dual-level over-temperature cutoff (hardware and firmware), current-limiting circuitry, and thermal fusing comply with IEC 61010-1 for laboratory electrical equipment safety.

Sample Compatibility & Compliance

The HB-100C accommodates a broad spectrum of tube formats and microplate geometries without cross-contamination risk. All interchangeable blocks are CNC-machined from aerospace-grade anodized aluminum, ensuring corrosion resistance and dimensional stability under repeated thermal cycling. Each module undergoes individual thermal mapping validation (per ASTM E2251-22 Annex A1) to confirm uniformity specifications. The device meets CE marking requirements under the EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. Its closed-loop temperature control architecture supports GLP/GMP environments where audit trails and parameter traceability are mandated; optional RS-232 or USB connectivity enables integration with LIMS or electronic lab notebooks for full data lineage capture.

Software & Data Management

While the HB-100C operates autonomously via its front-panel interface, it supports optional PC-based configuration and monitoring through Truelab’s proprietary LabTemp Control Suite (Windows/macOS compatible). This application provides remote protocol upload/download, real-time temperature logging (CSV export), event-triggered alarms, and timestamped audit logs compliant with FDA 21 CFR Part 11 requirements—including user authentication, electronic signatures, and immutable record retention. All firmware updates are digitally signed and verified to prevent unauthorized modification—a prerequisite for regulated QC/QA workflows in pharmaceutical and clinical diagnostics labs.

Applications

• Pre-incubation and denaturation steps in molecular biology workflows—including DNA/RNA extraction, restriction digestion, ligase reactions, and cDNA synthesis.
• Controlled thawing and stabilization of sensitive reagents (e.g., Taq polymerase, reverse transcriptase, antibodies) to preserve activity and minimize freeze-thaw degradation.
• Temperature-dependent immunoassay preparation: serum coagulation timing, antigen-antibody binding optimization, and ELISA plate conditioning.
• Cell culture sample processing: controlled lysis, protein precipitation, and metabolite quenching at defined sub-zero endpoints.
• Calibration standardization: serving as a stable reference source for thermometer verification against NIST-traceable standards (e.g., ASTM E74-23).

FAQ

What is the minimum achievable temperature and how quickly is it reached?
The HB-100C achieves −10 °C within 30 minutes from 26 °C ambient, verified using calibrated NIST-traceable thermocouples placed at block center and corners.
Does the unit support temperature ramping between setpoints?
No—this model implements stepwise isothermal holds only. For linear ramping functionality, consider the HB-200 series with integrated gradient control.
Are custom blocks available for non-standard tube sizes?
Yes—Truelab offers OEM block design services with lead times of 4–6 weeks; all custom modules undergo identical thermal validation and certification.
How often does the internal temperature calibration require verification?
Annual verification is recommended per ISO/IEC 17025; the built-in auto-correction function maintains accuracy between scheduled calibrations.
Can the HB-100C be operated inside a cold room?
Yes—rated for ambient operation between 10 °C and 35 °C; performance specifications assume stable room conditions; extended cold-room use may affect cooling efficiency and requires derating per manufacturer’s environmental guidelines.
