Truelab ZYC Series Industrial Chemical Safety Cabinets – Fire-Resistant Medicine & Hazardous Material Storage Cabinets

Overview

The Truelab ZYC Series Industrial Chemical Safety Cabinets are engineered for precision-compliant storage of flammable, combustible, and corrosive hazardous materials in laboratory, pharmaceutical, chemical manufacturing, and industrial R&D environments. Designed in strict adherence to OSHA 29 CFR 1910.106 and NFPA 30 standards—and certified to DIN EN 14470-1 for 30- and 90-minute fire resistance—these cabinets employ a robust dual-wall construction: two layers of 1.0 mm cold-rolled steel separated by a 38 mm non-combustible insulating cavity. This architecture ensures structural integrity under thermal stress and provides verified fire containment during emergency exposure. Each unit integrates a 50 mm deep leak-tight sump to contain incidental spills, electrostatic grounding terminals compliant with ANSI/ESD S20.20 requirements, and a corrosion-resistant, lead-free porcelain enamel coating applied both internally and externally for long-term chemical resistance.

Key Features

• Dual-layer fire-rated steel construction with 38 mm insulation cavity—validated for 30/90-minute fire endurance per EN 14470-1
• Three-point synchronized mechanical lock system ensuring positive door closure and automatic engagement without manual handle rotation
• Continuous piano-hinge door mounting for smooth, fatigue-resistant operation over 100,000 cycles
• Adjustable epoxy-coated shelves with spill-retaining lips, vertically configurable at 60 mm intervals

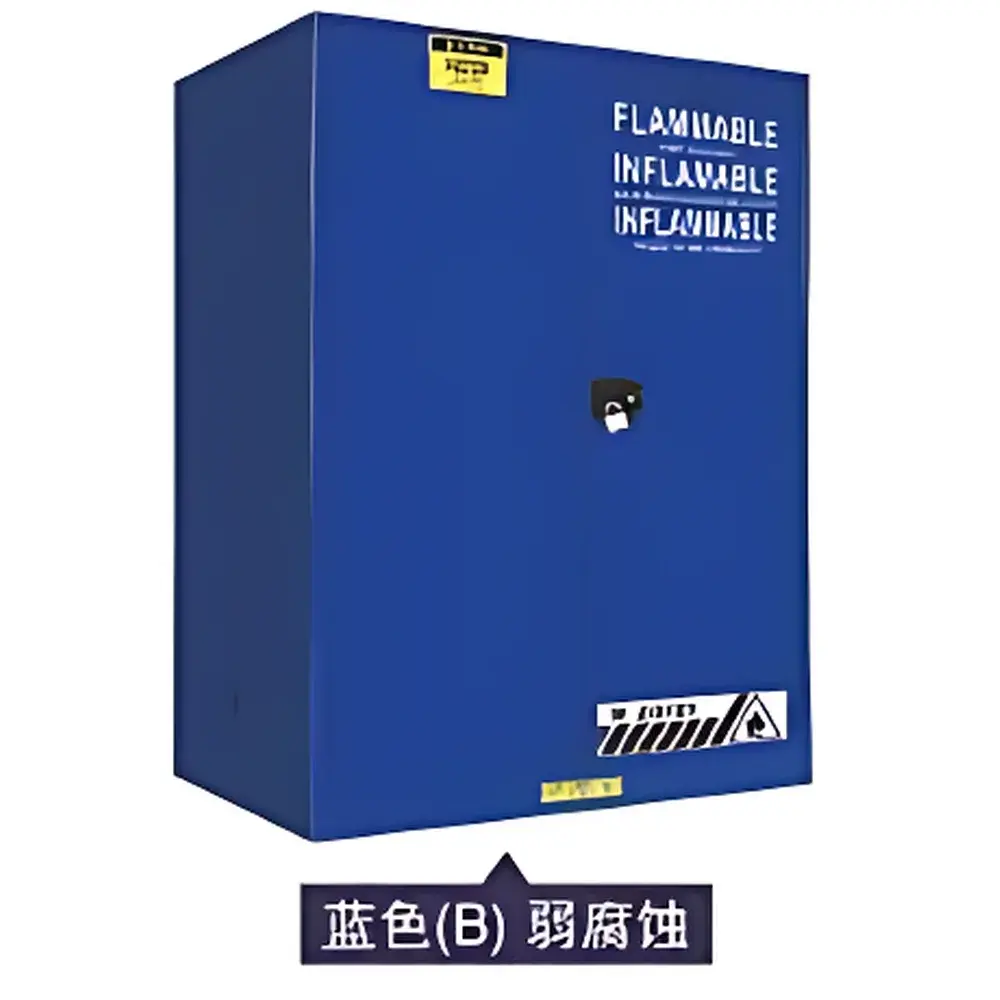

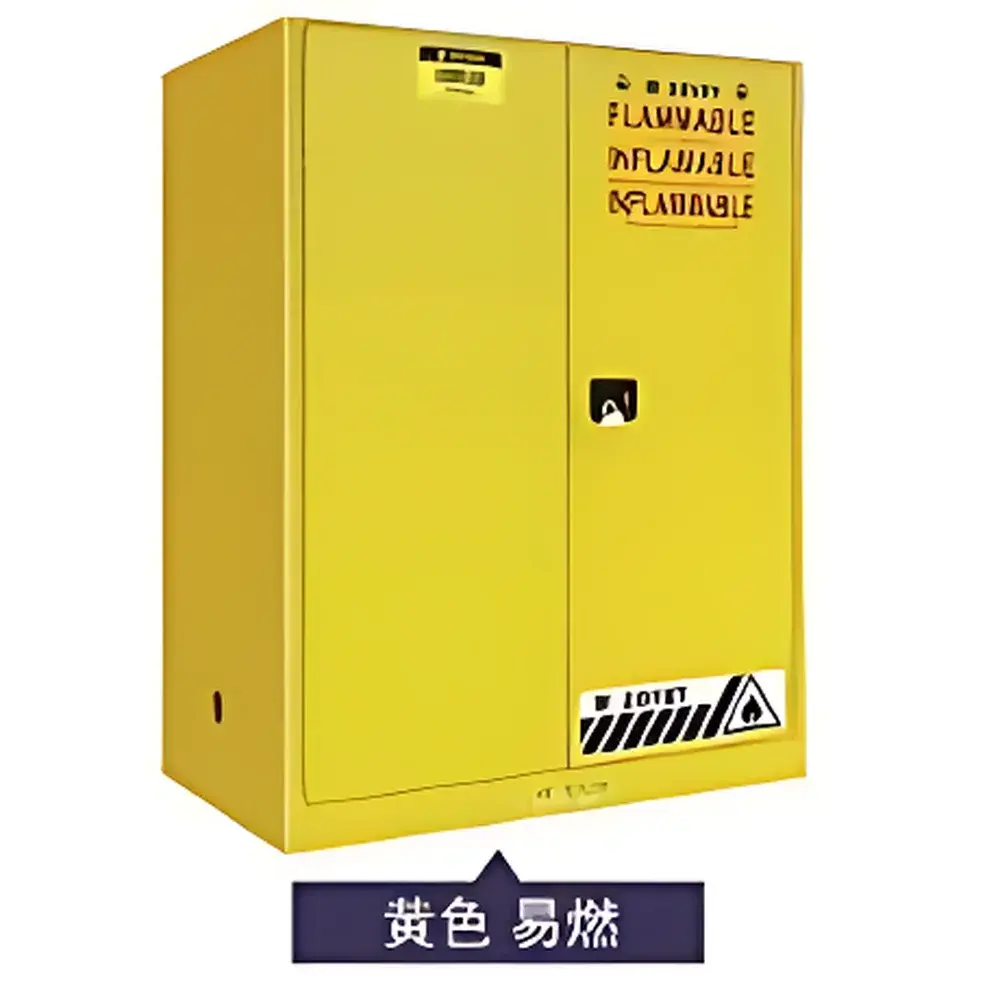

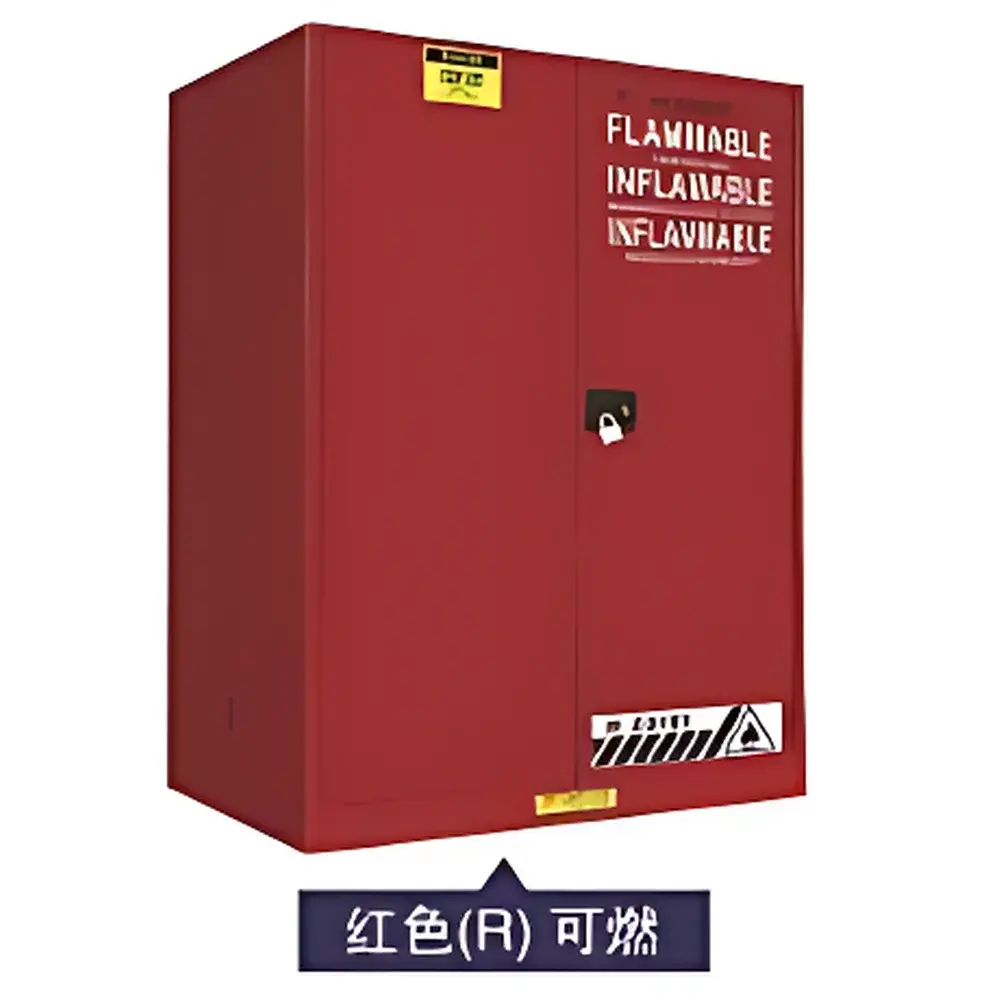

• Color-coded cabinet variants: Yellow (Class I flammables), Red (Class II/III combustibles), Blue (corrosives)—aligned with GHS and NFPA 704 labeling conventions
• Integrated static grounding port (M6 threaded) for mandatory bonding in accordance with OSHA 1910.106(e)(6)(ii)
• Optional automatic self-closing door mechanism (UL-listed, spring-loaded overhead closer) meeting NFPA 80 requirements for fire door assemblies
• Self-latching ergonomic handle with integrated padlock provision and recessed mounting to prevent obstruction in narrow corridors

Sample Compatibility & Compliance

The ZYC series accommodates standard hazardous material containers including 4 L HDPE bottles, aerosol cans, safety cans (up to 20 L), 110 L and 200 L drums (with optional drum supports), and intermediate bulk containers (IBCs). All models feature internal dimensions optimized for vertical stacking and ergonomic access. Regulatory alignment includes full conformance with OSHA 29 CFR 1910.106 (flammable liquid storage), NFPA 30 (Flammable and Combustible Liquids Code), and European harmonized standard DIN EN 14470-1 for fire-resistant cabinets. Units intended for GMP-regulated pharmaceutical facilities support audit readiness through permanent serial-number engraving, traceable material certifications (steel grade, coating composition), and optional validation documentation packages aligned with ISO 9001 and FDA 21 CFR Part 11 data integrity principles.

Software & Data Management

While the ZYC Series is a passive, electromechanical storage solution without embedded electronics, it supports digital operational continuity via standardized asset tagging. Each cabinet ships with a durable, UV-stabilized compliance label containing QR-coded model-specific technical data, OSHA/NFPA reference numbers, and maintenance log fields. Optional integration with enterprise EHS platforms (e.g., Intelex, Sphera, ETQ Reliance) is enabled through API-ready barcode scanning and structured CSV export of inspection records. For laboratories operating under GLP or GMP, Truelab provides customizable calibration and verification checklists—including visual inspection protocols for seal integrity, hinge torque verification, and grounding continuity testing—with version-controlled PDF templates compliant with Annex 11 and ALCOA+ data governance criteria.

Applications

• Pharmaceutical QC/QA labs storing solvents (e.g., acetone, ethanol, IPA), reagents, and residual drug substance intermediates
• Chemical synthesis facilities requiring segregated storage of oxidizers, acids, and organic peroxides
• Petrochemical R&D centers managing hydrocarbon fractions, catalysts, and pyrophoric compounds
• Hospital pharmacy satellite storage for alcohol-based disinfectants, anesthetic agents, and cytotoxic preparations
• University teaching labs implementing tiered hazard control per ANSI Z9.5 and NIOSH Laboratory Safety Guidelines
• Contract manufacturing organizations (CMOs) maintaining documented chain-of-custody for controlled substances under DEA Title 21 regulations

FAQ

Do ZYC cabinets require external ventilation ducting?
No—these are self-contained, unvented fire-rated cabinets designed for ambient air circulation. Ventilation is prohibited unless performed by a qualified industrial hygienist and validated per NFPA 30 Section 9.5.2 for specific vapor mitigation scenarios.

Can I install a temperature monitoring sensor inside the cabinet?
Yes—non-intrusive Class I, Division 2 rated sensors may be mounted on interior walls or shelves, provided wiring exits through the designated grounding port and does not compromise fire barrier integrity.

What is the recommended frequency for grounding continuity verification?
Per OSHA 1910.106(e)(6)(ii), grounding resistance must be measured quarterly using a calibrated milliohm meter; records must demonstrate ≤10 ohms resistance to earth ground.

Are replacement keys available for lost or damaged sets?
Yes—Truelab issues serialized key duplicates upon submission of original purchase documentation and authorized signatory verification, in compliance with ANSI/BHMA A156.13 security standards.

Does the cabinet meet seismic anchoring requirements for California or Japan?
All ZYC models include pre-drilled, reinforced anchor points compatible with Simpson Strong-Tie SEB or Hilti Kwik Bolt III systems; site-specific engineering review is required per ASCE 7-22 or JIS B 8350.
