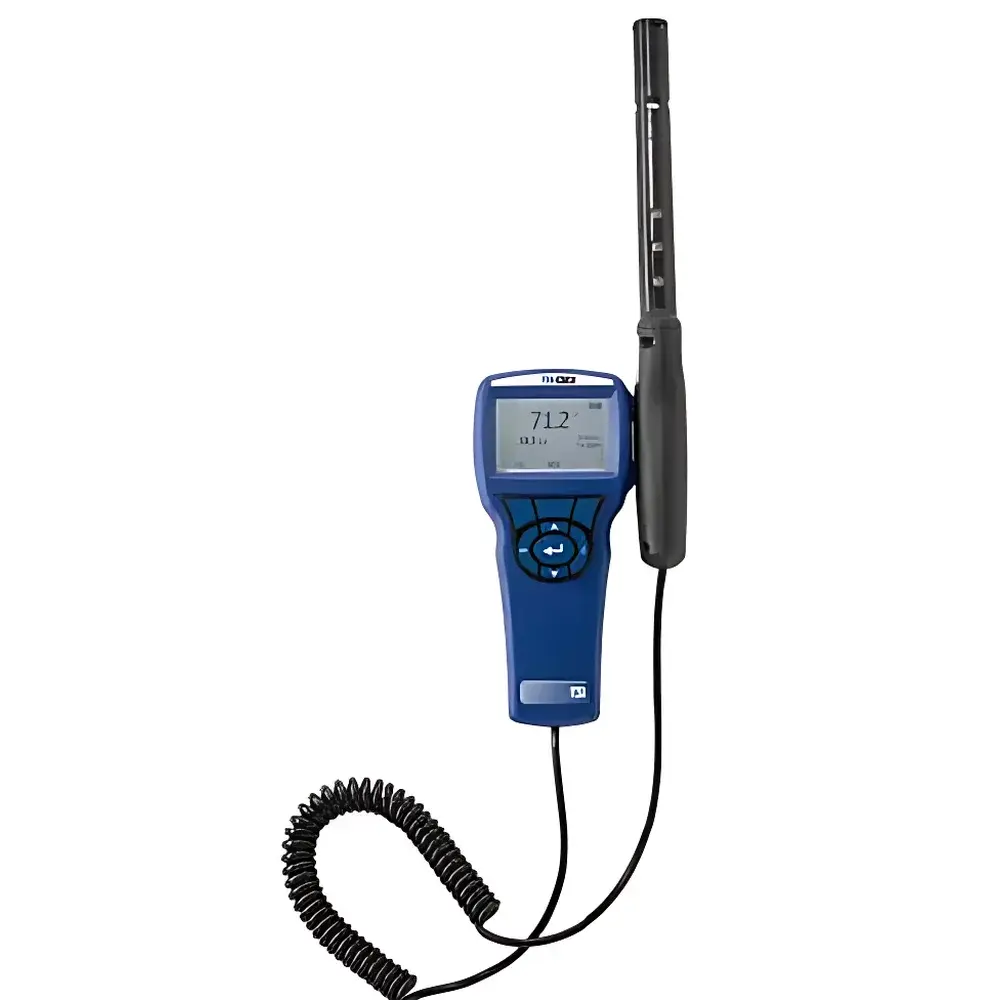

TSI Model 7415 & 7425 Digital Thermo-Hygrometer

Overview

The TSI Model 7415 and 7425 Digital Thermo-Hygrometers are precision-engineered handheld instruments designed for traceable, repeatable measurement of ambient temperature and relative humidity in controlled environments. Built upon thermistor-based temperature sensing and thin-film capacitive humidity transduction, these devices comply with fundamental metrological principles defined in ISO 7726 (Ergonomics of the thermal environment — Instruments for measuring physical quantities) and support adherence to ASHRAE Standard 55 (Thermal Environmental Conditions for Human Occupancy). The dual-sensor architecture enables simultaneous acquisition of both parameters with documented uncertainty budgets—critical for HVAC commissioning, indoor air quality (IAQ) audits, and thermal comfort field studies per ISO 7730 and ANSI/ASHRAE Standard 55. Unlike consumer-grade hygrometers, the 7415/7425 series incorporates thermal drift compensation algorithms that dynamically adjust accuracy specifications across operating temperatures, ensuring metrological integrity in variable environmental conditions.

Key Features

• High-stability thin-film capacitive RH sensor with factory calibration traceable to NIST standards and documented hysteresis correction (≤1% RH)
• Thermistor-based temperature sensing with linearized output and integrated thermal drift compensation (±0.03°C/°C beyond 25°C reference)
• User-configurable time constant settings to match dynamic response requirements—essential for transient airflow characterization and duct traverse measurements
• Robust data logging architecture supporting up to 12,700 timestamped records across 100 independent datasets, with programmable intervals from 1 second to 1 hour
• Ergonomic handheld form factor (8.4 × 17.8 × 4.4 cm) with detachable probe (17.8 cm × 1.9 cm) optimized for duct, plenum, and occupied zone profiling
• Low-power design powered by standard AA cells (typical battery life >200 hours continuous logging), with optional AC adapter for extended benchtop operation

Sample Compatibility & Compliance

The 7415 and 7425 models are validated for use in non-corrosive, non-condensing indoor air environments typical of office buildings, laboratories, cleanrooms (ISO Class 7–8), and healthcare facilities. They meet the environmental operating limits specified in IEC 60751 (industrial platinum resistance thermometer standards, referenced for thermal sensor equivalence) and conform to electromagnetic compatibility requirements per FCC Part 15 Subpart B and CE EN 61326-1. While not intrinsically safe, their construction avoids hazardous material use per RoHS Directive 2011/65/EU. Data integrity complies with GLP documentation expectations when paired with TSI’s TrakPro™ Lite software, supporting audit-ready export formats (CSV, TXT) with embedded timestamps and instrument ID metadata.

Software & Data Management

Data retrieval is performed via USB interface using TSI’s TrakPro™ Lite software (Windows-compatible), which provides visualization, statistical analysis (min/max/mean/std dev), and customizable report generation. The software enforces user-access controls and maintains full audit trails—including operator ID, calibration date, and parameter modification history—supporting compliance with FDA 21 CFR Part 11 where electronic records are subject to regulatory review. Exported datasets include ISO 8601-compliant timestamps and are compatible with third-party platforms such as MATLAB, Python pandas, and LabVIEW for advanced trend modeling and integration into building management system (BMS) validation protocols.

Applications

• Thermal comfort assessment per ISO 7730 and ASHRAE 55, including PMV/PPD index derivation from synchronized T/RH inputs
• HVAC system commissioning and seasonal performance verification, particularly in VAV box balancing and supply air temperature profiling
• Indoor air quality monitoring in LEED-certified buildings and WELL Building Standard v2 IAQ prerequisite tracking
• Validation of environmental chambers and stability storage units per ICH Q5C and USP
• Occupant survey correlation studies linking microclimate measurements with subjective thermal sensation scales
• Baseline data collection for ASHRAE Guideline 12–2020 (Minimizing the Risk of Legionellosis)

FAQ

What is the difference between Model 7415 and Model 7425?
The 7415 is a standalone thermo-hygrometer with integrated display and internal logging. The 7425 adds real-time analog output (0–5 V or 4–20 mA) for integration into SCADA or BMS systems, while retaining identical sensor performance and logging capability.
Is NIST-traceable calibration documentation included?
Each unit ships with a Certificate of Conformance; NIST-traceable calibration certificates (with uncertainty budgets) are available as an optional service through TSI’s accredited calibration laboratory (A2LA Accredited, Certificate #1591.01).
Can the device be used in condensing environments?
No—operation below the dew point or in saturated conditions may cause temporary sensor drift or condensation-induced error; the specified RH range (5–95% RH) assumes non-condensing ambient conditions.
How is thermal drift compensated during field use?
The firmware applies real-time correction based on measured temperature deviation from 25°C, using the published coefficients (±0.03°C/°C for temperature, ±0.2% RH/°C for humidity) to maintain stated accuracy bounds across the full operating range.
Does the instrument support password-protected configuration changes?
Yes—TrakPro™ Lite enforces role-based access control, and configuration parameters (e.g., logging interval, time constant, units) require administrator-level credentials to modify, satisfying basic data governance requirements for regulated environments.
