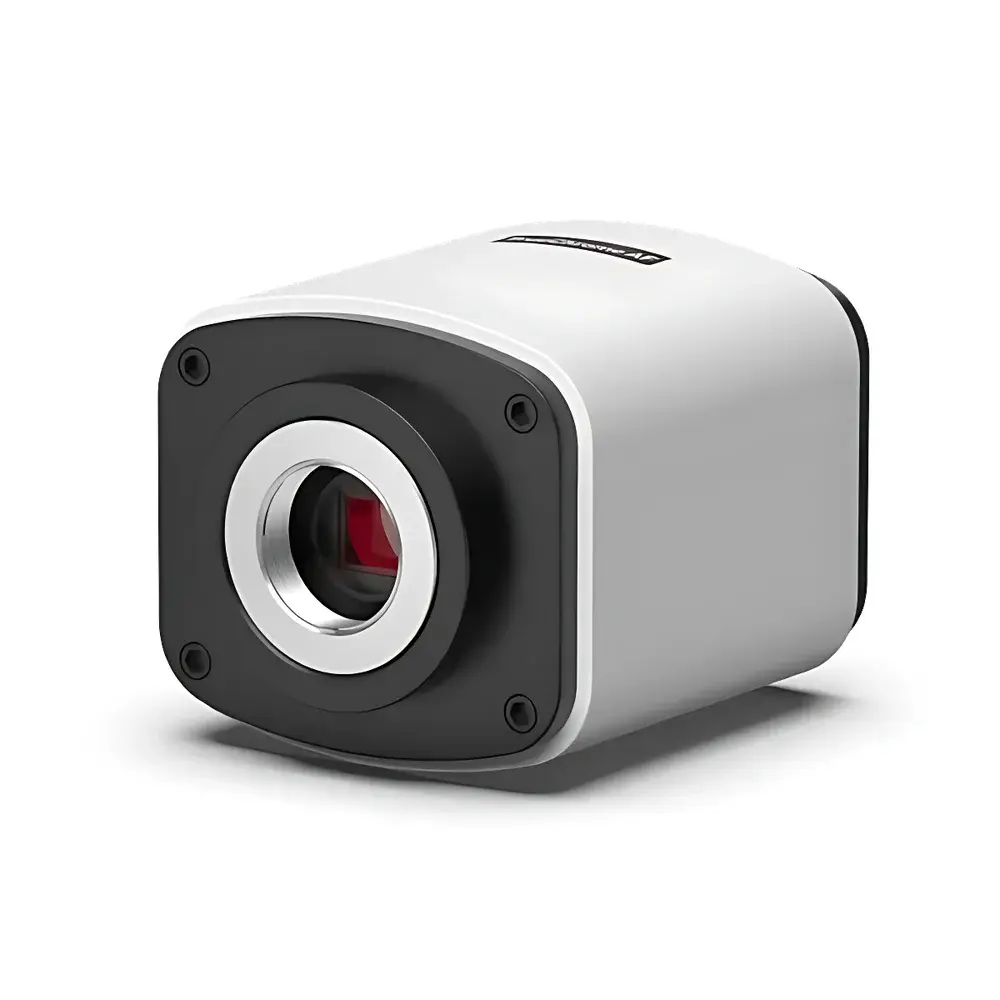

TUCSEN TrueChrome 4K WiFi CMOS Microscopy Camera

Overview

The TUCSEN TrueChrome 4K WiFi CMOS Microscopy Camera is a high-fidelity digital imaging solution engineered for integration with fluorescence, biological, polarized light, metallurgical, and stereo microscopes. Built around the Sony IMX485 global-shutter-capable CMOS sensor (1/1.2″ optical format), it delivers native 4K UHD resolution (3840 × 2160) at full 30 fps across multiple interfaces — including USB 3.0, HDMI, Gigabit Ethernet, and integrated 2.4 GHz/5 GHz dual-band Wi-Fi. Unlike conventional microscopy cameras relying solely on wired connectivity, the TrueChrome 4K WiFi enables true wireless workflow flexibility without compromising image fidelity or temporal resolution. Its compact, fanless aluminum housing ensures thermal stability during extended acquisition sessions, while the C-mount interface guarantees mechanical compatibility with standard microscope trinocular ports and beam-splitter adapters. Designed for laboratory-grade reproducibility, the camera supports hardware-triggered synchronization, precise exposure control (1 µs–1 s), and programmable ROI readout — making it suitable for quantitative intensity analysis, time-lapse documentation, and multi-modal correlative imaging.

Key Features

• Native 4K UHD output (3840 × 2160) at 30 fps via USB 3.0, HDMI, and LAN — no downscaling or interpolation required
• Dual-band Wi-Fi (2.4 GHz / 5 GHz) with secure WPA2/WPA3 encryption for encrypted remote access and low-latency streaming
• Integrated Mosaic App ecosystem supporting iOS and Android devices for real-time capture, annotation, measurement, and export — fully compatible with iPad Pro, iPhone 13+, and Android tablets running Android 10+
• Real-time computational imaging capabilities including automatic mosaic stitching and focus stacking (Z-stack fusion), executed onboard or via host PC using TUCSEN’s Mosaic V3 SDK
• Multi-interface architecture: simultaneous HDMI preview + USB 3.0 acquisition + Wi-Fi control — enabling concurrent display, storage, and remote operation
• FAT32 SD card recording support (via optional adapter) for standalone video capture up to 4K@30fps in TIFF/JPG/PNG/DICOM formats
• Full software development kit (SDK) with C/C++, Python, MATLAB, and LabVIEW APIs — compliant with Windows 7/10 (x64/x86) and macOS 11+ environments

Sample Compatibility & Compliance

The TrueChrome 4K WiFi is optimized for use across diverse optical microscopy modalities — including widefield fluorescence (e.g., FITC/TRITC/DAPI), brightfield histology, polarized mineralogy, reflected-light metallurgy, and stereoscopic dissection. Its 1/1.2″ sensor provides improved light collection efficiency compared to smaller-format sensors, enhancing signal-to-noise ratio in low-light applications such as live-cell imaging or weakly stained tissue sections. The camera complies with CE, FCC, and RoHS directives. While not certified for IVD or clinical diagnostic use under ISO 13485 or FDA 21 CFR Part 820, it meets general laboratory instrumentation requirements for GLP-aligned documentation workflows when used with audit-trail-enabled software configurations (e.g., Mosaic V3 with timestamped metadata logging). DICOM export capability supports integration into PACS-adjacent educational or research archives.

Software & Data Management

TUCSEN provides three primary software tiers: Cloud (HDMI-only lightweight viewer), Mosaic V2/V3 (desktop application for Windows/macOS), and Mosaic App (mobile companion). Mosaic V3 implements full metadata embedding (EXIF + custom tags), batch export with configurable naming conventions, and calibrated pixel-based measurement tools traceable to NIST-traceable stage calibration routines. All software versions support color temperature adjustment (1800–10000 K), gamma correction, histogram equalization, and LUT-based contrast enhancement. For regulated environments, Mosaic V3 can be configured to generate immutable acquisition logs containing operator ID, timestamp, exposure parameters, and hardware checksums — facilitating compliance with internal SOPs and basic audit-readiness requirements. The SDK enables integration with third-party platforms including ImageJ/Fiji, HALCON, and custom Python-based analysis pipelines.

Applications

• University-level microscopy teaching labs requiring synchronized multi-device demonstration and student-led remote acquisition
• Industrial QA/QC of solder joints, coating uniformity, grain structure, and surface defects in metallography and semiconductor packaging
• Clinical pathology training modules where DICOM-compliant image archiving and collaborative annotation are required
• Materials science laboratories performing in-situ thermal or mechanical stress imaging using stereo or polarized setups
• Botanical and entomological field documentation via portable stereo microscope rigs equipped with battery-powered Wi-Fi hubs
• Forensic document examination leveraging high-resolution texture mapping and spectral contrast enhancement

FAQ

Does the TrueChrome 4K WiFi support hardware triggering for synchronized multi-camera acquisition?
Yes — it features a TTL-compatible trigger input/output port supporting external synchronization with other TUCSEN cameras or peripheral devices such as shutters or motorized stages.
Can the camera operate independently without a host PC?
No — it requires an active host connection (USB, HDMI, or LAN) for configuration and image transfer; however, Wi-Fi streaming enables remote control from mobile devices while the host remains connected.
Is DICOM export validated for clinical use?
DICOM export is provided for research and educational interoperability only; the camera is not FDA-cleared or CE-marked as an IVD device.
What is the maximum sustained frame rate when recording 4K video to an SD card?
SD card recording is supported via optional USB-to-SD adapter; sustained write speed depends on UHS-I Class 10 or higher cards, with typical performance reaching 30 fps @ 3840×2160 in JPG mode.
How does the Mosaic App handle network security in institutional Wi-Fi environments?
The camera supports WPA2-Enterprise and 802.1X authentication modes, allowing seamless integration into university or hospital domain-managed networks with certificate-based login.
