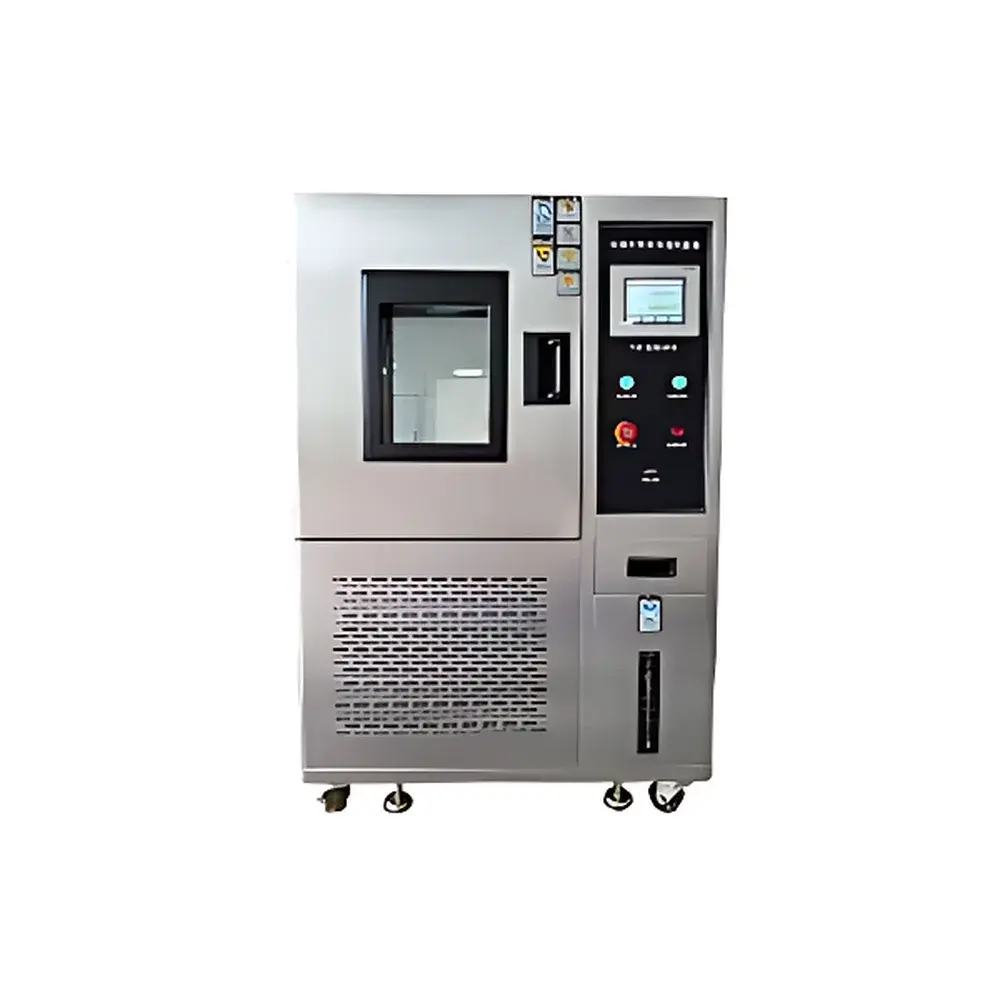

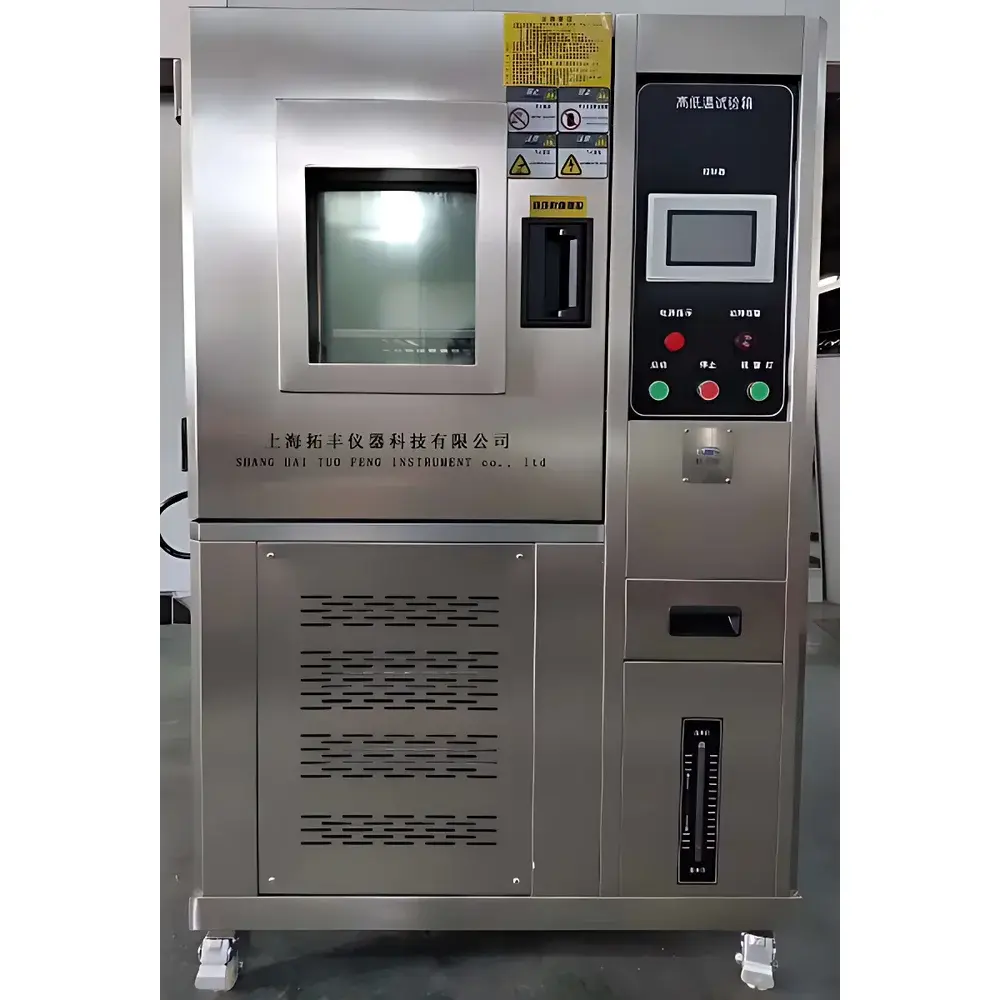

Tuofeng TF-320A-150L Environmental Stress Screening Chamber with Temperature & Humidity Cycling Capability

Overview

The Tuofeng TF-320A-150L Environmental Stress Screening (ESS) Chamber is an engineered solution for accelerated reliability testing under controlled thermal and hygrothermal cycling conditions. Designed in accordance with fundamental principles of thermodynamic equilibrium and psychrometric control, the chamber employs dual-stage compression refrigeration combined with precision PID-controlled steam humidification and electric heating to achieve stable, repeatable environmental profiles. Its architecture supports both steady-state conditioning and programmed ramp-soak cycles—including temperature-only, humidity-only, and combined temperature/humidity profiles—enabling rigorous validation of product robustness across aerospace, automotive electronics, medical device packaging, and semiconductor assembly applications. The system’s mechanical design prioritizes thermal inertia minimization and airflow homogeneity, ensuring compliance with the physical constraints required for high-fidelity simulation of real-world operational stresses.

Key Features

• High-precision environmental control: ±0.1 °C temperature uniformity and stability, ±2.0 % RH accuracy at 0.5 °C resolution, verified per ISO 17025-accredited calibration protocols
• Configurable explosion-proof variant compliant with IEC 60079-0 general requirements and IEC 60079-11 intrinsic safety standards for hazardous area operation
• Dual-stage refrigeration system using Tecumseh hermetic compressors, enabling rapid transitions from −70 °C to +100 °C within specified time envelopes (≤60 min heating; ≤45 min cooling over key intervals)
• SUS304 stainless steel interior chamber and insulated double-wall construction with high-density chlorinated ethyl ester polyurethane foam (thermal conductivity ≤0.022 W/m·K)
• TEMI series programmable controller with 100-segment cycle programming, data logging (USB export), alarm history, and password-protected parameter lockdown
• Comprehensive safety architecture: high/low refrigerant pressure switches, over-temperature/over-humidity cutoffs, motor overload protection, and redundant fuse-based circuit isolation

Sample Compatibility & Compliance

The TF-320A-150L accommodates test specimens up to 600 × 500 × 500 mm (W×H×D) with unrestricted airflow access via tangential fan distribution and perforated stainless steel shelves. It supports non-corrosive, non-outgassing samples typical of PCB assemblies, polymer enclosures, lithium-ion battery modules, and sterile barrier systems. The chamber meets mandatory regulatory alignment for environmental qualification testing per GB/T 2423.1–2423.4 (equivalent to IEC 60068-2-1, -2, -3, -14), GB/T 10586 (moisture resistance), GJB 150.3/4/9 (military-grade thermal shock and damp heat), and ASTM D4332 (conditioning of plastics). Optional IQ/OQ documentation packages are available to support GLP and GMP audit readiness, including traceable sensor calibration certificates and deviation log templates aligned with FDA 21 CFR Part 11 electronic record requirements.

Software & Data Management

The integrated TEMI controller provides local cycle definition, real-time graphing of chamber parameters, and event-triggered data capture at user-defined intervals (1–300 second resolution). Exported CSV files include timestamped temperature, relative humidity, setpoint, and alarm status fields. For enterprise integration, optional RS485 Modbus RTU or Ethernet TCP/IP communication enables connection to centralized MES or LIMS platforms. Audit trail functionality records all operator actions—including parameter edits, cycle starts/stops, and manual overrides—with immutable timestamps and user ID tagging. Data retention complies with ISO/IEC 17025 clause 7.5.2 for raw measurement integrity and long-term archival.

Applications

This chamber serves as a core tool in reliability engineering workflows: thermal cycling qualification of solder joints (per IPC-9701), accelerated aging of conformal coatings, validation of moisture barrier integrity in Class III medical device packaging (ISO 11607), evaluation of electrolyte stability in EV battery cells under humidified cold soak, and verification of display module performance across automotive temperature extremes (SAE J1211). Its reproducible gradient control also supports material science studies involving glass transition behavior in thermoplastics and hygroscopic swelling kinetics in composite laminates.

FAQ

What is the maximum allowable ambient operating temperature for this chamber?

The unit requires ambient conditions between 5 °C and 30 °C with ≤85 % RH to maintain specified cooling capacity and compressor longevity.

Can the chamber perform rapid thermal transients (e.g., 10 °C/min)?

No—the system is optimized for high-stability cycling rather than ultra-high ramp rates; typical average heating/cooling rates are 4 °C/min and 1 °C/min respectively, consistent with MIL-STD-810G Method 502.6 conditioning profiles.

Is third-party calibration certification included with purchase?

Factory calibration is performed pre-shipment using NIST-traceable reference standards; formal ISO/IEC 17025 calibration reports are available as an optional add-on service.

Does the explosion-proof configuration meet ATEX Directive 2014/34/EU?

Yes—the ATEX-compliant version includes certified flameproof enclosure (Ex d), intrinsically safe input circuits (Ex i), and full documentation per Annex IV conformity assessment procedures.

How is humidity controlled during sub-zero temperature operation?

Below 0 °C, humidity control is disabled by default; optional frost-free humidifier bypass and dew-point monitoring enable limited low-temperature moisture conditioning down to −40 °C with validated RH reproducibility.
