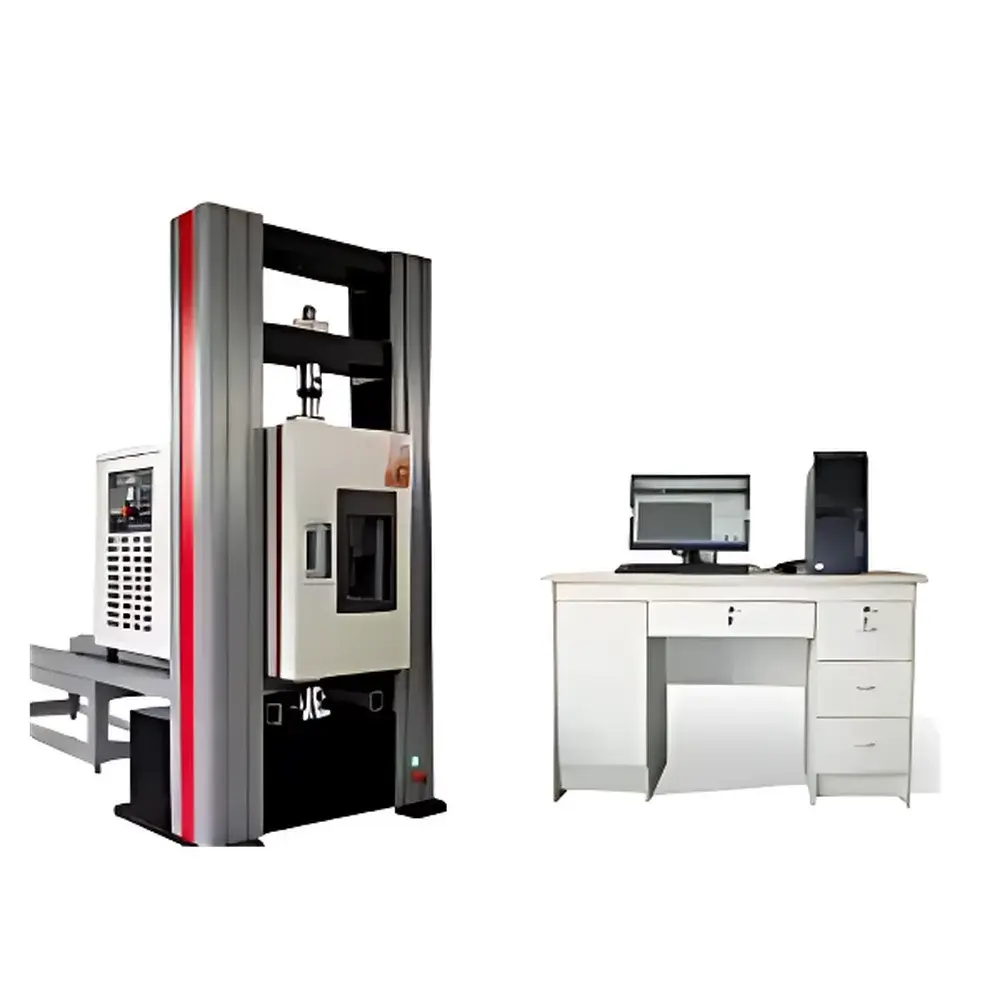

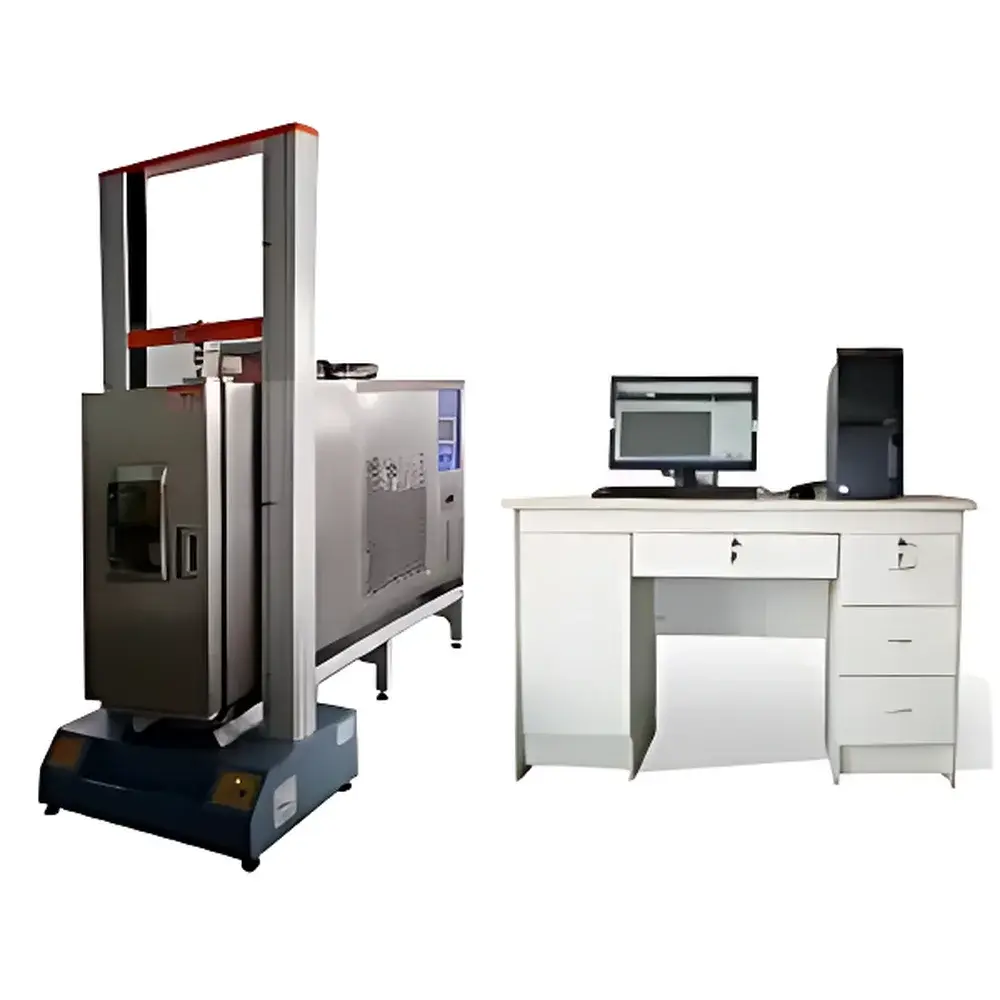

Tuofeng TFW-122 High-Low Temperature Electronic Universal Testing Machine

Overview

The Tuofeng TFW-122 High-Low Temperature Electronic Universal Testing Machine is a dual-environment mechanical testing system engineered for precision tensile, compression, bending, shear, peel, and tear characterization of metallic, polymeric, ceramic, composite, and elastomeric materials across controlled thermal conditions. It integrates a high-stability electromechanical testing frame with an independently operated temperature chamber—capable of operation from –70 °C to +300 °C (optional extended range)—to enable standardized mechanical property evaluation under ISO 6892-1, ASTM E8/E21, ASTM D638/D790, and GB/T 228.1–2021 protocols. The system employs a servo-motor-driven precision ball-screw actuation mechanism, coupled with high-fidelity load cells (calibrated traceable to NIST-equivalent national standards) and optical encoder-based displacement feedback. Its closed-loop digital control architecture ensures consistent strain rate fidelity per ISO 527-1 and enables seamless transition between displacement-, load-, or strain-controlled test modes without hardware reconfiguration.

Key Features

• Robust dual-zone thermal integration: Independent high-uniformity temperature chamber (±1 °C stability, 0.1 °C resolution) mounted on precision linear rails with front-rear mobility for optimal specimen alignment and thermal gradient minimization.
• High-resolution force and displacement metrology: Dual-channel synchronized acquisition at ≥1 kHz sampling rate; force accuracy certified to ISO 7500-1 Class 0.5, displacement resolution ≤0.0001 mm over full 1000 mm stroke.
• Modular test frame architecture: Rigid 4-post steel frame with 400 mm column spacing (customizable), supporting interchangeable fixtures (grips, bend jigs, compression platens) and optional extensometer interfaces (contact and non-contact).
• Real-time closed-loop control: Adaptive PID tuning for precise strain-rate maintenance during dynamic loading sequences, including ramp-hold-ramp, cyclic fatigue, and creep tests.
• Integrated safety interlocks: Hardware-triggered emergency stop on overload (>110% FS), specimen rupture detection via load drop threshold, motor overcurrent/overtemperature cutoff, and chamber door-open inhibition.
• Compliance-ready firmware: Audit trail logging, user access levels (admin/operator/guest), electronic signature support, and data integrity safeguards aligned with FDA 21 CFR Part 11 and GLP/GMP documentation requirements.

Sample Compatibility & Compliance

The TFW-122 accommodates specimens ranging from miniature coupons (e.g., ASTM E8M sub-size bars) to full-section structural components (up to Ø80 mm diameter or 100×100 mm cross-section). Standardized grips include wedge-action pneumatic, hydraulic, and manual screw-type configurations; high-temperature fixtures utilize Inconel 718 and molybdenum alloy construction. All thermal chamber internal surfaces are fabricated from electropolished AISI 304 stainless steel to prevent oxidation-induced contamination and ensure long-term calibration stability. The system complies with ISO 17025-accredited laboratory validation protocols and supports full IQ/OQ/PQ documentation packages. Mechanical test outputs conform to reporting conventions defined in ISO 527, ASTM D3039, and GB/T 7314 for compressive yield behavior.

Software & Data Management

Control and analysis are performed via Tuofeng TestMaster™ v5.2—a Windows-based, bilingual (English/Chinese) software suite compliant with IEC 62443-3-3 cybersecurity guidelines. The interface provides real-time plotting of force–displacement, stress–strain, and time-dependent curves with multi-curve overlay, local zoom, derivative calculation (modulus, yield offset), and automatic parameter extraction (UTS, YS, elongation at break, secant modulus, fracture toughness proxies). Raw data is exported in CSV, XML, and ASTM E1432-compliant .tdf formats. Database management supports relational metadata tagging (operator ID, environmental log, calibration certificate ID, sample lot number) and role-based export restrictions. All test sessions generate immutable digital signatures and timestamped audit logs meeting ISO/IEC 17025 clause 7.7 traceability mandates.

Applications

This platform serves R&D laboratories and QC departments in aerospace (titanium alloy hot-tensile qualification), automotive (polymer composite crash simulation validation), energy (nuclear-grade cladding material creep testing), medical device manufacturing (biodegradable suture tensile degradation profiling), and academic materials science (phase-transition–dependent modulus mapping). It is routinely deployed for evaluating thermal expansion coefficient effects on joint integrity, low-temperature embrittlement thresholds in cryogenic alloys, and high-temperature stress relaxation in thermoset adhesives. The system’s modular design allows rapid reconfiguration for ASTM D882 (thin film), ISO 1133 (melt flow index correlation), and custom multi-axial fixture development.

FAQ

What temperature ranges does the integrated chamber support?
Standard configuration covers –70 °C to +300 °C; liquid nitrogen cooling and infrared heating options extend operational limits to –150 °C and +600 °C respectively.
Is third-party calibration certification included?
Yes—each unit ships with factory calibration certificates traceable to CNAS-accredited reference standards (force: ±0.5% FS; displacement: ±0.0002 mm), valid for 12 months.
Can the system be integrated into existing LIMS or MES environments?
Via OPC UA 1.04 and RESTful API endpoints, enabling bidirectional data exchange with LabWare LIMS, Siemens Opcenter, and Thermo Fisher SampleManager.
What extensometer compatibility does the TFW-122 offer?
Supports ASTM E83 Class B-1 video extensometers (5–200 mm gauge length), clip-on axial devices (0.5% strain accuracy), and high-temperature contacting units up to 1000 °C.
Does the software meet regulatory requirements for pharmaceutical or medical device testing?
Yes—TestMaster™ v5.2 includes 21 CFR Part 11-compliant electronic signatures, ALCOA+ data integrity controls, and configurable audit trail retention policies (minimum 15 years).
