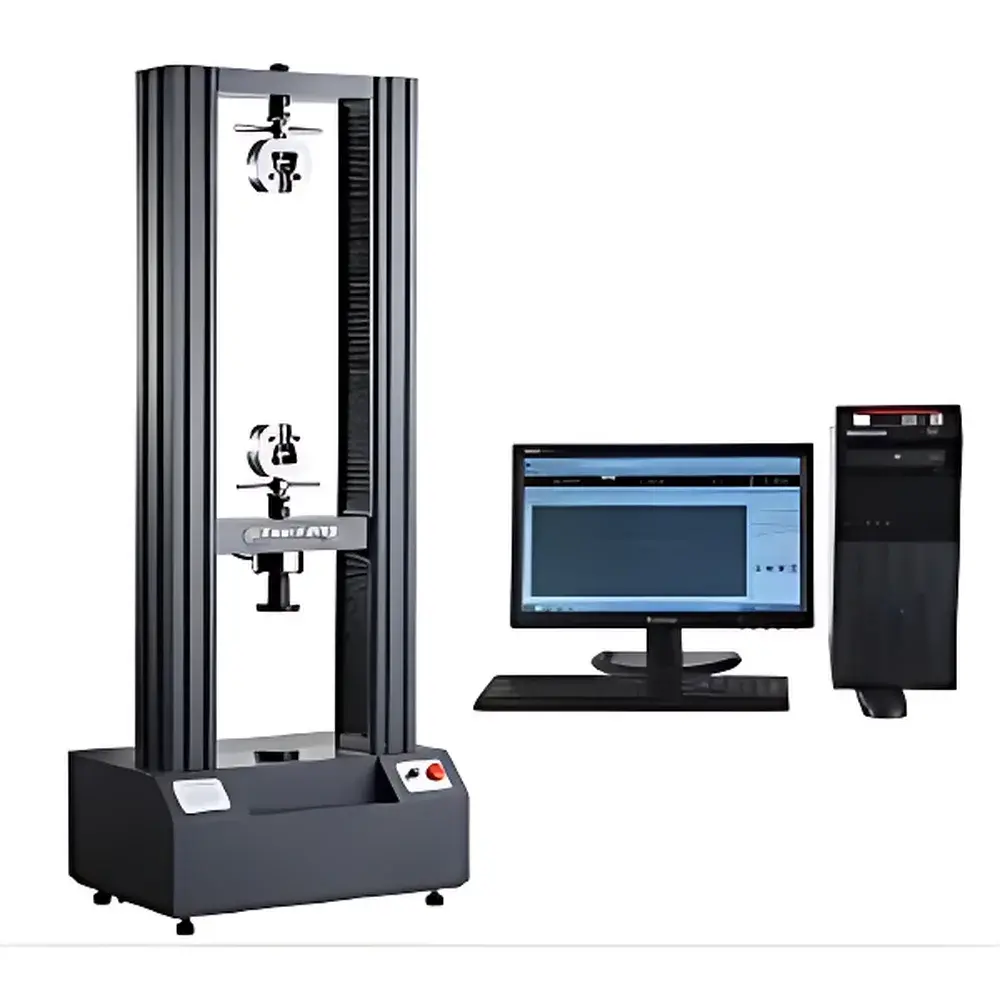

Tuofeng TFW-14 Universal Testing Machine (Dual-Column, Microcomputer-Controlled Electromechanical System)

Overview

The Tuofeng TFW-14 Universal Testing Machine is a dual-column, microcomputer-controlled electromechanical system engineered for high-fidelity mechanical property characterization of metallic, polymeric, composite, and ceramic materials. Operating on the principle of controlled displacement-driven loading, it applies precisely regulated axial force through a servo-motor-driven ball-screw actuator while synchronously measuring load, displacement, and—when equipped with optional transducers—strain. Designed to meet international metrological standards including ISO 7500-1 (Class 0.5), ASTM E4, and GB/T 16491–2008, the TFW-14 delivers traceable, reproducible data essential for R&D validation, quality assurance, and regulatory submission workflows. Its architecture supports both static and quasi-static testing protocols across tension, compression, bending, shear, peel, tear, and puncture configurations—making it a foundational instrument for laboratories requiring multi-standard compliance without hardware reconfiguration.

Key Features

• Dual-column rigid frame with preloaded high-precision ball screws ensures minimal deflection and long-term alignment stability under dynamic loading.
• Imported servo drive system enables seamless speed modulation from 0.001 to 500 mm/min, supporting low-strain-rate creep studies and high-speed rupture analysis within a single platform.
• Constant-resolution 500,000-count A/D conversion across the full force range eliminates range-switching artifacts and guarantees linearity from 0.2% to 100% of full scale.
• Integrated electronic limit protection, hardware-based emergency stop circuitry, and programmable overload cutoff (110% FS) satisfy IEC 61508 functional safety prerequisites for industrial lab environments.
• Motorized crosshead with independent fast/slow speed modes and automatic return-to-start functionality streamlines high-throughput batch testing.
• Modular transducer interface accommodates clip-on extensometers (for modulus and yield determination) and large-deformation sensors (for elastomers and foams), all calibrated per ISO 9513.

Sample Compatibility & Compliance

The TFW-14 accommodates specimens ranging from miniature metal coupons (ASTM E8/E21) to reinforced polymer laminates (ISO 527-2), rubber strips (ISO 37), textile fabrics (ISO 13934-1), and adhesive bonds (ASTM D1002). Standardized test fixtures—including wedge-action tensile grips, compression platens, three-point bend assemblies, and pneumatic peel jigs—are supplied with NIST-traceable calibration certificates. The system is validated for conformance with GB/T 228.1–2021 (tensile testing of metals), ASTM D638 (plastics), ISO 604 (rigid plastics compression), ISO 178 (flexural properties), and EN ISO 1133 (melt flow index auxiliary loading). All mechanical and software validations align with GLP documentation requirements and support FDA 21 CFR Part 11 audit trails when configured with user-access controls and electronic signature modules.

Software & Data Management

The embedded Windows-based test software provides ISO/IEC 17025-aligned data acquisition and reporting. It supports six real-time display modes: load–time, load–displacement, displacement–time, stress–strain, load–extension, and custom user-defined axes. Calibration files are digitally signed and stored with version timestamps; raw data exports include .csv, .xlsx, and .udf formats compatible with MATLAB, Python (NumPy/Pandas), and Minitab. Automated parameter calculation includes ultimate tensile strength, yield offset (0.2%), Young’s modulus, elongation at break, compressive yield stress, flexural modulus, peel adhesion energy (J/m), and tear propagation resistance (kN/m). Batch analysis tools enable statistical comparison across up to 99 specimens, with exportable summary tables showing mean, SD, CV%, min/max, and confidence intervals (95%). Software updates are delivered via secure HTTPS portal with SHA-256 integrity verification and lifetime license coverage.

Applications

This system serves as a primary mechanical characterization tool in aerospace component qualification (e.g., carbon-fiber layup tensile validation per ASTM D3039), automotive material certification (steel sheet formability per ISO 10275), medical device polymer testing (ISO 5832-12 for orthopedic PEEK), pharmaceutical tablet hardness profiling (USP ), and construction material verification (rebar tensile per ASTM A615). It is routinely deployed in third-party inspection labs accredited to ISO/IEC 17025 for contract testing services and in university mechanics labs for undergraduate and graduate curriculum delivery in solid mechanics and materials science.

FAQ

What international standards does the TFW-14 support out-of-the-box?

The system includes preloaded test methods for ASTM E4, ISO 7500-1, GB/T 16491, JJG 475, ASTM D638, ISO 527, and ISO 604—with additional standards available via configuration module.
Can the software generate 21 CFR Part 11-compliant audit trails?

Yes, when deployed with role-based user accounts, digital signatures, and electronic record retention settings enabled per laboratory SOP.
Is thermal environmental chamber integration supported?

Yes—the machine features standardized mounting interfaces and analog/digital I/O ports compatible with commercial temperature chambers (-70°C to +300°C) from ESPEC, Weiss, or Angelantoni.
What is the warranty coverage and service response time?

Standard warranty: 24 months parts and labor; extended service plans include on-site calibration, preventive maintenance, and remote diagnostics with SLA-driven 48-hour response for critical faults.
Does the system support automated specimen identification via barcode scanning?

Yes—optional USB barcode reader integration enables auto-population of sample IDs, batch numbers, and test parameters directly into the test queue.
