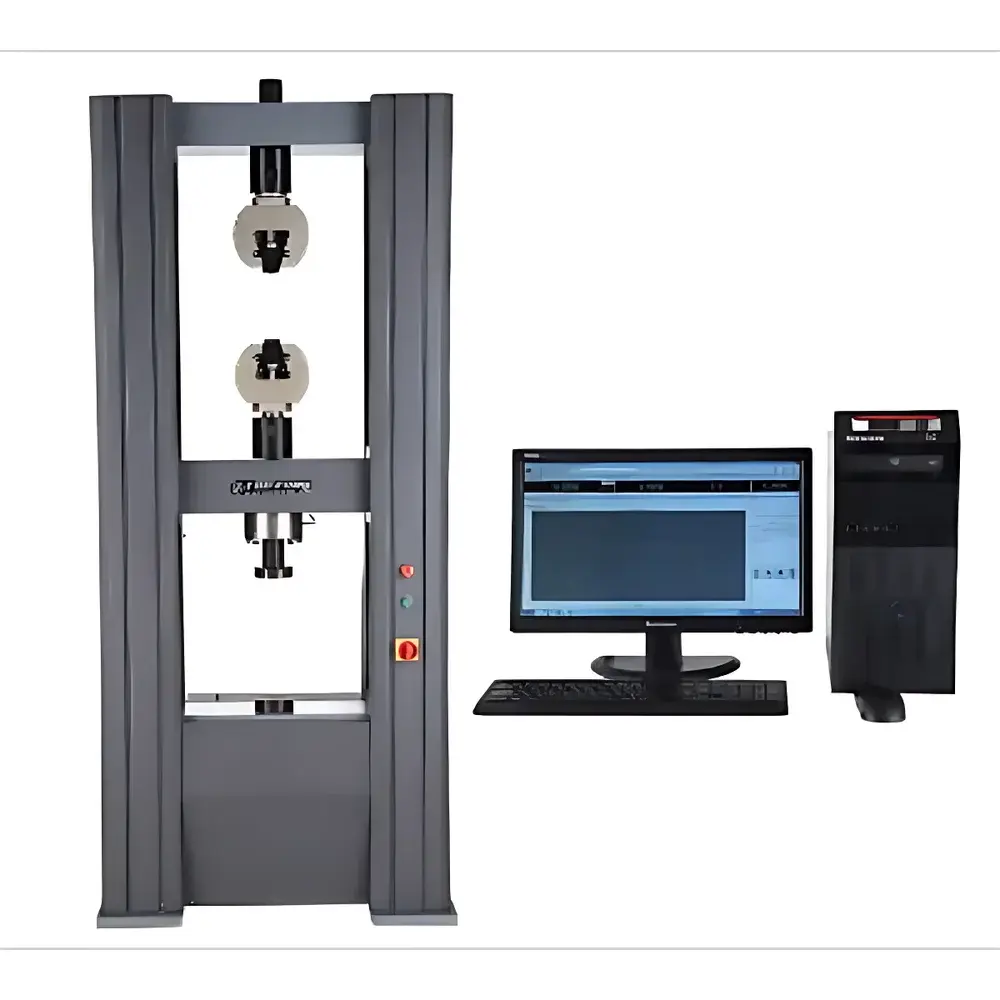

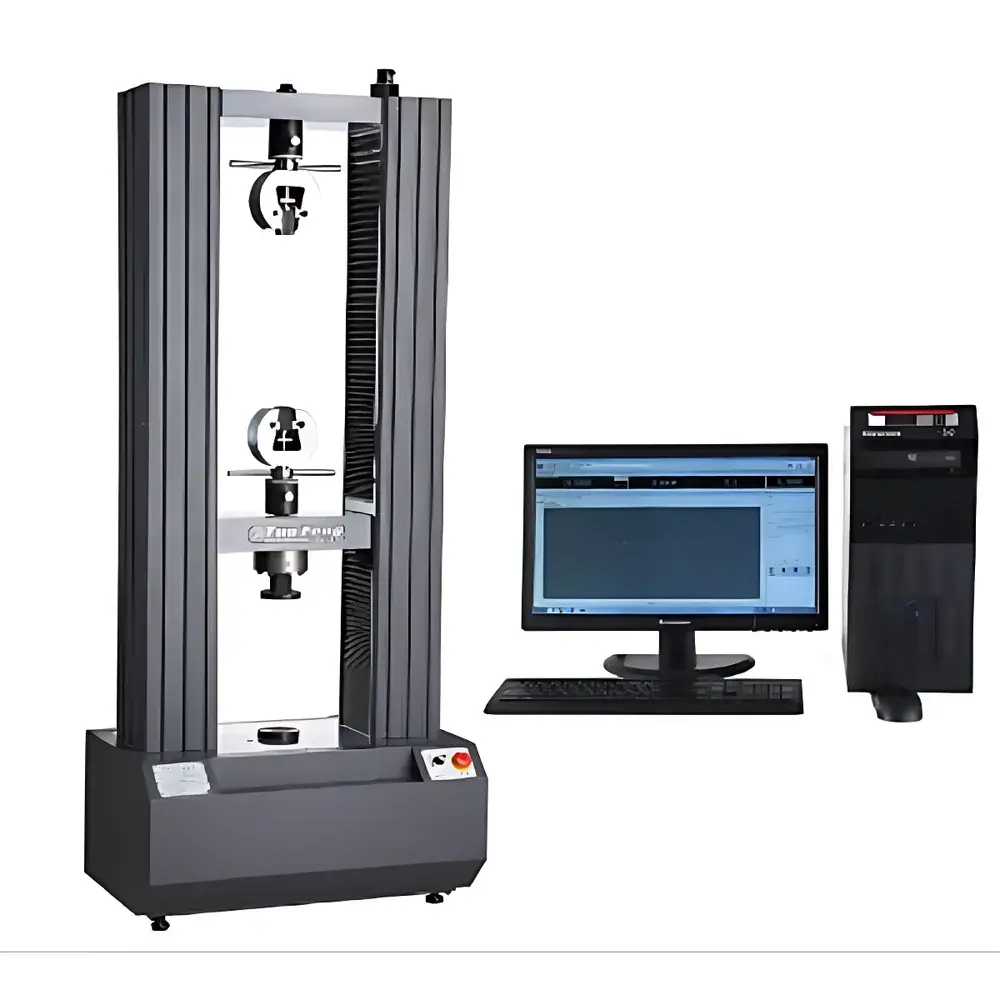

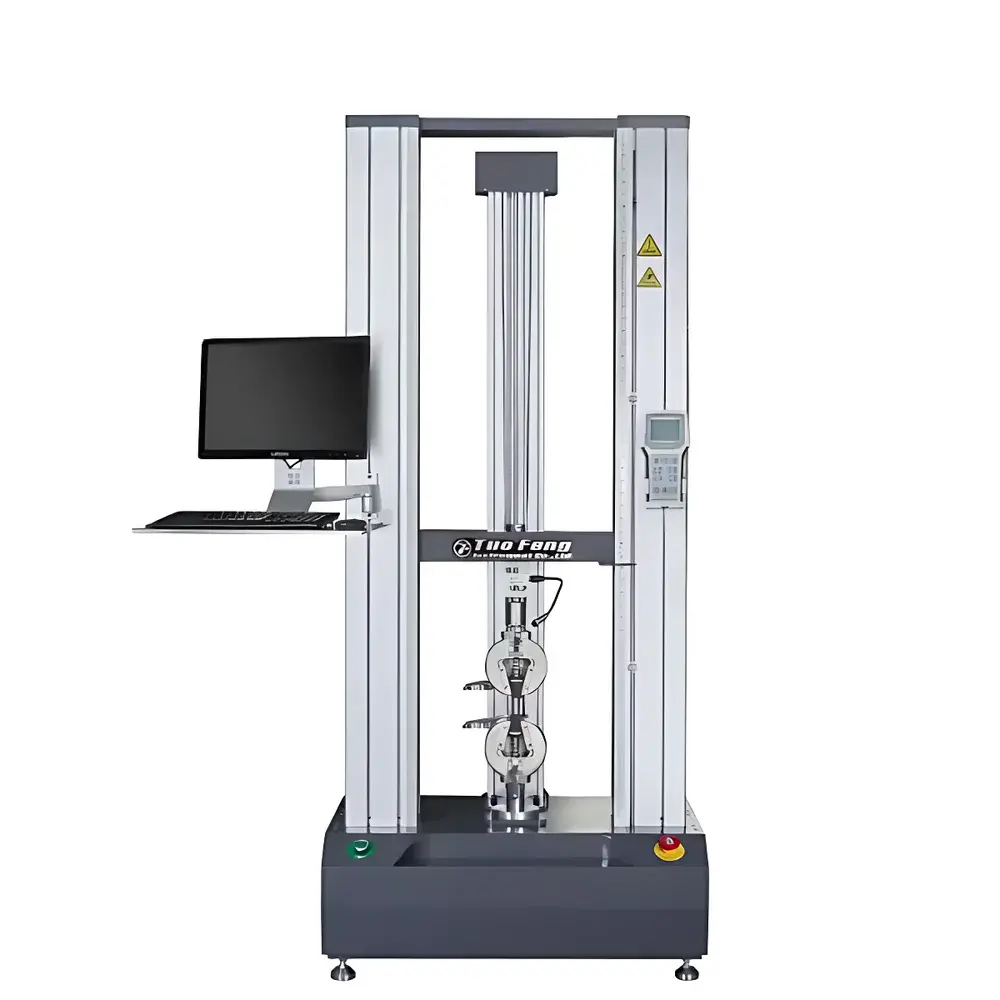

Tuofeng TFW-240 Microcomputer-Controlled Electronic Universal Testing Machine
| Brand | Tuofeng |
|---|---|
| Model | TFW-240 |
| Maximum Test Load | 240 kN |
| Accuracy Class | 0.5 |
| Effective Force Measurement Range | 0.2–100% of Full Scale |
| Force Measurement Accuracy | ±0.005% of Reading |
| Force Resolution | 1 part in ±500,000 full-scale codes (no range switching, constant resolution) |
| Drive System | Imported Servo Motor with Worm Gear Reducer |
| Lead Screw | High-Precision Ball Screw |
| Effective Test Width | 600 mm (customizable) |
| Stroke | 800 mm (extendable) |
| Test Speed Range | 0.001–500 mm/min (infinitely variable) |
| Displacement Measurement | Optical Encoder |
| Displacement Accuracy | ±0.005% of Reading |
| Strain Measurement | Optional Extensometer or Large-Deformation Gauge |
| Strain Accuracy | ±0.005% of Reading |
| Safety Protection | Electronic Limit Switches, Emergency Stop, Overload Protection (110% FS), Dual-Speed Motorized Crosshead Control |
| Software | Windows-Based, Multi-Language (EN/ZH-TR/ZH-S), ASTM/ISO/GB/JIS/DIN/BS Compliant Data Acquisition & Reporting |
| Compliance | GB/T 16491–2008, JJG 475–2008, ISO 5893, ASTM E4, ASTM E8/E9/E21, ISO 6892-1, ISO 178, ISO 148, USP <1041>, FDA 21 CFR Part 11 Ready (Audit Trail & Electronic Signature Optional) |
Overview
The Tuofeng TFW-240 Microcomputer-Controlled Electronic Universal Testing Machine is a high-precision, dual-column electromechanical system engineered for static mechanical property characterization of metallic, polymeric, composite, ceramic, and elastomeric materials. It operates on the principle of controlled axial force application via servo-driven ball-screw actuation, enabling precise displacement and load control across a wide dynamic range. Designed to meet international metrological standards—including GB/T 16491–2008, JJG 475–2008, ISO 5893, and ASTM E4—the machine delivers traceable, repeatable results suitable for R&D validation, quality assurance, and regulatory submission. Its modular architecture supports standardized tensile, compression, flexure, shear, peel, tear, puncture, and creep testing protocols, making it integral to material qualification workflows in aerospace, automotive, biomedical device manufacturing, construction materials certification, and polymer R&D laboratories.
Key Features
- 0.5-class accuracy certified per ISO 7500-1 and GB/T 16491–2008, with force resolution of 1 part in ±500,000 full-scale—ensuring high reproducibility at low-load regimes (down to 0.2% FS).
- Imported high-torque servo motor coupled with a backlash-free worm gear reducer and preloaded precision-ground ball screw, delivering smooth, noiseless motion and minimal thermal drift during extended tests.
- Dual-speed crosshead control (fast positioning + fine adjustment) with programmable return-to-start functionality, reducing cycle time between specimens without manual intervention.
- Integrated electronic limit switches, hardware-based emergency stop circuitry, and software-enforced overload cutoff (110% FS threshold) ensure operator and equipment safety per IEC 61800-5-2 and EN ISO 13857.
- Modular extensometry support: compatible with clip-on axial extensometers (ASTM E83 Class B-1), video-based digital image correlation (DIC) systems, and large-deformation transducers for strain measurement up to 1000% elongation.
- Rigid cast-iron base and reinforced steel frame minimize deflection under maximum load (240 kN), maintaining alignment integrity and reducing measurement uncertainty in high-stiffness material testing.
Sample Compatibility & Compliance
The TFW-240 accommodates specimens from thin films (<0.1 mm thickness) to structural beams (up to 600 mm width × 800 mm height), with customizable fixtures for ASTM D638, ISO 527, ASTM D790, ISO 178, ASTM D1876 (T-peel), ISO 8510-2 (lap shear), and ASTM D624 (tear). All test methods are implemented in strict conformance with ISO/IEC 17025–2017 requirements for testing laboratories. The system meets mechanical calibration traceability standards aligned with NIST SP 250-94 and supports GLP/GMP-compliant operation when configured with 21 CFR Part 11–enabled software modules—including audit trail logging, role-based user access, electronic signatures, and immutable data archiving.
Software & Data Management
TuofengTest Pro v5.2 is a Windows-native, multi-language (English, Simplified/Traditional Chinese) platform supporting real-time control of load, displacement, strain, and time-based test profiles. It enables seamless execution of ISO 6892-1 tensile ramps, ASTM E21 creep hold sequences, ISO 11443 melt flow simulations, and custom step-and-hold protocols. Real-time plotting includes synchronized stress–strain, load–displacement, and time-series overlays with automatic yield point detection (0.2% offset, tangent, or maximum curvature methods). Raw data exports to CSV, XML, and universal .udf formats; report templates comply with ISO 14289-1 (PDF/A-2u) for long-term archival. Version-controlled firmware and software updates are provided free of charge for the instrument’s operational lifetime.
Applications
- Mechanical validation of aerospace alloys (Ti-6Al-4V, Inconel 718) per AMS 2300 and ASTM B557.
- Tensile and flexural property mapping of thermoplastic composites (CFRP, GFRP) for automotive lightweighting programs.
- Peel strength assessment of medical adhesive tapes and wound dressings per ISO 22869 and ASTM F2255.
- Compression testing of pharmaceutical tablets per USP and Ph. Eur. 2.9.40.
- Creep rupture analysis of geosynthetic polymers under sustained loading (ISO 13431).
- Quality control of extruded aluminum profiles per EN 755-2 and ASTM B221.
FAQ
What international standards does the TFW-240 support out-of-the-box?
The system includes preconfigured test methods for ASTM E8/E9/E21, ISO 6892-1, ISO 178, ISO 148, GB/T 228.1, and JIS Z 2241, with full parameter mapping and reporting templates.
Can the machine be upgraded to meet 21 CFR Part 11 requirements?
Yes—optional 21 CFR Part 11 compliance package includes electronic signature workflow, ALCOA+ data integrity controls, and audit trail generation compliant with FDA guidance dated April 2022.
Is third-party calibration certification available?
Tuofeng provides factory calibration certificates traceable to CNAS-accredited labs (ISO/IEC 17025); optional on-site calibration by UKAS- or A2LA-accredited providers is supported.
What is the warranty coverage and service response time?
Standard 24-month parts-and-labor warranty; technical support available 24/5 via remote diagnostics; on-site service dispatch within 72 business hours in major EU/NA/APAC hubs.
Does the software support automated batch testing and statistical process control (SPC)?
Yes—batch mode allows unattended sequential testing of up to 99 specimens with auto-pass/fail evaluation against user-defined limits, and integrated SPC charts (X̄/R, Cpk, Ppk) exportable to Minitab or JMP.
