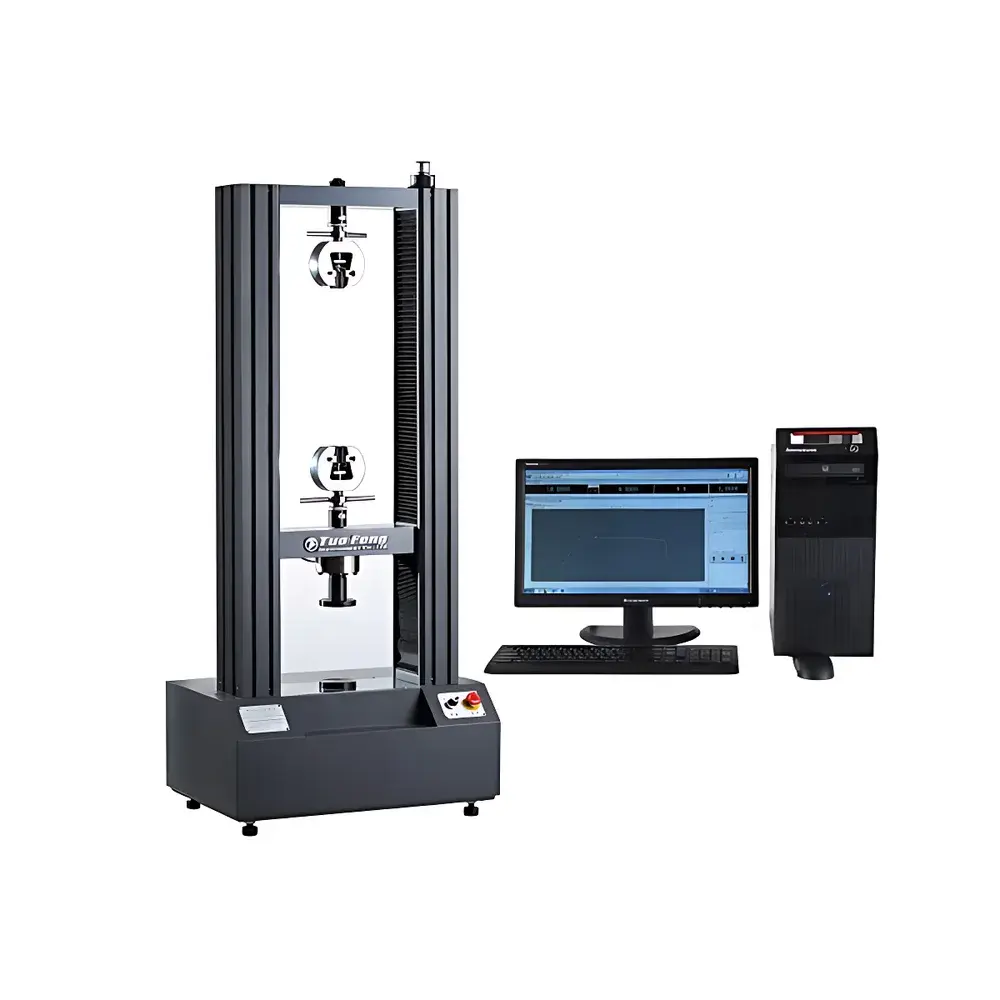

Tuofeng TFW-43 Universal Testing Machine for Copper Rod Materials

Overview

The Tuofeng TFW-43 Universal Testing Machine is an electromechanical static testing system engineered for high-fidelity mechanical characterization of metallic rods—including copper and copper alloys—as well as nonmetals and composites. Based on the principle of controlled axial force application via precision servo-driven motion, the system measures fundamental mechanical properties including tensile strength, yield strength (upper/lower), elastic modulus, elongation at break, compressive strength, flexural modulus, shear strength, and peel/adhesion performance. Its dual-column rigid frame architecture ensures minimal deflection under load, enabling repeatable measurements across wide force ranges (5 kN to 200 kN, depending on configured load cell). Designed for laboratory and industrial QA/QC environments, the TFW-43 complies with international standard test protocols including ISO 6892-1 (tensile testing of metallic materials), ASTM E8 (tension tests), ASTM E9 (compression tests), and ASTM E21 (elevated temperature testing), supporting traceable, auditable results in GLP/GMP-regulated workflows.

Key Features

• Rigid dual-column steel frame with preloaded high-precision ball screws and integrated gearmotor reduction—optimized for minimal axial play and long-term dimensional stability.
• High-resolution force measurement: 0.5-class accuracy per ISO 7500-1; effective force range from 0.2% to 100% of full scale; resolution up to 1 part in 500,000 full-scale counts, maintained across entire range without auto-ranging or hardware switching.
• Adjustable crosshead travel: standard 800 mm stroke (extendable); speed control from 0.001 to 500 mm/min, continuously variable via closed-loop servo feedback.
• Dual-mode displacement sensing: optical encoder for gross motion tracking (±0.005% FS accuracy) + optional extensometer interface (clip-on or non-contact) for strain-controlled tests per ASTM E83 or ISO 9513 (Class 1 or Class 0.5).
• Integrated safety architecture: electronic limit switches, emergency stop circuitry, overload protection (>110% FS), and programmable soft limits—all compliant with IEC 61800-5-2 functional safety requirements.
• Motorized crosshead with dual-speed positioning (fast jog/slow fine-adjust) and automatic return-to-start functionality post-test.

Sample Compatibility & Compliance

The TFW-43 accommodates cylindrical copper rod specimens (diameters 3–40 mm, lengths up to 1,200 mm) using customizable wedge-action or hydraulic self-tightening grips. Optional accessories include compression platens (flat/ribbed), three/four-point bending fixtures, shear adapters, peel test fixtures, and environmental chamber integration (–70°C to +300°C). All mechanical configurations adhere to dimensional tolerances specified in ISO 6892-1 Annex A (grip alignment), ASTM E1012 (system alignment verification), and GB/T 228.1–2021. Calibration certificates are provided per ISO/IEC 17025-accredited procedures, with traceability to NIM (China National Institute of Metrology) or NIST-equivalent standards. The system satisfies regulatory documentation requirements for FDA 21 CFR Part 11 (with audit trail-enabled software option), EU Annex 11, and ISO 13485 quality management systems.

Software & Data Management

The Windows-based Tuofeng TestSuite v4.2 supports multi-language UI (English, Simplified/Traditional Chinese), unit conversion (N/kN/lbf, MPa/psi, mm/inch), and six real-time display modes: Load–Time, Load–Displacement, Displacement–Time, Stress–Strain, Load–Extension, and custom user-defined plots. It enables closed-loop control modes—constant rate of load (CRL), constant rate of displacement (CRD), constant rate of extension (CRE), and hold (load/strain/displacement) — all programmable with stepwise ramp-hold sequences. Raw data is stored in ASCII CSV and proprietary .TFS binary formats with embedded metadata (operator ID, sample ID, standard reference, calibration timestamp). Built-in statistical tools compute mean, min/max, CoV, and confidence intervals across test batches. Export options include PDF reports (with header/footer branding), Excel-compatible spreadsheets, and image exports (PNG/SVG) of curves. Software updates are delivered remotely with version-controlled release notes and validation documentation available upon request.

Applications

The TFW-43 serves as a primary mechanical testing platform in copper rod production facilities (e.g., for C10100, C11000, C12200 grades), wire drawing R&D labs, and third-party certification bodies. Typical use cases include: verification of ASTM B187 (copper rod for electrical purposes) tensile requirements; evaluation of cold-work hardening response during drawing pass simulation; interfacial bond strength assessment in Cu-Al composite rods; creep compliance analysis under sustained loads per ASTM E139; and fracture toughness screening via J-integral estimation (ASTM E1820). It further supports qualification testing for aerospace-grade copper alloys (e.g., CuCrZr per AMS 4535), automotive heat exchanger tube validation (SAE J1079), and UL 486A-B terminal crimp integrity studies.

FAQ

What standards does the TFW-43 support out-of-the-box?
It natively implements test methods per GB/T 228.1, ISO 6892-1, ASTM E8/E9/E21, DIN 50125, and JIS Z2241—with configurable parameters for specimen geometry, rate selection, and pass/fail logic.
Can the system be integrated into an existing LIMS or MES environment?
Yes—via TCP/IP API (RESTful JSON endpoints) or OPC UA server mode, enabling bidirectional data exchange with LabWare, Thermo Fisher SampleManager, or Siemens Opcenter.
Is third-party calibration and IQ/OQ/PQ documentation available?
Full validation packages—including Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols—are supplied with optional GxP-compliant execution services by Tuofeng’s ISO 17025-certified metrology team.
What is the warranty and service coverage?
Standard 24-month parts-and-labor warranty; extended service plans include annual preventive maintenance, remote diagnostics, and priority on-site engineer dispatch within 72 hours in Tier-1 global regions.
Does the machine support elevated temperature or low-temperature testing?
Yes—when coupled with certified environmental chambers (e.g., ESPEC or Angelantoni units), the TFW-43 maintains force and displacement fidelity across –70°C to +300°C, with thermal compensation algorithms active in software.
