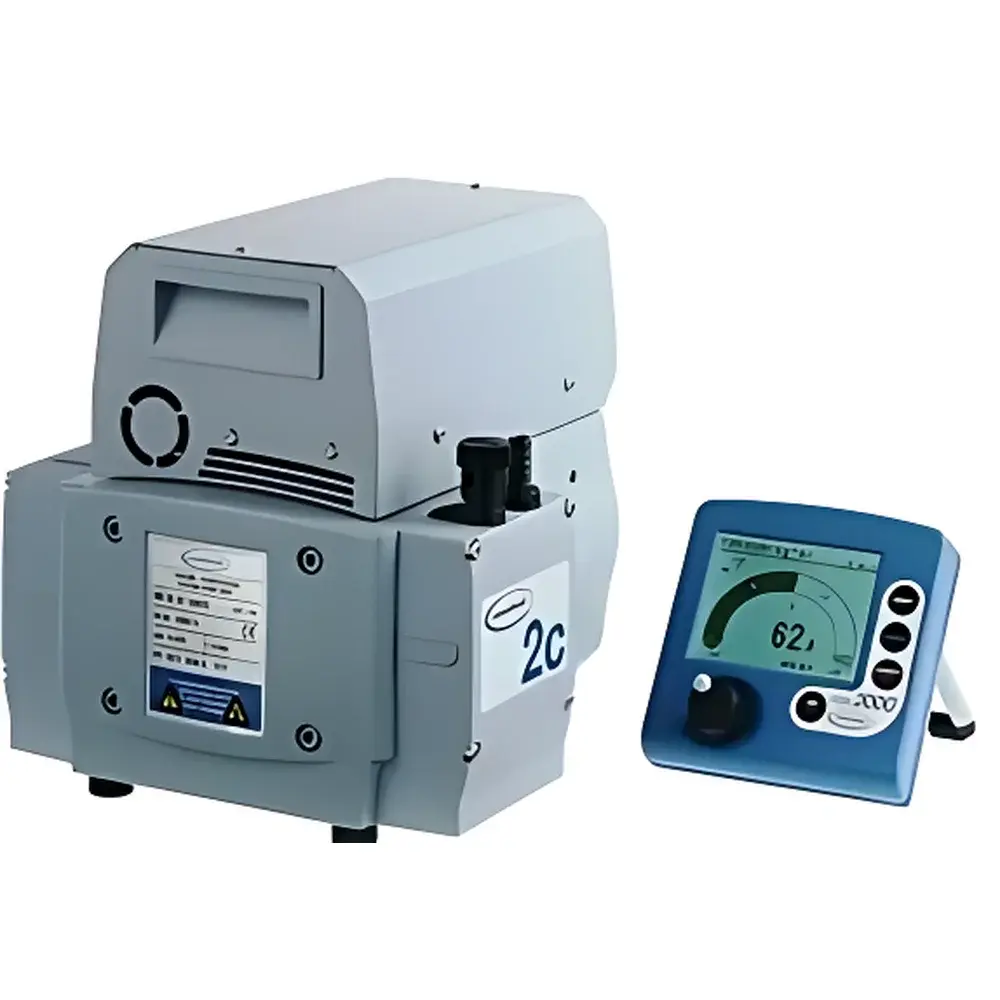

Vacuubrand MZ 2C NT VARIO Variable-Speed Chemical Diaphragm Vacuum Pump

Overview

The Vacuubrand MZ 2C NT VARIO is a two-stage, variable-speed chemical diaphragm vacuum pump engineered for precision vacuum control in demanding laboratory and pilot-scale applications. Unlike fixed-speed diaphragm pumps, the MZ 2C NT VARIO integrates a brushless DC motor with real-time speed modulation—enabling continuous, stepless adjustment of pumping performance between 30 and 2400 rpm. This architecture implements closed-loop vacuum regulation via integrated pressure feedback, eliminating overshoot and hysteresis common in on/off or solenoid-valve-controlled systems. The pump operates on the principle of positive displacement via PTFE-coated elastomeric diaphragms, delivering oil-free, dry vacuum generation with exceptional resistance to aggressive solvents including acetone, chloroform, ethyl acetate, and concentrated acids. Its dual-stage design achieves an ultimate absolute pressure of 7 mbar without gas ballast and maintains stable operation down to 12 mbar when gas ballast is engaged—making it suitable for solvent evaporation, rotary evaporation, vacuum filtration, freeze drying, and inert atmosphere purging in chemistry, pharmaceutical, and materials science laboratories.

Key Features

• Variable-speed motor control enables precise, dynamic vacuum setpoint regulation without mechanical throttling or external valves
• Two-stage diaphragm architecture ensures high volumetric efficiency and improved ultimate vacuum performance over single-stage alternatives
• Chemically resistant construction: PTFE-coated diaphragms, EPDM seals, and stainless-steel valve plates withstand prolonged exposure to halogenated, polar, and acidic vapors
• Integrated CVC 3000 vacuum controller with alphanumeric LCD, intuitive text-based menu navigation, and programmable ramp profiles
• Built-in automatic vent valve for safe, controlled atmospheric re-entry post-process—reducing bumping risk during rotary evaporation
• Extended service life: Reduced mechanical stress from speed modulation extends diaphragm and valve service intervals beyond 10,000 operating hours under typical lab conditions
• Low-noise operation (43 dBA at 50 Hz) and compact footprint (243 × 243 × 245 mm) support benchtop integration in shared lab environments

Sample Compatibility & Compliance

The MZ 2C NT VARIO is validated for use with volatile organic compounds (VOCs), aqueous solutions, and moderately corrosive process streams encountered in synthetic chemistry, QC testing, and analytical sample preparation. It complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity). For installations requiring intrinsic safety in potentially explosive atmospheres, the 230 V version carries ATEX certification (II 3G IIC T3 X) for Zone 2/22 use—limited to internal atmospheric operation per manufacturer specification. While not inherently compliant with FDA 21 CFR Part 11, its CVC 3000 controller supports audit-trail-capable data logging when paired with optional PC interface modules (e.g., USB-to-RS232 adapter + Vacuubrand LabControl software), facilitating GLP/GMP-aligned documentation workflows.

Software & Data Management

The CVC 3000 controller provides local setpoint programming, real-time vacuum monitoring, and time-stamped event logging (e.g., start/stop, alarm triggers, vent activation). Via RS232 interface, the system integrates with third-party LIMS or SCADA platforms using ASCII command protocol. Optional LabControl software (Windows-compatible) enables remote parameter configuration, multi-pump synchronization, and export of .csv-formatted vacuum/time datasets—including derivative calculations (e.g., dP/dt for evaporation kinetics analysis). All logged data retain timestamp, user ID (if configured), and system status flags—supporting traceability requirements in regulated environments.

Applications

• Routine and automated rotary evaporation of heat-sensitive compounds under controlled vacuum gradients
• Vacuum-assisted filtration of crystalline precipitates in API purification workflows
• Pre-concentration of environmental water samples prior to GC-MS analysis
• Inert gas purging of Schlenk lines and glovebox antechambers
• Support vacuum for lyophilization cycles in small-batch biopharmaceutical development
• Pressure-controlled distillation and fractional crystallization in teaching labs and R&D settings

FAQ

Does the MZ 2C NT VARIO require oil or lubricants for operation?

No—this is a completely oil-free, dry-running diaphragm pump. All moving parts are sealed and self-lubricating; no maintenance lubrication is required.
Can the pump handle water vapor continuously?

Yes, when operated with gas ballast enabled, it tolerates sustained water vapor loads typical of rotary evaporation condensers—though prolonged exposure to saturated steam may accelerate diaphragm aging.
Is the CVC 3000 controller programmable for multi-step vacuum ramps?

Yes—it supports up to 5 sequential setpoints with independent dwell times and ramp rates, enabling complex protocols such as gradient solvent removal.
What is the recommended maintenance interval?

Under standard lab use (≤8 hrs/day, non-aggressive media), diaphragm replacement is typically required every 12–18 months; valve plates and seals should be inspected annually.
Can the pump be mounted vertically or in confined enclosures?

It must be installed horizontally on a stable, level surface with ≥50 mm clearance around all sides for convection cooling; vertical mounting voids warranty and risks premature diaphragm fatigue.
