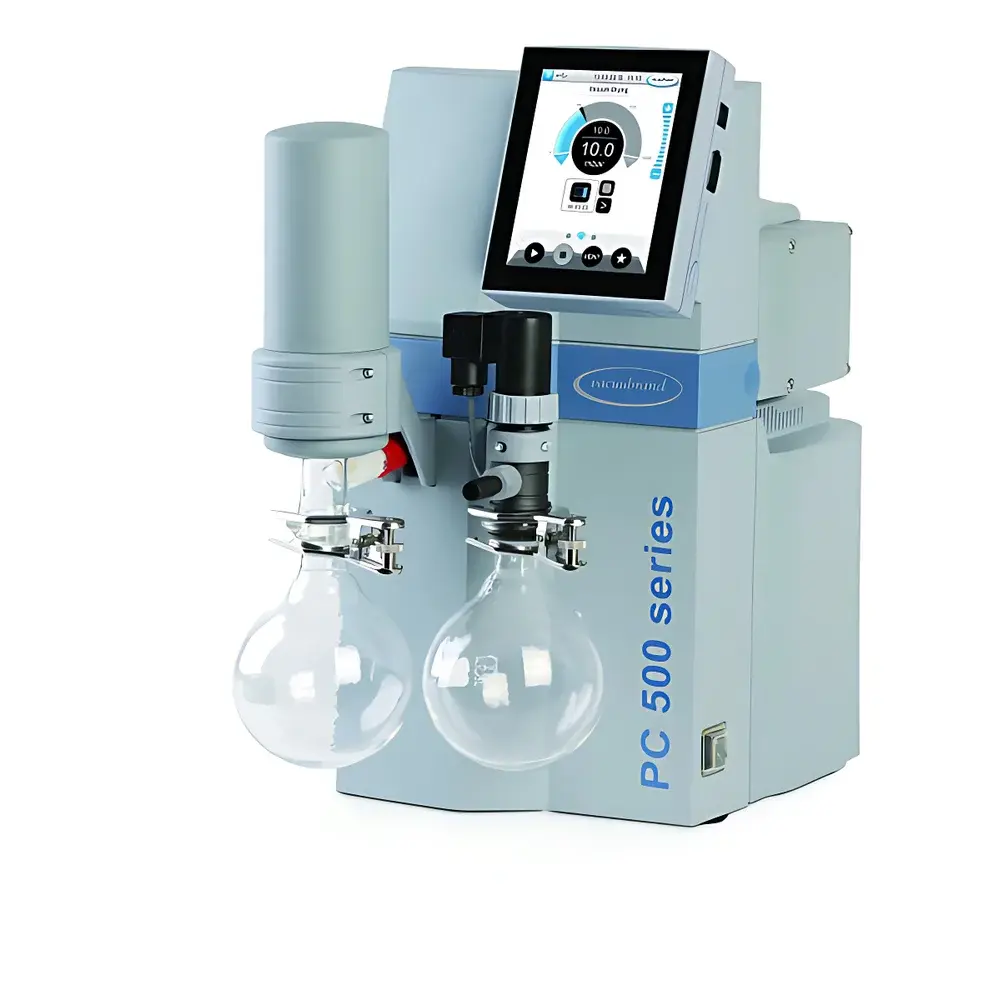

VACUUBRAND PC 510 select Chemical Vacuum System

Overview

The VACUUBRAND PC 510 select is a fully integrated, electronically controlled chemical vacuum system engineered for precision solvent removal, rotary evaporation, freeze drying, and vacuum filtration in research and quality control laboratories. At its core resides the MZ 2C NT two-stage chemically resistant diaphragm pump — a proven platform delivering dry, oil-free vacuum without risk of contamination or lubricant carryover. Unlike rotary vane or scroll pumps, the diaphragm architecture ensures intrinsic chemical compatibility with common organic solvents (e.g., acetone, ethanol, ethyl acetate, dichloromethane) and mild corrosive vapors. The system operates on the principle of positive displacement via elastomeric diaphragm oscillation, coupled with chemically inert PTFE-coated valves and stainless-steel flow paths. Its ultimate vacuum of 7 mbar enables efficient operation across standard distillation and concentration protocols while maintaining stable pressure regulation under dynamic vapor load conditions.

Key Features

• Integrated VACUU·SELECT digital vacuum controller with intuitive graphical user interface (GUI), supporting both manual setpoint adjustment and automated multi-step vacuum profiles
• Preloaded application templates for common lab workflows — including rotary evaporation, vacuum drying, degassing, and fractional distillation — ensuring method reproducibility and compliance-ready documentation
• Intelligent two-point pressure control logic that automatically detects solvent boiling onset and switches to precise pressure stabilization mode, minimizing bumping and foaming
• Front-mounted glass inlet trap with protective polymer coating, providing mechanical particle filtration and liquid knock-out protection for extended pump service life
• Condensable vapor management via optional water-cooled or recirculating chiller-connected exhaust condenser, achieving >95% solvent recovery under typical operating conditions
• Robust housing with IP20-rated enclosure, CE-compliant electromagnetic compatibility (EMC), and built-in thermal overload protection for continuous unattended operation

Sample Compatibility & Compliance

The PC 510 select is validated for use with non-explosive, non-pyrophoric liquid and vapor samples commonly encountered in pharmaceutical, analytical, and synthetic chemistry labs. Its chemically inert wetted materials — including FKM diaphragms, PTFE valve seats, and borosilicate glass traps — comply with ISO 8573-1 Class 4 for particulate and oil-free air quality. While not intrinsically safe for ATEX Zone 1 environments, it meets IEC 61000-6-3/6-4 for industrial emission and immunity standards. When operated with validated SOPs and audit-trail-enabled software configurations, the system supports GLP and GMP-aligned workflows. Data integrity features include time-stamped pressure logs and user-accessible configuration history — compatible with FDA 21 CFR Part 11 requirements when deployed with appropriate IT infrastructure and electronic signature controls.

Software & Data Management

The embedded VACUU·SELECT controller runs firmware version 3.x or higher, supporting USB and RS-232 interfaces for external data acquisition and remote monitoring. LabVIEW™, Python (pySerial), and MATLAB® drivers are available for integration into automated platforms. All vacuum profiles, sensor readings (pressure, temperature at condenser outlet if equipped), and operational events are timestamped and exportable in CSV format. The controller maintains local storage for up to 10,000 data points and retains user-defined applications even after power cycling. Audit trail functionality records operator ID (via optional RFID badge reader), parameter changes, and start/stop timestamps — essential for traceability in regulated environments.

Applications

• Controlled solvent evaporation in rotary evaporators (e.g., Büchi R-300, IKA RV 10)
• Gentle sample concentration prior to LC-MS or GC-MS analysis
• Deaeration of polymer solutions and resin mixtures
• Vacuum-assisted crystallization and recrystallization procedures
• Preparation of moisture-sensitive catalysts and organometallic compounds
• Low-temperature drying of biological specimens and pharmaceutical intermediates

FAQ

Is the PC 510 select suitable for use with hydrochloric acid or nitric acid vapors?
The MZ 2C NT pump is rated for intermittent exposure to low-concentration acidic vapors; however, prolonged operation with strong mineral acids requires optional corrosion-resistant upgrades (e.g., Hastelloy C-276 valve plates) and is not covered under standard warranty.
Can the VACUU·SELECT controller be calibrated in-house?
Yes — the controller supports user calibration of the integrated piezoresistive pressure sensor using a NIST-traceable reference gauge via the service menu; calibration certificates are generated and stored internally.
What maintenance intervals are recommended for routine operation?
Diaphragm replacement is advised every 6,000–8,000 hours of cumulative runtime; inlet trap cleaning and condenser inspection should occur after each high-solvent-load application or at least weekly in continuous-use settings.
Does the system meet ISO 22810:2010 for vacuum process validation?
While the PC 510 select itself is not certified to ISO 22810, its documented repeatability (±0.5 mbar over 24 h at 20 mbar setpoint) and digital logging capability enable users to generate validation protocols compliant with this standard.
Is Ethernet or Wi-Fi connectivity available?
No — the standard configuration includes only USB and RS-232 ports; Ethernet gateway modules are available as third-party accessories but are not factory-integrated or supported by VACUUBRAND firmware.
