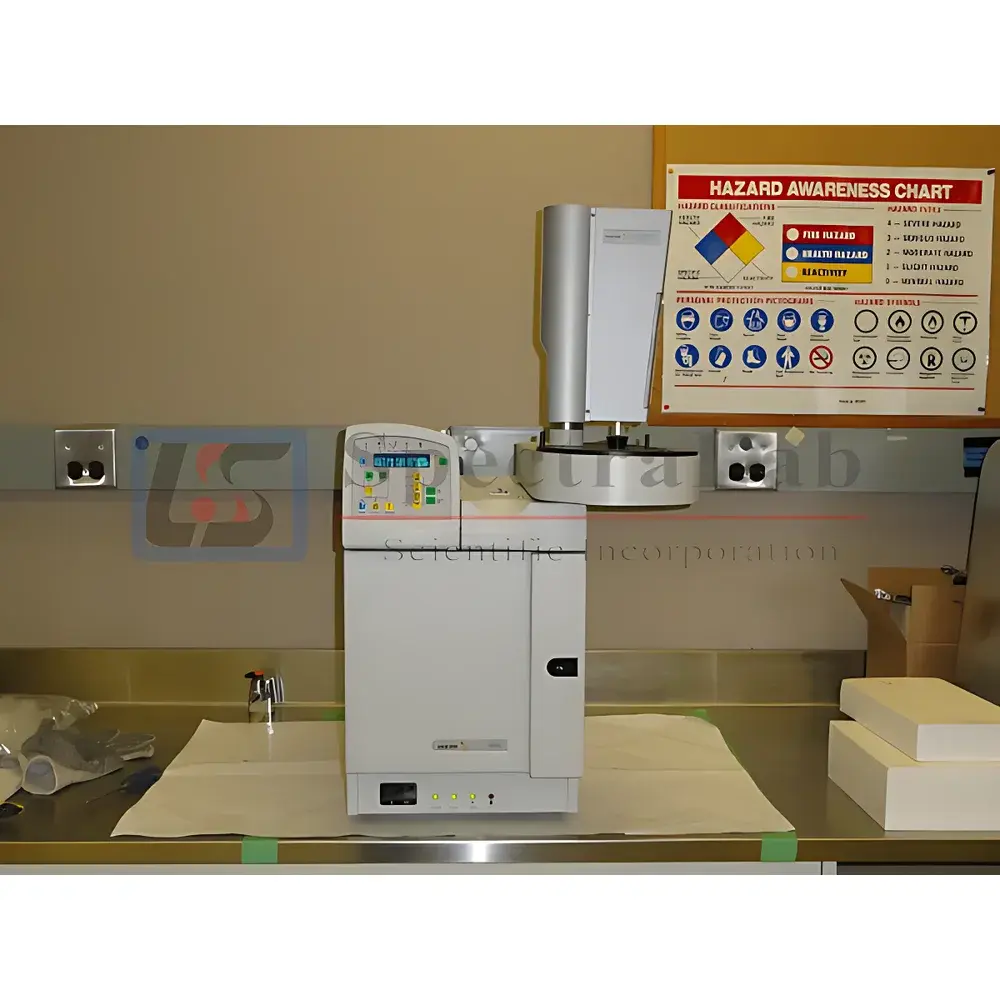

Varian 3900 Gas Chromatograph with Varian 8410 Autosampler

Overview

The Varian 3900 Gas Chromatograph is a robust, benchtop analytical platform engineered for high-reproducibility separation and quantification of volatile and semi-volatile organic compounds. Built upon Varian’s legacy of GC architecture—prior to Agilent’s acquisition—the 3900 series integrates precision temperature-controlled oven modules, a stable packed-column injector (Model 1041), and a high-sensitivity flame ionization detector (FID). This system operates on classical gas chromatographic principles: analytes are volatilized in the injector, separated based on differential partitioning between a mobile gas phase (carrier gas, typically helium or hydrogen) and a stationary phase within the column, and detected via carbon-specific ionization in the FID. The inclusion of the Varian 8410 autosampler enables unattended, programmable sample introduction with precise volume delivery (typically 0.1–100 µL), reducing manual variability and supporting routine QC/QA workflows in regulated environments.

Key Features

• Temperature-stable oven with rapid heating/cooling kinetics: achieves 450 °C to 50 °C in ≤5.2 minutes, minimizing cycle time without compromising thermal homogeneity.
• FID with real-time flame-out detection and automatic reignition—ensuring uninterrupted data continuity during extended runs.
• Packed-column injector (1041) optimized for reproducible sample introduction across wide concentration ranges; pressure programmable from 0 to 100 psi.
• High-speed data acquisition at 80 Hz, supporting accurate peak integration for narrow elution bands and complex matrices.
• Modular electronics architecture compatible with legacy Varian Star™ software (v5.x–6.x), enabling method migration and instrument control via Windows-based workstations.
• Factory-calibrated flow and temperature sensors traceable to NIST standards; all critical parameters logged with timestamped audit trails.

Sample Compatibility & Compliance

The Varian 3900 GC accommodates a broad range of sample types—including environmental extracts (e.g., EPA Method 8021B hydrocarbons), petrochemical fractions, residual solvents per ICH Q3C, and flavor/aroma volatiles—when paired with appropriate packed columns (e.g., 1/8″ OD stainless steel, 2–6 m length, 10–20% OV-101 or Carbowax 20M). Its FID meets sensitivity requirements outlined in ASTM D3606 (benzene/toluene in gasoline) and USP (residual solvents). The system supports GLP-compliant operation when deployed with validated Star™ software configurations, including electronic signatures, user access controls, and 21 CFR Part 11–compliant audit trail generation (subject to site-specific validation protocol).

Software & Data Management

Control and data processing are executed through Varian Star™ Chromatography Workstation software (v5.5 or later), which provides full method development tools, peak integration algorithms (tangent skim, valley-to-valley), calibration curve fitting (linear, quadratic, weighted), and report generation templates compliant with ISO/IEC 17025 documentation requirements. Raw data (.SRD files) are stored in a proprietary but fully exportable binary format; ASCII export (CSV, TXT) is supported for LIMS integration. All instrument events—including temperature setpoint changes, detector status transitions, and autosampler injection logs—are timestamped and archived with metadata (operator ID, method name, sequence number), facilitating retrospective review during regulatory audits.

Applications

• Environmental testing labs performing VOC analysis in soil/water per EPA SW-846 Methods 8240/8260.
• Pharmaceutical quality control laboratories verifying residual solvents in active pharmaceutical ingredients (APIs) and final drug products.
• Fuel testing facilities conducting hydrocarbon-type analysis (HTA) and benzene content determination in gasoline blends.
• Food & fragrance labs profiling volatile profiles in essential oils, fermented beverages, and roasted commodities.
• Academic research groups studying reaction kinetics or polymer degradation products requiring reliable, low-maintenance GC platforms.

FAQ

Is this instrument factory refurbished or third-party reconditioned?
All Varian 3900 systems supplied by SpectraLab Scientific undergo full functional refurbishment in accordance with original Varian technical service bulletins, including detector recalibration, oven insulation verification, leak testing (<1×10⁻⁸ atm·mL/s He), and firmware update to the latest stable revision.
Does the 6-month warranty cover parts and labor globally?
Yes—the warranty includes onsite labor and replacement parts for defects in materials or workmanship. Remote diagnostics and firmware support are provided without geographic restriction; onsite service is available in North America, EU, and APAC regions under contract.
Can this GC be upgraded to support splitless or capillary injection?
While the base configuration features a packed-column injector, the 3900 chassis supports retrofitting with Varian’s 1077 or 1177 inlet modules (subject to availability and mechanical compatibility assessment); such upgrades require qualified field service engineering and recalibration.
What documentation accompanies the instrument?
Each unit ships with a Certificate of Functional Testing, NIST-traceable calibration records for oven/FID/injector, full Star™ software license (perpetual, non-transferable), and complete hardware schematics and service manuals in digital format.
