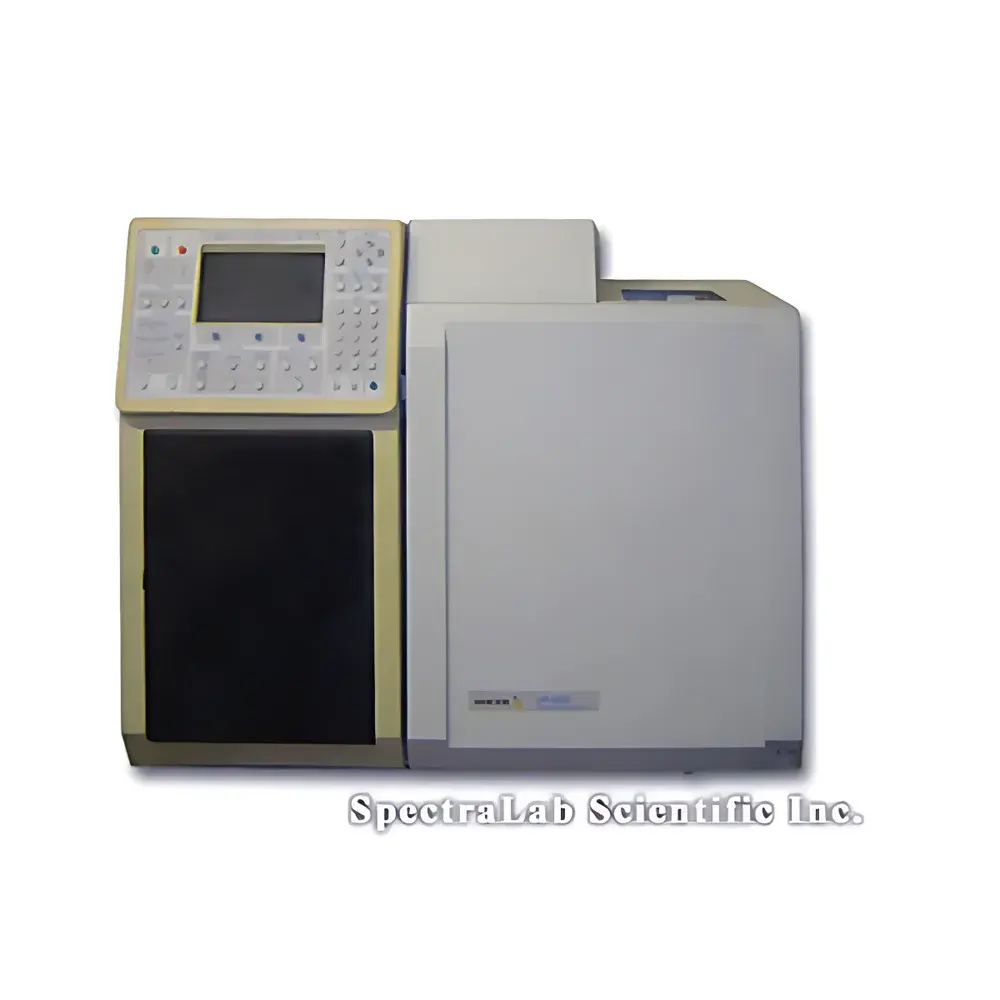

Varian CP-3800 Gas Chromatograph

Overview

The Varian CP-3800 Gas Chromatograph is a high-performance, modular benchtop GC system originally engineered by Varian, Inc. (now part of Agilent Technologies) and widely deployed in environmental, pharmaceutical, petrochemical, and forensic laboratories across North America and Europe. Designed around robust pneumatic architecture and precision temperature control, the CP-3800 employs conventional resistive heating and optional cryogenic cooling (liquid nitrogen or CO₂) to achieve exceptional thermal stability and rapid thermal transients—critical for method development, trace analysis, and routine QC workflows. Its column oven supports programmable multi-step temperature ramps with up to seven ramp segments and eight hold times, enabling complex elution profiles for co-eluting analytes. The system’s open architecture allows seamless integration with legacy and modern detection systems—including FID, TCD, ECD, and mass spectrometers—via standard analog/digital I/O and RS-232 interfaces.

Key Features

• Column oven with temperature range from ambient +4 °C to 450 °C; extended low-temperature capability down to −99 °C (with liquid N₂) or −65 °C (with liquid CO₂), supporting cryo-focusing and volatile compound retention.
• High-resolution temperature programming: 1 °C setpoint resolution, ramp rates up to 100 °C/min (oven) and 180 °C/min (1079 PTV injector), ensuring reproducible retention time alignment across batches.
• Multi-injector compatibility: CP-1177 split/splitless inlet (0–100 psi, flow up to 500 mL/min at 10 psi), 1079 PTV inlet (−99 °C to 450 °C), 1061 flash vaporizer, and 1041 column-head inlet—each configurable with manual or electronic flow control (EFC) for precise carrier gas management.
• Modular detector interface: Standard analog voltage/current outputs and TTL-compatible trigger lines support FID, TCD, ECD, NPD, and PID detectors; optional GC/MS coupling via transfer line heater and synchronization signals.
• Compact footprint (54 × 66 × 56 cm) and 43 kg mass facilitate installation in space-constrained labs; certified for operation under ambient conditions of 10–40 °C and 5–95% relative humidity (non-condensing).
• Reconditioned unit undergoes full functional validation per ASTM D3612 and ISO 17025-aligned procedures—including leak testing, baseline noise assessment, retention time repeatability (<0.02% RSD), and detector sensitivity verification.

Sample Compatibility & Compliance

The CP-3800 accommodates capillary columns (standard), packed columns (via optional adapters), and large-bore formats, making it suitable for both high-resolution separations and high-capacity applications such as residual solvent analysis or hydrocarbon fingerprinting. It supports liquid, gaseous, and solid samples (via optional ChromatoProbe accessory). All reconditioned units are verified for compliance with key regulatory expectations: data integrity is maintained through audit-trail-enabled acquisition software (e.g., Star v6.x or OpenLab CDS), supporting ALCOA+ principles. While the hardware itself predates FDA 21 CFR Part 11, its integration into validated environments meets GLP and GMP requirements when paired with compliant software, electronic signatures, and procedural controls documented per SOPs.

Software & Data Management

The CP-3800 operates natively with Varian’s Star Chromatography Workstation (v6.4 or later), which provides method development tools, peak integration algorithms compliant with USP , and customizable reporting templates. Raw data files (.CDF) are fully compatible with third-party processing platforms including Chromeleon, Empower, and AIA-compliant viewers. For laboratories requiring long-term archival and metadata traceability, the system supports networked storage, LIMS integration via ODBC, and automated backup protocols. All reconditioned instruments include licensed software media, driver packages, and configuration files preloaded on a dedicated USB drive—no cloud dependencies or subscription fees.

Applications

• Environmental analysis: EPA Method 8260/8270 volatile/semi-volatile organics in soil, water, and air matrices.
• Pharmaceutical QC: Residual solvents (ICH Q3C), assay purity, and extractables/leachables profiling.
• Petrochemical testing: Hydrocarbon group-type analysis (HT-GC), simulated distillation (ASTM D2887), and natural gas composition (ASTM D1945).
• Food & flavor chemistry: Volatile aroma profiling, pesticide residue screening, and fatty acid methyl ester (FAME) analysis.
• Forensic toxicology: Blood alcohol quantification, drug metabolite identification, and ignitable liquid residue characterization.

FAQ

Is this unit fully tested and calibrated prior to shipment?
Yes. Each CP-3800 undergoes comprehensive operational verification—including oven temperature accuracy (±0.5 °C), pressure/flow stability (500:1 for FID), and retention time reproducibility—per internal QA protocol aligned with ISO/IEC 17025 clause 5.9.

What documentation accompanies the instrument?
You receive a Certificate of Reconditioning, detailed test report, electrical safety certification (ETL or equivalent), and full set of user manuals (English). Optional IQ/OQ documentation packages are available upon request.

Can this GC be integrated with a mass spectrometer?
Yes. The CP-3800 features standard GC/MS interface ports, heated transfer line support (up to 350 °C), and synchronization triggers compatible with Thermo ISQ, Agilent 5977, and Shimadzu QP series MS detectors.

What warranty and technical support are included?
A 6-month parts-and-labor warranty is provided. Remote diagnostics and application support are available during business hours (EST) via email and phone; on-site service contracts can be arranged globally through authorized partners.
