Varian VK 7025/7030 Dissolution Tester (Refurbished)

Overview

The Varian VK 7025/7030 Dissolution Tester is a precision-engineered, benchtop dissolution system originally developed by Varian, Inc. (now part of Agilent Technologies) for pharmaceutical quality control and formulation development. As the world’s first V-shaped dissolution apparatus, it was designed to optimize spatial efficiency, mechanical stability, and operational reproducibility in regulated environments. Its core measurement principle follows the paddle and basket methods defined in USP , relying on controlled hydrodynamic conditions within standardized dissolution vessels to quantify the rate and extent of drug substance release from solid oral dosage forms. The system operates under strict adherence to pharmacopeial fluid dynamics requirements—ensuring laminar flow profiles, consistent vessel geometry, and minimal vibration-induced turbulence. This refurbished unit has undergone full functional validation at SpectraLab Scientific’s ISO 17025-accredited calibration facility, including mechanical alignment verification, temperature uniformity mapping across all vessels, rotational speed calibration, and sampling timing accuracy assessment.

Key Features

• V-shaped chassis architecture reduces footprint by ~30% versus conventional rectangular designs while enabling unobstructed visual monitoring of all dissolution vessels during operation.
• Patented TruCenter™ magnetic cup retention system ensures repeatable, sub-millimeter centering of each USP-compliant dissolution vessel—critical for minimizing shear gradient variability and meeting USP mechanical calibration criteria.

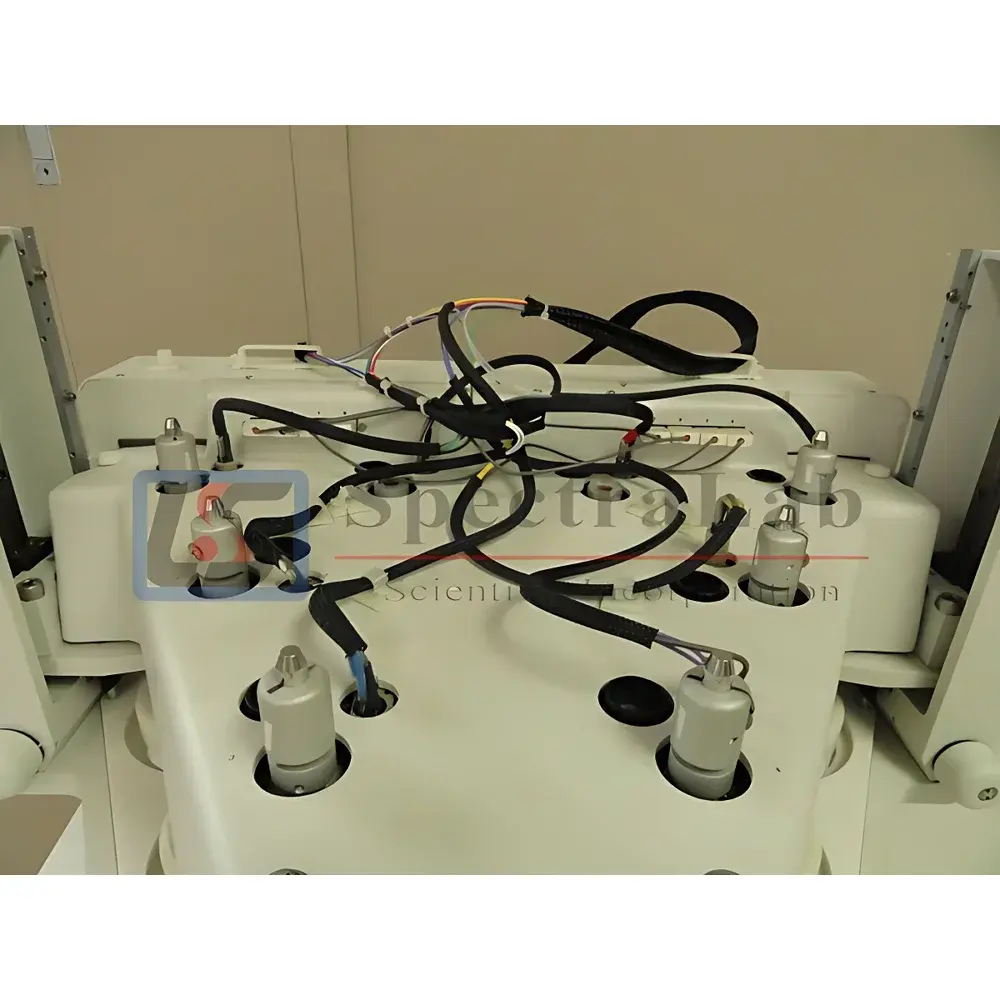

• Motor-driven, synchronized vertical lift mechanism for sampling probes; probes extend only during scheduled sampling intervals, eliminating continuous immersion artifacts and preserving hydrodynamic integrity.
• Independent, motorized temperature probe per vessel enables real-time, logged monitoring of medium temperature—fully satisfying FDA 21 CFR Part 11 audit trail requirements when paired with compliant data acquisition software.
• Modular DDM (Drug Delivery Module) supports programmable, timed dosing for sink condition studies or multi-stage release profiling—compatible with both immediate- and extended-release formulations.
• Integrated PETG water bath tank with quick-drain valve and external recirculating chiller interface ensures rapid thermal equilibration (<15 min from 25 °C to 37 °C) and long-term temperature stability (±0.15 °C over 6 h).
• Interchangeable paddle/basket shafts with fixed-height mounting eliminate recalibration when switching between USP Apparatus 2 and Apparatus 1—reducing method transfer time and operator error.

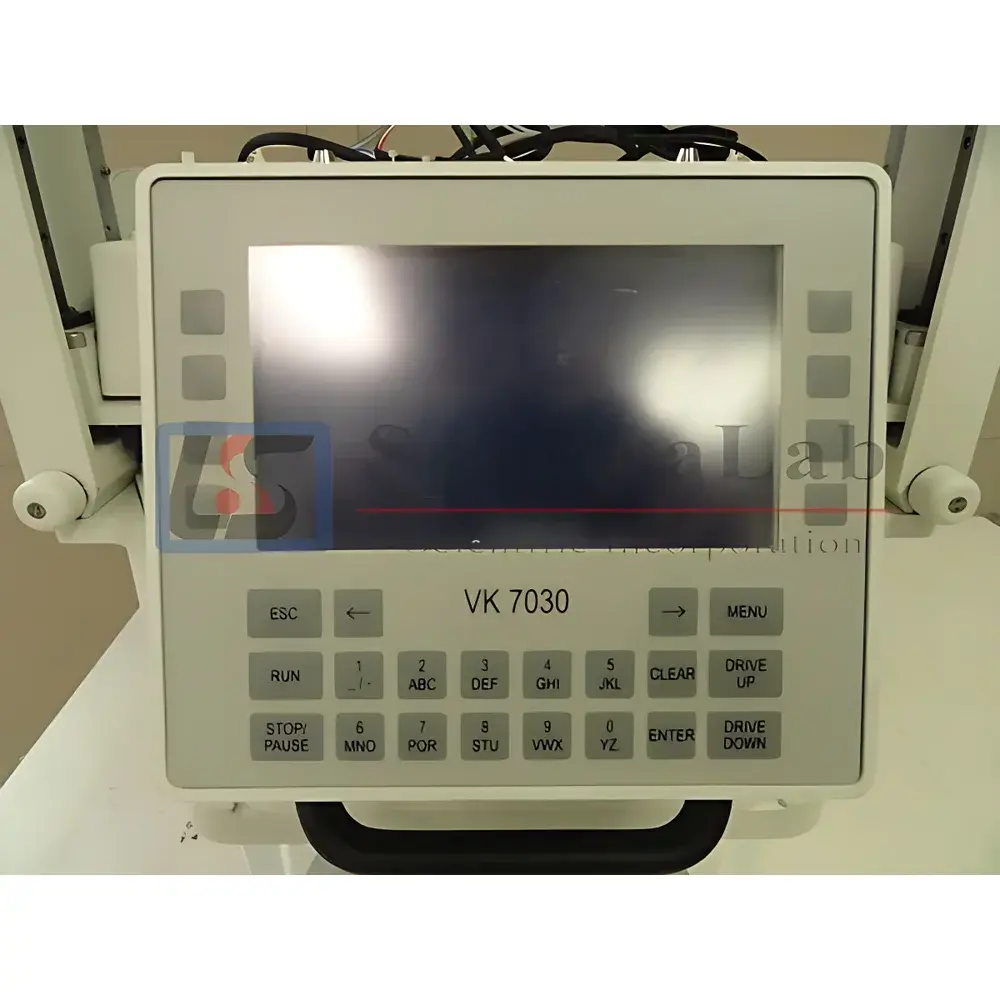

• Backlit 4×40 character LCD with secure parameter lockout (user-defined passwords) and timestamped event logging—including maintenance alerts, calibration due dates, and out-of-specification condition notifications.

Sample Compatibility & Compliance

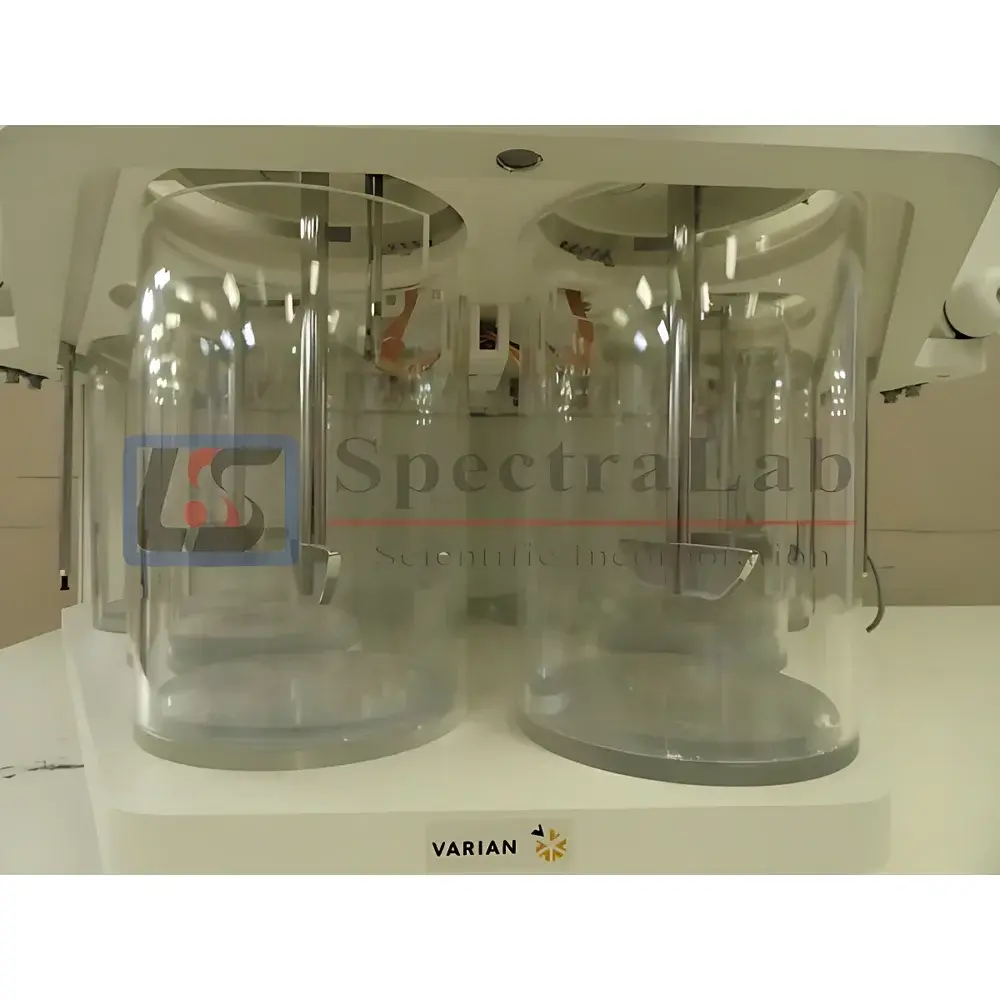

This VK 7025/7030 unit accommodates standard USP dissolution vessels (100 mL, 200 mL, 1 L, and 2 L configurations) and supports all official test modes: single-point, multi-point, and continuous sampling protocols. Each vessel is fitted with a dome-shaped, vapor-tight PETG cover to maintain constant dissolution medium volume—essential for kinetic modeling and regulatory submission data integrity. The system meets mechanical calibration specifications outlined in USP , EP 2.9.3, JP XVII General Chapter “Dissolution Testing”, and ChP 0931. Refurbishment includes full traceability documentation: pre- and post-service performance qualification (PQ) reports, temperature mapping certificates (per ASTM E2251), and rotational speed verification logs—all archived for GLP/GMP audit readiness.

Software & Data Management

While the VK 7025/7030 operates as a standalone instrument with embedded firmware, it interfaces seamlessly with third-party dissolution data systems via RS-232 serial output and parallel printer port. All critical parameters—including actual RPM, vessel temperature, elapsed time, sampling trigger events, and alarm status—are timestamped and exportable in ASCII format. When integrated with validated chromatographic data systems (e.g., Empower, Chromeleon, or OpenLab CDS), raw dissolution timepoints can be directly linked to HPLC/UPLC quantitation results—enabling end-to-end batch release traceability. Optional firmware upgrades support 21 CFR Part 11-compliant electronic signatures and audit trail generation, provided the host PC environment satisfies platform validation requirements.

Applications

• Pharmaceutical QC release testing of tablets, capsules, and orally disintegrating films per ICH Q5A and Q5C guidelines.
• Comparative dissolution profiling for bioequivalence assessments (FDA Guidance for Industry, 2013).
• Formulation development support—evaluating excipient effects, coating thickness impact, and pH-dependent release kinetics.
• Stability-indicating method development where dissolution behavior correlates with chemical degradation pathways.
• Regulatory submission package generation for ANDAs, NDAs, and MAAs requiring full mechanical and performance qualification evidence.

FAQ

Is this unit compliant with current FDA and EMA expectations for dissolution equipment?
Yes—the VK 7025/7030 meets all mechanical calibration and operational criteria specified in USP , EP 2.9.3, and ICH Q4B Annex 5. Its refurbishment includes PQ documentation aligned with ASTM E2251 and ISO/IEC 17025 standards.
What documentation is provided with the instrument?
You receive a full refurbishment dossier: pre-service inspection report, post-calibration PQ summary, temperature uniformity maps, rotational speed verification logs, and a Certificate of Conformance to pharmacopeial standards.
Can this system be upgraded to support automated fraction collection or UV online detection?
Yes—the VK 7025/7030 features open I/O ports and modular expansion slots. Integration with autosamplers (e.g., Gilson FC204) or UV flow cells requires third-party engineering validation but is technically supported.
Does the 6-month warranty cover labor and parts globally?
The warranty covers functional defects and includes remote technical support. On-site service is available in North America, EU, and APAC regions under separate service agreement terms.
How does the V-shape design improve hydrodynamic performance?
The acute-angle chassis minimizes structural resonance transmission to the vessel array, reducing low-frequency vibration that can disrupt laminar flow—particularly critical at low agitation speeds (e.g., 25–50 rpm) used for extended-release products.
