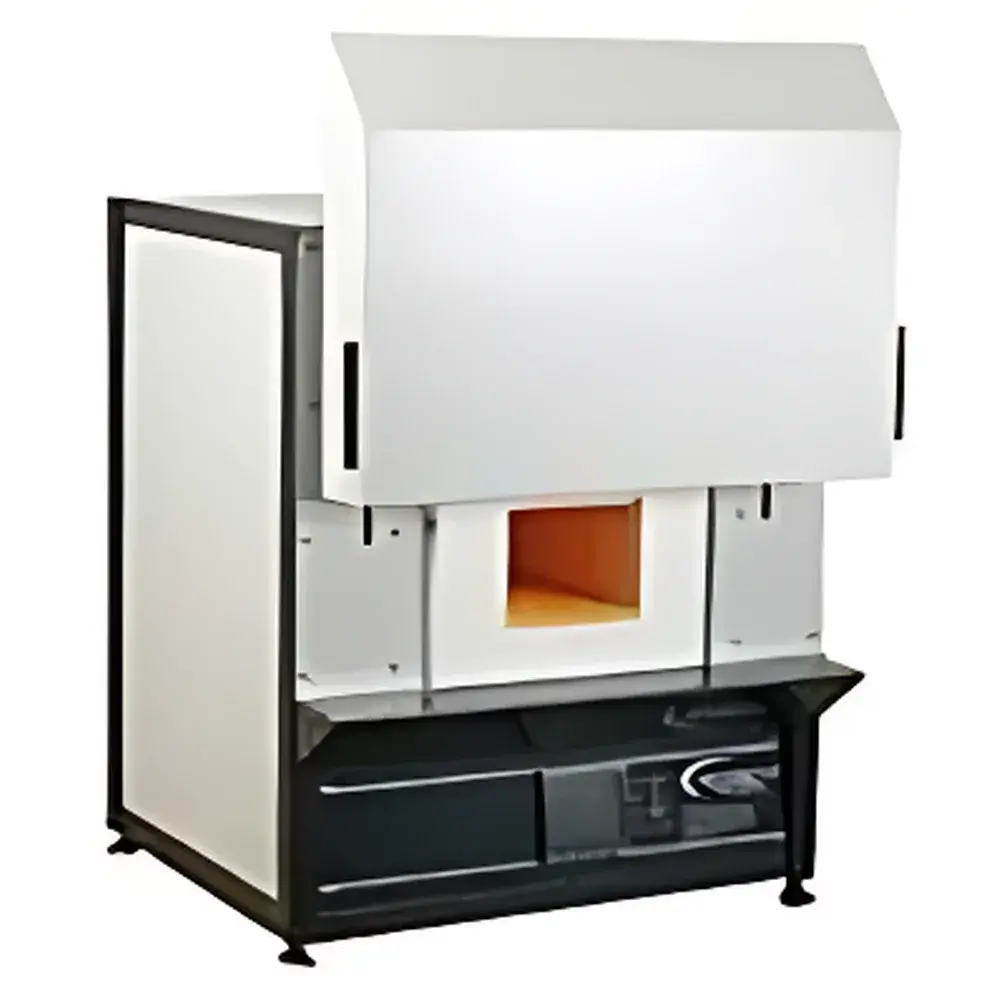

Vecstar XF Series 1800 °C High-Temperature Box-Type Muffle Furnace

Overview

The Vecstar XF Series 1800 °C High-Temperature Box-Type Muffle Furnace is a precision-engineered thermal processing instrument designed for demanding laboratory and materials research applications requiring stable, repeatable operation at extreme temperatures. Based on resistive heating via high-purity silicon molybdenum (MoSi₂) rods, the furnace operates under controlled atmospheric conditions—typically air or inert gas environments—enabling precise thermal treatment of ceramics, refractory metals, advanced composites, and high-performance oxides. Its robust ceramic fiber insulation architecture and vertically opening door configuration support safe, ergonomic access while maintaining structural integrity and thermal stability up to 1800 °C. The furnace is engineered for long-term reliability in continuous operation at 1750 °C, making it suitable for sintering, ashing, heat treatment, calcination, and pre-firing protocols compliant with ASTM C1161, ISO 2738, and IEC 60068-2-10 standards.

Key Features

• Vertical-lift door mechanism with mechanical safety interlock—automatically de-energizes heating elements upon door opening, eliminating risk of operator exposure to radiant heat or electrical hazard.
• Ceramic chamber surface reinforced with embedded metal wire winding, delivering exceptional temperature uniformity (±2 °C across working zone) and long-term resistance to thermal shock and surface degradation.
• Dual-layer high-density ceramic fiber insulation minimizes external casing temperature (<60 °C at ambient), improves energy efficiency, and reduces thermal mass for faster ramp cycles.
• Integrated aluminum exhaust chimney facilitates passive removal of volatile combustion by-products and residual process gases during ashing or organic decomposition procedures.
• Modular digital temperature controller options—including PID-based units with programmable ramp/soak profiles, real-time data logging, and RS485/Modbus RTU interface—support integration into centralized lab automation systems.
• Compliant with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), ensuring electromagnetic compatibility in shared laboratory environments.

Sample Compatibility & Compliance

The Vecstar XF accommodates crucibles and sample holders made from alumina, zirconia, graphite, or platinum-group alloys, supporting sample masses up to 500 g depending on geometry and thermal mass. It is compatible with standard DIN 51069 and ASTM E1111 ashing protocols and meets essential requirements for GLP-compliant thermal analysis workflows. Optional inert gas purging (N₂ or Ar) enables oxygen-sensitive processes such as reduction firing or controlled oxidation studies. All models are supplied with CE marking and conform to EN 61000-6-4 and EN 61000-6-2. Documentation includes factory calibration certificates traceable to UKAS-accredited standards.

Software & Data Management

Controller firmware supports audit-trail-enabled operation per FDA 21 CFR Part 11 requirements when paired with validated software packages (e.g., Vecstar LabLink Pro). Data export formats include CSV and XML; time-stamped temperature logs include setpoint, actual reading, power output, and alarm status. Remote monitoring via Ethernet or USB is supported, with configurable user roles and password-protected parameter editing. Firmware updates are performed via secure signed binaries, preserving system integrity during lifecycle maintenance.

Applications

• Sintering of advanced ceramics (e.g., SiC, AlN, YSZ) and ultra-high-temperature composites
• Ash content determination in pharmaceutical excipients, food matrices, and environmental samples per USP & AOAC methods
• Thermal gravimetric pre-conditioning prior to XRD or SEM analysis
• Calibration of thermocouples and reference materials at elevated fixed points (e.g., Co–C, Pd–C)
• Heat treatment of tungsten, molybdenum, and niobium alloys in metallurgical R&D
• Pre-firing of catalyst supports and battery electrode precursors

FAQ

What is the maximum continuous operating temperature?
The Vecstar XF is rated for continuous operation at 1750 °C. Operation at 1800 °C is permitted for short-duration thermal cycles (≤2 hours), subject to scheduled element inspection.
Is inert atmosphere capability standard or optional?
A gas inlet port and sealed flange are standard; inert gas delivery and flow control require optional accessories (mass flow controller, pressure regulator, and purge manifold kit).
Does the furnace meet GLP/GMP documentation requirements?
Yes—when used with Vecstar LabLink Pro software and configured with electronic signature and audit trail modules, the system satisfies ALCOA+ data integrity principles and supports regulatory submission readiness.
Can the internal chamber dimensions be customized?
Standard internal volume ranges from 3.8 L to 14 L; custom cavity geometries (e.g., deeper or wider configurations) are available upon engineering review and may affect thermal uniformity certification.
What maintenance intervals are recommended for MoSi₂ heating elements?
Under typical usage (≤10 thermal cycles/week at ≤1750 °C), visual inspection and resistance measurement are advised every 200 operational hours; replacement is typically required after 1,500–2,000 cumulative hours at peak temperature.
