VECTRA H2 3D Facial & Full-Body Imaging System by Canfield

Overview

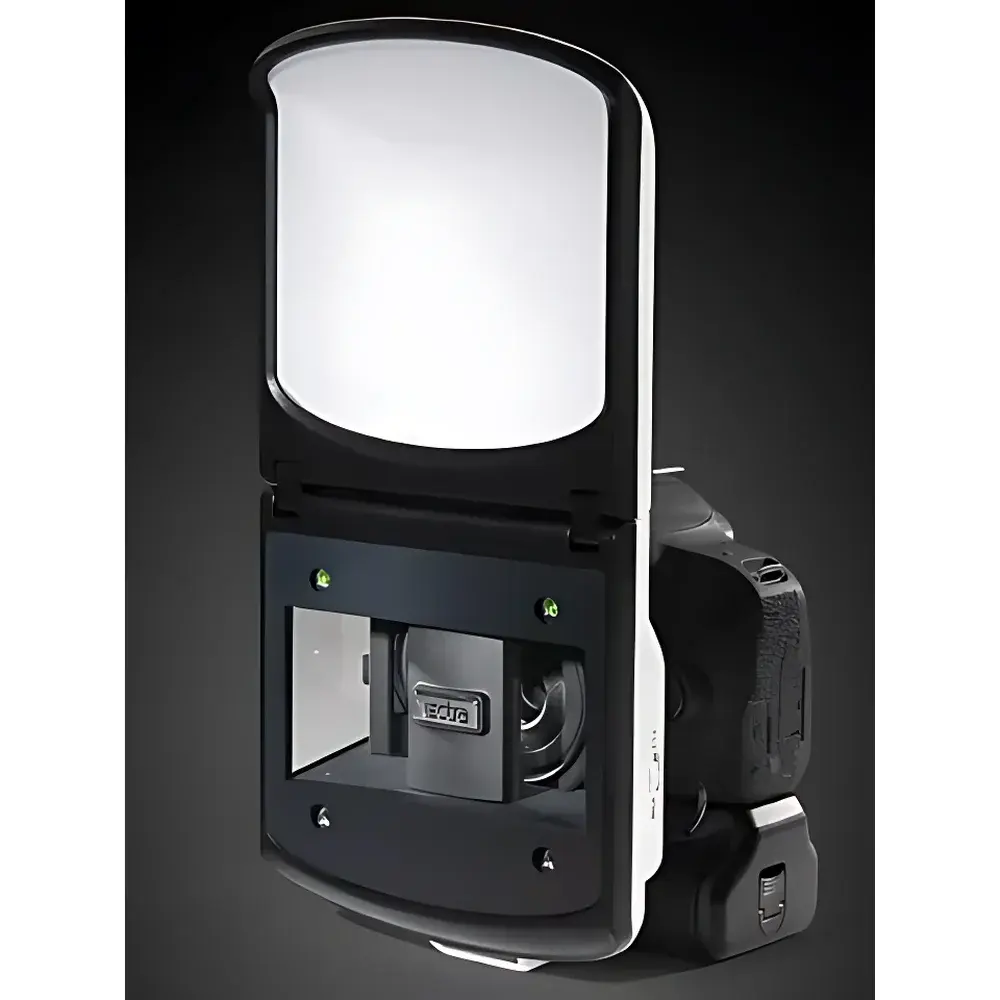

The VECTRA H2 3D Facial & Full-Body Imaging System is a compact, portable clinical imaging platform engineered for quantitative surface topography capture in dermatology, plastic surgery, aesthetic medicine, and clinical research. Unlike conventional 2D photography, the VECTRA H2 employs synchronized structured light projection and multi-angle stereo photogrammetry to reconstruct geometrically accurate, texture-mapped 3D surface models with sub-millimeter depth resolution. The system utilizes dual calibrated optical paths—optimized separately for facial (short-range) and full-body (long-range) acquisition—to maintain consistent spatial fidelity across anatomical scales. All image capture, alignment, and mesh generation occur in real time on an integrated industrial-grade computing module, eliminating external workstation dependency. Designed for integration into regulated clinical workflows, the VECTRA H2 supports audit-trail logging, DICOM-SR export, and configurable user roles aligned with GLP and HIPAA-compliant data governance frameworks.

Key Features

• Dual-Range Optical Architecture: Independent calibration profiles for facial (0.3–0.6 m working distance) and body (0.8–2.0 m) imaging ensure optimal point-cloud density and surface normal accuracy across anatomical regions.
• Real-Time 3D Reconstruction: On-device GPU-accelerated processing delivers registered, color-textured triangular meshes within 3 seconds of capture—no post-processing latency.
• Portable Form Factor: Integrated battery (up to 4 hours continuous operation), foldable tripod mount, and <12 kg total system weight enable deployment in exam rooms, operating suites, or multicenter trials without fixed infrastructure.
• Automated Pose Correction: Proprietary landmark detection algorithm compensates for minor subject motion during acquisition, reducing retakes by >65% in uncooperative or pediatric populations.
• Regulatory-Ready Software Stack: Firmware and application software validated per IEC 62304 (Class B), with built-in 21 CFR Part 11 compliance modules including electronic signatures, audit trail export, and role-based access control.

Sample Compatibility & Compliance

The VECTRA H2 is validated for non-contact, non-ionizing surface imaging of human skin and soft-tissue contours under ambient lighting conditions. It accommodates subjects aged 3 years and older, including those with pigmented, scarred, or post-procedural skin. No contrast agents, gels, or surface markers are required. The system meets essential requirements of the EU Medical Device Regulation (MDR 2017/745) and is listed with the U.S. FDA as a Class I exempt device (K172726). Image datasets comply with DICOM PS3.3 Annex A (Surface Mesh Objects) and support HL7 FHIR ImagingDocumentReference resources for EHR integration. All calibration protocols adhere to ASTM E2912-21 guidelines for reproducible 3D clinical photography metrics—including inter-system repeatability (CV < 2.1% for volume delta across five devices tested at independent sites).

Software & Data Management

The VECTRA Capture Suite v5.x provides a unified interface for acquisition, measurement, longitudinal comparison, and report generation. Core capabilities include automated symmetry analysis (facial midline deviation ±0.1 mm), volumetric change quantification (e.g., post-surgical edema regression, filler distribution), and cross-sectional contour profiling with user-defined landmarks. Data export supports DICOM-RT, STL, OBJ, and CSV formats; all metadata—including device serial number, calibration timestamp, operator ID, and acquisition parameters—is embedded in EXIF and DICOM headers. Local storage utilizes AES-256 encrypted SSDs; optional cloud synchronization (via HIPAA-compliant AWS HealthLake) enables multisite trial coordination with granular consent-tiered access policies.

Applications

• Dermatological Assessment: Objective tracking of lesion morphology (e.g., melanoma excision margins, psoriatic plaque elevation), scar contracture progression, and photoaging parameterization (wrinkle depth, surface roughness).
• Aesthetic Procedure Planning & Outcome Analysis: Pre-/post-intervention volumetric assessment for injectables, fat grafting, and laser resurfacing; simulation-guided treatment planning using overlay morphing tools.
• Plastic & Reconstructive Surgery: Quantitative evaluation of breast symmetry post-mastectomy reconstruction, craniofacial growth monitoring in pediatric syndromes, and flap perfusion modeling via thermal-registered surface topology.
• Clinical Trial Endpoints: Validated as a primary endpoint tool in FDA-registered Phase III studies for topical therapeutics (e.g., NCT04212247) and device approvals (e.g., dermal filler longevity claims).

FAQ

Is the VECTRA H2 compliant with FDA 21 CFR Part 11 for electronic records in clinical trials?
Yes—the system includes configurable audit trail logging, electronic signature workflows, and system validation documentation packages supporting Part 11 compliance.
Can the VECTRA H2 be used for pediatric patients?
Yes—it is validated for subjects aged 3 years and older, with motion-tolerant acquisition protocols and adjustable height settings for seated or standing positioning.
Does the system require annual recalibration?
No—factory calibration is traceable to NIST standards and remains stable for 24 months under normal use; optional biannual verification services are available through Canfield-certified field engineers.
What file formats are supported for third-party analysis?
DICOM-RT, STL, OBJ, PLY, and CSV exports are natively supported; Python and MATLAB SDKs enable custom algorithm integration via RESTful API.
How is patient privacy maintained during cloud-based data sharing?
All cloud transfers use TLS 1.3 encryption; de-identification pipelines remove PHI prior to upload, and access controls enforce RBAC policies aligned with HIPAA Security Rule §164.312(a)(1).
