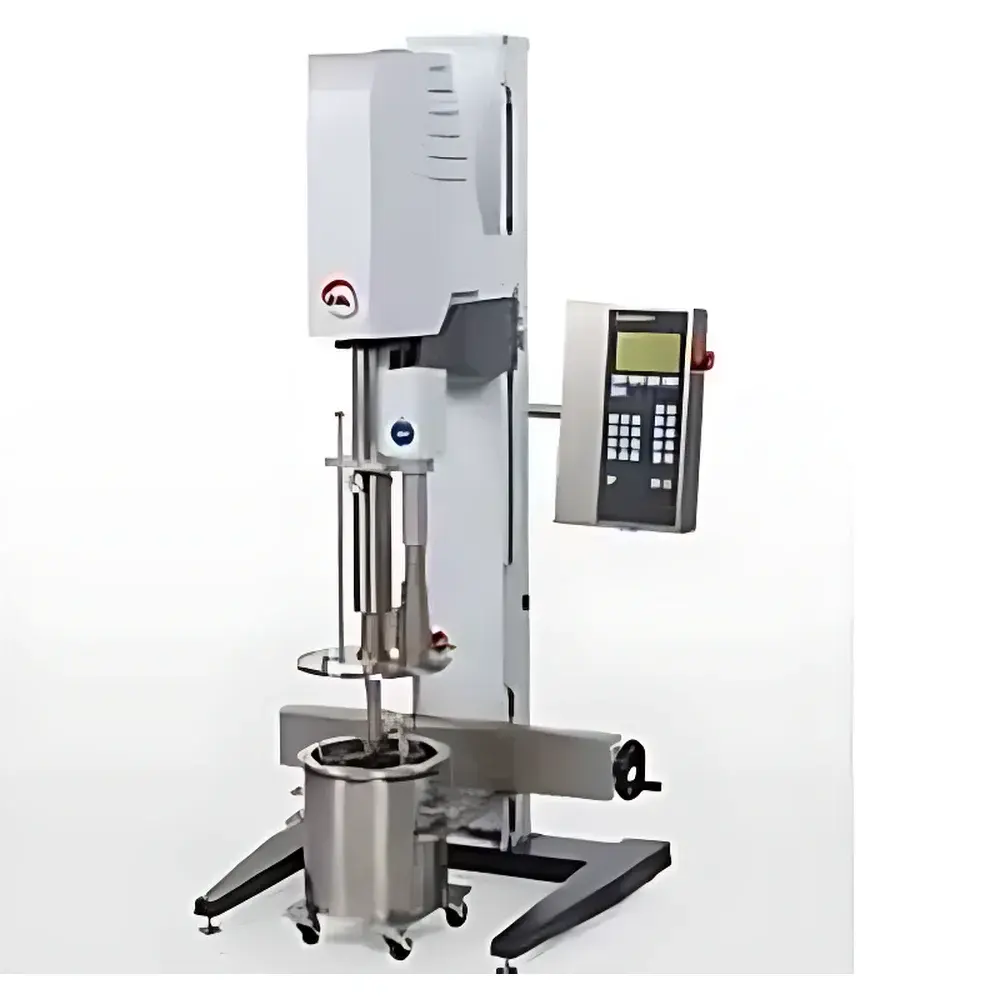

VMA LH20 High-Speed Disperser for Coatings

Overview

The VMA LH20 High-Speed Disperser for Coatings is an engineered laboratory-scale dispersion system designed for reproducible, high-shear processing of pigment dispersions, resin-based coatings, pastes, and highly viscous non-Newtonian formulations. It operates on the principle of controlled rotational shear generated by a dual-agitation architecture: a high-speed dispersing disc (impeller) combined with a low-speed, three-blade butterfly agitator. This configuration enables simultaneous top-down shearing and bottom-up homogenization—critical for breaking down agglomerates in challenging systems such as titanium dioxide slurries, carbon black masterbatches, or solvent-free epoxy pastes. Unlike conventional single-impeller dispersers, the LH20’s coaxial dual-motion design minimizes vortex formation, improves heat distribution, and ensures uniform energy input across variable batch volumes (50–2000 mL). Its vacuum-compatible chamber (up to –0.9 bar) supports deaeration during dispersion—essential for eliminating microbubbles in optical-grade clearcoats or aerospace primer formulations.

Key Features

• Dual-stage agitation system: High-speed dispersing disc (up to 3500 rpm) paired with independently controllable butterfly agitator (0–300 rpm) for synergistic shear and circulation.
• Vacuum-integrated dispersion chamber with pressure monitoring and automatic safety interlock at preset vacuum thresholds.
• C² Technology touchscreen HMI featuring real-time graphical display of speed, torque, power consumption, sample temperature (via Pt100 probe), timer, agitator height position, and peripheral device status.
• Precision height adjustment mechanism with digital encoder feedback—enabling repeatable immersion depth calibration across vessel diameters from 60 mm to 200 mm.
• Dynamic power compensation algorithm that corrects for mechanical losses and delivers true net power values referenced to the dispersing disc interface.
• Built-in GLP-compliant data logging: All operational parameters—including timestamps, operator ID, and parameter change history—are recorded with cryptographic integrity in WinDisp 7 format.

Sample Compatibility & Compliance

The LH20 accommodates a broad spectrum of coating-related samples—from low-viscosity aqueous acrylics (50,000 mPa·s) and solvent-borne alkyd pastes. Its stainless-steel wetted parts (AISI 316L) meet FDA 21 CFR 177.2600 requirements for incidental food contact, while its sealed motor housing complies with IP54 environmental protection standards. The system supports compliance workflows aligned with ISO 2884-1 (pigment dispersion fineness testing), ASTM D1210 (Hegman grind gauge correlation), and EU GMP Annex 11 for computerized system validation. Audit trail functionality in WinDisp 7 satisfies 21 CFR Part 11 electronic record requirements when configured with user authentication and electronic signatures.

Software & Data Management

WinDisp 7 serves as the native software platform for the LH20, providing full traceability and analytical rigor. It enables creation and recall of up to 100 preconfigured methods—including target speed ramps, torque limits, temperature thresholds, vacuum setpoints, and hold times. Each method stores metadata (e.g., vessel geometry, impeller diameter, batch mass) to ensure process scalability. Raw time-series data (speed, torque, power, temperature, vacuum) are exported in CSV or XML formats compatible with LIMS integration. The software includes built-in statistical tools for repeatability assessment (RSD <1.2% across five replicate runs under identical conditions) and deviation alerting based on user-defined tolerance bands.

Applications

• R&D formulation development for automotive basecoats, industrial coil coatings, and waterborne architectural paints.
• Quality control testing of pigment dispersion stability and color strength consistency per ISO 15528.
• Preparation of reference standards for spectrophotometric analysis and rheological benchmarking.
• Process simulation for scale-up to production-scale dissolvers (e.g., 200 L–2000 L vessels), leveraging dimensionless numbers (Reynolds, Froude) derived from LH20 operating data.
• Stability assessment of nanocomposite dispersions (e.g., SiO₂ or graphene oxide in epoxy matrices) under inert atmosphere or vacuum.

FAQ

What is the maximum viscosity the LH20 can effectively disperse?
The LH20 achieves consistent dispersion performance up to 50,000 mPa·s at 25°C using the standard 40 mm dispersing disc and butterfly agitator combination.
Does the system support automated method transfer between instruments?
Yes—WinDisp 7 allows export/import of validated methods including all hardware-specific calibration offsets, ensuring cross-instrument reproducibility.
Is the torque measurement traceable to national standards?
Torque transducers are factory-calibrated against DAkkS-accredited reference standards (DIN EN ISO/IEC 17025), with calibration certificates provided upon request.
Can the LH20 be integrated into a laboratory automation network?
It features Ethernet TCP/IP and RS-485 interfaces compliant with Modbus RTU protocol, enabling direct integration with SCADA or MES platforms.
What maintenance intervals are recommended for long-term reliability?
VMA recommends biannual inspection of bearing preload, seal integrity, and vacuum line integrity; full recalibration every 12 months or after 500 operational hours, whichever occurs first.
