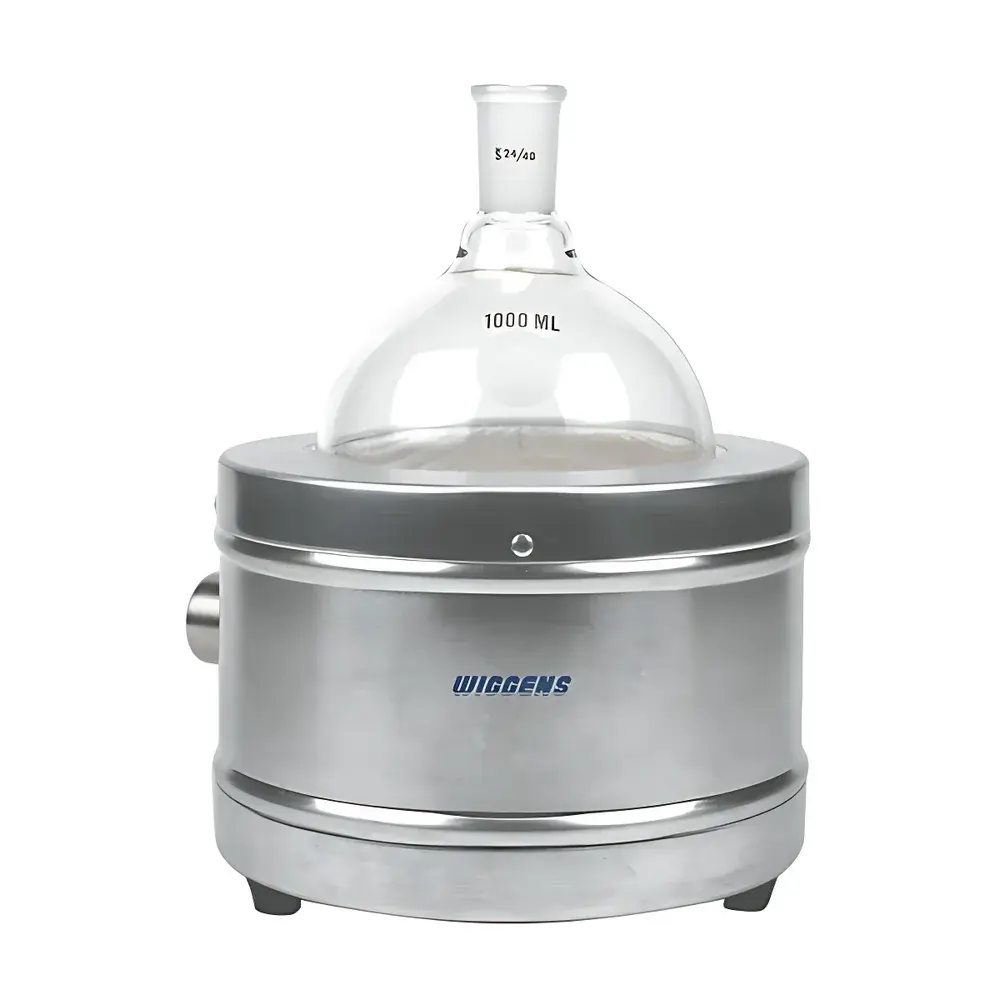

WIGGENS STM401 High-Temperature Electric Heating Mantle (up to 650 °C)

Overview

The WIGGENS STM401 High-Temperature Electric Heating Mantle is an engineered solution for precise, uniform, and controllable heating of round-bottom flasks in demanding laboratory applications requiring elevated thermal stability. Designed around a robust ceramic-fiber insulated heating element and a precisely wound resistance coil, the STM401 operates on the principle of resistive Joule heating, delivering stable thermal output across its full operational range—from ambient to 650 °C. Unlike conventional heating plates or oil baths, the mantle’s conformal geometry ensures optimal heat transfer efficiency and minimizes thermal gradients along the flask wall, reducing the risk of localized overheating or bumping during reflux, distillation, or high-temperature synthesis. Its compact form factor (159 mm OD × 121 mm H) and low mass (1.0 kg) enable integration into fume hoods, gloveboxes, and automated reactor platforms without compromising spatial constraints. The device complies with IEC 61000-6-3 (EMC emission) and IEC 61010-1 (safety requirements for electrical equipment for measurement, control, and laboratory use), supporting routine use under GLP and GMP-aligned workflows where traceable thermal performance is critical.

Key Features

• Stable temperature control up to 650 °C—validated per ASTM E220 for thermal uniformity across the heating surface (±5 °C at setpoint, steady-state).
• Ceramic-fiber insulation layer provides thermal retention while limiting external casing temperature rise—surface temperature remains below 80 °C at maximum setpoint under standard lab ventilation.
• Integrated 3-conductor power cord (1.2 m) with NEMA L5-15P locking plug ensures secure connection and reduces accidental disconnection in multi-instrument setups.
• Optimized geometry for 100 mL round-bottom flasks (max. 60 mm diameter); internal depth of 30 mm accommodates standard neck lengths while maintaining mechanical stability.
• Optional splash ring (upper-half coverage) and full protective sleeve available for enhanced operator safety and chemical resistance in corrosive environments (e.g., HF,浓H₂SO₄, or halogenated solvents).
• Compatible with external PID controllers—including WIGGENS PL524 Pro—for ramp-soak programming, data logging, and integration into LabVIEW or SCADA systems via analog 0–10 V or 4–20 mA interfaces.

Sample Compatibility & Compliance

The STM401 is intended exclusively for use with borosilicate glass (e.g., Pyrex®, Duran®) round-bottom flasks rated for thermal shock resistance up to 500 °C. It is not suitable for quartz, metal, or plastic vessels. Flasks must be dry and free of residual solvents prior to insertion; thermal expansion mismatch between glass and mantle may cause fracture if rapid ramp rates (>10 °C/min) are applied without pre-conditioning. The unit meets CE marking requirements under the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU). While not intrinsically safe, it may be deployed in non-classified laboratory zones per NFPA 45 and ISO 15195 guidelines when operated within specified voltage tolerances (220–240 V AC, 50/60 Hz) and ambient conditions (10–30 °C, <80% RH, non-condensing).

Software & Data Management

The STM401 itself is a standalone analog heating device and does not include embedded firmware or digital connectivity. However, when paired with the optional WIGGENS PL524 Pro temperature controller, users gain access to programmable ramp-soak profiles, real-time temperature logging (via USB or RS-232), and audit-trail-capable event recording compliant with FDA 21 CFR Part 11 requirements (when configured with user authentication and electronic signature modules). Data export formats include CSV and XLSX, enabling direct import into statistical process control (SPC) software such as JMP or Minitab. All calibration records—including thermocouple verification against NIST-traceable reference standards—can be archived alongside experimental metadata for regulatory submissions.

Applications

• High-temperature catalytic reactions (e.g., Fischer–Tropsch, dehydrogenation, oxidative coupling) requiring sustained 400–600 °C operation.
• Thermal gravimetric analysis (TGA) sample pre-conditioning and ashing protocols.
• Synthesis of refractory metal oxides (e.g., Y₂O₃, ZrO₂) and ceramic precursors via sol-gel or co-precipitation routes.
• Distillation of high-boiling-point solvents (e.g., diphenyl ether, silicone oils) and polymerization initiators.
• Material aging studies under accelerated thermal stress, aligned with ASTM D573 and ISO 188 test methods.

FAQ

Can the STM401 be used with a temperature controller?
Yes—WIGGENS recommends pairing the STM401 with the PL524 Pro PID controller for closed-loop regulation, ramp profiling, and data capture. The mantle accepts 0–10 V analog input for power modulation.

Is the STM401 suitable for inert-atmosphere reactions?
It can be used inside gloveboxes or under nitrogen/argon purge when combined with appropriate feedthroughs; however, the unit lacks integrated gas ports. For active atmosphere control, consider the STM1401/STM1501 models, which feature dedicated inlet fittings.

What is the expected service life under continuous 600 °C operation?
Rated for ≥5,000 hours at ≤550 °C. Continuous operation above 600 °C accelerates insulation degradation; periodic visual inspection of ceramic fiber integrity is advised every 500 operating hours.

Does the STM401 meet RoHS and REACH requirements?
Yes—certified per EU Directive 2011/65/EU (RoHS 2) and Regulation (EC) No 1907/2006 (REACH), with full material declarations available upon request from WIGGENS technical support.
