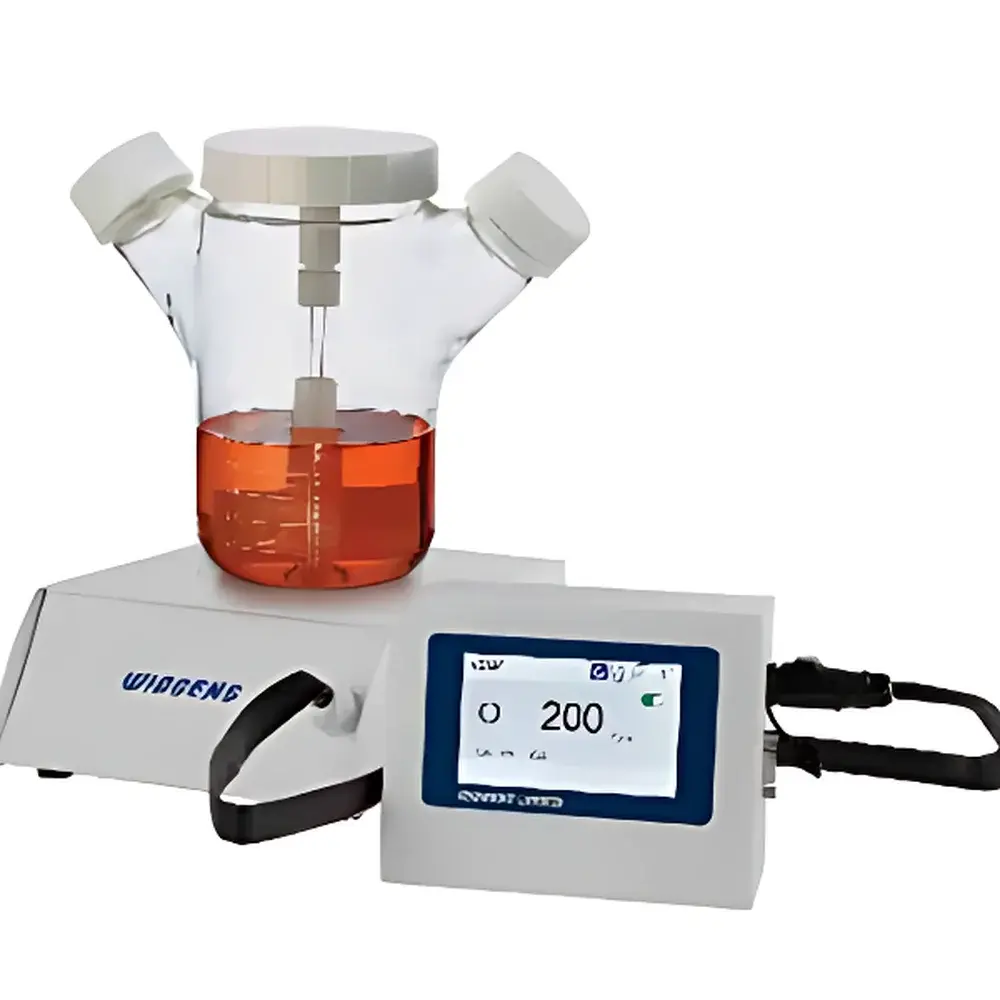

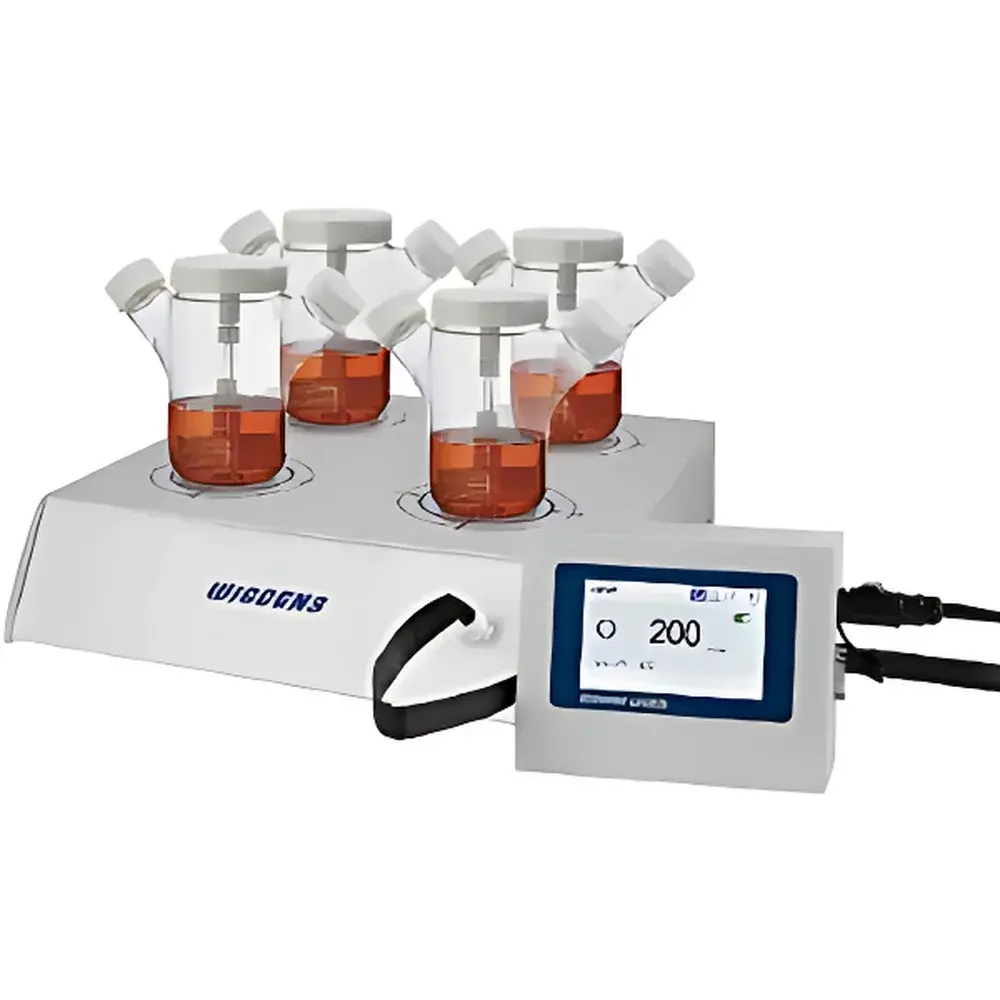

WIGGENS WH200-C Biological Culture Magnetic Stirrer

Overview

The WIGGENS WH200-C Biological Culture Magnetic Stirrer is an engineered solution for gentle, low-shear mixing in sensitive bioprocessing applications—particularly suspension and microcarrier-based mammalian cell culture, microbial fermentation broths, and long-term bioreactor seed train preparation. Unlike conventional stirrers employing mechanical drive shafts or brushed DC motors, the WH200-C utilizes a brushless MAG stepper motor coupled with a precisely controlled rotating magnetic field to actuate standard PTFE- or glass-coated magnetic stir bars. This contactless torque transfer eliminates mechanical wear, electrical arcing, and localized heating at the drive interface—critical for maintaining thermal stability inside CO₂ incubators (37 °C, 5% CO₂, >95% RH) and preventing thermal denaturation of labile proteins or shear-induced apoptosis in adherent cell lines. Its core architecture reflects ISO 13485-informed design principles for medical device–adjacent instrumentation, emphasizing operational reproducibility, contamination control, and environmental resilience.

Key Features

• Ultra-low-speed precision control: Stable rotational output from 5 to 200 rpm with <±1 rpm speed accuracy across full range—optimized for shear-sensitive suspensions including hybridoma cultures, stem cell aggregates, and insect cell expression systems.
• Three programmable mixing protocols: (1) Constant-Speed Mode for steady-state suspension culture; (2) Intermittent Start Mode (4–10 cycles of on/off ramping) to support initial microcarrier attachment without disrupting extracellular matrix formation; (3) Dual-Speed Mode enabling gradual acceleration from sub-50 rpm priming to operational setpoint—minimizing hydrodynamic stress during critical early-phase expansion.
• Incubator-grade construction: Fully sealed stainless steel housing rated IP64 (dust-tight, protected against water splashing from any direction), validated for continuous operation inside humidified CO₂ incubators per ASTM E1912–22 guidelines for laboratory equipment environmental tolerance.
• Compact monolithic design: Integrated controller and drive unit in one footprint (20.3 × 24.9 × 9.2 cm for single-position variant); no external cables or remote modules required—reducing contamination vectors and simplifying GMP-compliant layout planning.
• Zero-maintenance magnetic drive: Brushless MAG stepper motor delivers consistent torque at low speeds without encoder feedback, eliminating drift, cogging, or speed overshoot—validated over >10,000 hr MTBF under continuous 37 °C ambient conditions.

Sample Compatibility & Compliance

The WH200-C accommodates standard tissue culture flasks (T25–T225), roller bottles (up to 3 L), and custom bioreactor vessels fitted with internal stir bars. It supports both PTFE-coated and ceramic-core stir bars (diameter 8–12 mm, length 30–50 mm) compatible with viscous media (e.g., methylcellulose-based hematopoietic assays or alginate-encapsulated spheroid cultures). All materials comply with USP Class VI biological safety standards. The device meets IEC 61010-1:2010 for laboratory electrical safety and includes built-in overtemperature cutoff (triggered at 45 °C internal chassis temperature). While not FDA 21 CFR Part 11–certified out-of-the-box, its non-volatile parameter storage and timestamped event logging (start/stop, speed changes, fault codes) support audit-ready documentation when integrated into validated workflows per ISO/IEC 17025 or EU GMP Annex 11 requirements.

Software & Data Management

The WH200-C operates via front-panel membrane keypad with LED status indicators—intentionally omitting Bluetooth/WiFi interfaces to eliminate RF interference risks in electromagnetic-sensitive incubator environments. All operating parameters (speed setpoint, mode selection, runtime) are retained in EEPROM memory after power loss. Optional RS-232 serial output (available via accessory module W-IO-232) enables integration with LabVantage, Thermo Fisher SampleManager, or custom SCADA systems for centralized monitoring. Event logs—including total operational hours, number of start-stop cycles, and thermal fault occurrences—are exportable as CSV for trend analysis and preventive maintenance scheduling aligned with ISO 55001 asset management frameworks.

Applications

• Suspension-adapted CHO and HEK293 cell line expansion in serum-free media
• Microcarrier-based Vero or MRC-5 cell cultivation for viral vaccine production
• Long-duration primary neuron co-culture maintenance requiring laminar flow profiles
• Preparation of uniform hydrogel-cell composites for 3D bioprinting scaffolds
• Controlled dissolution kinetics studies of biodegradable polymer carriers under physiological temperature/humidity
• Quality control mixing of diagnostic reagent kits where particle aggregation must be avoided

FAQ

Can the WH200-C be operated inside a CO₂ incubator at 37 °C and 95% RH?
Yes. Its IP64-rated stainless steel enclosure and convection-cooled MAG motor have been validated for uninterrupted operation under these conditions for ≥720 hours per IEC 60068-2-30 humidity testing protocols.
Is speed calibration traceable to NIST standards?
While the unit does not include factory-issued NIST-traceable calibration certificates, its closed-loop speed regulation architecture enables user verification using ISO 13370-compliant optical tachometers; calibration procedures are documented in the EU Declaration of Conformity (DoC) supplied with each unit.
What stir bar dimensions are recommended for optimal performance at 5 rpm?
For minimal vortexing and maximal laminar flow, use 10 mm × 40 mm PTFE-coated stir bars with rounded ends; maximum effective volume at this speed is 1.2 L in cylindrical vessels with aspect ratio ≥2:1.
Does the WH200-C support external triggering or analog input control?
No—its design prioritizes electromagnetic compatibility (EMC) in shared incubator spaces; however, the optional RS-232 interface allows host-system command initiation (e.g., “START”, “SET SPEED=85”) and status polling.
How is thermal management achieved without active cooling fans?
Heat dissipation relies on passive conduction through the anodized aluminum heat sink integrated into the baseplate and radiative transfer from the stainless steel chassis—verified by thermographic imaging showing surface ΔT < 3.2 °C above ambient at 200 rpm continuous load.
