WinRHIZO Root System Analysis System

Overview

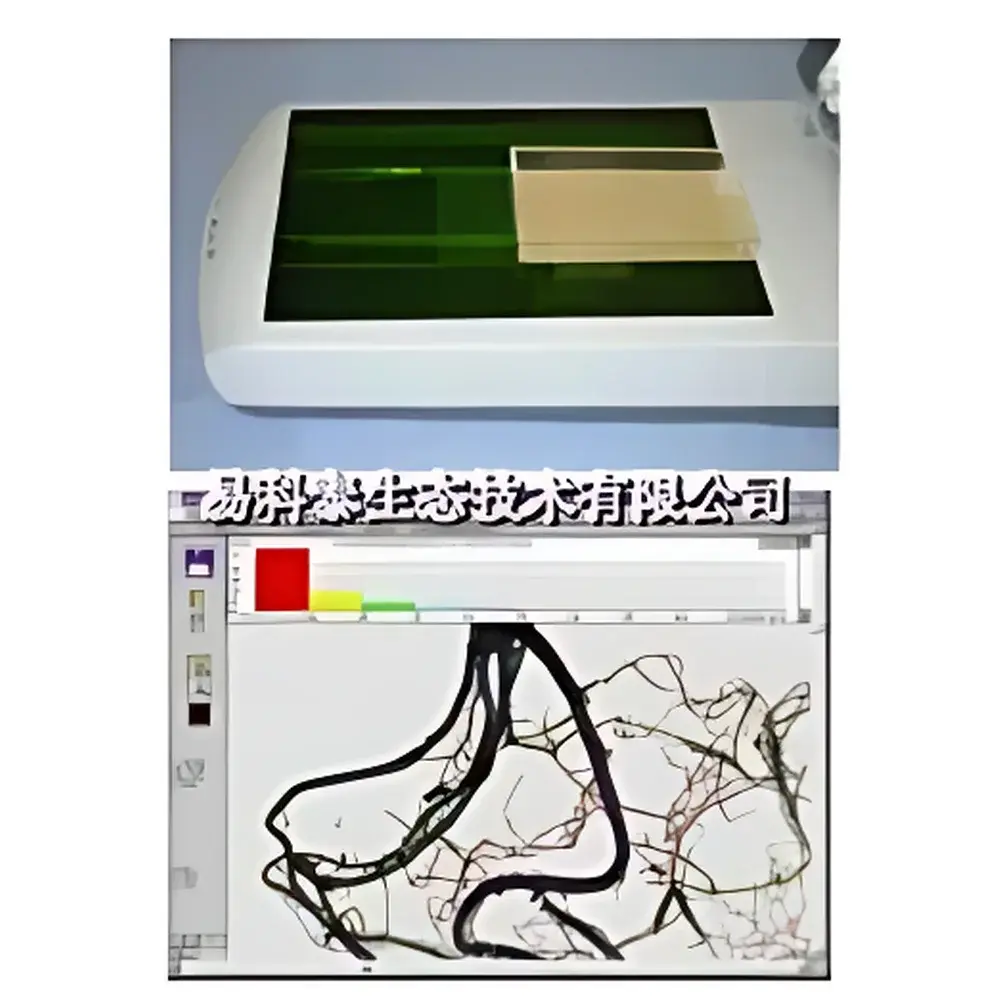

The WinRHIZO Root System Analysis System is a high-precision, non-destructive digital image analysis platform engineered for quantitative morphometric characterization of washed root systems. Designed specifically for plant physiology, agroecology, and soil–plant interaction research, WinRHIZO operates on the principle of high-resolution optical scanning coupled with algorithmic segmentation and skeletonization of root structures in two-dimensional grayscale or color images. Unlike statistical sampling or destructive measurement techniques, WinRHIZO applies deterministic pixel-based analysis to extract geometric and topological parameters directly from calibrated scan data—ensuring reproducibility across laboratories and longitudinal studies. The system integrates purpose-built hardware—including dual-illumination flatbed scanners (LC4800-II and LA2400 models)—optimized to eliminate shadow artifacts, glare, and illumination non-uniformity that commonly compromise root edge detection in heterogeneous samples.

Key Features

• Dual-scanner compatibility: LC4800-II (4800 dpi, 20 × 25 cm root scan area, 0.008 mm pixel size) and LA2400 (2400 dpi, 31 × 42 cm scan area, 0.011 mm pixel size, 3.8 Dmax optical density for X-ray film digitization)
• Three-tier software architecture: Basic Edition (total length, average diameter, surface area, volume, tip/fork/overlap counts); Standard Edition (adds diameter-class distribution for length, area, volume, and tip count); Professional Edition (enables color-based viability assessment, connectivity mapping, topological path analysis, and hierarchical branching quantification)
• Non-statistical, pixel-accurate measurement engine: No assumptions about root distribution; all parameters derived from binary skeleton reconstruction and Euclidean distance transforms
• Hardware-integrated calibration: Factory-aligned illumination geometry, permanent spatial calibration, and standardized root fixation trays ensure inter-system comparability
• Cross-format interoperability: Native support for TIFF and JPEG inputs; compatible with outputs from digital cameras, micro-CT reconstructions, and radiographic film scanners

Sample Compatibility & Compliance

WinRHIZO accepts excised, thoroughly washed root systems from herbaceous and woody species—including monocots, dicots, and gymnosperms—without requiring staining or contrast enhancement. Its robust segmentation algorithms accommodate overlapping roots, fine lateral branches (<50 µm), and heterogeneous pigmentation (e.g., senescing vs. active roots). The system meets methodological requirements for ISO 21733:2020 (Plant phenotyping — Root architecture imaging and analysis) and supports GLP-compliant workflows through audit-trail-enabled software logging (Professional Edition). While not a regulated medical device, WinRHIZO-generated metrics are routinely cited in peer-reviewed publications adhering to FAIR data principles and are accepted by journals requiring raw image deposition (e.g., New Phytologist, Plant and Soil, Frontiers in Plant Science).

Software & Data Management

WinRHIZO software runs on Windows platforms (minimum: Pentium III, 64 MB RAM, 17″ display; recommended: Intel i5+, 8 GB RAM, SSD storage). All editions include batch processing, region-of-interest masking, and export to CSV, Excel, and XML formats. The Professional Edition implements role-based user accounts, timestamped operation logs, and electronic signature support—aligning with FDA 21 CFR Part 11 expectations for regulated environmental or crop breeding trials. Raw scans and processed parameter sets are stored with embedded metadata (scanner model, resolution, date/time, operator ID), enabling traceable re-analysis and meta-analytic synthesis across multi-site experiments.

Applications

• Phenotypic screening of root architectural traits in QTL mapping and GWAS studies
• Evaluation of drought tolerance, nutrient foraging efficiency, and mycorrhizal colonization effects
• Validation of root growth models (e.g., CRootBox, ArchiSimple) against empirical 2D morphology
• Soil–root interface studies involving rhizodeposition mapping when combined with fluorescent dyes
• Long-term monitoring of root turnover dynamics in mesocosm and field-core experiments
• Standardized root trait reporting for Crop Ontology (CO) and MIAPPE-compliant datasets

FAQ

Does WinRHIZO require staining or chemical treatment of roots before scanning?
No—WinRHIZO is designed for analysis of clean, air-dried or water-immersed roots without contrast agents. Staining may be used optionally for viability differentiation in Professional Edition color analysis.
Can WinRHIZO analyze roots from intact soil cores?
Not directly. The system requires physically separated, washed root systems. For in-situ root imaging, complementary techniques such as minirhizotrons or X-ray CT are recommended, with WinRHIZO used for post-extraction 2D validation.
Is calibration traceable to national standards?
Yes—each scanner undergoes factory calibration using NIST-traceable line-pair targets; users receive calibration certificates and can perform periodic verification using supplied reference slides.
How does WinRHIZO handle overlapping or tangled root segments?
It employs a multi-pass thinning algorithm combined with branch-point detection and local curvature analysis to resolve bifurcations and estimate true length even in high-density overlap zones—without reliance on probabilistic deconvolution.
Are software updates and technical support included?
Authorized distributors provide version-maintained software updates, documentation revisions, and remote troubleshooting aligned with ISO/IEC 17025 competency requirements for supporting laboratories.
