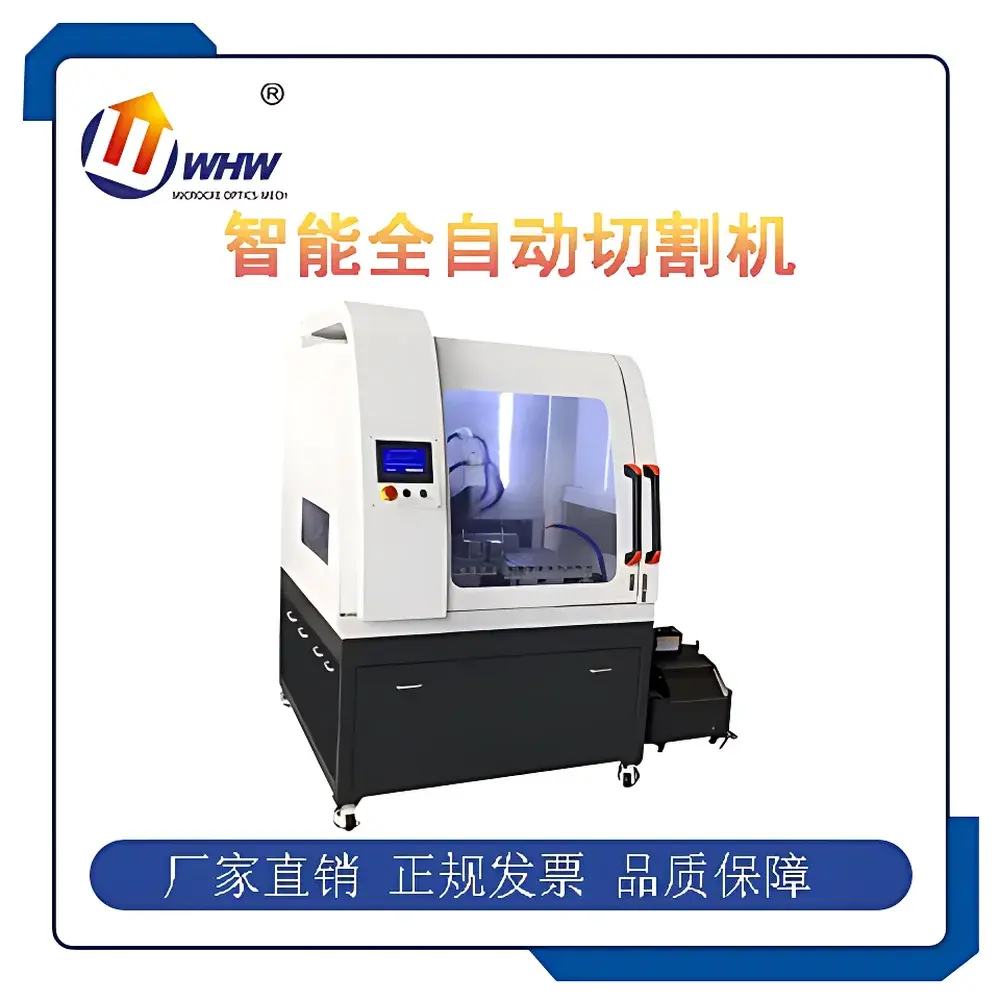

YANRUN ZQ-600Z Intelligent Metallographic Cutting System

Overview

The YANRUN ZQ-600Z Intelligent Metallographic Cutting System is an industrial-grade, floor-standing, fully automated cutting platform engineered for high-precision specimen preparation in metallurgical laboratories and quality control environments. Designed around a robust worm-gear drive mechanism and synchronized three-axis (X/Y/Z) motion control architecture, the system executes repeatable, programmable cuts on metallic and composite specimens—including long shafts, irregular castings, and geometrically complex automotive components—without manual repositioning. Its through-type chamber layout eliminates front-to-back obstruction, enabling uninterrupted handling of extended workpieces up to 600 mm in length. Unlike conventional benchtop cutters constrained by fixed clamping zones, the ZQ-600Z integrates real-time positional feedback and closed-loop servo control to maintain sub-millimeter positioning accuracy across all axes, ensuring consistent kerf width and minimal thermal distortion during abrasive cutting. The system operates under ISO 14001–compliant coolant management protocols and supports both aqueous and oil-based cutting fluids compatible with ASTM E3-22 specimen preparation guidelines.

Key Features

• Floor-mounted monolithic structure with vibration-damped base frame for enhanced operational stability during high-torque cutting cycles
• Three-axis coordinated motion control (X/Y/Z) enabling simultaneous translation and vertical descent—critical for layered sectioning and contour-following cuts
• Four programmable cutting modalities: vertical plunge-cutting, sequential depth-layered slicing, horizontal cross-sectioning, and reciprocating oscillatory cutting for stress-sensitive or brittle materials
• Full-view transparent polycarbonate chamber door with integrated LED illumination and anti-fog coating—enabling real-time visual monitoring without interrupting the cutting sequence
• Dedicated magnetic separation module positioned downstream of the cutting zone to continuously extract ferrous swarf from recirculated coolant, extending wheel life and reducing contamination risk per ISO 6506-1 surface integrity requirements
• Hybrid operation mode: seamless transition between manual jog control (for rapid setup and alignment) and fully automated program execution via intuitive touchscreen HMI

Sample Compatibility & Compliance

The ZQ-600Z accommodates specimens ranging from small precision machined parts (≥5 mm diameter) to elongated structural components (up to 600 mm length × 200 mm height × 150 mm width). It accepts standard resin-bonded silicon carbide and diamond-impregnated abrasive wheels (diameter: 250–350 mm; arbor size: 32 mm), with adjustable spindle speed (2,800–4,200 rpm) and feed rate (0.05–5.0 mm/s) optimized for ferrous alloys, aluminum die-castings, titanium alloys, and cemented carbides. All mechanical and electrical subsystems comply with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) standards. The cutting chamber meets EN 60204-1 safety requirements for industrial machinery, including emergency stop redundancy, interlocked access doors, and fluid-level monitoring with automatic pump shutoff.

Software & Data Management

Embedded firmware supports G-code–compatible toolpath programming and stores up to 200 user-defined cutting recipes with parameter versioning. Each executed cycle logs timestamped metadata—including axis positions, coolant flow rate, spindle load torque, and thermal sensor readings—for traceability in GLP/GMP-regulated environments. Optional Ethernet/IP connectivity enables integration into laboratory information management systems (LIMS) and supports audit trail generation compliant with FDA 21 CFR Part 11 requirements when paired with validated user authentication modules.

Applications

• Precision sectioning of engine blocks, transmission housings, and suspension components for microstructural analysis (ASTM E112 grain size evaluation)
• Controlled-depth layer removal from weld joints to assess heat-affected zone (HAZ) morphology
• Preparation of thin, distortion-free slices for subsequent hot mounting and polishing—particularly for porous sintered metals and additively manufactured parts
• High-reproducibility sampling of investment castings where dimensional fidelity directly impacts X-ray computed tomography (CT) reconstruction accuracy
• Routine QC cutting of incoming raw material billets prior to tensile or hardness testing per ISO 6892-1 and ISO 6507-1 protocols

FAQ

What types of abrasive wheels are compatible with the ZQ-600Z?

Standard 250–350 mm diameter resin-bonded SiC or diamond wheels with 32 mm arbor bore are supported; wheel flange design must conform to EN 12413 safety specifications.
Does the system support automated coolant dosing and filtration?

Yes—the integrated magnetic separator works in tandem with a dual-stage particulate filter (25 µm + 5 µm) and level-sensing reservoir; optional pH and conductivity monitoring kits are available for closed-loop fluid management.
Can cutting programs be exported for offline editing?

Recipes may be exported/imported via USB 2.0 as encrypted .zqr binary files; ASCII-based G-code export requires firmware version 2.4.1 or later.
Is remote diagnostics supported?

Field service engineers can initiate secure remote session access via TLS-encrypted VNC tunnel upon customer authorization—no persistent cloud connection is maintained.
What safety certifications does the ZQ-600Z hold?

CE marking per Machinery Directive 2006/42/EC, RoHS 2011/65/EU compliance, and full conformity with EN ISO 13857 (safety distances) and EN ISO 13850 (emergency stop functions).
