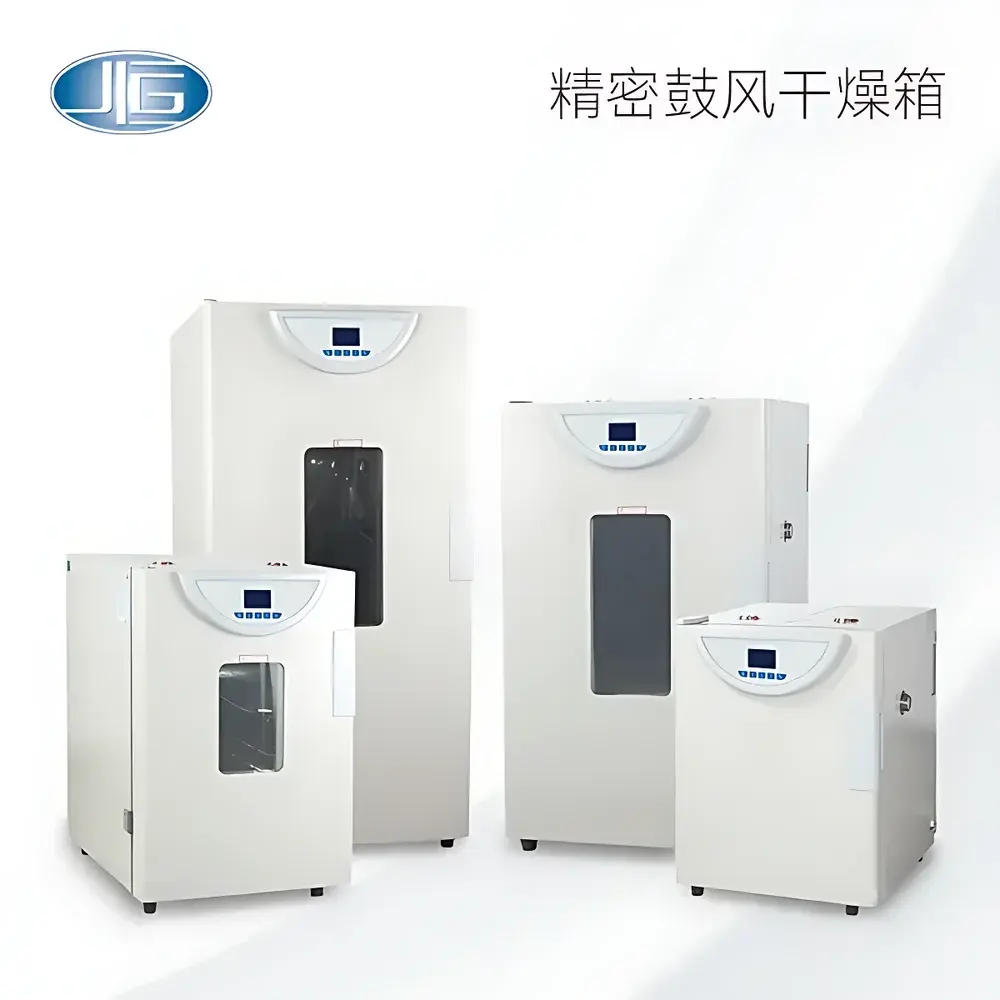

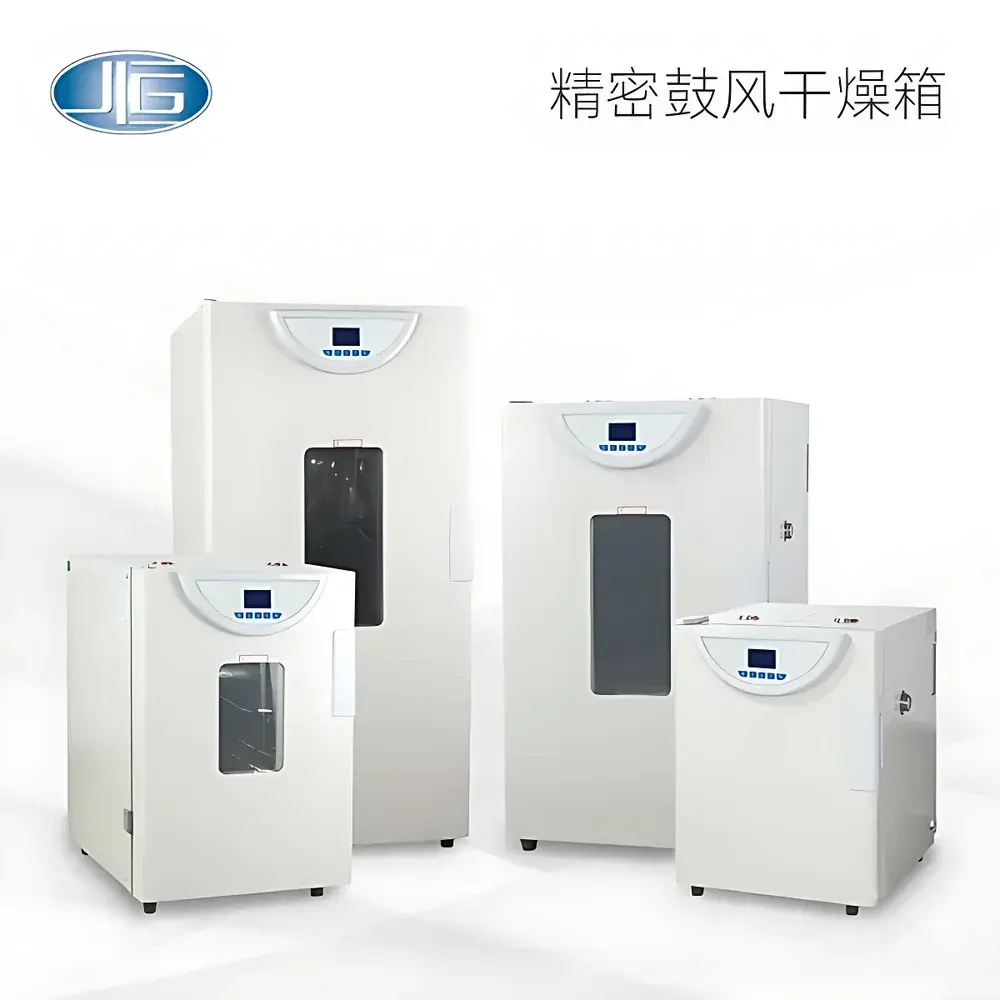

Yiheng BPG-9040A Precision Forced-Air Drying Oven with LCD Display

Overview

The Yiheng BPG-9040A Precision Forced-Air Drying Oven is an engineered solution for controlled thermal processing in research laboratories, quality control environments, and industrial R&D settings. Designed around a convection-based heating architecture, the unit utilizes a rear-mounted centrifugal circulation fan and optimized internal airflow channels to ensure consistent heat distribution across the chamber volume. Its operational principle relies on forced-air convection—where heated air is continuously recirculated under programmable velocity control—to achieve rapid temperature stabilization and high repeatability in drying, curing, baking, and moisture removal applications. The oven operates within two selectable maximum setpoints (200°C or 250°C), making it suitable for both low-temperature stability testing and higher-temperature material conditioning tasks compliant with ASTM D1654, ISO 4618, and IEC 60068-2-2 standards.

Key Features

• Large backlit LCD display presenting real-time temperature, setpoint, elapsed time, and system status simultaneously—enabling immediate visual verification without menu navigation.
• Mirror-finish 304 stainless steel interior chamber with radius-rounded corners and removable adjustable shelving for unrestricted access and simplified cleaning—critical for GLP-compliant lab hygiene protocols.
• Dedicated 25 mm diameter test port on the left side wall, sealed with silicone gasket, allowing unobstructed integration of external sensors, probes, or tubing without compromising chamber integrity.
• Self-diagnostic firmware that identifies and displays fault codes (e.g., sensor open-circuit, overtemperature event, fan failure) directly on the LCD screen—reducing troubleshooting time and supporting preventive maintenance planning.
• Microprocessor-based multi-segment programmable controller supporting up to 7 independent programs, each comprising up to 9 steps (63 total steps), with step duration configurable from 0 to 5999 minutes; includes scheduled start/stop functionality and adjustable fan speed control for process optimization.
• Independent dual-limit temperature protection circuitry: primary PID control loop + secondary mechanical overtemperature cutoff, coupled with audible/visual alarms for deviation beyond ±3°C or exceedance of user-defined safety threshold.

Sample Compatibility & Compliance

The BPG-9040A accommodates standard laboratory sample formats including Petri dishes, weighing boats, crucibles, glassware, polymer films, and coated substrates. Its 35 L internal volume (350 × 300 × 400 mm) supports stacked configurations while maintaining airflow continuity. Chamber uniformity of ±2.5% at 100°C meets typical requirements for ISO/IEC 17025-accredited calibration labs performing thermal validation per EURAMET cg-18 guidelines. The unit complies with GB/T 5170.2–2017 (Chinese national standard for temperature testing equipment) and incorporates electrical safety design aligned with IEC 61010-1:2010. Optional data logging interfaces support traceability needs under FDA 21 CFR Part 11 when paired with validated software.

Software & Data Management

While the BPG-9040A operates autonomously via its embedded controller, optional connectivity modules enable integration into centralized lab data ecosystems. A standard RS-485 interface permits Modbus RTU communication with SCADA or LIMS platforms for remote monitoring and alarm forwarding. USB host functionality allows direct export of time-stamped temperature logs to FAT32-formatted USB flash drives—facilitating audit-ready record retention. An optional thermal printer module provides hard-copy output of temperature profiles and event timestamps, satisfying documentation requirements in GMP manufacturing environments where paper-based SOPs remain in effect.

Applications

• Moisture content determination per AOAC 950.46 and USP <731> methods using gravimetric drying protocols.
• Curing of epoxy resins, powder coatings, and adhesive bonds under controlled ramp-hold-cool cycles.
• Stability testing of pharmaceutical excipients and active ingredients under accelerated aging conditions (ICH Q1A).
• Drying of filter papers, soil samples, and biological specimens prior to elemental analysis (ICP-OES, XRF).
• Preconditioning of hygroscopic materials—including lithium-ion battery electrode slurries and ceramic green bodies—prior to sintering or densification.
• Residual solvent removal from thin-film photovoltaic layers and OLED substrate assemblies.

FAQ

What is the maximum operating temperature of the BPG-9040A?

The unit supports two upper temperature limits: 200°C and 250°C, selected during installation or configuration based on application requirements.
Does the oven include validation documentation for IQ/OQ?

Factory-installed units ship with a Certificate of Conformance; full IQ/OQ protocol templates and temperature mapping kits are available as optional accessories.
Can the fan speed be adjusted during operation?

Yes—the microcontroller allows manual or programmatic adjustment of fan RPM across three discrete levels to balance throughput, uniformity, and energy efficiency.
Is the stainless steel chamber electropolished?

No—the interior uses mechanically polished 304 stainless steel with mirror finish, optimized for cleanability and corrosion resistance in non-ultra-high-purity applications.
What communication protocols does the RS-485 interface support?

The interface implements Modbus RTU over RS-485, enabling integration with common industrial automation systems and third-party data acquisition software.
