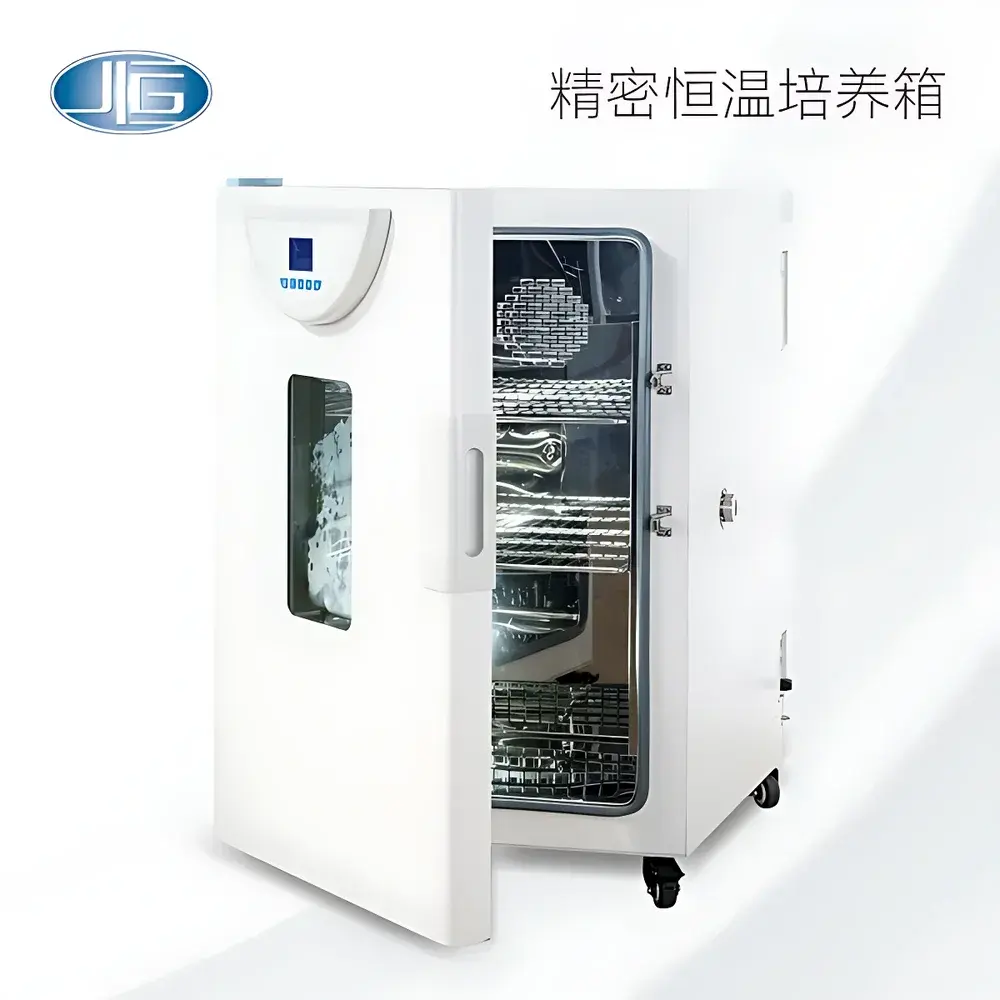

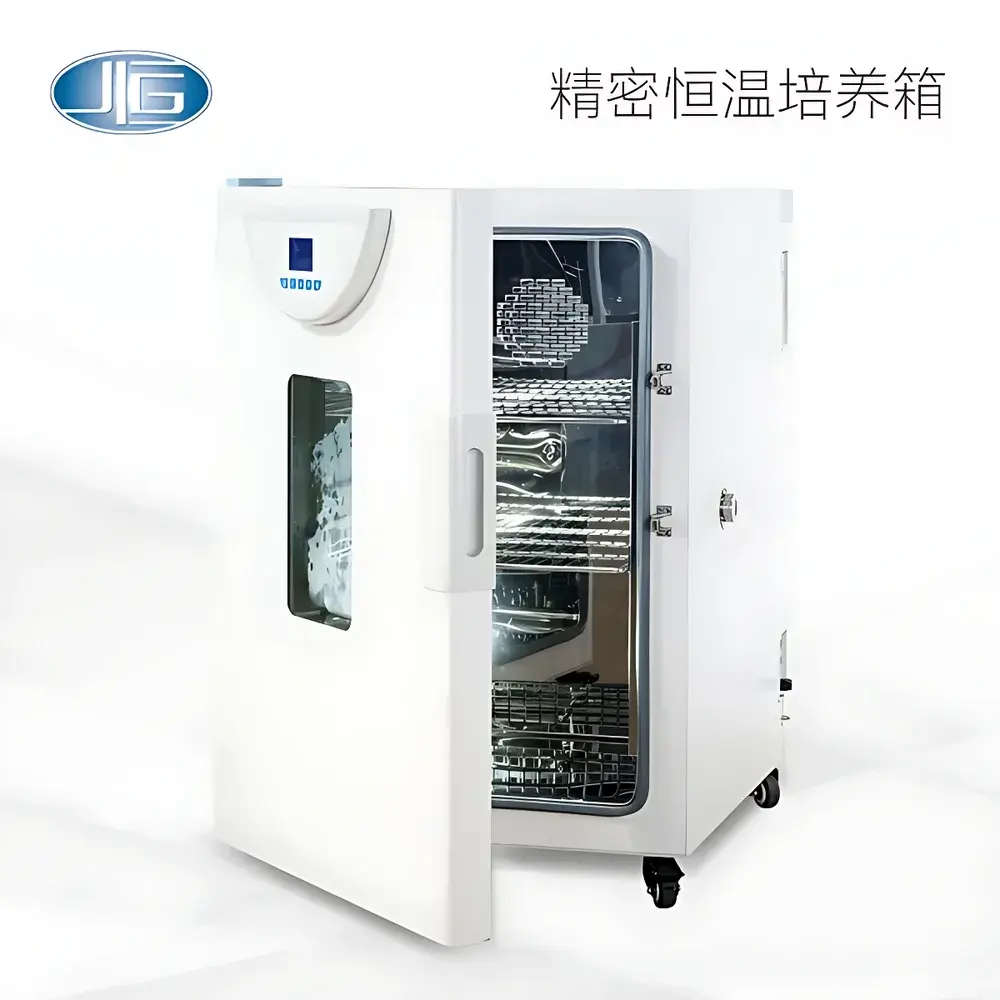

YIHENG BPH Series Precision Temperature-Controlled Incubator for Cell Culture

Overview

The YIHENG BPH Series Precision Temperature-Controlled Incubator is engineered for reliable, stable, and reproducible cell culture environments in academic research laboratories, biotechnology development facilities, and quality control units. Designed around a forced-air convection principle with intelligent fan-speed modulation, the incubator maintains precise thermal conditions across its entire working chamber—critical for sensitive mammalian, insect, or stem cell cultures where even minor thermal gradients can compromise viability, proliferation kinetics, or differentiation fidelity. Unlike basic benchtop incubators, the BPH series integrates a fuzzy logic PID temperature controller that dynamically adjusts heating output and airflow velocity to minimize overshoot and stabilize setpoints rapidly—even during door openings or ambient fluctuations. Its mirror-finish stainless-steel interior (with radius-rounded corners and removable shelving) meets ISO 14644-1 Class 5 cleanroom-compatible surface standards for ease of decontamination and reduced microbial retention.

Key Features

• Intelligent air circulation system with auto-adjusting fan speed: Reduces airflow velocity during thermal steady-state to prevent desiccation of open culture vessels while maintaining uniformity (±1.5°C at 37°C).
• Multi-stage programmable controller (7 programs × 9 steps): Supports complex thermal protocols—including ramp-hold sequences, timed start/stop cycles, and gradual temperature transitions—to emulate physiological or stress-response conditions.
• Fuzzy PID temperature regulation: Achieves <±0.3°C stability under load, with minimal oscillation and fast recovery (<15 min after 30-sec door opening at 37°C).
• Dedicated 25 mm diameter access port on right side wall: Enables integration with external CO₂ sensors, humidity probes, or data loggers without compromising chamber integrity.
• Self-diagnostic LCD interface: Displays real-time error codes (e.g., E01 = heater failure, E03 = sensor disconnection), accelerating troubleshooting and reducing downtime.
• Dual safety architecture: Independent mechanical over-temperature cutoff (non-software-dependent) plus configurable digital alarms for high/low deviation and absolute over-limit events.

Sample Compatibility & Compliance

The BPH incubator accommodates standard tissue culture formats—including T-flasks (25 cm² to 225 cm²), multi-well plates (6–96-well), Petri dishes, roller bottles, and cryovial racks—across all volume variants (45 L to 270 L). Its absence of integrated humidity control aligns with applications requiring low-moisture environments (e.g., certain bacterial cultures, dry-cell storage, or non-CO₂-dependent assays). The unit complies with IEC 61010-1:2010 for laboratory electrical safety and conforms to EN 60335-1 for household and similar electrical appliances—validated for continuous operation under GLP-compliant workflows. While not certified for GMP manufacturing environments, its audit-ready features—including timestamped event logging (when equipped with USB export) and programmable parameter locking—support 21 CFR Part 11-aligned documentation practices when used with validated third-party software.

Software & Data Management

The BPH series supports optional digital connectivity via RS-485 (Modbus RTU protocol) for centralized monitoring in multi-incubator labs, and USB mass-storage mode for direct export of time-stamped temperature logs to FAT32-formatted USB drives. When paired with YIHENG’s optional PC-based LabView-compatible software, users can generate PDF reports compliant with ISO/IEC 17025 documentation requirements—including calibration traceability, alarm history, and deviation summaries. All logged data includes UTC timestamps, operator ID fields (via keyboard input), and cryptographic checksums to ensure data integrity during transfer and archival.

Applications

• Mammalian cell line maintenance (HEK293, CHO, HeLa) at 37°C under ambient air or low-O₂ conditions.
• Bacterial and fungal cultivation requiring precise thermoregulation (e.g., E. coli expression at 30°C, Aspergillus sporulation at 28°C).
• Enzyme activity assays, protein refolding studies, and hybridization incubations where thermal consistency directly impacts kinetic reproducibility.
• Pre-incubation of samples prior to flow cytometry, qPCR, or ELISA—ensuring uniform thermal equilibration before assay initiation.
• Stability testing of biologics or excipients per ICH Q1A(R2) guidelines using defined temperature profiles.

FAQ

Does the BPH incubator support CO₂ concentration control?
No—this model is designed exclusively for temperature-critical applications without gas regulation. For CO₂-dependent cultures, refer to YIHENG’s BC series dual-gas incubators.
Is humidity control available as an add-on module?
Not applicable—the chamber lacks steam generation, ultrasonic humidification, or water-jacket infrastructure. Humidity-sensitive protocols require external environmental chambers or separate humidified glove boxes.
Can the incubator be validated for IQ/OQ/PQ protocols?
Yes—its stable thermal performance, programmable logging, and diagnostic transparency enable full qualification per ASTM E2500-21 and EU Annex 15 guidance when executed with calibrated reference sensors and documented procedures.
What is the maximum allowable ambient operating temperature?
35°C ambient, with relative humidity ≤80% non-condensing, as specified in the IEC 61010-1 safety certification.
Are shelf load configurations customizable?
Standard models include three adjustable stainless-steel shelves; custom bracketing or reinforced shelving for high-mass loads (e.g., stacked bioreactors) is available upon request with structural validation documentation.
