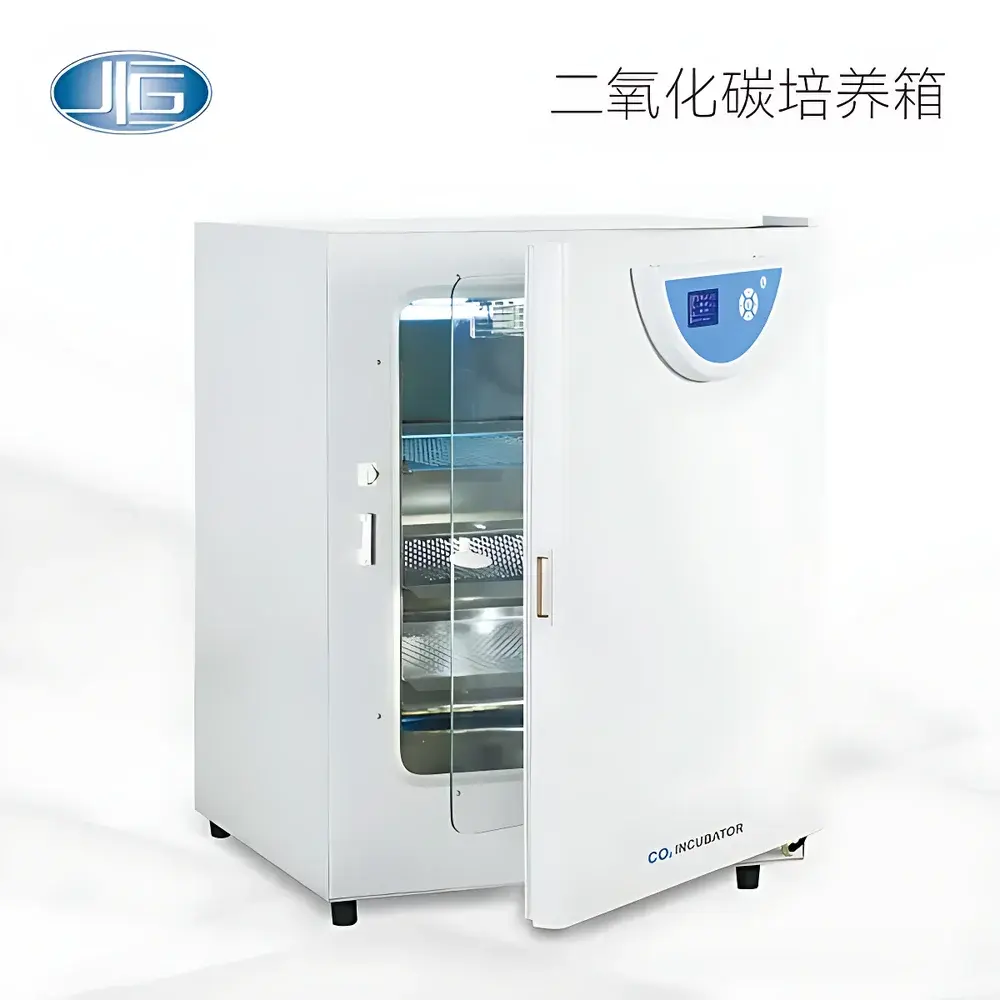

YiHeng BPN-80CR Advanced Gas-Jacketed CO₂ Incubator

Overview

The YiHeng BPN-80CR is a gas-jacketed CO₂ incubator engineered for precision cell culture applications in academic research laboratories, biopharmaceutical QC environments, and clinical cell therapy workflows. Its core operational principle relies on independent gas-jacket temperature control—where heated air circulates within an outer chamber surrounding the inner culture compartment—ensuring rapid thermal recovery and exceptional stability following frequent door openings. Integrated infrared (IR) CO₂ sensing provides real-time, drift-free monitoring of carbon dioxide concentration across the full 0–20% range, with measurement accuracy maintained at ±0.1% regardless of ambient humidity or temperature fluctuations. Designed to meet the physiological requirements of mammalian cell lines—including pH regulation via CO₂/bicarbonate buffering—the BPN-80CR delivers tightly controlled microenvironments essential for reproducible monolayer expansion, stem cell maintenance, and primary tissue culture.

Key Features

• Gas-jacketed architecture ensures fast temperature recovery (<3 min to re-stabilize at 37°C after 30-sec door opening) and superior thermal uniformity (±0.3°C at setpoint)
• Infrared CO₂ sensor with factory-calibrated NIST-traceable reference—immune to condensation, pressure drift, and cross-sensitivity to water vapor or O₂
• 90°C high-humidity heat sterilization cycle validated for complete decontamination of internal surfaces, airflow components, sensors, and structural elements—including stainless-steel shelves and support rails
• Dual-stage filtration system: HEPA filter (ISO 14644-1 Class 5) on recirculated air path + 0.3 µm-rated microbial filter on external CO₂ supply line (≥99.99% retention efficiency)
• Electrically heated inner glass door prevents condensation formation, eliminating moisture-mediated contamination pathways during routine observation
• Stackable two-tier configuration supports space-efficient laboratory layout without compromising accessibility or service clearance
• Intuitive menu-driven LCD interface displays real-time values for temperature, CO₂ concentration, and relative humidity (derived from dew-point calculation); supports multilingual UI configuration

Sample Compatibility & Compliance

The BPN-80CR accommodates standard SBS-format multiwell plates (6–384-well), T-flasks (T25 to T225), Petri dishes, roller bottles, and custom bioreactor inserts up to 80 L total volume. All wetted surfaces are electropolished 304 stainless steel; no copper or zinc-containing alloys are used to prevent trace metal leaching into sensitive cultures. The incubator complies with IEC 61010-1:2010 safety standards for laboratory equipment and meets ISO 13485 design control requirements for medical device manufacturing support environments. While not certified under FDA 21 CFR Part 11 out-of-the-box, its alarm logging function (with timestamped event records) supports GLP/GMP-compliant documentation when paired with validated external data acquisition systems.

Software & Data Management

Local operation is fully managed through the embedded 4.3-inch capacitive touchscreen with non-volatile parameter storage (retains settings after power loss). All critical events—including door open duration, CO₂ deviation alarms, temperature excursions, and sterilization cycle logs—are recorded with date/time stamps and retained for ≥1,000 entries. Optional RS485 Modbus RTU interface enables integration into centralized building management systems (BMS) or LIMS platforms for automated audit trail generation. Firmware updates are performed via USB port using signed binary files to ensure integrity and traceability.

Applications

• Mammalian cell line propagation (HEK293, CHO, HeLa, MCF-7) under physiologically relevant CO₂ tension
• Stem cell expansion and differentiation protocols requiring stringent environmental consistency
• Primary neuron and organoid culture where pH stability and sterility are non-negotiable
• Microbiological co-culture studies involving aerobic bacteria and eukaryotic hosts
• Regulatory-compliant stability testing of therapeutic cell products per USP and Ph. Eur. 5.2.12
• Teaching laboratories supporting undergraduate and graduate coursework in cell biology and tissue engineering

FAQ

Does the BPN-80CR support humidification control?
No—this model does not include active humidity regulation. Relative humidity is passively maintained at ~95% RH at 37°C/5% CO₂ via stainless-steel water pan evaporation; users must manually replenish distilled water weekly.
Can the IR CO₂ sensor be recalibrated in-house?
Yes—calibration is performed using certified 5.00% CO₂/N₂ gas standard via dedicated service mode; procedure requires authorized technician access code and documented calibration certificate issuance.
Is the 90°C sterilization cycle validated for mycoplasma eradication?
Yes—thermal validation studies confirm ≥6-log reduction of Mycoplasma hominis and Acholeplasma laidlawii following full-cycle exposure (90°C, 95% RH, 12 hours), per ISO 14937 Annex D guidelines.
What is the mean time between failures (MTBF) for the IR sensor?
Manufacturer-specified MTBF exceeds 15,000 operating hours under continuous use at 5% CO₂, based on accelerated life testing per IEC 60601-1 Clause 10.2.
Are shelf positions adjustable without tools?
Yes—all four stainless-steel shelves feature tool-free vertical positioning along laser-etched height markers spaced at 35 mm intervals.
