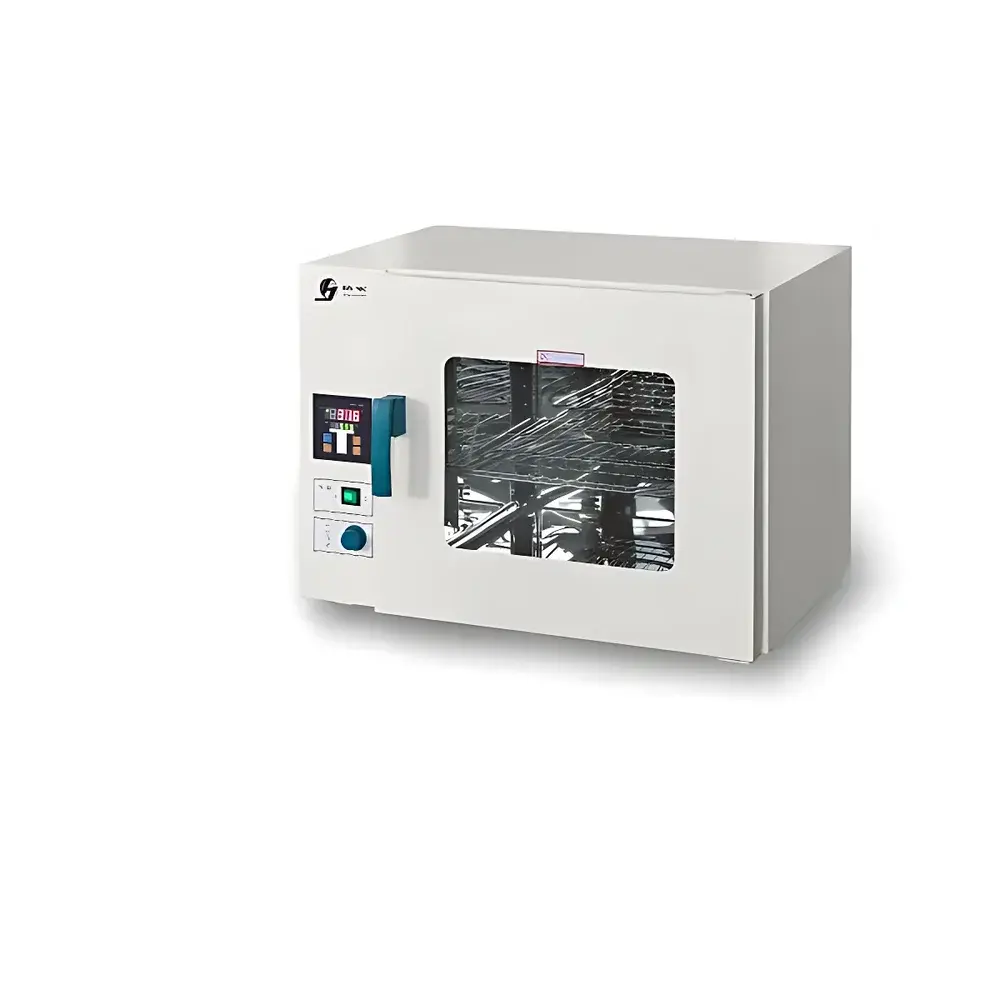

Yiheng DHP-9032B Forced-Air Biochemical Incubator

Overview

The Yiheng DHP-9032B is a precision-engineered forced-air biochemical incubator designed for reliable, stable thermal control in life science laboratories. It operates on the principle of active air circulation—using a motor-driven fan and optimized ducting—to ensure rapid temperature equilibration and uniform thermal distribution across the chamber volume. Unlike natural convection units, this incubator maintains consistent thermal conditions critical for cell culture, microbial growth, enzyme assays, and BOD testing where even minor spatial gradients can compromise experimental reproducibility. Its microprocessor-based temperature controller delivers real-time monitoring and closed-loop regulation with 0.1°C resolution and ±0.5°C stability over time. The chamber is engineered for routine use in ISO 17025-accredited labs, GLP-compliant environments, and academic research settings requiring traceable, repeatable incubation conditions.

Key Features

• Microprocessor-controlled temperature system with programmable timer (1–9999 minutes), supporting unattended operation and protocol-defined incubation cycles.
• Dual-door design: an outer insulated door and an inner tempered glass door—enabling continuous visual monitoring without thermal disturbance; fan and heater automatically suspend during glass door opening to prevent overshoot and maintain setpoint integrity.
• Mirror-finish stainless steel interior chamber (304 grade) with embedded electric heating film—ensuring corrosion resistance, ease of decontamination, and rapid, uniform heat transfer.
• Intelligent fan speed modulation: airflow rate dynamically adjusts based on thermal load and setpoint deviation, minimizing sample desiccation and volatile compound loss during extended incubations.
• Independent overtemperature safety cutoff circuit—mechanically isolated from the main controller—provides fail-safe protection per IEC 61000-4-5 and UL 61010-1 requirements.
• Standard RS485 interface (optional) enables integration into centralized lab management systems; supports Modbus RTU protocol for remote parameter readout and logging.

Sample Compatibility & Compliance

The DHP-9032B accommodates standard laboratory vessels including Petri dishes, multi-well plates (6–96-well), Erlenmeyer flasks (up to 500 mL), and test tubes mounted on adjustable stainless steel shelves (3 included). Its 35 L working volume and optimized internal geometry allow simultaneous incubation of heterogeneous sample types without cross-contamination risk. The unit complies with GB/T 23792–2009 (Chinese national standard for incubators), and its electrical architecture conforms to IEC 61010-1:2010 for safety in laboratory equipment. When equipped with optional UV germicidal irradiation (254 nm), it supports periodic chamber sterilization aligned with CLSI M22-A3 guidelines for microbiological incubator maintenance.

Software & Data Management

While the base model features a standalone LCD controller, optional accessories expand data governance capabilities: an embedded thermal printer provides hard-copy audit trails of temperature profiles and alarm events; the RS485 interface—paired with vendor-supplied PC software—enables CSV export, trend visualization, and configurable alarm thresholds. All digital records retain timestamps and user IDs, supporting compliance with FDA 21 CFR Part 11 when deployed with validated electronic signature workflows. Data logging intervals are adjustable from 1 second to 60 minutes, accommodating both kinetic studies and long-term stability assessments.

Applications

• Bacterial and fungal cultivation under defined aerobic conditions (e.g., ASTM D5372 for environmental isolate propagation).
• Enzyme activity assays requiring precise thermal stabilization between 30–45°C.
• Seed germination and plant tissue culture protocols per ISO 20723:2019.
• Biochemical oxygen demand (BOD₅) testing per APHA Standard Methods 5210B.
• Stability testing of diagnostic reagents and pharmaceutical intermediates under accelerated storage conditions.
• Educational labs conducting microbiology, molecular biology, and biotechnology coursework.

FAQ

What is the maximum ambient temperature for safe operation?
The unit is rated for continuous use in ambient environments between +5°C and +35°C, as specified in IEC 60068-2-1 and IEC 60068-2-2.
Can the incubator be validated for GMP environments?
Yes—its stable thermal performance, documented calibration traceability (NIST-traceable reference sensors available upon request), and optional data-logging accessories support IQ/OQ/PQ execution per Annex 15 of the EU GMP Guide.
Is humidity control available?
No—this is a dry-air incubator. For humidity-dependent applications, consider the Yiheng HPP series or third-party external humidification modules (not factory-integrated).
How often does the temperature sensor require recalibration?
Annual verification against a calibrated reference thermometer (e.g., PT100 probe with ±0.05°C uncertainty) is recommended per ISO/IEC 17025 Clause 6.5.2.
Are replacement shelves and accessories available separately?
Yes—stainless steel trays (part no. DHP-SH35-SS), UV lamps (DHP-UV254), and printer ribbons (DHP-PRN-RB) are stocked and shipped globally.
