YL-H60T High-Temperature Tape Holding Power Tester

Overview

The YL-H60T High-Temperature Tape Holding Power Tester is an engineered environmental test system designed specifically for evaluating the long-term adhesive integrity of pressure-sensitive tapes under controlled elevated-temperature conditions. It operates on the principle of static load application—where standardized 1 kg masses are suspended vertically from tape-bonded steel substrates inside a thermally stabilized chamber—and measures the elapsed time until bond failure (i.e., specimen detachment). This method directly implements the physical mechanism described in ISO 29862, ASTM D3654/D3654M, GB/T 4851–2014, and PSTC-7, where holding power is quantified as time-to-failure under constant stress and thermal exposure. Unlike general-purpose aging chambers, the YL-H60T integrates precision thermal uniformity control with mechanical load staging and automated timing logic, enabling repeatable, traceable, and standards-aligned assessment of thermal degradation kinetics in adhesive systems.

Key Features

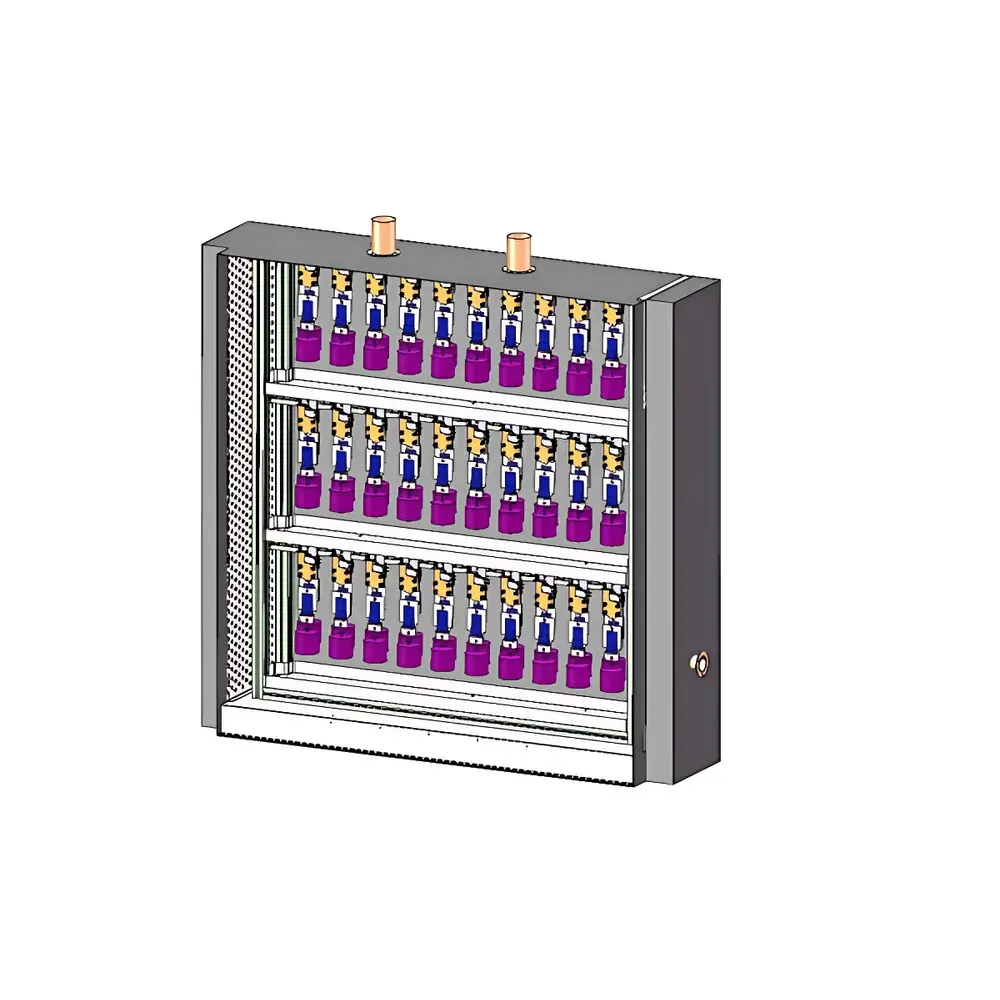

• Three-tier vertical test architecture accommodates 60 specimens simultaneously—20 per tier—with independent zero-reset functionality per layer for multi-condition parallel testing.

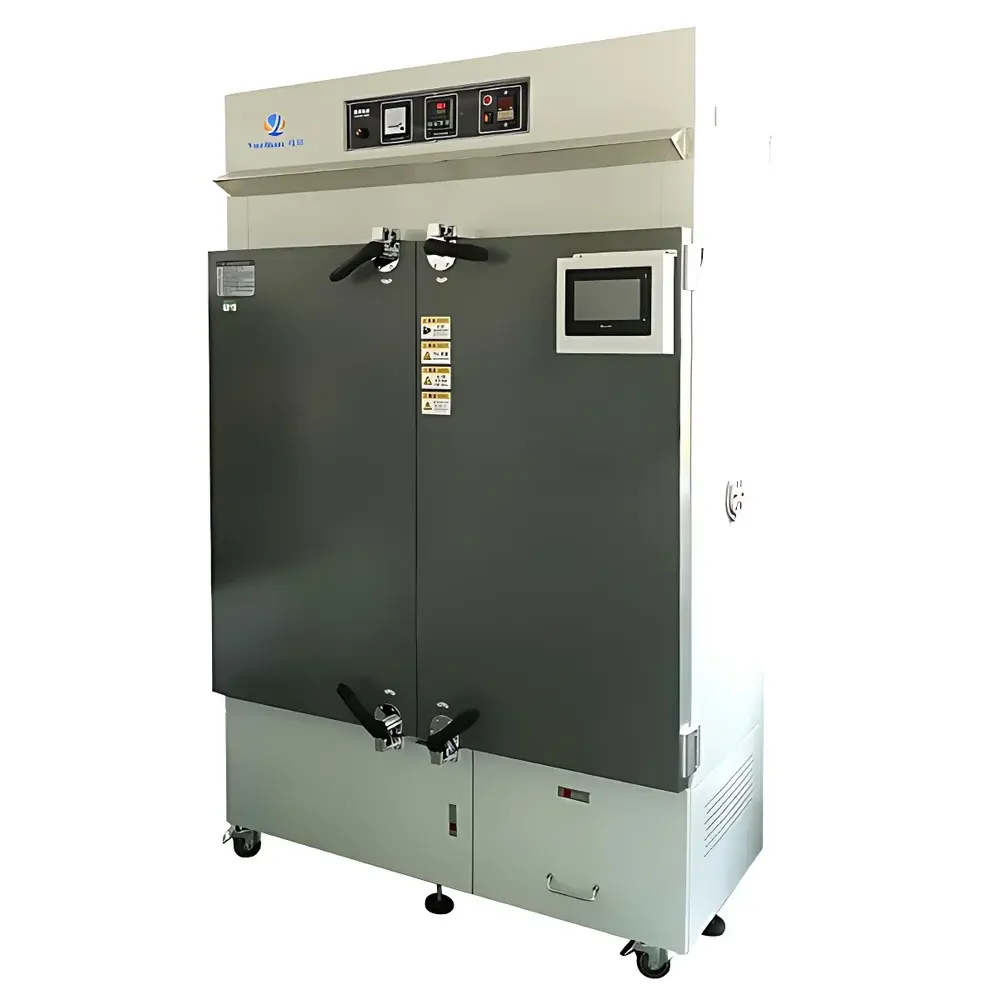

• Thermally optimized chamber design achieves ±1 °C uniformity and stability across full working volume (1400 × 550 × 2000 mm), verified per IEC 60068-3-5 and ASTM E2209 calibration protocols.
• PLC-based control system with industrial-grade HMI touchscreen interface supports programmable temperature setpoints (RT to 200 °C), real-time monitoring of chamber status, and event-triggered data capture upon specimen release.
• All structural components—including load hangers, specimen holders, and weight suspension rods—are fabricated from AISI 304 stainless steel using laser cutting, CNC bending, and precision punching to ensure dimensional repeatability and corrosion resistance.
• Tempered glass viewing panels allow non-intrusive visual verification of specimen behavior without thermal disturbance; integrated high-temperature proximity sensors detect detachment events with sub-second response latency.
• Compliant 1 kg calibrated weights meet ASTM E4 and ISO/IEC 17025 metrological requirements for mass uncertainty < ±0.1 g, ensuring consistent applied stress across all test positions.

Sample Compatibility & Compliance

The YL-H60T supports standard 25 mm wide × 100 mm long tape specimens bonded to polished low-carbon steel plates (2 mm thick, surface roughness Ra ≤ 0.8 µm), conforming to GB/T 2792–2014 and ASTM D3330. It is validated for use with acrylic, rubber-based, silicone, and hot-melt pressure-sensitive adhesives. The system satisfies functional requirements of ISO/IEC 17025-accredited laboratories conducting GLP-compliant adhesion validation, and its thermal performance documentation aligns with FDA 21 CFR Part 11 audit trail expectations when paired with optional data logging modules. Regulatory alignment includes GB/T 4851–2014 (Chinese national standard), PSTC-7 (Pressure Sensitive Tape Council), CNS 11887/CNS 11888 (Taiwanese standards), and EN 1939 for automotive bonding qualification.

Software & Data Management

While the base YL-H60T operates via embedded PLC logic with local HMI display, optional RS485/Modbus RTU or Ethernet/IP interfaces enable integration with LIMS or MES platforms. Time-stamped detachment events—including layer ID, temperature reading at failure, and cumulative runtime—are stored in non-volatile memory with configurable retention (up to 10,000 records). Optional PC software provides CSV export, statistical process control (SPC) charting (X̄–R, Cpk), and automated report generation compliant with ISO 10012 and ISO/IEC 17025 clause 7.8. Audit trails include operator ID, parameter changes, and calibration history—fully supporting 21 CFR Part 11 electronic record requirements when deployed with user authentication and digital signature modules.

Applications

• Quality assurance of high-temperature masking tapes used in automotive paint baking (140–180 °C) and aerospace composite curing processes.
• R&D evaluation of thermally stable PSA formulations intended for EV battery module bonding and under-hood electronics assembly.
• Accelerated aging studies correlating holding power decay with Arrhenius-based thermal lifetime models (e.g., predicting 10-year service life at 85 °C from 200 °C/100-hr data).
• Supplier qualification testing per OEM specifications (e.g., Ford WSS-M99P1111-A, GMW14872, VW TL 52208).
• Regulatory submission support for medical device adhesive validation (ISO 10993-5 cytotoxicity correlation with thermal aging).

FAQ

What standards does the YL-H60T comply with for tape holding power testing?
It is configured to execute tests per GB/T 4851–2014, ASTM D3654/D3654M, ISO 29862, PSTC-7, and CNS 11887—covering methodology, specimen preparation, load application, and pass/fail criteria.
Can the chamber temperature be ramped or held only at fixed setpoints?
The standard configuration supports static temperature holds only; optional upgrade kits enable linear ramp-and-soak profiles with programmable rates (e.g., 1–5 °C/min) and dwell times.
Is calibration certification included with shipment?
A factory-issued NIST-traceable temperature uniformity report (per IEC 60068-3-5) is provided; on-site IQ/OQ validation services and annual recalibration support are available under separate service agreement.
How is specimen detachment detected without manual observation?
High-temperature-rated inductive proximity sensors mounted beneath each test station detect loss of metallic contact upon tape failure, triggering immediate timer halt and event logging with millisecond timestamp resolution.
Does the system support data export for statistical analysis?
Yes—via USB flash drive or network interface, raw test logs (including time-to-failure, temperature history, and layer metadata) export as UTF-8 CSV files compatible with Minitab, JMP, and Python pandas workflows.
