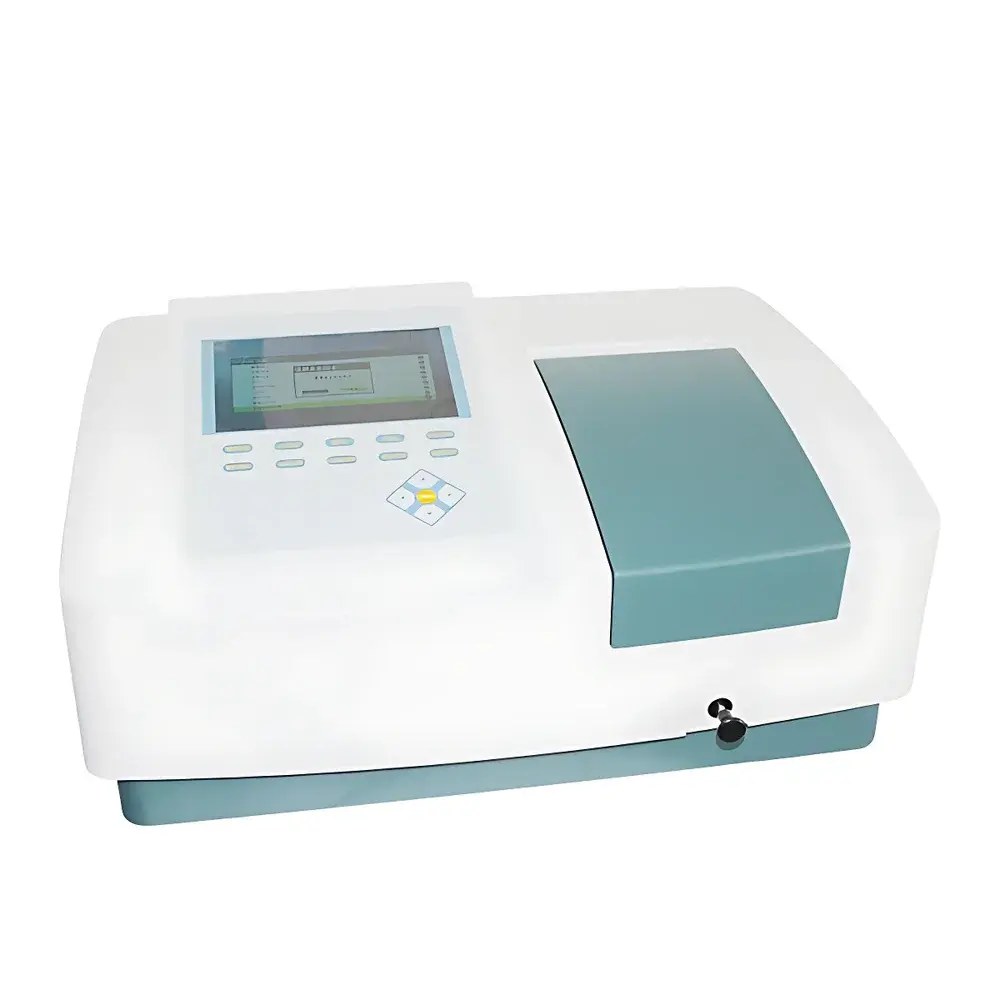

Yoke YKM-N1 Eighth-Generation Single-Parameter Water Quality Analyzer

Overview

The Yoke YKM-N1 Eighth-Generation Single-Parameter Water Quality Analyzer is a benchtop spectrophotometric instrument engineered for precise, trace-level quantification of four critical water quality parameters—Ammonia-Nitrogen (NH₃-N), Chemical Oxygen Demand (COD), Total Phosphorus (TP), and Total Nitrogen (TN)—in compliance with standard laboratory methods including ISO 6060 (COD), ISO 7150-1 (NH₃-N), ISO 6878 (TP), and ISO 11905-1 (TN). Utilizing CT ratio dual-beam photometry with automatic source selection between a deuterium lamp (190–350 nm) and tungsten halogen lamp (320–1100 nm), the YKM-N1 eliminates baseline drift and compensates for lamp intensity fluctuations in real time. Its optical architecture ensures high photometric reproducibility across extended operational cycles, supporting routine analysis in municipal wastewater labs, environmental monitoring stations, industrial effluent QA/QC departments, and academic research facilities where regulatory-grade data integrity is required.

Key Features

• 7-inch high-resolution (1024×600) color TFT-LCD touchscreen interface with intuitive menu navigation—enables full instrument control, real-time spectral visualization, kinetic curve plotting, and on-device concentration calculation without external PC dependency.
• Integrated 8 GB internal flash memory and dual USB interfaces: USB Device for direct PC synchronization and firmware updates; USB Host for plug-and-play U-disk data export in native .CSV, .TXT, and image formats (.JPG/.PNG), eliminating manual transcription errors.
• Socket-mounted, pre-aligned deuterium and tungsten halogen lamps with embedded usage-hour counters—facilitates rapid field replacement without optical recalibration or alignment tools.
• Four-position motorized cuvette carousel accommodating standard 10 mm, 20 mm, 30 mm, and 50 mm pathlength cells—supports both low-concentration trace analysis and high-range industrial samples within a single platform.
• Automated wavelength and light-source selection based on selected method—ensures optimal signal-to-noise ratio and minimizes photomultiplier fatigue during multi-parameter workflows.
• Onboard photometric stability monitoring (±0.001 A/10 min) and built-in self-diagnostic routines—including dark current validation, lamp intensity verification, and detector linearity checks—support GLP-compliant instrument qualification.

Sample Compatibility & Compliance

The YKM-N1 is validated for use with aqueous samples meeting EPA Method 351.2 (TN), EPA Method 365.2 (TP), APHA Standard Methods 4500-NH₃ F (NH₃-N), and APHA Standard Methods 5220 D (COD). Its chloride tolerance—up to 1000 mg/L Cl⁻ without correction and optionally extendable to 8000 mg/L via algorithmic interference compensation—meets ASTM D1253 requirements for saline wastewater matrices. All analytical protocols adhere to ISO/IEC 17025:2017 documentation standards, and raw absorbance data, calibration logs, operator IDs, and timestamped metadata are stored with immutable audit trails—enabling full traceability for regulatory submissions under US EPA, EU Water Framework Directive (WFD), and China’s HJ/T 399–2007 and HJ 535–2009 technical specifications.

Software & Data Management

The YKM-N1 operates on an embedded Linux-based firmware platform with deterministic real-time response. It supports full 500-curve library management—including segmented calibration curves for non-linear ranges (e.g., COD at high concentrations), single-point standardization for rapid verification, and user-defined polynomial or logarithmic fits. All measurement records contain embedded metadata: sample ID, operator code, method ID, date/time stamp, cuvette position, lamp hours, absorbance values at multiple wavelengths, and pass/fail flags against predefined QC limits. Data export complies with LIMS interoperability standards via ASCII-delimited files compatible with LabWare, STARLIMS, and Thermo Fisher SampleManager. Optional Bluetooth 5.0 module enables wireless transmission to secure enterprise networks compliant with IEEE 802.1X authentication and TLS 1.2 encryption—meeting FDA 21 CFR Part 11 requirements for electronic records and signatures when paired with role-based access control.

Applications

• Routine monitoring of influent and effluent streams in municipal wastewater treatment plants (WWTPs) for NH₃-N and TN compliance with discharge permits (e.g., EU Urban Wastewater Treatment Directive).
• Industrial process water QC in food & beverage, pharmaceutical, and semiconductor manufacturing—particularly for low-level TP detection in ultrapure rinse water (≤0.005 mg/L).
• Environmental field lab deployment for surface water and groundwater assessment under national monitoring programs (e.g., China’s National Surface Water Quality Monitoring Network).
• Educational laboratories conducting AP Chemistry and Environmental Science curricula requiring NIST-traceable calibration and documented measurement uncertainty budgets.
• Third-party testing laboratories accredited to CNAS (China National Accreditation Service) and ILAC-MRA—leveraging the YKM-N1’s documented measurement repeatability (≤±2% RSD) and inter-laboratory comparability data.

FAQ

Does the YKM-N1 support multi-parameter simultaneous analysis?
No—the YKM-N1 is a single-parameter analyzer by design. Each measurement cycle configures the optical path, reagent protocol (if used externally), and calibration curve for one parameter only (NH₃-N, COD, TP, or TN). This architecture ensures method-specific optimization and eliminates cross-parameter interference common in multi-channel systems.
Is the instrument compatible with standard Hach or Merck reagent kits?
Yes—reagent compatibility is method-dependent and verified against APHA-standardized chemistries. Users may employ commercially available vial tests (e.g., Hach DR3900-compatible COD vials) provided the reaction kinetics, wavelength, and blank correction align with the selected YKM-N1 method protocol.
Can the internal storage be expanded beyond 8 GB?
No—internal flash memory is fixed at 8 GB. However, continuous archiving to external U-disk or networked PC via USB Device ensures unlimited long-term retention without compromising onboard performance.
What validation documentation is supplied with the instrument?
Each unit ships with a Factory Calibration Certificate traceable to NIM (National Institute of Metrology, China), a Photometric Performance Verification Report (including stray light, wavelength accuracy, and photometric linearity per ISO 9001 Annex B), and a complete set of electronic SOPs aligned with ISO/IEC 17025 Clause 7.7 requirements.
Is remote software update supported?
Yes—firmware updates are delivered via encrypted .BIN files loaded from U-disk or PC-connected USB Device port. Update logs—including version hash, timestamp, and operator ID—are automatically appended to the system audit trail.
