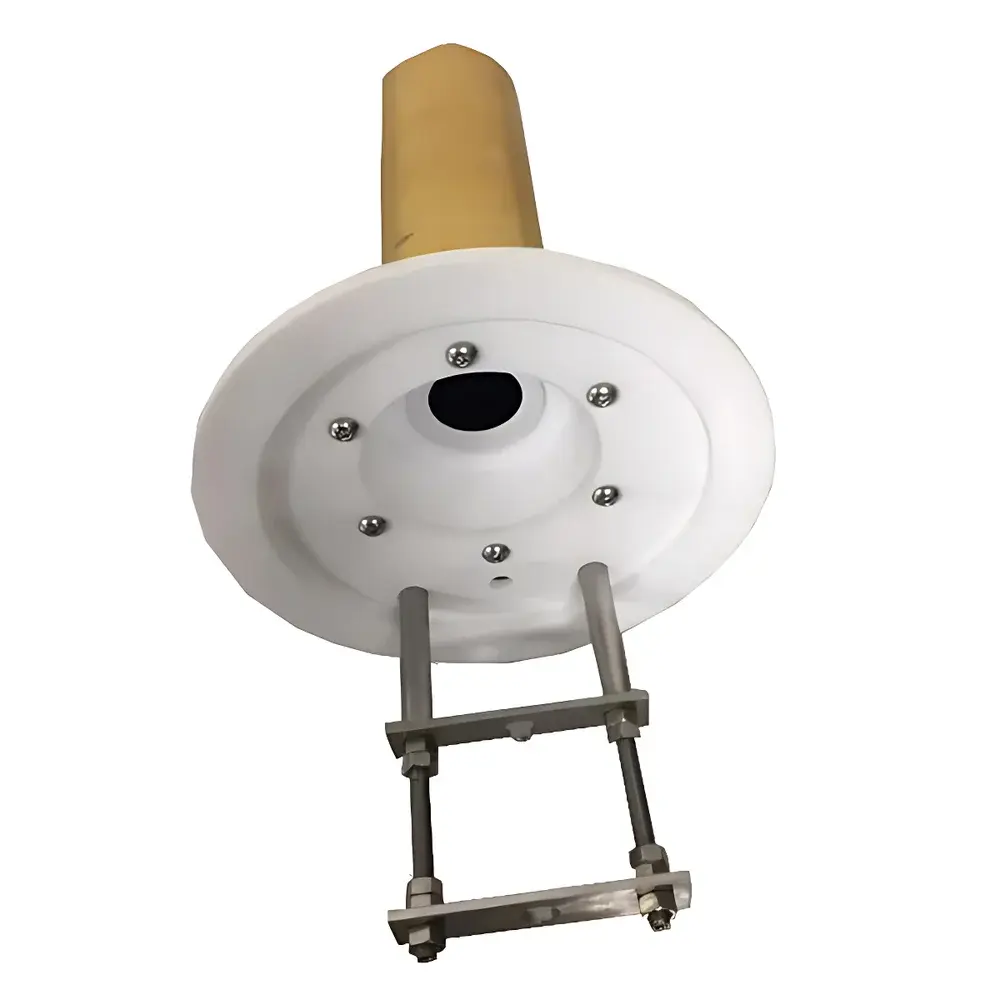

YORK FTBB Portable Forehead Thermometer Calibration Blackbody Source

Overview

The YORK FTBB Portable Forehead Thermometer Calibration Blackbody Source is a precision-engineered reference standard designed for the traceable calibration and verification of infrared forehead thermometers, clinical IR thermometers, and non-contact temperature screening devices. Operating on the principle of cavity blackbody radiation, the FTBB utilizes a high-emissivity, temperature-controlled hollow cavity to generate a stable, spatially uniform radiance source within the 8–14 µm atmospheric transmission window—the spectral band most commonly used by medical-grade infrared thermometers. The device integrates with an external thermostatic liquid bath (e.g., ISOTECH 796MA or equivalent), where a calibrated platinum resistance thermometer (e.g., YKS500 series) measures the bath fluid temperature to serve as the primary reference for cavity wall temperature. This two-stage thermal coupling architecture ensures metrological traceability to national standards via periodic calibration of the reference sensor and intercomparison of brightness temperature against accredited laboratories.

Key Features

• High-performance blackbody cavity with 30 mm aperture and effective emissivity ≥0.999, verified per ISO/IEC 17025-accredited methods
• Optimized thermal design enabling brightness temperature uncertainty of ≤0.07 °C (k = 2) across the clinically relevant range of 32–42 °C
• Modular configuration compatible with standard thermostatic baths and certified reference thermometers (e.g., YKS500, ITS-90 compliant)
• Custom-machined cavity mount and temperature probe holder included for precise mechanical and thermal alignment
• Supplied with a comprehensive FTBB Calibration Configuration Guide detailing instrument pairing, setup geometry, and measurement protocols
• Designed for laboratory-based calibration workflows as well as mobile metrology support in manufacturing QA environments

Sample Compatibility & Compliance

The FTBB supports calibration of all infrared thermometers conforming to IEC 80601-2-56 and ISO/TR 13154 for human temperature measurement. It meets the technical requirements specified in Chinese national metrological verification regulations JJF1107-2003 (Calibration of Infrared Thermometers for Human Body Temperature Measurement) and JJF1552-2015 (Calibration Specification for Blackbody Radiation Sources for Radiometric Thermometers, −10 °C to 200 °C). Its performance is validated against brightness temperature stability, spatial uniformity, and spectral responsivity alignment—key parameters assessed during GLP-compliant calibration audits. While not a self-contained temperature source, the FTBB system—when paired with an accredited liquid bath and reference thermometer—fulfills traceability requirements under ISO/IEC 17025 and supports FDA 21 CFR Part 11 data integrity when integrated with compliant software platforms.

Software & Data Management

The FTBB itself is a passive hardware standard and does not include embedded firmware or onboard software. However, it is fully interoperable with industry-standard calibration management systems including MET/CAL, Beamex CMX, and custom LabVIEW or Python-based acquisition frameworks. When used with a milliK-series precision thermometer or similar digital readout, raw resistance measurements are logged with timestamped metadata, enabling full audit trails required under GMP/GLP documentation practices. All calibration records—including cavity temperature setpoints, reference sensor readings, deviation logs, and uncertainty budgets—can be exported in CSV or XML formats for integration into LIMS or electronic quality management systems (eQMS). The system supports configurable reporting templates aligned with JJF1059.1–2012 (Evaluation of Measurement Uncertainty) and ISO/IEC 17025 Clause 7.7.

Applications

• Factory acceptance testing (FAT) and final inspection of infrared forehead thermometers prior to shipment
• Periodic in-house calibration verification for medical device manufacturers operating under ISO 13485 quality management systems
• Supporting regulatory submissions requiring documented traceability to NPL, NIST, or other NMIs
• Training and proficiency testing for metrology technicians performing clinical thermometer calibrations
• Benchmarking studies comparing radiometric accuracy across multiple IR thermometer models and OEM designs
• Validation of thermal imaging systems used in fever screening deployments (e.g., airports, hospitals, border checkpoints)

FAQ

Is the FTBB a standalone temperature source?
No—the FTBB is a blackbody cavity assembly only. It requires integration with an external thermostatic liquid bath and a calibrated reference thermometer to establish traceable temperature control.
What is the recommended reference thermometer for use with the FTBB?
A 4-wire standard platinum resistance thermometer (SPRT) such as the YKS500 series, calibrated to ITS-90 with a certificate issued by an ISO/IEC 17025-accredited laboratory, is strongly recommended.
Can the FTBB be used for calibrating thermal imaging cameras?
Yes—provided the camera’s spectral response falls within the 8–14 µm band and its spatial resolution allows accurate targeting of the 30 mm cavity aperture; alignment must follow JJF1187-2008 guidelines.
Does the FTBB comply with international regulatory requirements for medical device calibration?
While the FTBB itself is not a medical device, its use within a validated calibration process satisfies traceability and uncertainty requirements referenced in FDA QSR (21 CFR Part 820), EU MDR Annex II, and ISO 13485 Clause 7.6.
Is technical support available for setup and uncertainty budgeting?
Yes—YORK provides application engineering support, including cavity installation guidance, bath compatibility assessment, and uncertainty analysis templates aligned with GUM (JCGM 100:2008).
