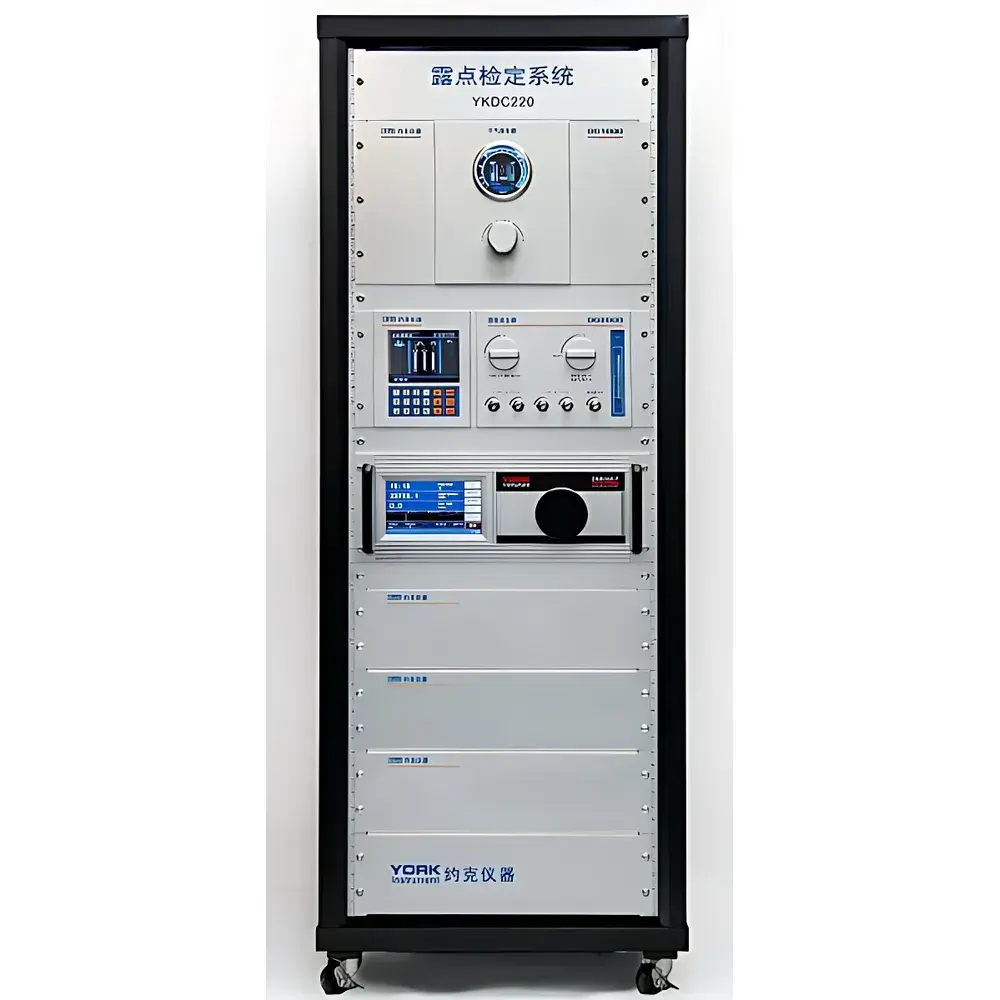

York Instrument YKDC220 Cold Mirror Dew Point Calibration System

Overview

The York Instrument YKDC220 Cold Mirror Dew Point Calibration System is a traceable, metrology-grade laboratory platform engineered for the verification, calibration, and periodic verification of dew point meters—particularly chilled-mirror, capacitive, aluminum oxide, and quartz crystal microbalance (QCM) types. It operates on the fundamental thermodynamic principle of dew point measurement: direct condensation detection via temperature-controlled mirror surface cooling, coupled with high-resolution optical condensate detection and closed-loop PID temperature regulation. As a primary standard system compliant with JJG 499–2004 (Verification Regulation for Precision Dew Point Hygrometers) and JJF 1272–2011 (Calibration Specification for Capacitive Dew Point Meters), the YKDC220 delivers certified reference conditions across a wide dynamic range—from ambient humidity down to −80 °C dew point—enabling rigorous validation in national metrology institutes, accredited calibration laboratories, and industrial QA/QC environments.

Key Features

• Integrated cold mirror reference standard: Dew Master™ high-accuracy chilled-mirror dew point meter serving as the primary transfer standard, traceable to NIM (National Institute of Metrology, China) via documented calibration certificates.
• Dual-stage dry gas generation: GS-1000 pressure-swing adsorption (PSA) dry air generator featuring twin 13X molecular sieve columns with automatic alternation, enabling continuous operation without manual intervention or downtime for regeneration.
• Stable low-humidity output: Capable of generating dry gas with dew point ≤ −80 °C at 0.3 MPa output pressure, with real-time monitoring of inlet/outlet pressure, column status, and system diagnostics via 5.6-inch color LCD interface.
• Environmental control compliance: Designed for operation within a controlled laboratory environment (20–25 °C ambient), minimizing thermal drift and ensuring long-term stability required for metrological applications.
• Robust mechanical architecture: 19-inch rack-mountable front panel (optional 21-inch), stainless steel 1/4″ Swagelok fittings, integrated auto-drain valve, and over-pressure/over-temperature fault protection with audible and visual alarm outputs.
• Traceability-ready interface: RS485 serial communication port supports integration with LIMS or automated calibration software for audit-trail generation per ISO/IEC 17025 requirements.

Sample Compatibility & Compliance

The YKDC220 is optimized for calibrating sensors and instruments used in compressed air quality monitoring (ISO 8573-1 Class 0–4), semiconductor process gas lines, pharmaceutical purge gas systems, and aerospace environmental control units. It supports calibration of both probe-type and flow-through dew point analyzers under defined flow rates (0.5–5 L/min) and backpressure conditions. All system components—including the Dew Master reference unit and GS-1000 dryer—are calibrated in accordance with national metrological regulations and are compatible with international standards including ISO 8573-4 (test methods for moisture), ASTM D1193 (reagent water specifications), and IEC 61280-4-2 (fiber optic moisture testing). The system meets GLP and GMP documentation requirements when paired with validated calibration SOPs and electronic record retention protocols.

Software & Data Management

While the YKDC220 operates as a hardware-based calibration platform, its RS485 interface enables bidirectional communication with third-party calibration management software (e.g., MET/CAL, QSoft, or custom Python/Node-RED implementations) for automated data logging, certificate generation, and uncertainty budgeting. Raw sensor readings—including mirror temperature, condensate detection signal, pressure, and time stamps—are timestamped with millisecond resolution and stored locally on external SD cards or remotely via Modbus RTU protocol. Audit trails include operator ID, calibration date, environmental conditions, and instrument identification numbers—fully supporting FDA 21 CFR Part 11 compliance when deployed with appropriate access controls and electronic signature modules.

Applications

• Primary calibration of field-deployable dew point meters used in natural gas transmission and LNG processing.
• Verification of humidity sensors embedded in cleanroom HVAC systems (ISO 14644-1 Class 3–5).
• Validation of moisture analyzers employed in lyophilization cycle development and freeze-drying process qualification.
• Supporting ISO/IEC 17025 accreditation for testing laboratories performing dew point-related services.
• Research and development of next-generation hygrometric sensors requiring reference-level characterization under sub-zero dew point conditions.
• Periodic verification of in-line moisture monitors installed in nitrogen blanketing systems for battery electrolyte manufacturing.

FAQ

Is the YKDC220 suitable for field calibration or only laboratory use?
The YKDC220 is designed exclusively for fixed-location metrological laboratories due to its sensitivity to ambient temperature fluctuations and requirement for stable power supply and vibration-free mounting.
What is the traceability chain for the Dew Master reference unit?
Each Dew Master unit ships with a factory calibration certificate traceable to NIM (China National Institute of Metrology); users may request optional NIM-issued secondary calibration certificates upon order.
Can the GS-1000 dry gas generator operate continuously for 7×24 hours?
Yes—the dual-column PSA architecture with automatic switching allows uninterrupted operation for >12 months between maintenance cycles, assuming input air meets ISO 8573-1 Class 2 purity requirements.
Does the system support uncertainty evaluation per GUM (Guide to the Expression of Uncertainty in Measurement)?
Yes—calibration reports generated using compatible software can incorporate contributions from mirror temperature stability, pressure transducer accuracy, thermal gradient effects, and reference standard drift, in alignment with JCGM 100:2008.
Are spare parts and consumables (e.g., molecular sieve) available internationally?
York Instrument provides global distribution of GS-1000 replacement 13X molecular sieve cartridges (5-year service life), mirror coatings, and O-rings through authorized regional partners and direct export channels.
