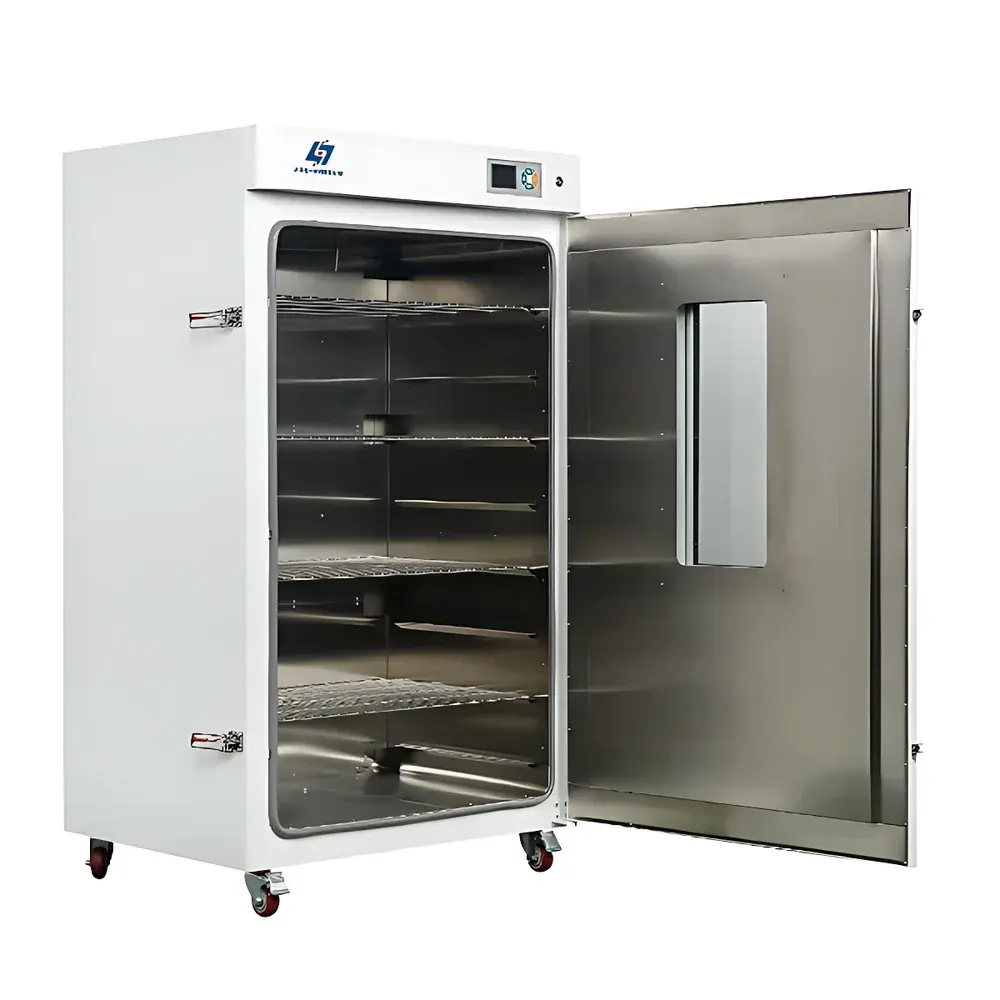

Yoyi DHG9420A Vertical Forced-Air Constant-Temperature Drying Oven

Overview

The Yoyi DHG9420A is a vertically oriented, forced-air circulation drying oven engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of convective heat transfer via a rear-mounted, balanced air circulation system—comprising a centrifugal blower, optimized ductwork, and adjustable exhaust/intake vents—to ensure uniform temperature distribution throughout the 420 L stainless-steel chamber. Designed in strict accordance with GB/T 30435–2013 (the Chinese national standard for electric heating constant-temperature ovens), the DHG9420A delivers stable thermal performance across its operational range of RT+10 °C to 250 °C, with a measured temperature fluctuation of ±1 °C and uniformity of ±2.5% at 100 °C under no-load conditions. Its vertical architecture maximizes floor-space efficiency while accommodating tall or stacked samples—making it particularly suitable for applications requiring extended thermal exposure, such as moisture loss determination, polymer curing, pharmaceutical stability testing, and pre-sterilization drying of glassware and instrumentation components.

Key Features

• Microprocessor-based PID temperature controller with intuitive LCD menu interface—enabling simultaneous display of setpoint, real-time chamber temperature, and remaining timer duration
• Intelligent power-loss recovery function: automatically restores previously configured parameters (set temperature, timer, alarm thresholds) after unexpected shutdown or grid interruption
• Double-layer tempered glass observation window with large viewing area—providing unobstructed visual monitoring without compromising thermal integrity
• High-efficiency forced-air circulation system featuring rear-mounted blower and automated intake/exhaust modulation—eliminating manual damper adjustment and enabling continuous vapor removal during high-humidity drying cycles
• Robust mechanical construction: cold-rolled steel outer casing with electrostatic epoxy-polyester coating; mirror-finish SUS304 stainless-steel interior chamber and adjustable stainless-steel shelving (3 standard trays included)
• High-reliability sealing: high-temperature silicone door gasket rated for continuous operation up to 250 °C, ensuring long service life and minimal thermal leakage
• Independent over-temperature cut-off protection circuit (optional)—mechanically isolated from the main controller to guarantee fail-safe interruption if chamber temperature exceeds user-defined safety limits

Sample Compatibility & Compliance

The DHG9420A accommodates a broad spectrum of sample types—including Petri dishes, weighing bottles, crucibles, metal parts, printed circuit boards, composite laminates, and biological specimen containers—within its 600 mm (W) × 550 mm (D) × 1300 mm (H) chamber. Its airflow design minimizes localized hot/cold spots, supporting consistent drying kinetics across heterogeneous loads. The unit complies with GB/T 30435–2013 for thermal accuracy, stability, and safety. While not certified to ISO/IEC 17025 or ASTM E145, its performance metrics align with routine laboratory validation requirements for non-GxP drying processes. For regulated environments, optional RS485 serial interface enables integration into centralized data acquisition systems compliant with FDA 21 CFR Part 11 when paired with validated software and audit-trail-enabled controllers.

Software & Data Management

The DHG9420A supports optional digital connectivity modules: an RS485 interface (with Modbus RTU protocol support) allows bidirectional communication with SCADA platforms or custom LabVIEW/LabWindows applications for remote parameter setting, real-time temperature logging, and alarm event capture. An embedded thermal printer (optional) provides hard-copy records of time-stamped temperature profiles—critical for batch documentation in QC labs. When equipped with the optional multi-segment programmable controller, users can define up to 32 ramp-soak cycles, facilitating complex thermal protocols such as gradient drying or stepwise solvent evaporation. All configuration changes are timestamped and stored in non-volatile memory, satisfying basic GLP traceability expectations for instrument setup history.

Applications

• Moisture content analysis per AOAC 950.46 and USP (loss-on-drying method)
• Drying and conditioning of reference standards, filter membranes, and desiccants prior to gravimetric analysis
• Curing of epoxy resins, powder coatings, and elastomeric adhesives in materials science labs
• Pre-heat treatment of metal specimens for tensile or fatigue testing (ASTM E8/E21)
• Baking of PCB assemblies and electronic components to eliminate residual solvents and humidity-induced delamination risks
• Thermal stabilization of calibration weights, volumetric glassware, and ceramic labware before metrological use
• Controlled dehydration of botanical, microbial, or tissue samples for subsequent FTIR or SEM preparation

FAQ

What is the maximum operating temperature of the DHG9420A?
The DHG9420A is rated for continuous operation from ambient +10 °C up to 250 °C.
Does the oven include calibration documentation?
Factory calibration certificates (traceable to national standards) are available upon request; on-site IQ/OQ validation support can be arranged separately.
Can inert gas purging be integrated?
Yes—an optional inert gas inlet port with calibrated rotameter (0–10 L/min range) enables nitrogen or argon blanketing for oxygen-sensitive materials.
Is the chamber volume verified per ISO 17025 requirements?
Chamber dimensions are factory-measured and documented; volumetric verification per ISO/IEC 17025 requires third-party thermocouple mapping, which is not included as standard.
Are replacement shelves and gaskets available as spare parts?
All consumables—including SUS304 trays, silicone door seals, and fuses—are stocked and supplied with full part numbers for reorder.
