Yuelian YL-1103 Universal Testing Machine for Carrier Tape Peel Strength Testing
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1103 |
| Load Capacity Options | 10, 20, 50, 100, 200 N |
| Force Resolution | 1/250,000 full scale |
| Test Stroke | 400 mm |
| Stroke Resolution | 0.005 mm |
| Speed Range | 5–500 mm/min (computer-programmable) |
| Maximum Specimen Width | 110 mm |
| Dimensions (W×D×H) | 110 × 30 × 26 cm |
| Weight | 36 kg |
| Power Supply | Single-phase, 100–240 VAC, 3 A |
Overview

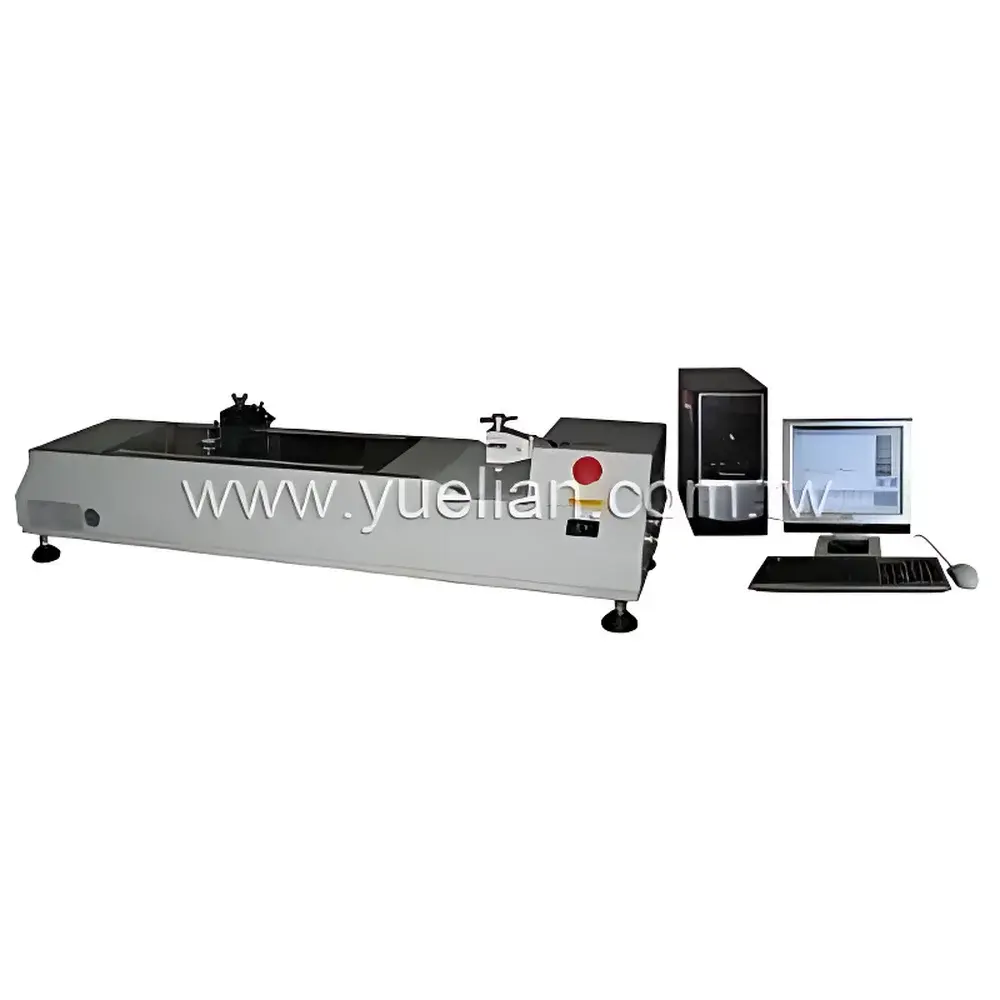

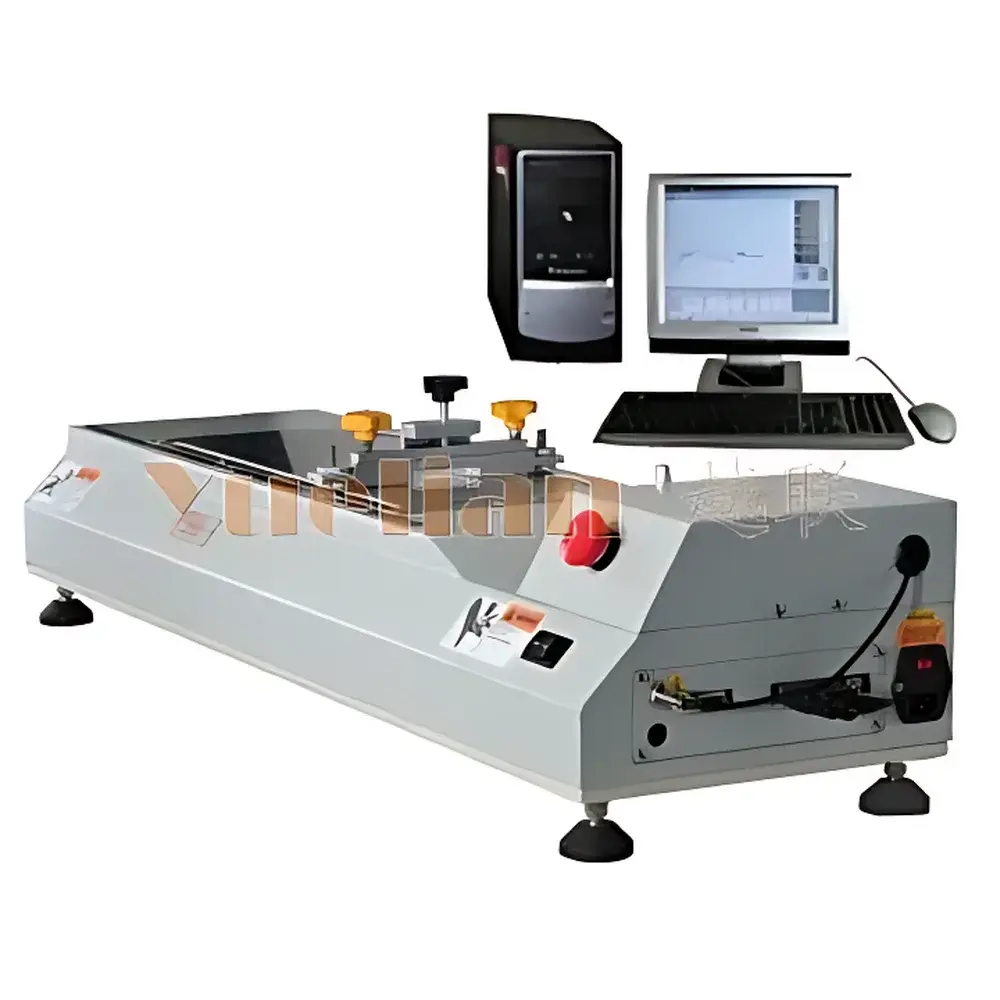

The Yuelian YL-1103 Universal Testing Machine is a precision-engineered electromechanical system specifically designed for standardized 180° peel strength evaluation of carrier tapes used in surface-mount technology (SMT) packaging and electronic component handling. It operates on the fundamental principle of controlled tensile separation—applying a constant or ramped displacement rate to peel a carrier tape from its cover tape while continuously measuring the resisting force via a high-fidelity load cell. The instrument adheres to core mechanical testing conventions defined in ASTM D903, ISO 8510-2, and JIS Z 0237, enabling quantitative assessment of adhesive bond integrity under reproducible kinematic conditions. Its modular architecture integrates a microprocessor-based motion controller, digital signal conditioning circuitry, and bidirectional USB/Ethernet communication with host software—ensuring traceable, audit-ready data acquisition without manual intervention.
Key Features
- Microcontroller-driven closed-loop speed control with programmable ramp-hold profiles across the full 5–500 mm/min range, supporting both static and dynamic peel protocols.
- High-resolution force transduction using calibrated S-type load cells (optional capacities: 10 N to 200 N), delivering a force resolution of 1 part in 250,000 of full scale—critical for detecting subtle interfacial failures in low-force peel regimes.
- Precision-guided crosshead assembly with ball-screw drive and optical encoder feedback, ensuring stroke repeatability within ±0.005 mm over 400 mm travel.
- Dual-mode operation: standalone mode via integrated LCD keypad for rapid setup; PC-controlled mode for advanced test sequencing, real-time curve overlay, and statistical post-processing.
- Robust aluminum-alloy frame with vibration-damped base plate, minimizing environmental noise interference during low-magnitude force measurements (<1 N).
- Compliance-ready firmware architecture supporting configurable user roles, electronic signatures, and audit trail logging per FDA 21 CFR Part 11 requirements when deployed in regulated QC environments.
Sample Compatibility & Compliance
The YL-1103 accommodates standard industry carrier tape formats—including embossed plastic reels (e.g., 8 mm, 12 mm, 16 mm widths) and pocketed paper tapes—with a maximum specimen width of 110 mm and clamping force adjustable up to 200 N. Fixturing includes parallel-jaw pneumatic grips and peel-angle alignment fixtures conforming to ASTM D3330 Annex A3 specifications for 180° peel geometry. All hardware and firmware comply with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) electromagnetic compatibility standards. Mechanical safety conforms to ISO 12100 and EN 60204-1, featuring emergency stop circuitry, guarded moving parts, and overload cutoff protection.
Software & Data Management
The proprietary Yuelian TestSuite v4.x software provides ISO/IEC 17025-aligned data management capabilities. It supports multi-channel synchronized acquisition (force, displacement, time), automatic peak detection, and real-time calculation of average peel force, standard deviation, and coefficient of variation. Raw data exports are available in CSV, XML, and PDF formats—with embedded metadata (operator ID, timestamp, calibration certificate ID, environmental conditions). Audit trails record all parameter changes, test executions, and report generations with immutable timestamps. Optional integration with LIMS platforms via HL7 or RESTful API enables automated result transfer into enterprise quality databases.
Applications
- Quality assurance of cover tape adhesion strength in semiconductor packaging lines prior to die bonding and reflow soldering.
- Comparative analysis of adhesive formulations (acrylic, silicone, rubber-based) under accelerated aging (temperature/humidity cycling) per JEDEC J-STD-020.
- Process validation of tape slitting, laminating, and thermal sealing operations in tape-and-reel manufacturing facilities.
- R&D support for developing low-residue, static-dissipative, or halogen-free carrier systems compliant with IPC-CC-830B and RoHS directives.
- Failure mode analysis—including cohesive failure, interfacial delamination, and substrate tearing—via synchronized video capture (optional add-on) and force-displacement curve morphology classification.
FAQ
What peel angle configurations does the YL-1103 support?
The system is factory-configured for 180° peel testing per ASTM D903 and ISO 8510-2. Custom 90° or T-peel fixtures are available as optional accessories upon request.
Is calibration certification included with shipment?
Yes—a NIST-traceable calibration certificate covering force and displacement axes is supplied with each unit. Annual recalibration services are offered through Yuelian’s authorized service centers in APAC and EMEA regions.
Can the machine perform tensile tests on other materials besides carrier tapes?

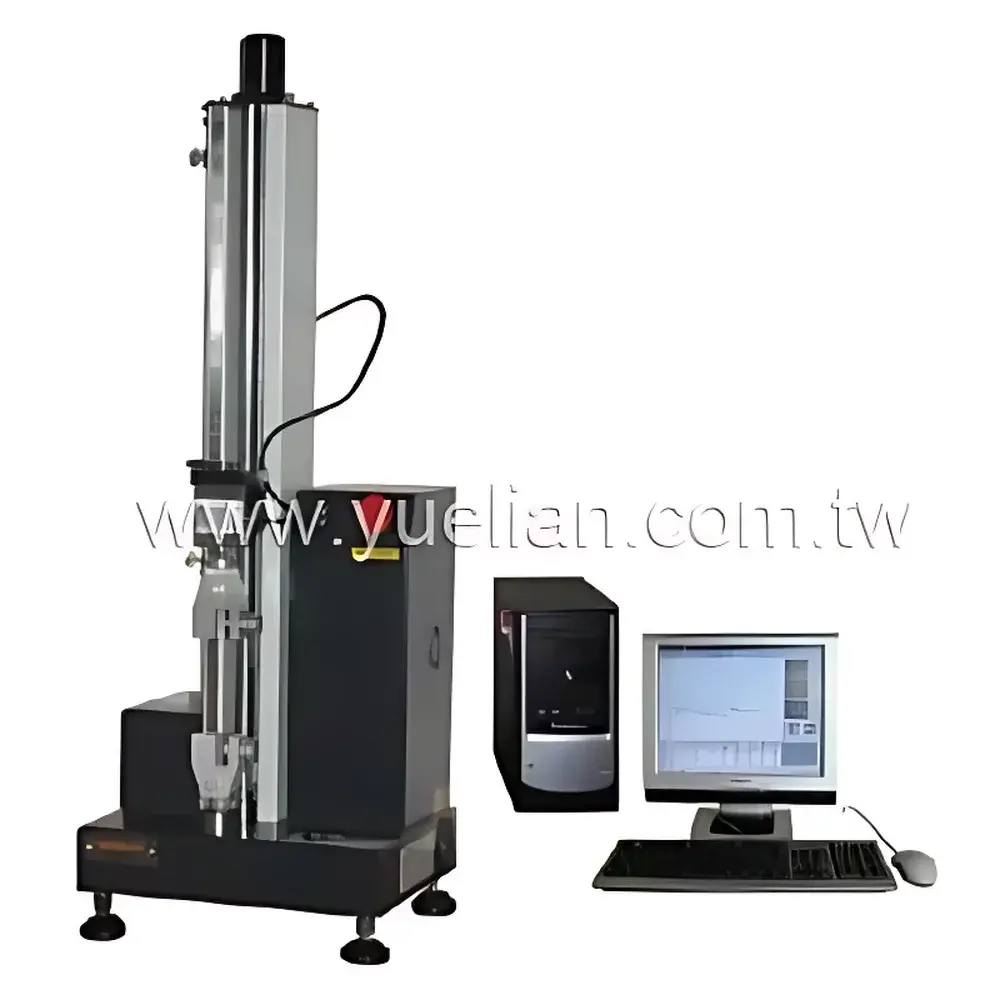

Yes. With appropriate grip sets (e.g., wedge, pneumatic, or pin-type), it supports ASTM D638 tensile testing of thin films, foils, and polymer strips—within the selected load capacity range.
Does the software meet GLP/GMP documentation requirements?
When configured with electronic signature modules and enabled audit trail logging, the software satisfies ALCOA+ principles and supports inspection readiness for ISO 9001, ISO 13485, and ICH Q7 audits.
What maintenance intervals are recommended?
Lubrication of the ball screw and inspection of load cell mounting bolts are advised every 6 months or after 500 test cycles—whichever occurs first. Full system verification is recommended annually.
