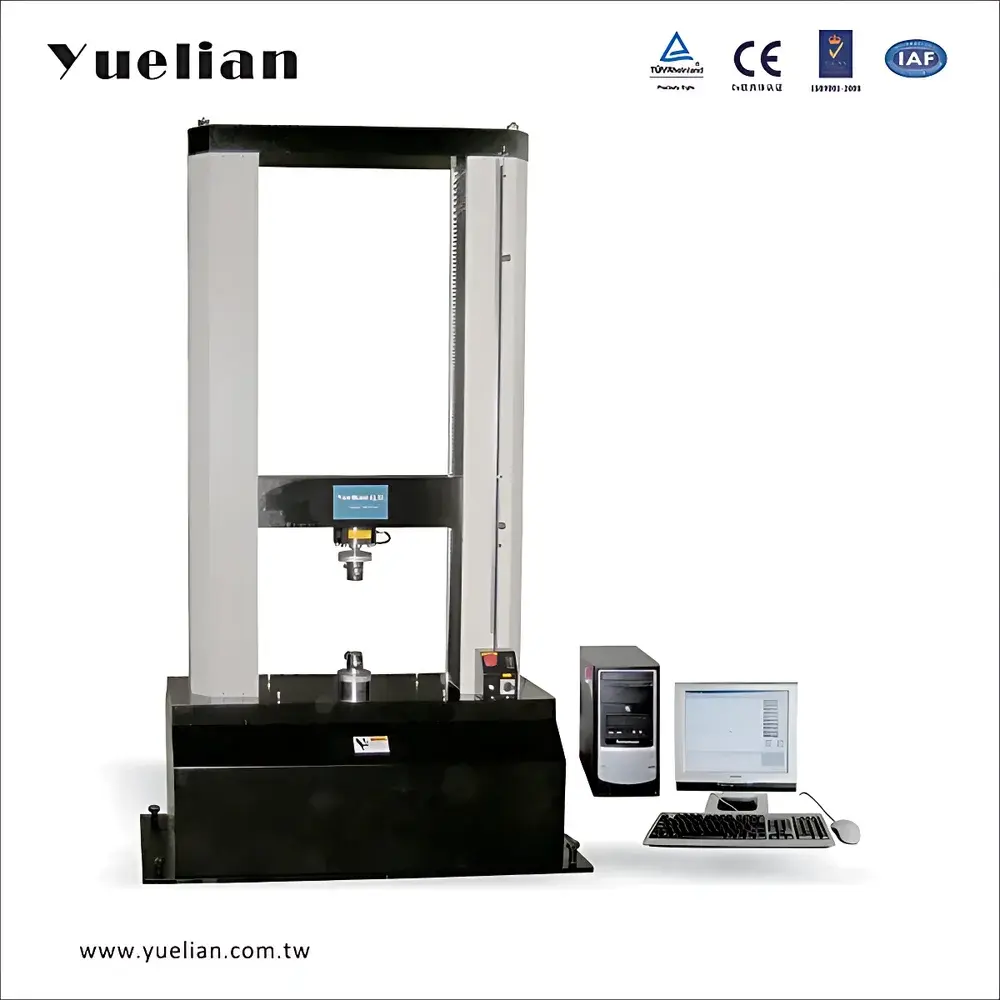

Yuelian YL-1152 Electronic Tensile Testing Machine for Elevator Steel Wire Ropes

Overview

The Yuelian YL-1152 Electronic Tensile Testing Machine is a high-stiffness, servo-controlled universal testing system engineered for precise mechanical characterization of elevator steel wire ropes and other high-strength structural materials. Designed in accordance with the fundamental principles of uniaxial tensile testing per ISO 7500-1 Class 0.5 and ASTM E4, the system applies controlled axial force while continuously measuring load and displacement to determine critical mechanical properties—including ultimate tensile strength (UTS), yield strength (0.2% offset), elongation at break, modulus of elasticity, and proof load behavior. Its rigid C-frame architecture, coupled with a preloaded ball screw drive and high-resolution encoder feedback, ensures minimal deflection under load and exceptional repeatability—essential for certification testing of safety-critical lifting components where compliance with EN 81-1/EN 81-20 and ISO 4344 is mandatory.

Key Features

• High-precision dual-range load cell configuration (e.g., 10 kN / 100 kN) enables accurate measurement across low-force pre-tensioning and high-force break testing without sensor changeover.
• Servo motor-driven crosshead with closed-loop position control delivers stable, noise-free motion from 0.5 mm/min (for creep or relaxation studies) up to 500 mm/min (for dynamic rupture analysis).
• Real-time data acquisition at ≥1 kHz sampling rate supports accurate capture of transient events such as rope strand slippage or localized necking prior to fracture.
• Integrated overload protection, emergency stop circuitry, automatic post-fracture return, and programmable upper/lower travel limits ensure operator safety and equipment integrity during high-energy failure tests.
• Modular grip interface accommodates wedge-type, hydraulic, or pneumatic fixtures—optimized for cylindrical wire rope specimens (6–60 mm diameter) per ISO 3154 and ASTM A1023.
• Compliance-ready firmware architecture supports audit trails, user-level access control, and electronic signature capability aligned with FDA 21 CFR Part 11 requirements when deployed in regulated manufacturing environments.

Sample Compatibility & Compliance

The YL-1152 is validated for testing stranded steel wire ropes used in traction elevators, escalators, and material handling systems. It accommodates standard specimen configurations including full-diameter rope sections (with or without ferrule termination), parallel-grip rope samples, and cut-strand bundles per ISO 12076-1 and EN 12385-5. The machine’s force calibration traceability meets national metrological standards (JJG 475–2008) and international verification protocols (ISO 7500-1). All test reports include metadata compliant with ISO/IEC 17025 documentation requirements, including environmental conditions, calibration certificate IDs, operator credentials, and raw data export timestamps.

Software & Data Management

The embedded Windows-based test software provides a GLP-compliant environment for method creation, execution, and reporting. Users define multi-step test sequences—including preload hold, ramp-to-load, constant-rate extension, and stress-relaxation phases—with real-time graphical overlay of stress–strain, load–displacement, and time–force curves. Data is stored in encrypted MS-ACCESS databases with immutable records; each test entry logs system configuration, calibration status, and user authentication. Export formats include CSV, PDF (with digital signature), XML (for LIMS integration), and image-embedded reports compliant with ISO 14289-1 (PDF/A-2u). Optional add-ons support automated report generation per EN 10002-1 Annex A and direct upload to enterprise quality management systems (QMS) via RESTful API.

Applications

• Determination of breaking force and minimum breaking load (MBL) of elevator hoisting ropes per ISO 4344 and EN 81-20 Clause 10.2.3.
• Verification of residual strength after bending fatigue cycles (e.g., sheave wrap testing per ISO 4344 Annex D).
• Interfacial bond strength assessment between galvanized coating and steel core using modified peel protocols.
• Comparative evaluation of rope degradation due to corrosion, abrasion, or lubricant depletion under accelerated aging conditions.
• Validation of splice integrity and thimble termination efficiency in field-installation QA workflows.
• Support for R&D of high-tensile stainless steel and polymer-coated hybrid ropes under ASTM D3330 and GB/T 15598–1995 frameworks.

FAQ

Does the YL-1152 meet statutory requirements for elevator rope certification in EU and North America?

Yes—the system satisfies mechanical verification criteria specified in EN 81-20, ASME A17.1/CSA B44, and ISO 4344 when operated with certified load cells, calibrated displacement transducers, and documented uncertainty budgets.
Can the software generate audit-ready test records for third-party inspection bodies?

Yes—each test file includes embedded digital signatures, revision-controlled method templates, calibration traceability links, and timestamped operator logins, fulfilling ISO/IEC 17025 clause 7.8 and FDA 21 CFR Part 11 Subpart B requirements.
What grip types are recommended for testing 16 mm diameter galvanized elevator ropes?

Hydraulic wedge grips with serrated tungsten-carbide jaws and adjustable clamping pressure (0.5–15 MPa) are supplied as standard; optional rope-specific jaw inserts with conformal curvature minimize slippage and premature failure at the grip interface.
Is remote diagnostics and firmware update supported?

Yes—via secure HTTPS-enabled web interface; all updates undergo cryptographic signature validation and require administrator approval before installation.
How is thermal drift compensated during extended-duration tensile holds?

The load cell electronics incorporate temperature-compensated strain gauge bridges and real-time zero-tracking algorithms, reducing thermal error to <±0.02% FS/°C over the operating range of 10–35°C.
