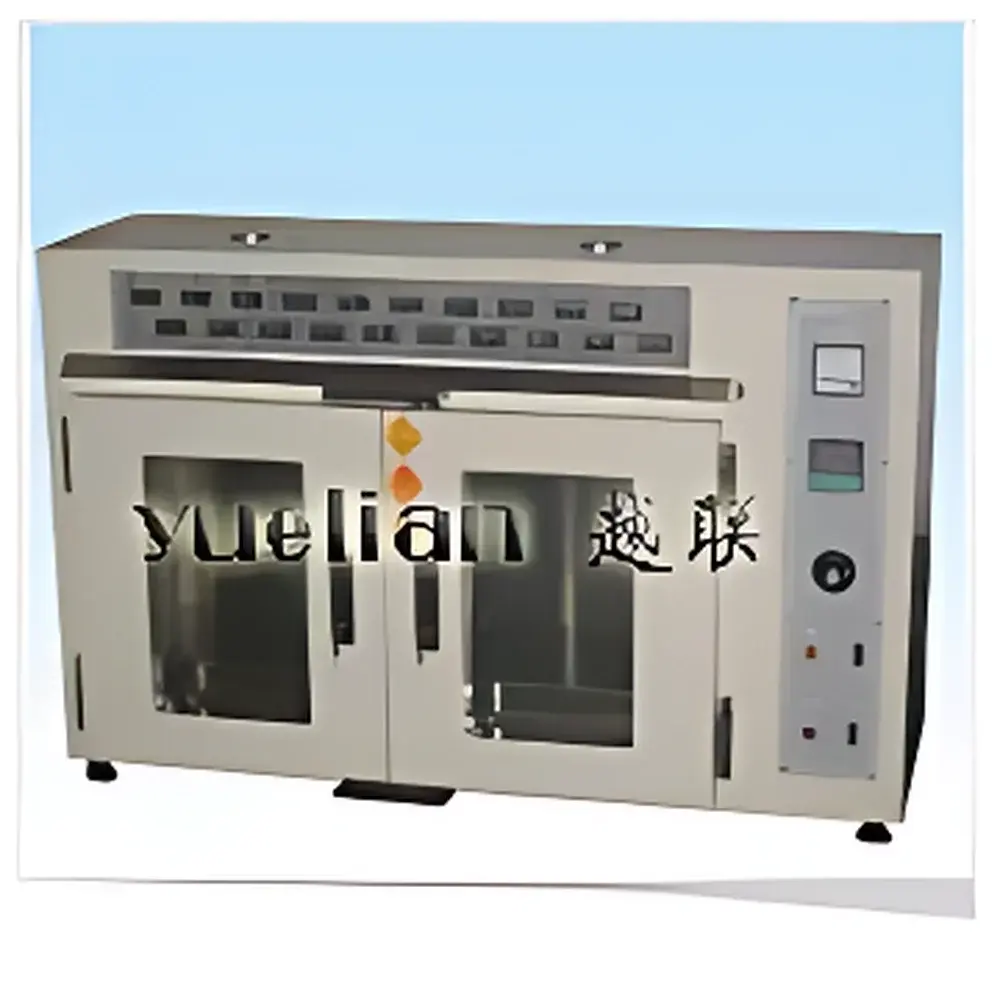

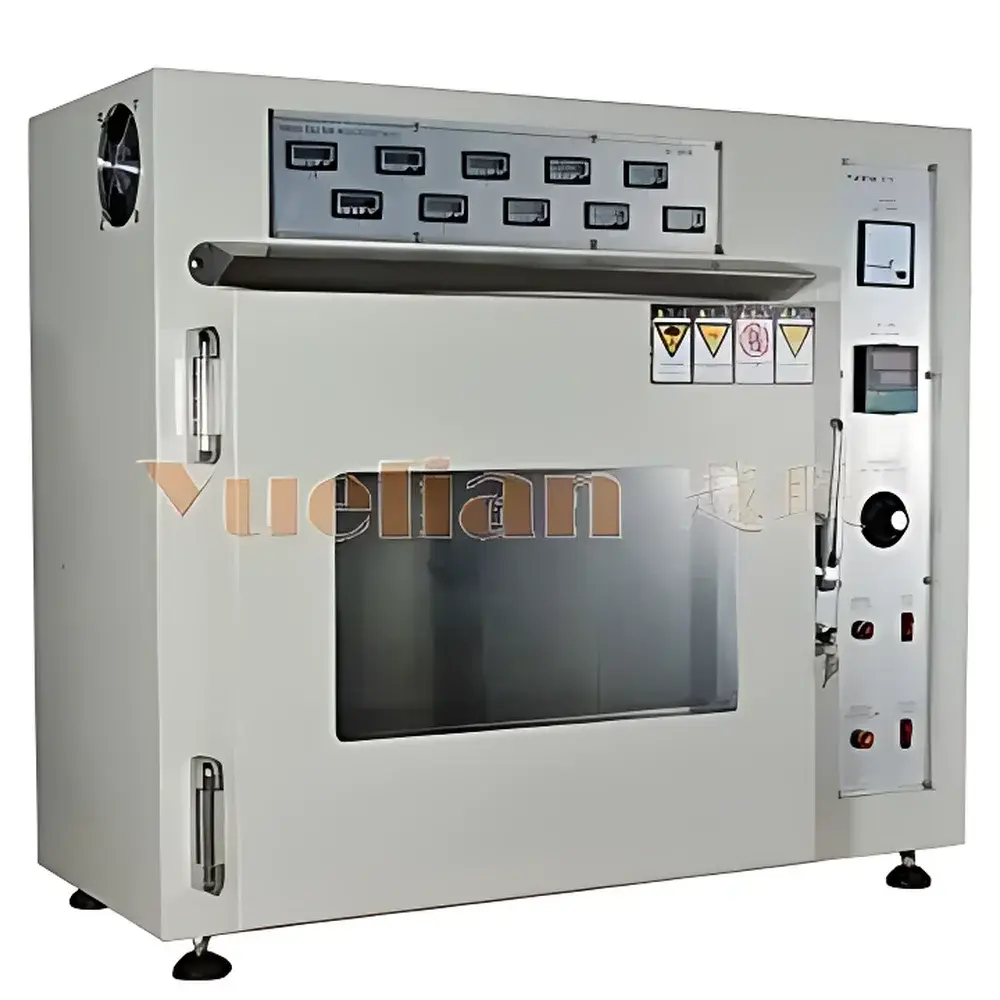

Yuelian YL-8808B Oven-Type Adhesive Tape Holding Power Tester

Overview

The Yuelian YL-8808B Oven-Type Adhesive Tape Holding Power Tester is an engineered solution for evaluating the thermal stability and long-term adhesion integrity of pressure-sensitive adhesive (PSA) tapes under controlled elevated temperature conditions. It operates on the principle of static shear testing—applying a constant tensile load perpendicular to the bond interface while maintaining a precisely regulated thermal environment. Unlike ambient-temperature holding power testers, the YL-8808B integrates a thermally insulated oven chamber with uniform airflow distribution and microprocessor-driven PID temperature control, enabling reproducible assessment of adhesive performance at temperatures ranging from +5°C to 150°C. This capability is essential for qualifying PSA materials used in automotive trim, electronics bonding, medical device assembly, and industrial labeling—applications where prolonged exposure to heat accelerates cohesive failure or interfacial delamination. The system measures the time elapsed between load application and spontaneous detachment of the tape from a standardized stainless steel substrate, with automatic timing retention upon specimen release.

Key Features

• 10 independent test stations with dedicated stainless steel (SUS#304) fixture arms, allowing parallel evaluation of multiple specimens under identical thermal and mechanical conditions.
• High-stability PID temperature control system delivering ±0.3°C accuracy across the full operating range (+5°C to 150°C), with 0.1°C digital display resolution and real-time thermal uniformity verification via internal sensor array.
• 10-channel electronic timer module featuring LCD display, 60-base counting logic, non-volatile time retention upon detachment, and battery-backed operation—eliminating dependency on external power during critical test phases.
• Stainless steel test plates (10 pcs, 180 mm × 45 mm × 1.0 mm, SUS#304) conforming to GB/T 4851 and PSTC-7 dimensional tolerances; surface roughness Ra ≤ 0.8 µm as verified per ISO 8503-2.
• Load application via calibrated 1 kg stainless steel weights (10 pcs); optional mass configurations available for compliance with ASTM D3654 or ISO 29862 protocols.
• Integrated safety logic: audible alert (user-switchable buzzer) and automatic heating cutoff upon full specimen detachment, preventing unattended thermal overexposure.
• Oven chamber constructed with interior SUS#304 lining and exterior high-grade powder-coated steel housing, ensuring corrosion resistance and structural rigidity during extended thermal cycling.

Sample Compatibility & Compliance

The YL-8808B accommodates standard PSA tape specimens measuring 25 mm × 100 mm (or custom widths up to 50 mm), affixed to conditioned SUS#304 plates using defined roller pressure (2 kg, 2× forward/backward passes at 300 mm/min). It supports both single- and multi-layer tape architectures, including acrylic, rubber-based, silicone, and hybrid formulations. All mechanical and thermal parameters align with internationally recognized test methodologies: GB/T 2792 (peel strength reference), GB/T 4851 (holding power at elevated temperature), PSTC-7 (Pressure Sensitive Tape Council standard), CNS 11887/11888 (Chinese National Standards for adhesive performance), and technical equivalencies to ISO 29862 Annex B. The instrument’s design facilitates audit readiness for GLP-compliant laboratories, with traceable calibration paths for temperature sensors and load masses.

Software & Data Management

While the YL-8808B operates as a standalone hardware platform without embedded PC software, its 10-channel timer outputs discrete TTL-level signals upon each detachment event—enabling seamless integration with external data acquisition systems (e.g., LabVIEW, MATLAB, or custom SCADA platforms) via optional I/O expansion modules. Time-stamped detachment records can be logged with metadata including setpoint temperature, actual chamber temperature (averaged over last 60 s), and channel ID. For regulated environments, users may configure external systems to enforce 21 CFR Part 11-compliant audit trails, electronic signatures, and data integrity controls. Calibration certificates for temperature sensors and weights are provided with NIST-traceable documentation.

Applications

• Qualification of high-temperature PSA tapes for under-hood automotive applications (e.g., gasket bonding, harness fixation).
• Accelerated aging studies correlating holding time at 80°C/100°C with field performance in solar panel mounting systems.
• R&D screening of novel acrylic emulsion formulations targeting improved thermal resistance beyond 120°C.
• QC release testing for medical transdermal patch adhesives requiring stable adhesion at skin temperature (32–37°C) over 7-day wear periods.
• Failure mode analysis of edge-lift phenomena in graphic films exposed to cyclic thermal stress in architectural façade installations.

FAQ

What standards does the YL-8808B explicitly support?
It is designed and validated for GB/T 2792, GB/T 4851, PSTC-7, CNS 11887, and CNS 11888. Its mechanical and thermal specifications also permit method adaptation to ISO 29862 and ASTM D3654 with minor procedural adjustments.
Can the temperature uniformity be verified internally?
Yes—the chamber includes three fixed-position PT100 sensors (top/mid/bottom zones) feeding real-time data to the PID controller; uniformity is maintained within ±0.5°C across all test positions per IEC 60068-3-5 validation protocols.
Is the 1 kg weight value adjustable per test station?
Each station accepts user-supplied masses; the standard configuration includes ten 1 kg stainless steel weights, but optional 0.5 kg, 2 kg, or custom-calibrated loads can be installed without hardware modification.
How is thermal drift compensated during long-duration tests?
The microprocessor continuously recalculates PID output based on deviation from setpoint and integral windup suppression, with adaptive tuning enabled via front-panel menu—ensuring stability even during 168-hour (7-day) continuous runs.
Are replacement parts such as SUS#304 test plates available separately?
Yes—certified replacement plates (180 mm × 45 mm × 1.0 mm, Ra ≤ 0.8 µm, passivated per ASTM A967) and calibrated weights are supplied with individual CoC documentation.
