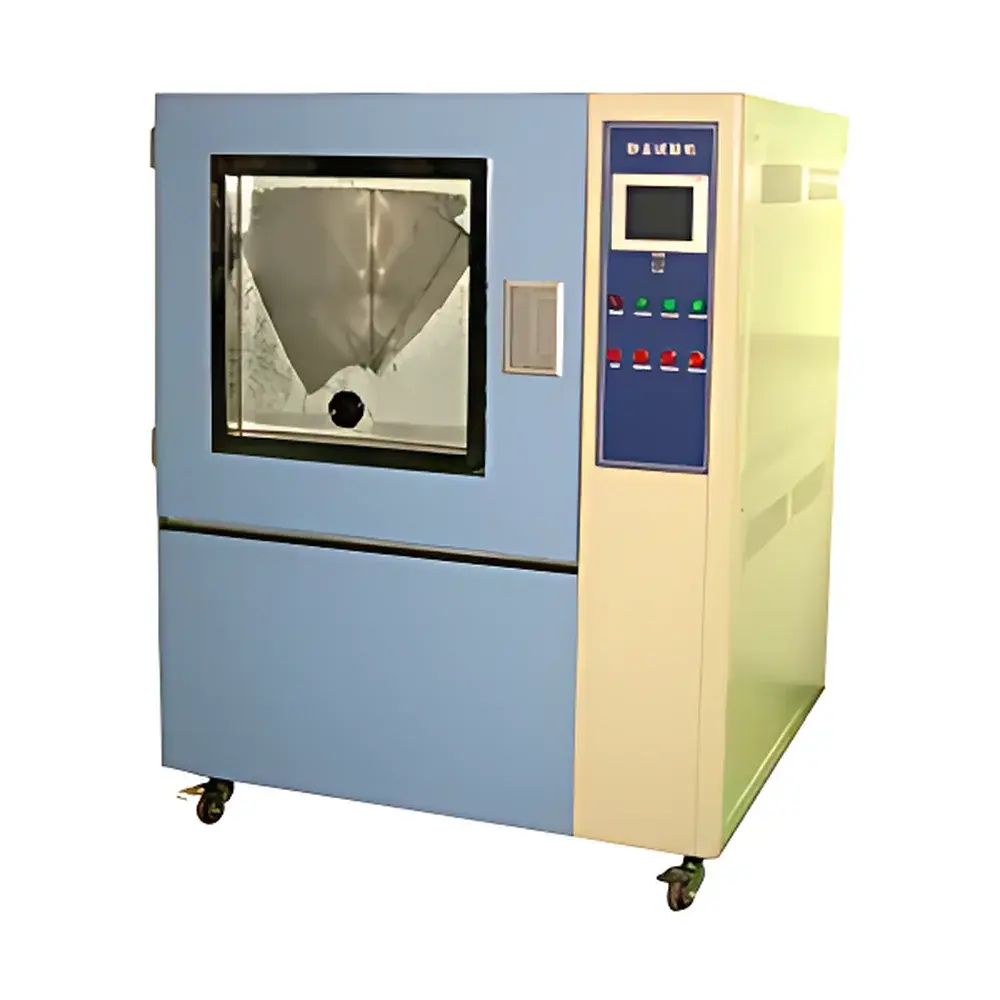

Yuelian YL-9912A Sand and Dust Test Chamber for IP5X/IP6X Ingress Protection Testing

Overview

The Yuelian YL-9912A Sand and Dust Test Chamber is an engineered environmental test system designed to evaluate the dust ingress protection performance of enclosures in accordance with international IP rating standards—specifically IP5X (dust protected) and IP6X (dust tight). It operates on the principle of controlled airborne particulate suspension and forced convection, replicating real-world exposure conditions where products are subjected to non-directional dust deposition (e.g., outdoor storage), low-velocity airborne dust (e.g., industrial environments), or high-velocity sand-laden airflow (e.g., desert or off-road operation). The chamber integrates a high-efficiency centrifugal blower, precision temperature regulation, programmable dust dispersion timing, and mechanical dust recovery via vibratory de-adhesion—enabling repeatable, traceable, and standards-compliant testing of electronic housings, automotive ECUs, mobile devices, lighting fixtures, and military-grade equipment.

Key Features

• Stainless steel (304#) inner chamber with funnel-shaped base and integrated dust recovery system, minimizing manual cleanup and ensuring consistent particle reuse.
• Imported TEMI880 programmable touchscreen controller supporting dual-language (English/Chinese) interface, multi-segment cycling, and full parameter logging—including temperature, blow time, float time, shake time, rest time, and cycle count.
• Independent PID-controlled heating system using finned-surface stainless steel heating elements; BTC (Balance Temperature Control) algorithm ensures thermal stability within ±0.5°C over the operating range (RT+5°C to 60°C).
• High-velocity dust delivery: ≥7.5 m/s air stream generated by a dedicated high-pressure centrifugal fan, calibrated to maintain uniform 1 kg/m³ dust concentration throughout the test volume.
• Configurable dust sieving: Standard 200-mesh (75 µm) stainless steel screen; optional 75-mesh (200 µm) screen available for coarse particulate simulation per MIL-STD-810H or DIN 40050-9 requirements.
• Dual operational modes: static sedimentation (for IP5X evaluation) and dynamic turbulent suspension (for IP6X validation); vacuum capability (optional) enables differential pressure testing per IEC 60529 Annex B.
• Comprehensive safety architecture: Over-temperature cut-off, motor thermal overload protection, leakage current detection, short-circuit and over-current interruption, grounded chassis (<4 Ω resistance), and explosion-proof door latch with tempered observation window (270 × 360 mm) and auto-wiping mechanism.

Sample Compatibility & Compliance

The YL-9912A accommodates samples up to 800 × 800 × 800 mm (W×H×D) and supports both powered and unpowered testing configurations. Optional DC power supply modules (12 V / 24 V / 36 V @ 20 A) and AC 220 V / 20 A internal outlets—controlled via programmable timer—enable functional evaluation under dust exposure. The chamber excludes flammable, explosive, volatile, corrosive, biological, or high-EMI-emitting specimens per safety protocol. It fully satisfies the test conditions defined in GB/T 2423.37–2006 (equivalent to IEC 60068-2-68:1994), GB 4208–2008 (IEC 60529), GJB 150.12–2009, GB 7000.1–2007 Clause 9, and GB 10485. Cross-referenced equivalency includes JIS C 0920, DIN 40050-9, and MIL-STD-810H Method 510.6. All test procedures align with GLP documentation requirements, supporting audit-ready records for ISO/IEC 17025-accredited laboratories.

Software & Data Management

The TEMI880 controller provides embedded data acquisition with battery-backed RAM (retaining settings and sampled values for up to 60 days at 1.5-minute intervals). It supports RS-232 serial communication for remote monitoring, script-based automation, and integration into centralized lab management systems. Data export formats include CSV and Excel-compatible logs containing timestamped temperature readings, cycle phase transitions, and alarm events. The controller meets FDA 21 CFR Part 11 foundational requirements for electronic records—including user authentication, audit trail generation, and immutable event logging—when deployed in regulated QC/QA environments. Optional PC software enables real-time graphing, comparative analysis across test runs, and automated report generation compliant with internal SOPs or external certification bodies.

Applications

This chamber is routinely deployed in R&D validation, incoming quality inspection, and pre-certification testing for consumer electronics (e.g., smartphones, wearables, tablets), automotive components (ECUs, sensors, infotainment housings), industrial control panels, outdoor LED luminaires, aerospace avionics enclosures, and defense electronics requiring MIL-STD-810H compliance. Its ability to replicate both gravitational settling (IP5X) and pressurized infiltration (IP6X) makes it suitable for evaluating gasket integrity, vent membrane efficiency, sealing lip deformation, and filter media performance under sustained particulate stress. Users also apply it for accelerated aging studies of dust-filtering materials and validation of cleaning protocols for reusable test chambers.

FAQ

Does the YL-9912A support vacuum-assisted IP6X testing?
Yes—vacuum pump integration is available as an optional accessory to generate internal negative pressure relative to ambient, fulfilling the differential pressure requirement for IP6X verification per IEC 60529.
Can I use alternative dust types besides talcum powder?
Yes—the chamber accepts user-supplied dust media (e.g., Arizona Road Dust, silica sand, or custom blends), provided they comply with specified particle size distribution and non-reactivity constraints.
Is the controller compatible with Windows-based laboratory networks?
Yes—RS-232 connectivity enables direct integration with Windows 2000/XP+ systems running Yuelian-provided or third-party SCADA software for centralized test orchestration and data archival.
What maintenance is required for long-term calibration stability?
Routine checks include sieve mesh integrity verification, blower belt tension adjustment, temperature sensor (PT100) validation against NIST-traceable references annually, and dust collection system cleaning after every 10 test cycles.
How is test repeatability ensured across different operators or labs?
Through standardized operating procedures encoded in the controller’s program memory, combined with documented calibration certificates for temperature and airflow sensors, and adherence to the procedural rigor defined in GB/T 2423.37 and IEC 60068-2-68.
