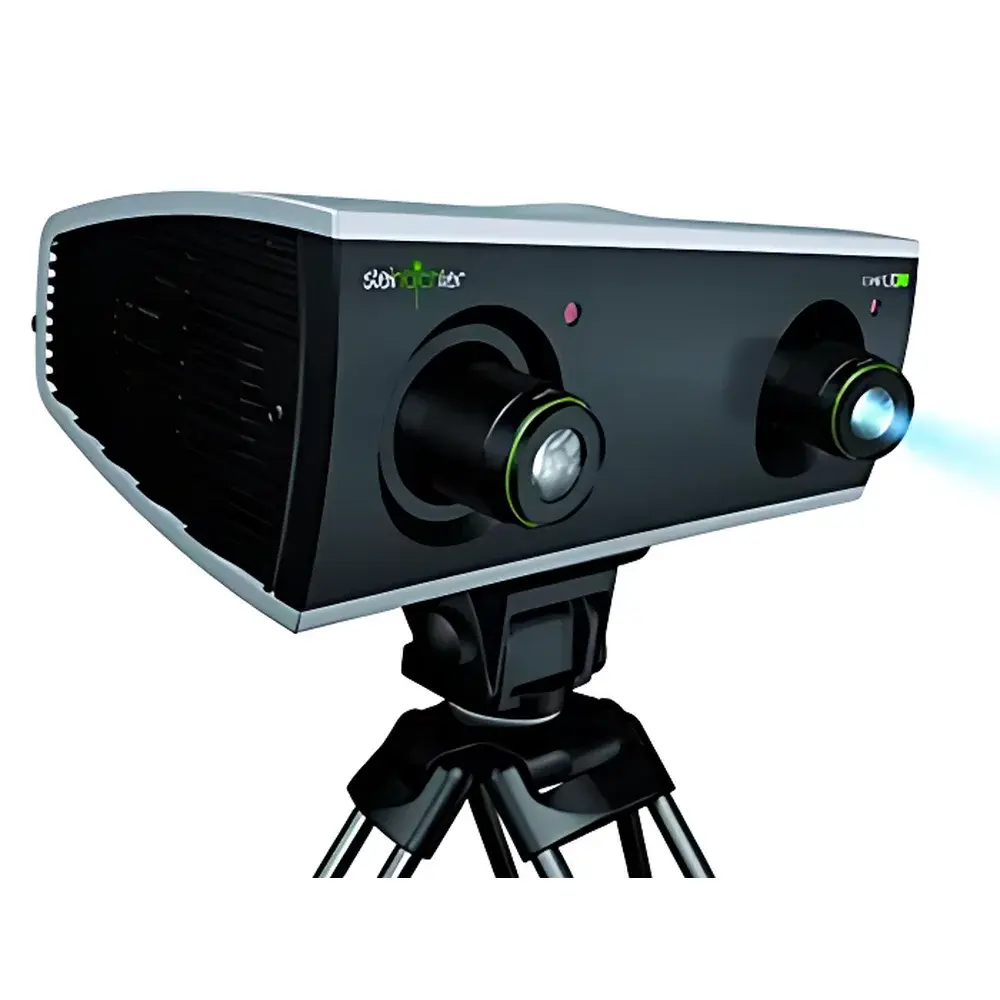

ZEISS ATOS Q 3D Scanner with GOM Inspect Professional Software
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ATOS Q Series (GOM Integration) |
| Price | USD 2500 per service unit (CAV Inspection Service) |
Overview
The ZEISS ATOS Q 3D Scanner — integrated with GOM Inspect Professional software — is a high-accuracy, non-contact optical 3D metrology system engineered for full-field geometric measurement and CAV (Complete Automotive Validation / Comprehensive As-Built Verification) inspection. Based on stereoscopic fringe projection and digital image correlation principles, the system captures dense point clouds with sub-micron-level repeatability under controlled laboratory or production-floor conditions. Unlike tactile coordinate measuring machines (CMMs), the ATOS Q acquires over 5 million measurement points per scan in seconds, enabling comprehensive surface deviation analysis against CAD references without physical contact or part fixturing constraints. It is specifically designed for validating Class-A surfaces, complex freeform geometries, and thin-walled components where traditional gauging fails to deliver sufficient spatial resolution or statistical robustness.
Key Features
- High-resolution fringe projection optics with adaptive LED illumination for stable performance across diverse surface finishes (matte, glossy, black, or textured)
- Real-time stereo camera synchronization and automatic calibration using ZEISS-certified reference bodies (e.g., ceramic calibration plates traceable to PTB standards)
- Multi-scan alignment via photogrammetric referencing and iterative closest point (ICP) algorithms, supporting large-part metrology up to 4 m³ volume
- Integrated thermal drift compensation and environmental monitoring interface (optional temperature/humidity sensors)
- Modular hardware architecture compatible with robotic arms, linear stages, and turntables for automated inspection cell integration
- Compliance-ready data logging: audit trails, user authentication, and timestamped measurement records aligned with ISO 17025 and ASME B89.4.10-2020 requirements
Sample Compatibility & Compliance
The ATOS Q system accommodates a broad spectrum of industrial components including sheet metal stampings, injection-molded housings, turbine blades, investment castings, composite aerospace structures, and heritage conservation artifacts. Surface reflectivity, curvature radius, and material opacity are mitigated through adjustable exposure settings, polarization filters, and optional spray-based matting agents compliant with ASTM D7618. All measurement workflows adhere to ISO 15530-3 (calibration by comparison with calibrated workpieces) and support traceability to national metrology institutes (NMI). For regulated industries, the system supports 21 CFR Part 11-compliant electronic signatures when deployed with validated GOM Inspect Professional v2023+ configurations under documented IQ/OQ protocols.
Software & Data Management

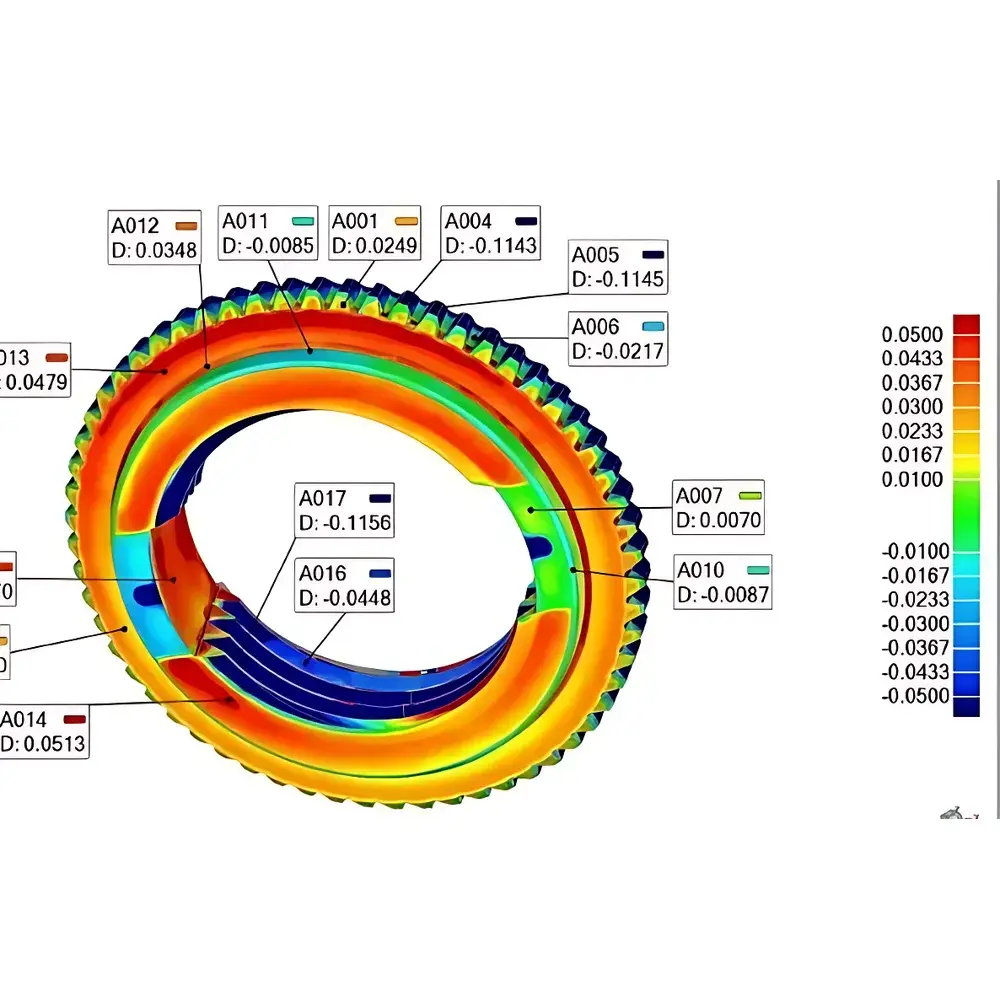

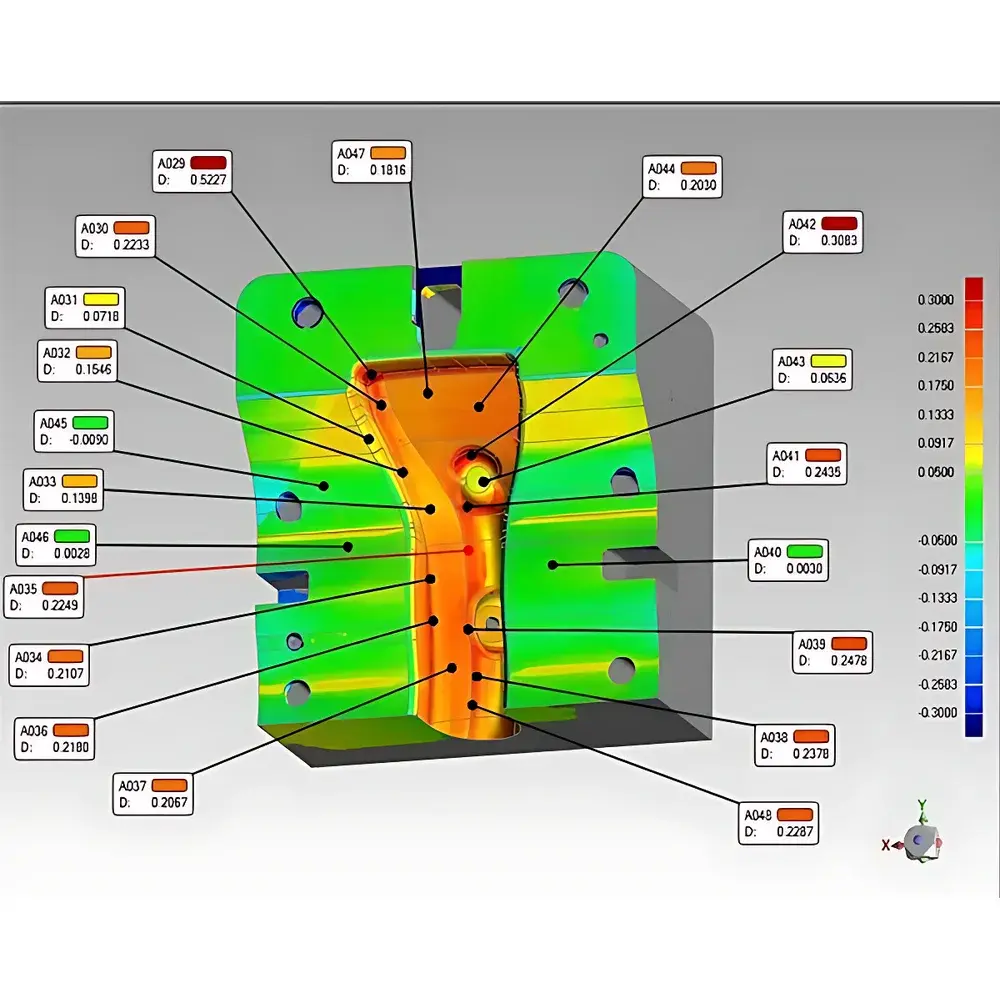

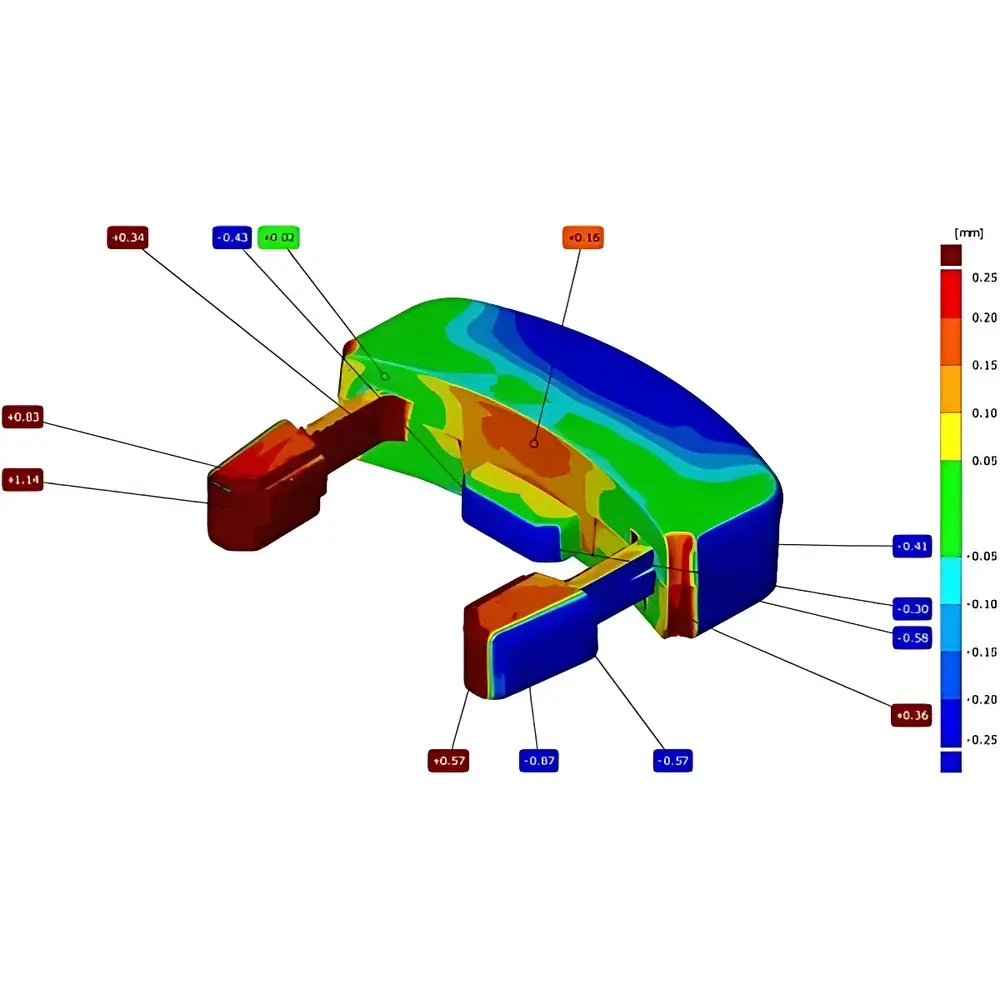

GOM Inspect Professional serves as the certified evaluation platform for ATOS-derived point clouds and polygonal meshes. It provides ISO 1101-compliant GD&T analysis (including profile, form, orientation, location, and runout tolerances), thickness analysis for thin-walled parts, and automated reporting in PDF, Excel, and eXchange Format (XF) for PLM interoperability. The software features built-in statistical process control (SPC) dashboards, deviation color mapping with ±0.002 mm resolution scaling, and batch processing for serial part validation. All project files retain full metadata (scan parameters, calibration history, operator ID, environmental logs), satisfying GLP/GMP documentation requirements for quality audits.
Applications
- Aerospace: Blade airfoil verification, wing skin contour mapping, and composite layup conformity checks
- Automotive: Body-in-white gap/flush analysis, Class-A surface validation for exterior panels, and die-cast component dimensional release
- Medical device manufacturing: Validation of additively manufactured implants against patient-specific CT-derived CAD models
- Cultural heritage: Non-invasive digitization of fragile artifacts with sub-50 µm surface fidelity
- Tool & die: Mold cavity inspection, electrode wear analysis, and reverse engineering of legacy tooling without drawings
- Energy sector: Inspection of turbine casings, heat exchanger fins, and wind blade root sections
FAQ
What does “CAV inspection” mean in the context of ATOS-based metrology?
CAV stands for Comprehensive As-Built Verification — a methodology emphasizing full-surface deviation assessment rather than discrete point measurements, widely adopted in automotive and aerospace Tier-1 suppliers.
Is the ATOS Q system suitable for in-line production environments?
Yes — with optional IP54-rated enclosures, vibration-dampened mounts, and real-time mesh quality feedback, it supports shop-floor deployment under ISO 22476-1 environmental class B conditions.
Can GOM Inspect Professional generate PPAP-compliant reports?
Yes — the software exports AIAG-aligned dimensional results, including Cpk/Ppk indices, measurement uncertainty budgets, and annotated deviation maps required for Level 3 PPAP submissions.
Does this service include NIST-traceable calibration documentation?
All service engagements include a ZEISS-issued calibration certificate referencing DKD/DAkkS-accredited standards, valid for 12 months from date of issuance.
How is data security managed during remote CAV analysis projects?
Data transfer occurs via AES-256 encrypted SFTP channels; raw point clouds remain client-owned and are purged from servers within 72 hours post-delivery unless archived under signed data retention agreements.
