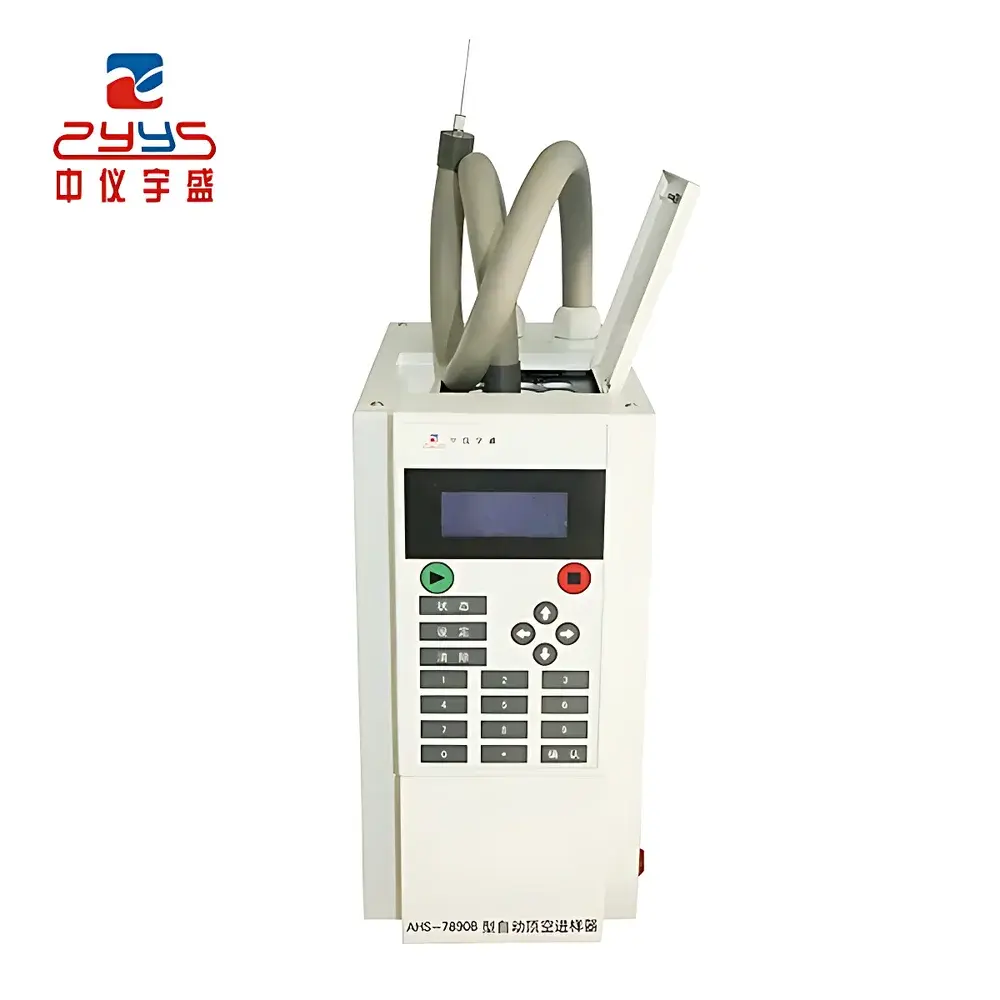

Zhongyi Yusheng AHS-7890B Static Headspace Sampler

Overview

The Zhongyi Yusheng AHS-7890B Static Headspace Sampler is an engineered solution for reproducible, trace-level analysis of volatile and semi-volatile organic compounds (VOCs and SVOCs) in solid, liquid, and semi-solid matrices. Operating on the principle of static headspace equilibrium, the instrument thermally equilibrates sealed sample vials under precise temperature and time control, allowing partitioning of analytes into the vapor phase above the sample. A six-port rotary valve with a fixed-volume sampling loop ensures consistent, low-dead-volume introduction of the equilibrated headspace gas directly into the gas chromatograph (GC) or GC-MS system. Designed for integration into regulated laboratory environments, the AHS-7890B supports method-driven workflows compliant with international environmental, clinical, pharmaceutical, and materials testing standards—including U.S. EPA Method 502.2, ASTM D6866, ISO 11843-2, and multiple Chinese HJ and GB/T standards referenced in environmental monitoring and forensic toxicology applications.

Key Features

• Metal-block heating architecture for sample oven, valve manifold, and transfer line—each zone independently programmable with ±0.1 °C thermal stability and minimal axial gradient (<0.5 °C across 12-position carousel)
• Front-access sample tray design enables ergonomic loading/unloading without obstruction from instrumentation front panels or GC oven doors
• Microprocessor-based controller with intuitive keypad interface and real-time status display (temperature, elapsed time, valve position, pressure)
• Full sequence automation: pressurization, equilibration, loop fill, injection, post-injection backflush—all time-programmable with user-defined dwell intervals
• Dual backflush capability: automatic purge of both the transfer line and six-port valve after each injection to eliminate carryover between samples
• Modular inlet compatibility: includes standardized ferrule-based fittings and optional quartz-lined transfer tubing for active compound analysis (e.g., aldehydes, acids, sulfur species)
• No GC modification required: integrated pressure regulation allows direct connection to existing carrier gas supply lines; also supports external high-purity helium or nitrogen sources
• External trigger interface (TTL) enables synchronized start of GC oven ramp, data acquisition, and sampler cycle—essential for GLP-compliant audit trails

Sample Compatibility & Compliance

The AHS-7890B accommodates standard 10 mL and 20 mL crimp-top or screw-cap headspace vials (with PTFE/silicone septa), supporting matrices including aqueous solutions, soils, sediments, biological fluids (blood, urine), polymers, medical device extracts, and packaged consumer goods. Its operational parameters align with method requirements defined in over 19 published Chinese environmental and industrial standards (HJ 620–2011 through HJ 1289–2023), as well as GB/T 42430–2023 for forensic alcohol quantification and GB/T 16886.7–2015 for ethylene oxide residue testing in sterilized medical devices. While not certified to IEC 61000 or UL 61010 by default, the unit meets CE marking requirements for electromagnetic compatibility and low-voltage safety when operated within specified ambient conditions (15–30 °C, <80% RH non-condensing).

Software & Data Management

The AHS-7890B operates as a stand-alone hardware module with embedded firmware—not reliant on proprietary PC software. All method parameters (equilibration temperature/time, pressurization pressure, loop fill time, injection duration, backflush duration, cooling delay) are stored locally in non-volatile memory. Each method retains full metadata: date/time stamp of last edit, operator ID field (manually entered), and version number. When triggered externally, the sampler logs a timestamped event record (start/stop) that can be cross-referenced with GC data files for full chain-of-custody documentation. For laboratories implementing 21 CFR Part 11 compliance, the device supports integration into validated LIMS or chromatography data systems (CDS) via hardware handshake signals and deterministic timing—enabling electronic signature linkage and audit trail generation at the system level.

Applications

• Environmental analysis: quantification of chlorinated solvents (e.g., chloroform, carbon tetrachloride), BTEX compounds (benzene, toluene, ethylbenzene, xylenes), and halogenated hydrocarbons in water, soil, and waste leachates
• Clinical toxicology: ethanol, methanol, isopropanol, acetone, and butanol profiling in whole blood and urine per GB/T 42430–2023
• Pharmaceutical QA/QC: residual solvent testing in drug substances and packaging components per ICH Q3C guidelines
• Medical device safety: ethylene oxide (EO) and chloroethanol residue verification in EO-sterilized products (GB/T 16886.7–2015)
• Polymer and packaging testing: VOC screening in food-contact materials (SN/T 4148–2015) and automotive interior trim components
• Forensic chemistry: detection of ignitable liquid residues (ILRs) in fire debris using ASTM E1444-compliant protocols

FAQ

Is the AHS-7890B compatible with Agilent 8890 and Thermo ISQ GC-MS systems?
Yes—the sampler includes universal mechanical and pneumatic interfaces, and its TTL trigger output synchronizes seamlessly with both platforms’ external start inputs.

Can the instrument perform dynamic headspace (purge-and-trap) analysis?
No—it is designed exclusively for static headspace sampling; dynamic headspace requires separate purge-and-trap hardware.

What maintenance is required for long-term reliability?
Recommended quarterly inspection of septa integrity, valve rotor seal condition, and transfer line cleanliness; annual calibration of temperature sensors against NIST-traceable reference standards.

Does it support unattended overnight operation?
Yes—fully programmable sequences allow up to 12 consecutive injections with customizable inter-sample cooling delays and auto-shutdown upon completion.

Is method validation documentation provided?
Factory test reports include temperature uniformity mapping, loop volume verification (±2% tolerance), and carryover testing data (≤0.05% for benzene at 100 ppb); full IQ/OQ protocol templates are available upon request.
