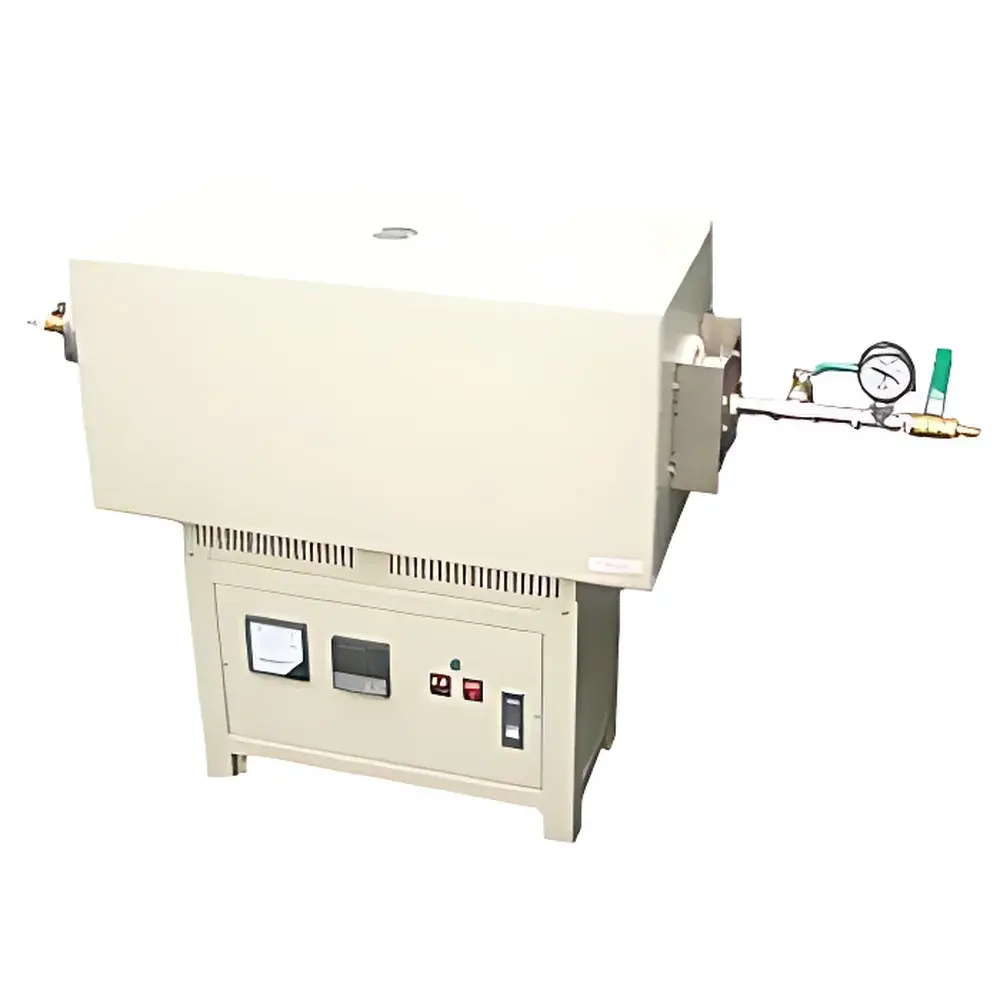

Zhuochi SK-4-10-8 Programmable Vacuum Tube Furnace

Overview

The Zhuochi SK-4-10-8 is a programmable vacuum tube furnace engineered for precise thermal processing under controlled atmospheric conditions. Designed around a high-purity fused quartz tube (Ø80 × 910 mm), the furnace supports both vacuum operation and inert or reactive gas environments—enabling applications such as annealing, sintering, calcination, reduction, and CVD precursor decomposition. Its core architecture integrates a low-heat-capacity ceramic fiber insulation chamber (Ø80 × 680 mm usable zone), high-emissivity resistance heating elements, and K-type thermocouple-based feedback control. The system operates within a temperature range of 100–1000 °C, achieving thermal stability with ±1 °C accuracy in steady-state conditions and 1 °C digital display resolution. Unlike conventional muffle furnaces, this tube configuration ensures uniform axial temperature distribution across a 580 mm heated length, minimizing thermal gradients critical for reproducible material synthesis and phase transformation studies.

Key Features

• High-integrity vacuum and gas-atmosphere compatibility: Equipped with stainless steel flanges, dual-gas inlet valves, single exhaust valve, analog vacuum gauge, and high-temperature silicone sealant—capable of sustaining ≤10⁻² mbar vacuum or regulated gas flow (N₂, Ar, H₂, forming gas) with optional mass flow controller integration.
• LTDE-based 30-stage programmable controller: Enables full ramp-soak-hold profiles with user-defined heating/cooling rates (adjustable from <1 °C/min up to 50 °C/min), timed start/stop functions, and automatic power cutoff upon completion.
• Dual-layer thermal protection: Primary PID+SSR regulation is backed by an independent secondary overtemperature cut-off circuit—compliant with IEC 61000-4-5 surge immunity and EN 60519-1 electrical safety standards for laboratory heating equipment.
• Energy-optimized construction: Ultra-lightweight ceramic fiber insulation (density <200 kg/m³) reduces thermal inertia and standby losses; combined with optimized coil geometry, enables reaching 1000 °C in ≤20 minutes at rated 6 kW input.
• Integrated mechanical design: Controller mounted beneath the furnace base; pre-wired electrical connections; powder-coated cold-rolled steel housing (computer gray finish); robust angle-steel frame supporting full 40 kg operational load.

Sample Compatibility & Compliance

The SK-4-10-8 accommodates cylindrical samples up to Ø75 mm × 600 mm in length, compatible with crucibles (alumina, quartz, graphite), catalyst beds, thin-film substrates, and powder compacts. Its quartz tube meets ASTM F798 specifications for optical-grade fused silica, ensuring minimal alkali leaching and UV transparency for in-situ observation setups. The furnace complies with general-purpose lab equipment requirements per ISO/IEC 17025:2017 for calibration traceability (when paired with NIST-traceable thermocouples), and supports GLP documentation workflows through time-stamped profile logging. While not certified for Class I Div 1 hazardous locations, it includes grounding terminals and IP20-rated enclosure protection suitable for standard university and industrial R&D laboratories.

Software & Data Management

The LTDE controller provides local data recording via built-in non-volatile memory (retains ≥1000 hours of temperature/time logs). Optional RS485 Modbus RTU interface allows connection to SCADA systems or custom LabVIEW/Python acquisition scripts for real-time monitoring and automated report generation. All programmed profiles support export/import via USB memory stick (FAT32 format), facilitating method transfer between instruments. Audit trails—including operator ID entry, parameter modification timestamps, and emergency shutdown events—are retained for regulatory review. The system adheres to FDA 21 CFR Part 11 principles when used with validated third-party software for electronic signatures and data integrity assurance.

Applications

• Materials science: Solid-state synthesis of oxides, phosphors, and battery cathode precursors (e.g., LiCoO₂, NMC) under controlled O₂ partial pressure.
• Nanotechnology: Thermal annealing of CNTs, graphene oxide, and metal–organic frameworks (MOFs) without carbon contamination.
• Catalysis research: Pretreatment of supported metal catalysts (Pt/Al₂O₃, Ni/SiO₂) under reducing atmospheres prior to TPR/TPO analysis.
• Electronics: Diffusion doping of semiconductor wafers and glass-to-metal sealing process development.
• Geochemistry: Simulated metamorphic reactions using sealed quartz capsules under argon blanket.

FAQ

What vacuum level can the SK-4-10-8 achieve with standard configuration?
With the included mechanical vacuum gauge and stainless steel flange assembly, the furnace typically achieves 10⁻² mbar using a two-stage rotary vane pump. For higher vacuum (<10⁻⁴ mbar), a diffusion or turbomolecular pump with appropriate foreline trap is required.
Is the quartz tube replaceable, and what is its expected service life?
Yes—the Ø80 × 910 mm high-purity quartz tube is a field-replaceable component. Under continuous operation at ≤950 °C with proper thermal cycling (≤5 °C/s ramp rate), typical lifespan exceeds 1,200 hours. Rapid quenching or exposure to alkali vapors significantly reduces longevity.
Can the furnace be operated in air without vacuum or gas flow?
Yes—standard operation includes ambient air mode. However, prolonged use above 800 °C in air accelerates oxidation of heating elements; inert gas purging is recommended for extended service life.
Does the controller support Ethernet or Wi-Fi connectivity?
No—the LTDE unit features only RS485 Modbus RTU output. Ethernet/Wi-Fi functionality requires external protocol converters or integration with PLC-based supervisory systems.
What maintenance is required for long-term reliability?
Monthly inspection of flange gasket integrity, biannual verification of thermocouple calibration against reference standard, and annual cleaning of internal fiber insulation dust using low-pressure nitrogen—per manufacturer’s maintenance log template (provided in English).
