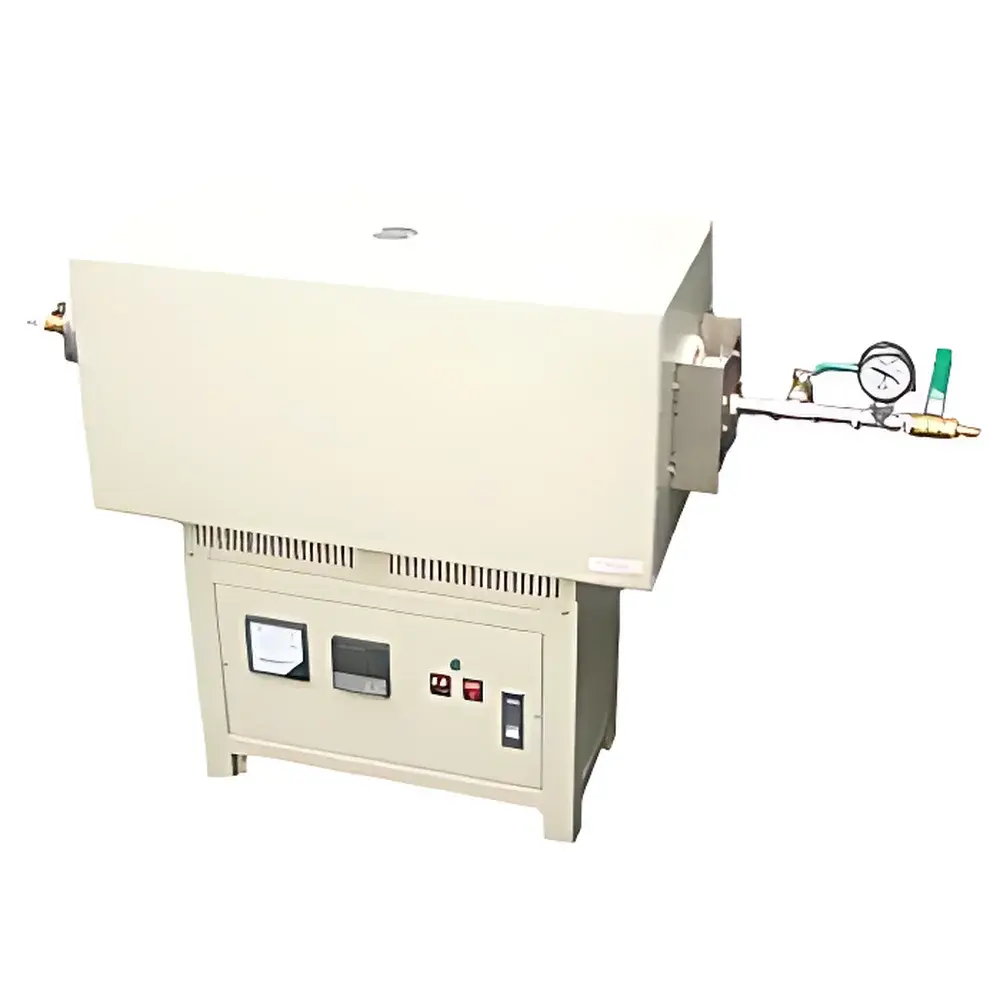

Zhuochi SK3-2-10-4 Energy-Efficient Programmable Vacuum Tube Furnace

Overview

The Zhuochi SK3-2-10-4 is a laboratory-grade programmable vacuum tube furnace engineered for precise thermal processing under controlled atmospheric conditions. It operates on the principle of resistive heating via high-purity alloy heating elements housed within a low-thermal-mass insulation chamber, enabling rapid and repeatable temperature ramping from ambient to 1000 °C. The furnace integrates a sealed quartz or alumina tube assembly—rated for continuous operation at up to 1000 °C (quartz) or 1300 °C (alumina)—and supports both vacuum and inert gas environments. Its core architecture prioritizes energy efficiency through ultra-lightweight refractory insulation and optimized thermal zoning, reducing standby losses and improving thermal uniformity across the hot zone. Designed for research-scale synthesis, annealing, sintering, and CVD precursor decomposition, this furnace meets fundamental requirements for reproducible heat treatment in materials science, nanotechnology, and solid-state chemistry laboratories.

Key Features

• Programmable LTDE temperature controller with multi-segment ramp/soak capability: users can define up to 30 independent heating/cooling steps, including timed start-up, hold periods, and automatic shutdown.
• Adjustable heating rate: programmable ramp time from ambient to 1000 °C ranges from 15 to 999 minutes, supporting both rapid thermal processing and slow crystallization protocols.
• Vacuum-compatible dual-flange design: includes a stainless steel vacuum flange, analog vacuum gauge (0–760 Torr), precision needle inlet valve, and high-temperature silicone-free sealing compound rated to 1200 °C.
• Low-thermal-inertia chamber: constructed using ultra-lightweight ceramic fiber insulation with minimized heat storage, resulting in improved energy efficiency and faster cooldown cycles.
• Dual-tube configuration: standard fused quartz tube (Ø40 × 600 mm) supplied with O-ring–sealed end caps; optional alumina tube available for higher-temperature or corrosive-atmosphere applications.
• Integrated safety architecture: over-temperature protection (independent limit controller), door-open interlock, and grounded chassis compliant with IEC 61000-6-3 EMC standards.

Sample Compatibility & Compliance

The SK3-2-10-4 accommodates cylindrical samples up to Ø38 mm in diameter and 400 mm in length within its usable hot zone. Compatible sample forms include powders, pellets, thin films on substrates, wires, and pre-synthesized nanomaterials. The quartz tube enables optical access for in situ observation or laser-assisted processing where applicable. For regulatory alignment, the furnace’s operational repeatability supports GLP-compliant thermal validation when paired with external calibrated thermocouples (Type K or S). While not certified to UL or CE as a complete system, its electrical components conform to IEC 60335-1 general safety requirements for laboratory heating equipment. Vacuum integrity has been verified to ≤5 × 10⁻² mbar using standard two-stage rotary vane pumps—sufficient for most oxide reduction, carbonization, and low-pressure reaction studies.

Software & Data Management

The LTDE controller features an RS485 serial interface (Modbus RTU protocol) for integration into centralized lab automation systems. Optional PC software (Zhuochi FurnaceLink™) enables real-time temperature logging, profile upload/download, and CSV export of time–temperature–power datasets. All setpoints, ramp rates, and hold durations are stored non-volatilely with timestamped event logging—including power interruptions and manual overrides—to support audit readiness per FDA 21 CFR Part 11 guidelines when used in regulated QC environments. No cloud connectivity or proprietary drivers are required; communication is native to LabVIEW, MATLAB, and Python-based control frameworks via standard Modbus libraries.

Applications

• Controlled-atmosphere annealing of transition metal oxides and battery cathode precursors (e.g., LiCoO₂, NMC).
• Pyrolysis and carbonization of polymer-derived ceramics and MOF templates under nitrogen or argon.
• Thermal reduction of metal oxides (e.g., CuO → Cu, Fe₂O₃ → Fe) under vacuum or forming gas.
• Preparation of doped semiconductor nanowires via vapor–liquid–solid (VLS) growth using volatile precursors.
• Calibration and aging studies of thermoelectric materials requiring stable, gradient-minimized thermal fields.
• Small-batch sintering of transparent ceramics (e.g., YAG, spinel) where quartz tube transparency allows visual process monitoring.

FAQ

What tube materials are compatible with the SK3-2-10-4, and what are their maximum service temperatures?
Standard configuration includes a fused quartz tube rated for continuous use up to 1000 °C. Alumina (Al₂O₃) tubes are available as an option and sustain temperatures up to 1300 °C in oxidizing or inert atmospheres.
Can the furnace be operated under dynamic gas flow conditions?
Yes—the inlet valve supports regulated gas introduction; optional mass flow controllers (MFCs) may be integrated externally via standard 1/4″ Swagelok fittings.
Is the LTDE controller validated for GxP environments?
The controller supports 21 CFR Part 11–compliant data traceability when used with Zhuochi FurnaceLink™ and appropriate user access controls; however, formal IQ/OQ documentation must be performed by the end user per internal SOPs.
What is the typical temperature uniformity across the 400 mm hot zone at 1000 °C?
Measured uniformity is ±5 °C over the central 200 mm segment under static vacuum conditions; uniformity degrades to ±12 °C near tube ends due to axial conduction effects.
Does the furnace include a vacuum pump?
No—vacuum pumping is provided externally; the unit is compatible with standard two-stage oil-sealed rotary vane pumps or dry scroll pumps rated for ≤1 × 10⁻² mbar base pressure.
