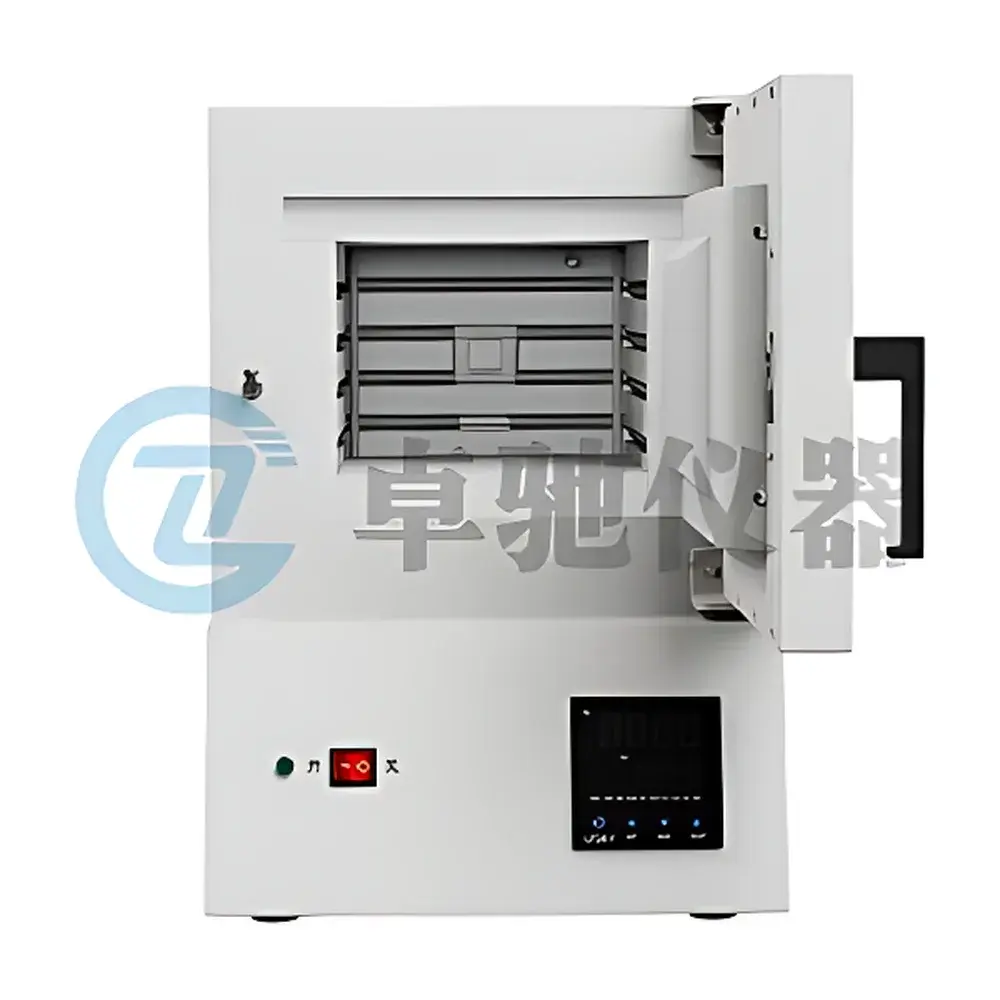

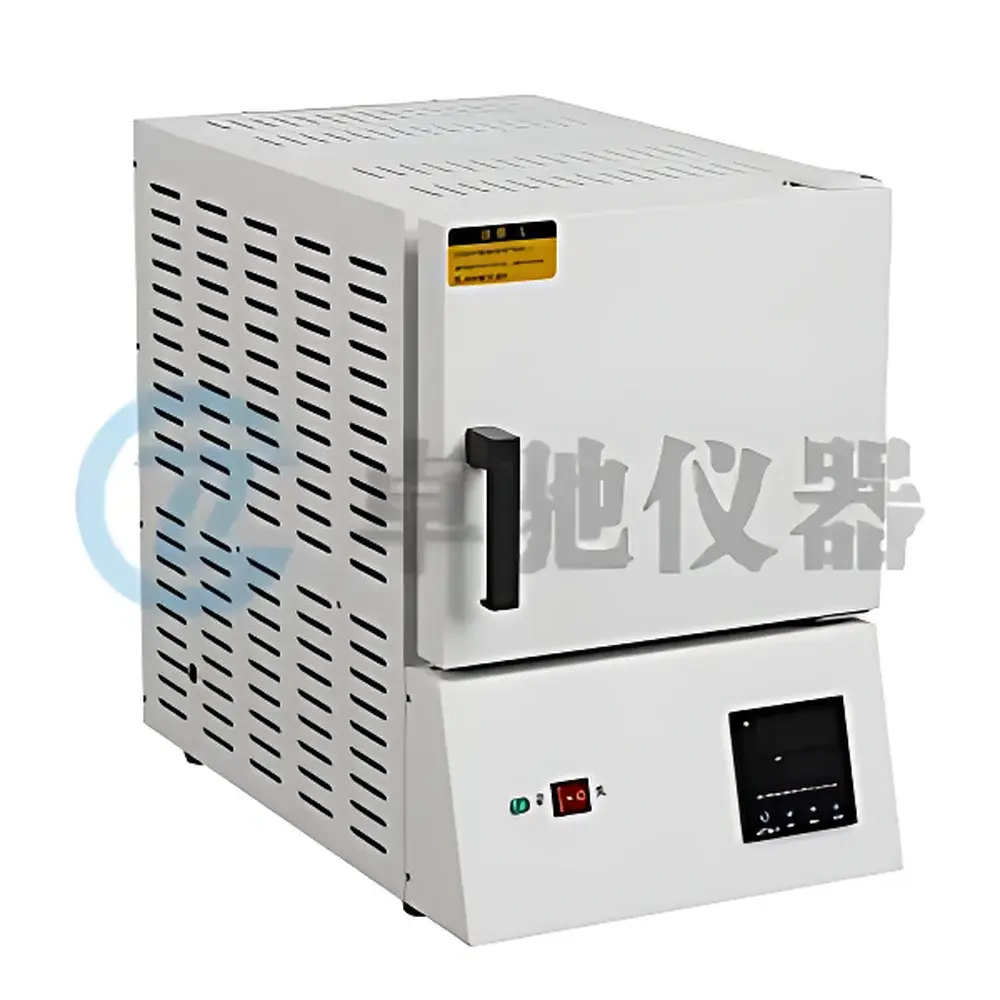

Zhuochi SX3-3-10 Ceramic Fiber Muffle Furnace

Overview

The Zhuochi SX3-3-10 Ceramic Fiber Muffle Furnace is a precision-engineered box-type laboratory furnace designed for controlled high-temperature thermal processing in research, quality control, and industrial testing environments. Operating on the principle of resistive heating via high-stability resistance wire elements, the furnace delivers uniform thermal distribution across its insulated chamber—enabling consistent ashing, calcination, sintering, heat treatment, and gravimetric analysis protocols. Its core architecture integrates lightweight ceramic fiber insulation with a robust cold-rolled steel outer shell treated with phosphate conversion coating and electrostatic powder coating (computer gray finish), ensuring long-term dimensional stability, corrosion resistance, and thermal efficiency. Unlike traditional refractory-brick furnaces, the SX3-3-10 achieves rapid thermal response and minimal thermal mass—reducing energy consumption by up to 40% compared to conventional designs while maintaining ISO/IEC 17025-compatible temperature stability.

Key Features

• Ultra-lightweight construction: Total unit mass ≈32 kg—70% lighter than equivalent brick-lined muffle furnaces, facilitating lab repositioning and benchtop integration.
• Ceramic fiber chamber: Six-sided modular ultra-low-density fiber board (density <200 kg/m³) provides exceptional thermal shock resistance, low heat storage, and rapid cooling rates—critical for iterative thermal cycling experiments.
• LTDE intelligent controller: 30-segment programmable temperature profile capability with ramp-soak-hold functionality; supports user-defined heating curves, automatic hold timing, and scheduled shutdown.
• PID + SSR control architecture: Dual-loop regulation ensures stable setpoint maintenance within ±1 °C at 1000 °C, with real-time compensation for ambient drift and load variation.
• Dual-stage overtemperature protection: Independent mechanical and electronic safety cutoffs activate at preset thresholds—meeting IEC 61000-4-2 immunity requirements and supporting GLP-compliant operation.
• Pre-wired integrated design: All electrical connections between controller and heating elements are factory-completed; no field wiring or calibration required—power-on readiness within minutes of unpacking.

Sample Compatibility & Compliance

The SX3-3-10 accommodates standard crucibles (alumina, quartz, platinum), ceramic boats, and metal sample holders within its 300 × 200 × 150 mm working chamber. Its muffle configuration isolates samples from direct flame or combustion gases, making it suitable for ASTM E167–22 (ash content determination), ISO 1171 (determination of ash in coal and coke), and USP <281> (residue on ignition). The furnace complies with CE marking directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive), and its controller architecture supports audit-trail-ready operation when paired with external data loggers compliant with FDA 21 CFR Part 11 requirements.

Software & Data Management

While the LTDE controller operates as a standalone embedded system, its RS485 communication interface (optional adapter) enables integration with LabVIEW, MATLAB, or custom SCADA platforms via Modbus RTU protocol. Temperature profiles, soak durations, and event logs—including overtemperature alarms and power interruptions—can be exported as CSV files for traceability. Firmware updates are performed via USB port on the controller panel, preserving configuration integrity during version upgrades. For regulated environments, optional validation documentation packages (DQ/IQ/OQ templates) are available upon request to support GMP/GLP qualification workflows.

Applications

• Thermal gravimetric analysis (TGA) pre-conditioning and residue quantification
• Ash content determination in food, pharmaceuticals, polymers, and environmental samples
• Calcination of catalyst precursors and ceramic powders
• Heat treatment of metallurgical specimens prior to microstructural analysis
• Ignition loss testing per ASTM D2866 and ISO 1171 standards
• Pre-drying and annealing of sensor substrates and thin-film coatings

FAQ

What is the maximum recommended continuous operating temperature?
The SX3-3-10 is rated for continuous operation at 1000 °C. Extended use above 950 °C requires periodic verification of thermocouple calibration and fiber integrity.
Can the furnace be used under inert or reducing atmospheres?
No—the unit is not gas-tight and lacks purge ports or atmosphere control hardware. It is strictly intended for ambient-air operation.
Is the controller compatible with LIMS or ELN systems?
Yes, via optional RS485-to-Ethernet gateway modules that support OPC UA and MQTT protocols for seamless lab informatics integration.
How often does the thermocouple require recalibration?
Annual calibration against NIST-traceable reference standards is recommended for ISO/IEC 17025 compliance; more frequent checks may be necessary in high-throughput QC labs.
Does the furnace meet safety standards for unattended overnight operation?
When configured with enabled dual overtemperature protection and verified grounding, it satisfies UL 61010-1 Clause 10.3 for supervised unattended operation—though institutional policies may impose additional procedural controls.
