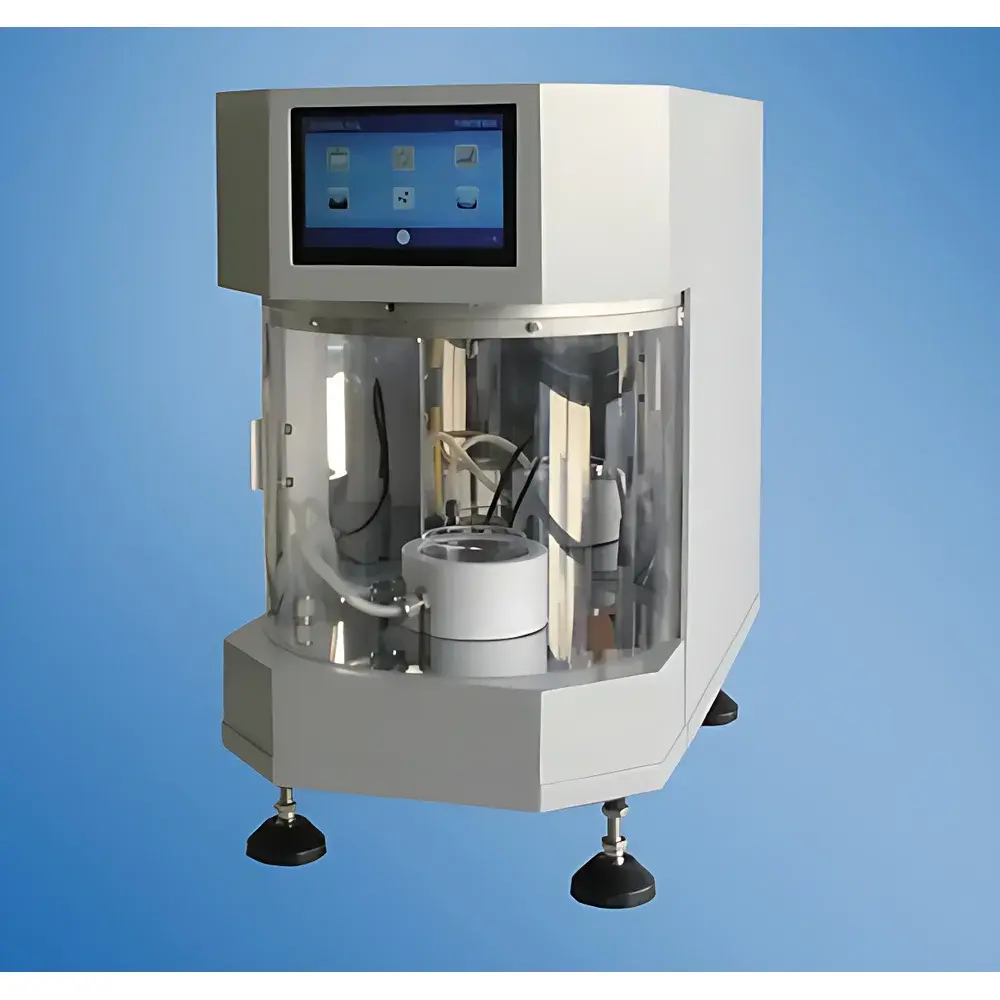

ZYKX JK99M Touchscreen Fully Automated Surface & Interfacial Tensiometer

Overview

The ZYKX JK99M Touchscreen Fully Automated Surface & Interfacial Tensiometer is an engineered solution for precise, reproducible quantification of surface tension (liquid–air) and interfacial tension (liquid–liquid) based on the fundamental principles of Wilhelmy plate and Du Noüy ring methodologies. It operates under controlled mechanical equilibrium conditions—measuring the force exerted on a vertically immersed platinum probe as it interacts with the liquid interface. The instrument leverages high-resolution electromagnetic force transduction (METTLER precision sensor, 0.001 mN/m resolution) coupled with closed-loop stepper motor control to ensure nanoscale vertical positioning accuracy (0.1 µm). Designed for routine QC laboratories and R&D environments in petrochemicals, coatings, agrochemicals, and pharmaceutical formulation, the JK99M delivers traceable, standards-aligned measurements compliant with SY/T 5370–1999—a Chinese industry standard harmonized with ISO 6295 and ASTM D971 for interfacial tension determination. Its dual-method architecture enables method-specific optimization: the Wilhelmy plate method provides rapid (<5 s), low-hysteresis measurement ideal for viscous systems (e.g., heavy crude oils, polymer solutions), while the Du Noüy ring method supports rigorous equilibrium assessment of dynamic surfactant adsorption kinetics.

Key Features

• Fully integrated touchscreen interface with embedded Windows-based OS—enabling standalone operation without external PC dependency
• Robust all-metal chassis with vibration-damped platform and servo-controlled stepper drive system for ultra-stable vertical translation (0.1–500 mm/min, 0.1 µm repeatability)
• Dual-probe compatibility: certified platinum ring and Wilhelmy plate—both validated for liquid–liquid interfacial tension per ISO 1409
• Hardware- and software-initiated auto-zero functionality with programmable interval calibration cycles
• Integrated magnetic stirrer for homogeneous sample conditioning during CMC or aging studies
• Modular expansion architecture supporting optional modules: CMC auto-degassing unit, density measurement kit (liquid/solid), dynamic contact angle stage, fiber/powder wettability module, and adhesion force quantification
• Onboard thermal sensing (±0.01 °C) with provision for external Peltier or recirculating bath integration via standardized mounting interface
• Thermal mass-compensated force transducer with factory-traceable calibration weights included
• Real-time curve logging at user-selectable acquisition rates (0.1 Hz standard, 0.02 Hz optional) with timestamped export to CSV or proprietary binary format

Sample Compatibility & Compliance

The JK99M accommodates a broad spectrum of Newtonian and non-Newtonian fluids—from low-viscosity solvents (e.g., ethanol, hexane) to high-viscosity media (bitumen emulsions, ink vehicles, silicone oils). Its Wilhelmy plate configuration extends reliable measurement capability into kinematic viscosities up to 10⁴ cSt, mitigating drainage artifacts common in ring-based methods. All measurements adhere to documented procedures aligned with SY/T 5370–1999, which specifies sample conditioning, immersion depth, detachment velocity, and environmental controls (temperature, humidity). Optional compliance extensions include GLP audit trail logging (user ID, timestamp, method parameters, raw force data), electronic signature support, and 21 CFR Part 11–ready configuration upon software license activation. Instrument validation documentation—including IQ/OQ protocols, uncertainty budget templates, and metrological traceability statements—is provided with each unit.

Software & Data Management

The bundled ZYKX TensiSoft v4.x suite runs natively on Windows 10/11 (64-bit) and supports both local touchscreen interaction and remote PC control via RS232 or USB-to-serial interface. Core functions include automated method sequencing (e.g., time-resolved surface aging from 15 ms to 16 s), real-time derivative analysis (dγ/dt), CMC calculation using conductivity or surface tension inflection detection, and automatic correction for buoyancy, meniscus height, and temperature-dependent density. Data files store raw sensor output, processed tension values, metadata (operator, date, ambient conditions), and full audit logs. Export formats include CSV (for Excel/Origin), PDF reports with embedded graphs, and XML for LIMS integration. Software updates are delivered via secure HTTPS portal with version-controlled release notes and change history.

Applications

• Enhanced oil recovery (EOR): Screening of surfactant–co-solvent–brine systems for ultra-low IFT (<0.01 mN/m) targeting tertiary flood efficiency
• Formulation science: Critical micelle concentration (CMC) profiling of anionic/nonionic surfactants in detergent and personal care products
• Coatings & inks: Wetting behavior assessment of pigment dispersions on substrate surfaces via dynamic contact angle correlation
• Pharmaceutical development: Surfactant-mediated solubilization studies and emulsion stability prediction using interfacial rheology proxies
• Agricultural chemistry: Adjuvant performance evaluation through spreading coefficient and penetration kinetics modeling
• Materials science: Surface energy estimation of functionalized fibers and porous powders using sessile drop-derived contact angles

FAQ

What standards does the JK99M comply with?
It conforms to SY/T 5370–1999 and is functionally equivalent to ISO 6295 (ring method) and ISO 1409 (plate method) for surface and interfacial tension determination.
Can the JK99M measure interfacial tension between two immiscible liquids?
Yes—both platinum ring and Wilhelmy plate configurations are validated for liquid–liquid IFT measurement across density-matched and mismatched systems.
Is temperature control built-in or external?
The base unit includes a stainless-steel thermostatic jacket interface; external circulation baths (e.g., Julabo, Huber) or Peltier stages are supported via optional mounting kits.
Does the system support Good Laboratory Practice (GLP) requirements?
With optional audit trail and electronic signature modules enabled, the software meets core GLP data integrity criteria including ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate).
How is calibration performed?
Factory-supplied stainless-steel calibration weights (10 mg, 100 mg, 500 mg) enable full-range sensor verification; software-guided routines document calibration events with operator ID and timestamp.
