BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeOEM Manufacturer
Country of OriginChina
ModelIN-Pheno200
PriceUSD 138,000 (FOB)
Plant Height Range300–1000 mm
Plant Width Range100–500 mm
Fresh Weight Capacity100–75,000 g
Spectral Range400–1000 nm
Spectral Resolution< 2.5 nm
Spectral Bands1200 channels
Illumination SourceLow-flicker, high-CRI halogen lamp array
Enclosure Dimensions1500 × 830 × 2140 mm (L × W × H)
Imaging Sensor12 MP monochrome & RGB CMOS
3D Reconstruction MethodMulti-view photogrammetry with AI-optimized feature matching
Data Output Formats.spe, .json (analysis_result.json), .ply (3D mesh), .mp4 (model animation), CSV/Excel (phenotypic metrics)
Software PlatformWindows 10/11 (64-bit), Intel Core i5 or higher, NVIDIA GPU ≥ 8 GB VRAM, RAM ≥ 8 GB
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
ModelIN*NDVI
Sensor Resolution5 MP (RGB), 8 MP (NIR)
Spectral BandsRed (650 nm ±5 nm), NIR (850 nm ±5 nm)
FOV80° (RGB & NIR), 180° (Fisheye Canopy Lens)
Display8-inch 700-nit outdoor-readable touchscreen
Battery Life~7 hours (5550 mAh Li-ion)
Operating Temp−20 °C to +60 °C
Humidity Range0–95% RH (non-condensing)
Weight3.0 kg
Dimensions~140 cm (extended length)
OSAndroid 12
Onboard Storage256 GB SSD
RAM16 GB
ConnectivityGPS/Beidou, 4G LTE, Wi-Fi 5, Bluetooth 5.0
Data ExportCSV, Excel, GeoTIFF, Pseudocolor PNG, RAW multispectral images
ComplianceSupports GLP-aligned field data capture with timestamped metadata, georeferenced logging, and audit-ready export logs
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer

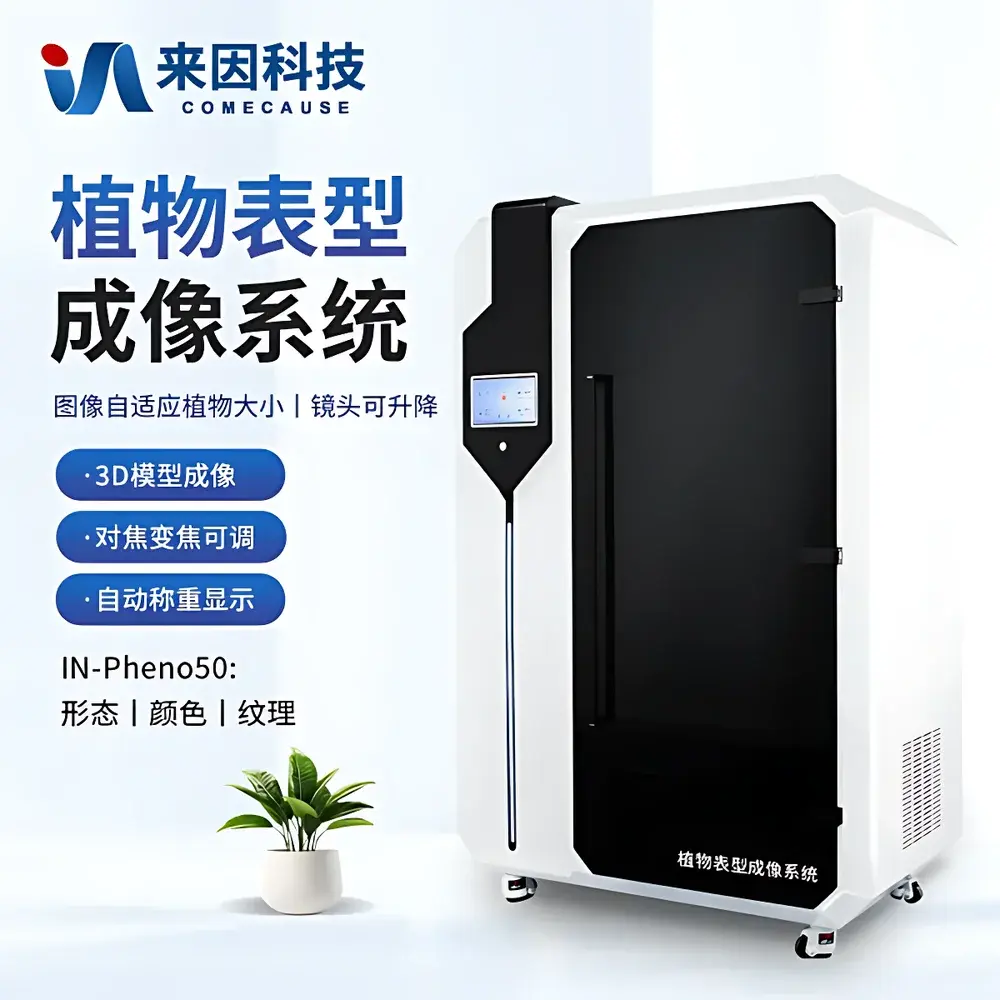

ModelIN-Pheno50
Max Plant Height300–1000 mm
Max Plant Width100–500 mm
Max Fresh Weight100–75,000 g
Enclosure Dimensions1400 × 830 × 2140 mm (L×W×H)
Camera ResolutionUp to 12 MP
Imaging ModalitiesTop, Side-Above, Side-Below Visible-Light Multi-View Acquisition
3D Reconstruction MethodAI-Enhanced Multi-View Stereo (MVS) with Dynamic Pose Estimation
Environmental SensorsIntegrated Temperature & Relative Humidity Monitoring
Control Interface10-inch External Touchscreen + PC Software (Windows 10/11, Intel i5+, 8 GB RAM, NVIDIA GPU ≥ 8 GB VRAM)
Data Output2D/3D Morphological, Colorimetric (RGB, CIELab D65/2°, HSV, Grayscale), and Textural Parameters (GLCM-based: ASM, Contrast, Correlation, Entropy, Homogeneity, etc.), SSIM, Skeleton Metrics, Convex Hull & Projection Area Ratios
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
ModelIN-VistaFruit
Weight Capacity40–4000 g
Fruit Diameter Range30–300 mm
3D Reconstruction Time (typ.)~20 min per fruit (dependent on GPU performance, e.g., RTX 4060 Ti)
Integrated ScaleYes
Software LanguageEnglish & Chinese (toggleable)
Dimensions (W×D×H)1006 × 506 × 718 mm
Net Weight62 kg
System ConfigurationIntel Core i5-14400F, 16 GB RAM, 1 TB SSD, NVIDIA RTX 4060 Ti 8 GB, 27″ 2K Monitor
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelIN-ZG02
Measuring Range5–260 cm
Accuracy±1 mm
Measurement PrincipleIntegrated Optical Time-of-Flight (ToF) Distance Sensing
Housing MaterialAerospace-Grade Aluminum Alloy
Operating SystemAndroid-based Embedded Platform
Battery Life>10 hours continuous operation
Onboard Storage128 GB internal flash memory
ConnectivityWi-Fi 5 / 4G LTE
Data Export FormatCSV, Excel (.xlsx), Geo-tagged JPEG
Language SupportEnglish & Chinese (switchable)
Max Wireless Control Distance10 m
Minimum Detectable Height0.05 m
Target Crop StagesSeedling, Jointing, Heading, Grain Filling
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelIN-LeafClear
Camera Resolution1608 × 1104 pixels
Pixel Size9 µm × 9 µm
Frame Rate100 fps
Bit Depth12-bit
InterfaceUSB 3.0
Lens Focal Length12 mm
Maximum ApertureF/2.8 (adjustable)
Horizontal FOV62.11°
Vertical FOV44.83°
Max Imaging Area50 cm × 35 cm
Excitation Wavelength450 nm (blue LED)
Actinic Light630 nm (red LED)
Far-Red Light730 nm
LED Intensity Range1–100% (up to 1440 µmol·m⁻²·s⁻¹)
OJIP Duration0.1–1.0 s (default 1 s)
PAM Dark Adaptation0–3600 s
PAM Saturation Pulse Intensity15–100% (450 nm)
Minimum Sampling Interval10 ms (OJIP), 100 ms (PAM)
Fluorescence Dynamic Range0–4095 (12-bit)
SNR>100:1
Repeatability (CV)<3%
Linearity (R²)>0.999
Spatial Resolution~0.3 mm/pixel (at 50 cm × 35 cm field)
Fv/Fm Accuracy±0.005
ΦPSII Accuracy±0.01
NPQ Accuracy±0.1
PIABS Accuracy±0.05
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
ModelIN-XM01
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Camera Resolution4000×3000 (dual-sensor: 50 MP + 12 MP)
Panicle Counting Accuracy≤ ±3%
Live-Field Panicle Detection Error±1%
Sample-Based Morphometric Error±1%
Adjustable Calibration Pole Height Range610–1120 mm & 1010–1920 mm
Measurement Speed<3 sec/image
Data Export FormatExcel (.xlsx) with GPS metadata, timestamp, and image linkage
Cloud SyncWi-Fi/4G-enabled
Operating SystemAndroid-based embedded UI with bilingual (EN/CN) toggle
Onboard Storage256 GB SSD
Field DeploymentNo light shielding required
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeOriginal Equipment Manufacturer (OEM)
ModelIN-Pheno200
Spectral Range400–1000 nm
Spectral Resolution<2.5 nm
Number of Spectral Bands1200
Spatial ImagingTop, Side-Top & Side-Bottom Visible RGB Units + Side-Bottom Hyperspectral Unit
Plant Height Capacity300–1000 mm
Plant Width Capacity100–500 mm
Fresh Weight Range100–75,000 g
Enclosure Dimensions1500 × 830 × 2140 mm (L×W×H)
Light SourceLow-flicker, High-CRI Halogen Illumination
Camera ResolutionUp to 12 MP (RGB), Hyperspectral Frame Rate: 40 s per plant
Data Output Formats.spe, .json, .tiff, .mp4, CSV
Software PlatformWindows-based with NVIDIA GPU acceleration (≥8 GB VRAM), ≥8 GB RAM, Intel i5 or higher
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Product CategoryDomestic
ModelIN-XM05
PriceUSD 5,200 (FOB)
Field-of-View Coverage1000 mm × 1000 mm × (610–1920) mm
穗数 Measurement Accuracy≤ ±3%
Spike Length Accuracy±1%
Spikelet Count Error≤ ±3 units
Leaf-Stem Angle Range0–180°
Angle Accuracy±1°
Stem Diameter Range0–8 cm
Diameter Accuracy±1 mm
Thousand-Kernel Weight Range0–300 g
TKW Accuracy±2%
Plant Height Range5–260 cm
Height Accuracy±1 mm
Camera Resolution4000 × 3000
Dual-Camera Setup50 MP + 12 MP
AR Display2K-resolution optical see-through AR glasses
On-device OSAndroid
Local Storage128–256 GB
Data Export FormatExcel (.xlsx) with GPS timestamp, image metadata, and phenotypic parameters
Cloud SyncWi-Fi / 4G-enabled automatic upload
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelIN-LeafClear
PriceUSD 67,000 (FOB)
Camera Resolution1608 × 1104 pixels
Pixel Size9 µm × 9 µm
Frame Rate100 fps
Bit Depth12-bit
InterfaceUSB 3.0
Lens Focal Length12 mm
Max Aperturef/2.8 (adjustable)
HFOV62.11°
VFOV44.83°
Max Imaging Area50 cm × 35 cm
Excitation Wavelengths450 nm (blue), 630 nm (red), 730 nm (far-red)
LED Irradiance Range90–1440 µmol/(m²·s)
OJIP Duration0.1–1.0 s (default 1 s)
PAM Dark Adaptation0–3600 s
PAM Light Cycles1–100
Sampling Interval0.1–10.0 s
Minimum OJIP Temporal Resolution10 ms
Minimum PAM Sampling Interval100 ms
Exposure Time100–1000 ms
Fluorescence Dynamic Range0–4095 (12-bit)
SNR>100:1
Repeatability (CV)<3%
Linearity (R²)>0.999
Spatial Resolution~0.3 mm/pixel (at 50 cm × 35 cm FOV)
Fv/Fm Accuracy±0.005
ΦPSII Accuracy±0.01
qP/qN Accuracy±0.02
NPQ Accuracy±0.1
PIABS Accuracy±0.05
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
ModelIN~XM05
Measurement Accuracy±1–3% (varies by module)
Imaging Resolution4000×3000
Camera SystemDual-sensor (50 MP + 12 MP)
Operating SystemAndroid-based embedded UI
Data ExportExcel (.xlsx), GPS-tagged metadata
Cloud IntegrationWi-Fi/4G-enabled automatic upload
Language SupportSwitchable English/Chinese UI
Storage CapacityUp to 256 GB internal
Battery Life>10 hours continuous operation
Field DeploymentPortable, handheld, and tripod-mountable modules
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelIN~Pheno50
PriceUSD 76,500 (FOB Qingdao, ex-works)
Max Plant Height300–1000 mm
Max Plant Width100–500 mm
Max Fresh Weight100–75,000 g
Enclosure Dimensions1400 × 830 × 2140 mm (L×W×H)
Camera ResolutionUp to 12 MP
Display10-inch external touchscreen interface
OS RequirementWindows 10/11, Intel Core i5 or higher, ≥8 GB RAM, NVIDIA GPU with ≥8 GB VRAM
Environmental SensorsIntegrated temperature & humidity monitoring
ComplianceDesigned for GLP-aligned workflows
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelIN~VistaFruit
PriceUSD 12,000 (FOB Qingdao)
Dimensions1006 × 506 × 718 mm (W×D×H)
Weight62 kg
Fruit Diameter Range30–300 mm
Mass Range40–4000 g
ImagingMulti-view synchronized high-resolution RGB capture
3D ReconstructionPoint cloud generation via structure-from-motion + Gaussian Splatting
SoftwareEmbedded Windows-based analysis suite with real-time 2D/3D workflow orchestration
Compute PlatformPre-integrated GeekPro-17 workstation (Intel Core i5-14400F, 16 GB RAM, 1 TB SSD, NVIDIA RTX 4060 Ti 8 GB)
InterfaceDual-language (English/Chinese) GUI with auto-resizing support
Data ExportCSV, JSON, PNG, OBJ, PLY
Cloud SyncDevice-ID-bound encrypted cloud storage with audit-trail metadata
ComplianceDesigned for GLP-aligned data integrity
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Product OriginDomestic (China)
ModelIN-NDVI
PriceUSD 11,800 (approx.)
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelIN-XM04
PriceUSD 4,200 (FOB)
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelIN*VistaFruit
Weight Range40–4000 g
Fruit Diameter Range30–300 mm
Integrated Precision ScaleYes
ImagingMulti-view RGB + Structured Light
3D Reconstruction MethodAI-optimized Gaussian Splatting & Point Cloud Fusion
2D Throughput≤1 sample/min
3D Modeling Time (RTX 4060 Ti, 4-frame input)~20 min/sample
SoftwareDual-language (EN/CN), Cloud Sync Enabled, GLP-compliant Audit Trail, FDA 21 CFR Part 11–ready Export Mode
Dimensions (W×D×H)1006 × 506 × 718 mm
Net Weight62 kg
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeOEM Manufacturer
Country of OriginChina
ModelIN*Pheno200
PriceUSD 76,500 (FOB Qingdao)
Plant Height Range300–1000 mm
Plant Width Range100–500 mm
Fresh Weight Capacity100–75,000 g
Enclosure Dimensions1400 × 830 × 2140 mm (L×W×H)
Camera ResolutionUp to 12 MP
Spectral Acquisition Time40 s per plant
Data Processing Time≤30 s per plant
Operating SystemWindows 10/11 (64-bit)
GPU RequirementNVIDIA GPU with ≥8 GB VRAM
CPU RequirementIntel Core i5 or higher
RAM Requirement≥8 GB
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
ModelIN-VistaFruit
OriginShandong, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
Dimensions (W×D×H)1006 × 506 × 718 mm
Weight62 kg
Integrated Scale Range40–4000 g
Supported Fruit Diameter30–300 mm
3D Reconstruction Time (RTX 4060 Ti, 4-frame input)~20 min per sample
Dual-Mode OperationHigh-throughput 2D analysis (<1 min/sample) + on-demand 3D Gaussian Splatting modeling
SoftwareMultilingual (EN/CN), auto-focus & manual focus control, real-time dual-camera switching, cloud-sync enabled (device-ID bound), GLP-compliant data audit trail (timestamped, user-logged, immutable export)
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
ModelIN_LeafClear
Camera Resolution1608 × 1104
Pixel Size9 µm × 9 µm
Frame Rate100 fps
Bit Depth12-bit
InterfaceUSB 3.0
Lens Focal Length12 mm
Max ApertureF/2.8 (adjustable)
HFOV62.11°
VFOV44.83°
Max Imaging Area50 cm × 35 cm
Excitation Wavelengths450 nm (blue), 630 nm (red), 730 nm (far-red)
LED Intensity Range1–100% (up to 1440 µmol·m⁻²·s⁻¹)
OJIP Acquisition Time0.1–1.0 s (min Δt = 10 ms)
PAM Sampling Interval0.1–10.0 s (min Δt = 100 ms)
Fluorescence Dynamic Range0–4095 (12-bit), SNR > 100:1, Repeatability CV < 3%, Linearity R² > 0.999
Spatial Resolution~0.3 mm/pixel at standard working distance
Parameter AccuracyFv/Fm ±0.005, ΦPSII ±0.01, qP/qN ±0.02, NPQ ±0.1, PIABS ±0.05
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
ModelIN.LeafClear
Camera Resolution1608 × 1104
Pixel Size9 µm × 9 µm
Frame Rate100 fps
Bit Depth12-bit
InterfaceUSB 3.0
Lens Focal Length12 mm
Max ApertureF/2.8 (adjustable)
HFOV62.11°
VFOV44.83°
Max Imaging Area50 cm × 35 cm
Excitation Wavelengths450 nm (blue), 630 nm (red), 730 nm (far-red)
LED Irradiance Range90–1440 µmol/(m²·s)
OJIP Acquisition Duration0.1–1.0 s (10 ms min. interval)
PAM Sampling Interval0.1–10.0 s (100 ms min. interval)
Fluorescence Dynamic Range0–4095 (12-bit), SNR > 100:1
Repeatability (CV)< 3%
Fv/Fm Accuracy±0.005
ΦPSII Accuracy±0.01
Spatial Resolution~0.3 mm/pixel at standard working distance
LED Response Time< 1 ms
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeDirect Manufacturer
ModelIN~XM01
Imaging Resolution4000 × 3000
Dual Camera System50 MP + 12 MP
Field Measurement Error≤ ±3%
Live-Plant Panicle Counting Accuracy±1%
Sample-Based Morphometric Error±1%
Cloud ConnectivityWi-Fi / 4G
Data Export FormatExcel (.xlsx)
On-Device Storage256 GB
DisplayTouchscreen Android OS
Language SupportSwitchable English/Chinese
GPS LoggingIntegrated
Calibration ReferenceAdjustable-height dual-axis calibration bar (1000 × 1000 × [610–1120] mm and 1000 × 1000 × [1010–1920] mm variants)
Application WindowGrain-filling to pre-maturity stage
Compatible OutputsPanicles per Mu (667 m²), theoretical yield, adjusted yield, harvested yield (with user-input grain weight & moisture)
Added to wishlistRemoved from wishlist 0
Add to compare
[BrandCOMECAUSE
ModelIN.Pheno50
OriginShandong, China
Manufacturer TypeOriginal Equipment Manufacturer (OEM)
Country of OriginChina
PriceUSD 76,500 (FOB Qingdao, subject to configuration and shipping terms)
Max Plant Height300–1000 mm
Max Plant Width100–500 mm
Max Fresh Weight Capacity100–75,000 g
Enclosure Dimensions1400 × 830 × 2140 mm (L×W×H)
Camera ResolutionUp to 12 MP
Operating SystemWindows 10/11 (64-bit)
GPU RequirementNVIDIA GPU with ≥8 GB VRAM
CPUIntel Core i5 or higher
RAM≥8 GB DDR4
Environmental SensorsIntegrated temperature & relative humidity monitoring
Touch Interface10-inch industrial touchscreen control panel
Software LanguageEnglish / Chinese toggle]
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeOEM Manufacturer
Country of OriginChina
ModelIN-ZG01
Measuring Range40–300 cm
Accuracy±1 mm
Measurement PrincipleEnclosed Optical Time-of-Flight Distance Sensing
Housing MaterialAnodized Aluminum Alloy
Operating SystemAndroid-based Embedded OS
Battery Life>10 hours continuous operation
Onboard Storage128 GB internal flash memory
Wireless ConnectivityWi-Fi & 4G LTE
Data Export FormatExcel (.xlsx)
Language SupportEnglish / Chinese (toggleable)
Max Working Distance from Sensor Rod10 m
ComplianceCE-marked for portable electronic instrumentation (EN 61326-1), RoHS-compliant
Added to wishlistRemoved from wishlist 0
Add to compare
BrandCOMECAUSE
OriginShandong, China
Manufacturer TypeOriginal Equipment Manufacturer (OEM)
Country of OriginChina
ModelIN~LeafClear
PriceUSD 67,000 (FOB Qingdao)
Camera Resolution1608 × 1104 pixels
Pixel Size9 µm × 9 µm
Frame Rate100 fps
Bit Depth12-bit
InterfaceUSB 3.0
Lens Focal Length12 mm
Maximum Aperturef/2.8 (adjustable)
Horizontal FOV62.11°
Vertical FOV44.83°
Max Imaging Area50 cm × 35 cm
Excitation Wavelength450 nm (blue LED)
Actinic Light630 nm (red LED)
Far-Red Light730 nm
LED Irradiance Range1–100% (up to 1440 µmol·m⁻²·s⁻¹)
OJIP Measurement Duration0.1–1.0 s (default 1 s)
PAM Dark Adaptation0–3600 s
PAM Saturation Pulse Intensity15–100% (450 nm)
Fluorescence Dynamic Range0–4095 (12-bit)
SNR>100:1
Repeatability (CV)<3%
Linearity (R²)>0.999
Minimum Sampling Interval10 ms (OJIP), 100 ms (PAM)
Exposure Time100–1000 ms
Spatial Resolution~0.3 mm/pixel (at 50 cm × 35 cm FOV)
Show next
InstrumentHive
Logo
Compare items
  • Total (0)
Compare
0
