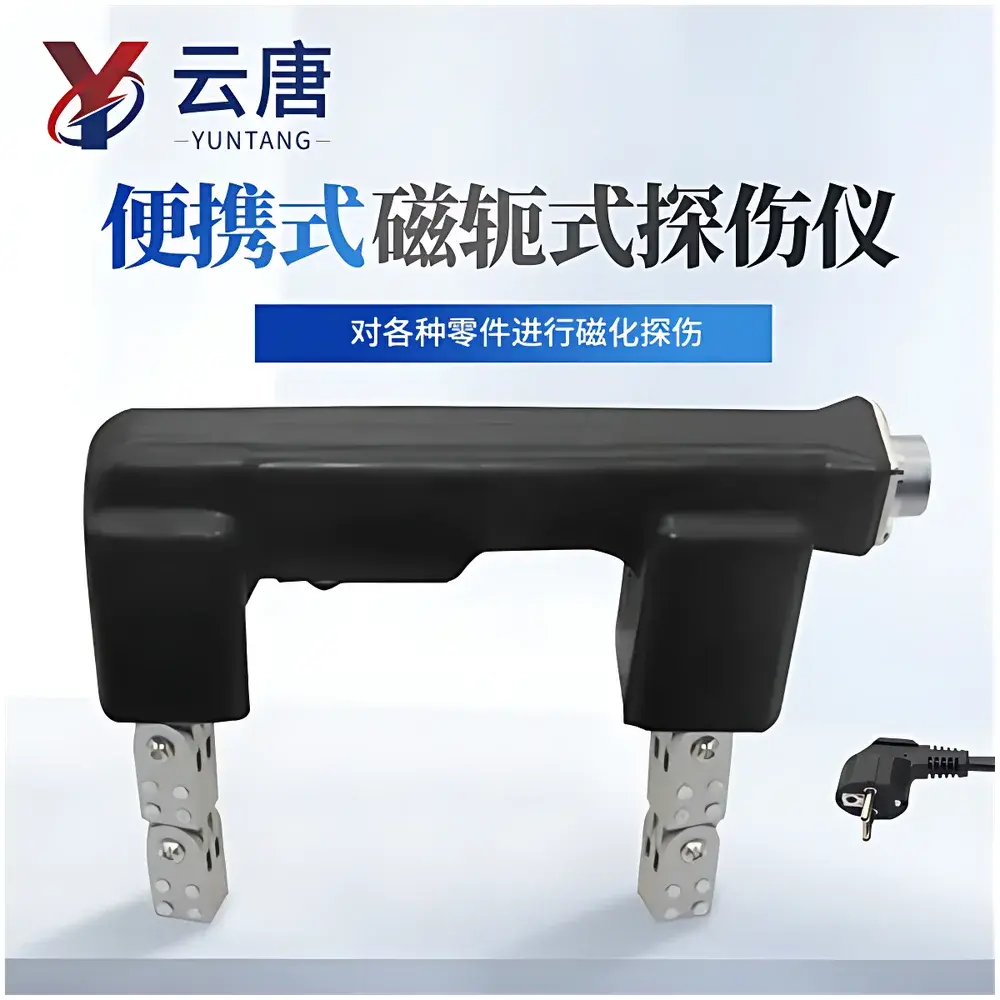

| Brand | Yuntang |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YT-610 |
| Magnetization Modes | AC Circumferential (0–2000 A, continuously adjustable with phase-controlled power-off) |
| Longitudinal Magnetization Force | AC 0–24,000 AT, continuously adjustable with phase-controlled power-off |
| Magnetization Configurations | Circumferential, Longitudinal, or Composite |
| Powder Application Method | Dry Powder |
| Demagnetization Residual Field | ≤0.2 mT |
| Inspection Cycle Time | 6 seconds per component |
| Continuous Operating Duration | >4 hours |
| Structural Design | Hand-Carried Yoke Configuration |
| Primary Application Sector | Rail Transportation Infrastructure |

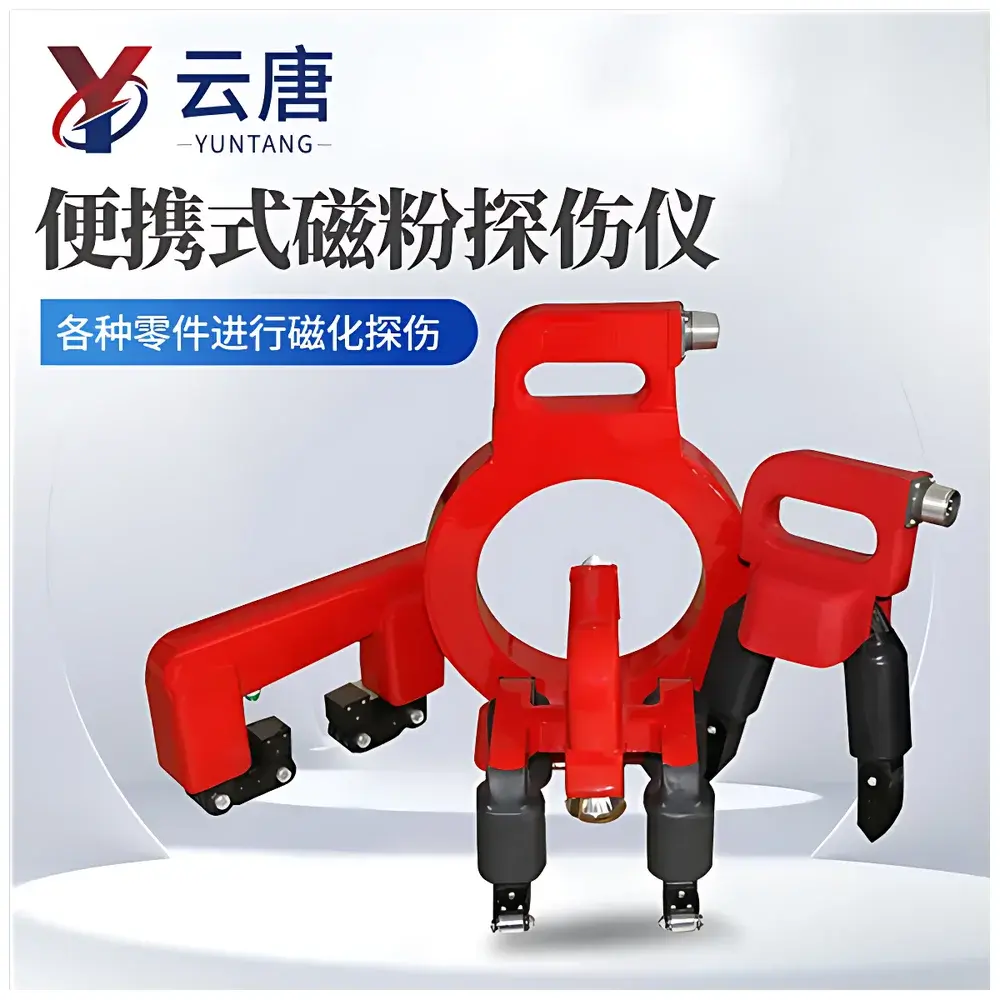

| Brand | Yuntang |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | Domestic (China) |
| Model | YT-610C |
| Magnetization Modes | Circumferential (AC 0–2000 A, phase-controlled cutoff), Longitudinal (AC 0–24,000 AT, phase-controlled cutoff), Composite |
| Inspection Cycle Time | ≤6 s per part |
| Residual Field After Demagnetization | ≤0.2 mT |
| Continuous Operating Duration | >4 h |
| Input Voltage | AC 220 V ±10% |
| Output Voltage | AC 36 V |
| Output Current | >10 A |
| Lifting Force | ≥5 kgf |
| Duty Cycle | 50% |
| Sensitivity | Clear indication of ASTM E1444/E709 A1-30/100 shims |
| Probe Configurations | Electromagnetic Yoke (adjustable pole spacing: 0–250 mm), Horseshoe Probe (0–160 mm), Circular Coil (Φ150 mm, 1800 TA) |
| Dimensions (L×H×W) | 230×160×120 mm |
| Weight | 5 kg |
| Brand | Yuntang |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YT-600A |
| Measurement Range | 2–500 mN/m |
| Accuracy | ±0.4 mN/m |
| Sensitivity | 0.1 mN/m |
| Detection Method | Du Noüy Ring Method |
| Power Supply | AC 220 V ±5%, 50 Hz ±2.5% |
| Power Consumption | 50 W |
| Operating Temperature | 5–40 °C |
| Relative Humidity | ≤85% |
| Temperature Control | PID Auto-Tuning |
| Sample Capacity | 3 positions |
| Display | High-Resolution Color Touchscreen |
| Data Output | Auto-printing & Real-time Dynamic Tension Curve Visualization |
| Calibration | Single-Point Calibration Protocol |
| Brand | Yuntang |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | YT-TCD-101 |
| Temperature Range | Ambient to 1150 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Stability | ±0.1 °C |
| Heating Rate | 1–80 °C/min |
| Cooling Time | 15 min (from 1000 °C to 100 °C) |
| Balance Capacity | 1 mg–2 g (extendable to 30 g) |
| Balance Resolution | 0.1 µg |
| Isothermal Hold Duration | 0–300 min (user-configurable) |
| Atmosphere Control | Dual-gas inlet with mass flow control (inert, oxidizing, reducing, static, dynamic) |
| Data Interface | RS-232 |
| Software | Integrated TGA analysis suite with automated curve recording, baseline correction, derivative (DTG) calculation, kinetic modeling (e.g., Kissinger, Ozawa), and GLP-compliant reporting |
| Power Supply | AC 220 V, 50 Hz |
